Since its LM rail has a wide structure with a low center of gravity, this 4way equal load LM Guide achieves a high Mc moment.

Due to a low center-of-gravity structure with a large rail width and a low overall height, this LM Guide model can be used in places where space saving is required or high rigidity against a moment is required even with a single rail.

As a result of increasing the width of the Roller Guide, the mounting strength and mounting stability are increased.

An ultra-heavy load Roller Guide with a rigidity twice that of our full-ball type LM Guide. It has global standard dimensions and achieves long-term maintenance-free operation.

Models SVR have higher rigidity and load-bearing capacity than other models in the Caged-Ball LMGuide series. In addition, they maintain the performance of LM Guide and achieve high reliability by enhancing the dust-control performance with a wide range of options that take into account the service environments of machine tools and other machinery.

This model is an ultra-heavy type of LM Guide that achieves a deep grooved raceway with its diameter more approximate to the ball diameter than the conventional type and has high rigidity, vibration and shock resistance, and damping characteristics, which are required for machine tools. As a result, it is optimal for receiving a radial load in particular.

This model is an ultra-heavy type of LM Guide that achieves a deep grooved raceway with its diameter more approximate to the ball diameter than the conventional type and has high rigidity, vibration and shock resistance, and damping characteristics, which are required for machine tools.

Models SVS have higher rigidity and load-bearing capacity than other models in the Caged-Ball LMGuide series. In addition, they maintain the performance of LM Guide and achieve high reliability by enhancing the dust-control performance with a wide range of options that take into account the service environments of machine tools and other machinery.

The main dimensions are the same as that of model RA. Since the outer ring also has high rigidity due to a single-split structure, this model can be used also for outer ring rotation.

This model is a compact type of model RB with extremely thin outer and inner rings. It is optimal for areas where the swiveling unit needs to be light and small.

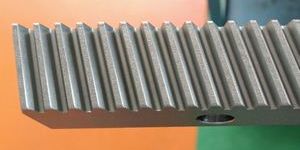

The helix angle of a helical rack is set at 19 degrees 31’42” by many rack manufacturers. When the helix angle is set like so, the movement when a pinion rotates (for instance one rotation) becomes an exact distance in mm, thus making it user-friendly.

With a combination of 4 rows of large-lead loaded grooves and a long nut, this Ball Screw achieves a long service life.

Since its LM rail has a sectional shape with high flexural rigidity, this LM Guide can be used as a structural member.

This model is a new straight-curved guide that allows the same type of LM blocks to continuously move on straight and curved rails by combining the technologies of the LM Guide HSR and the R Guide HCR.

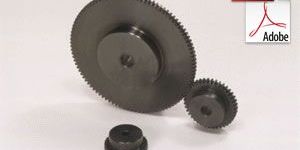

Module : 0.8, 1 Material : S45C Hardening : None Tooth finish : Cut (non-ground) Grade : JIS N8 Lightweight design by reducing the teeth width

Module : 0.5 – 10 Material : S45C Hardening : None Tooth finish : Cut (non-ground) Grade : JIS N8 Available in large selection of modules and numbers of teeth – economical and has many uses

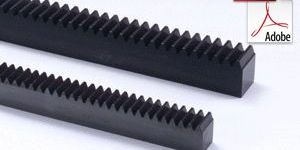

Module : 1 – 6 Length : 500,1000mm Material : S45C Hardening : None Tooth finish : Cut (non-ground) Grade : KHK R001 4 Convenient in applications when the rack needs to be used in reciprocal motion. Easily attachable type is also available. Recommended mating pinion SS, SSS, SSA

Module : 2 � 3 Material : S45C Hardening : None Tooth finish : Cut (non-ground) Grade : JIS N9 Available in large gear ratios � can be used as segment gear by cutting.

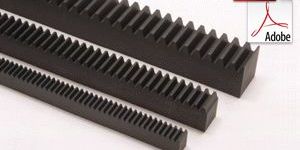

Module : 0.5 – 10 Length : 300-2000mm Material : S45C Hardening : None Tooth finish : Cut (non-ground) Grade : KHK R001 4 Large selection of modules and lengths, low cost allows many applications. Recommended mating pinion SS, SSS, SSA

Module : 0.5 – 10 Length : 100-500mm Material : S45C Hardening : None Tooth finish : Cut (non-ground) Grade : KHK R001 4 Large selection of modules and lengths, low cost allows many applications. Recommended mating pinion SS, SSS, SSA

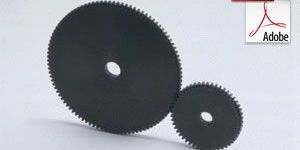

Module : 1 Material : S45C Hardening : None Tooth finish : Cut (non-ground) Grade : JIS N8 SSY gear with hub removed � lightweight and flat

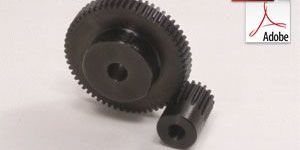

Module : 1 – 5 Material : S45C Hardening : None Tooth finish : Cut (non-ground) Grade : JIS N8 SS gear with hub removed – lightweight and flat

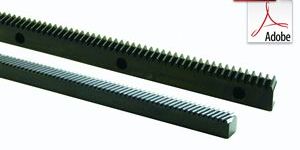

Module : 2 – 3 Length : 100,500,1000mm Material : S45C Hardening : None Tooth finish : Cut (non-ground) Grade : KHK R001 5 Large contact ratio of helical rack is effective in reducing noise and vibration. Recommended mating pinion SH

Starflex has a simple construction of two hubs with one element inside. There are 2 kinds of elements that are different in hardness, selectable according to misalignment and torque response. The material of element is Polyurethane Elastomer, that realized 2 times of torque comparing with our present jaw type coupling. No backlash is possible due to the pre-pressured design of element and hub. The hub is made of aluminum alloy, which has two types of connection, clump type or key type. Starflex passed our Green design criteria and adopts to RoHS instructive.
