suman enterprises Bhosari, Pune, Maharashtra

  Non Magnetic 'V' Block (With Clamp)Non-Magnetic 'V' Block is Basically Used for Clamping of Non-Magnetic Material. The 'V' Block has Two 'V' Angles of Different Sizes to Inspect The Jobs of Varying Dimension. Material Used For Manufacturing of This Product is Alloy Steel. It Prvides Accuracy Within 3 Micton. These Blocks Are Hardened And Ground Hardness 60 to 63 HRC. These 'V' Blocks Are Mainly Used in Tool Room And Standard Room Size (In mm) L x W x H 25 x 20 x 25 40 x 40 x 50 80 x 63 x 63 100 x 80 x 80 50 x 50 x 50 63 x 50 x 50 63 x 100 x 100 70 x 140 x 140

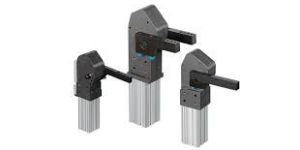

A Pneumatic Toggle clamps is a basically a Toggle Clamp actuated with a double acting pneumatic cylinder. Air pressure in applied in the clamping port, which thereby moves the clamping arm to hold the work piece. A required clamping force is achieved and exerted on the work piece. Under this action the Toggle Clamp Holds the work piece firmly and positively. To unlock the clamp the air pressure is applied in the unclamping port.

Toggle clamp is a simple Mechanism, which holds instantly.The Toggle Clamps Consist of : • Handle to operate• Clamping arm to reach the work piece• Linkages for multiplying the applied force• Spindle for pressure adjustment• Base for mounting at the workplace The handle is operated which thereby moves the clamping arm to hold the work piece. A required clamping force is achieved and exerted on the work piece. Under this action the Toggle Clamp Holds the work piece firmly and positively.

Magnetic Sheet Puller A Magnetic Sheet Puller is Used to Pull Sheet From Stack. This Device is Basically A Material Handling Devive. It Can be Manufactured According to Need of Application Magnetic Sheet Puller Size (In mm) L x W x H 120 x 120 x 25 Overall Height 250 mm 220 x 120 x 25 Overall Height 250 mm

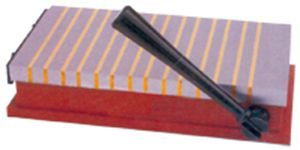

Permanent Magnetic Rectangular And Circular Chucks Permanent Magnetic Chucks Are Designed To Hold The Work Piece on Surface Grinding Machine. These Chuck Are Manufactured For Normal as well as For Heavy-Duty Operations. Chucks Are Designed And Manufactured According To Job. It Consists of Powerful NdFeB Magnets Hence It Generates More Power So That Highter Stock Removal Is Possible. Heavy Duty Permanent Magnetic REctangular Chucks Size (In mm) L x W x H Magnetic Pole Gap 175 x 125 x 60 16 200 x 100 x 60 16 200 x 150 x 60 16 250 x 150 x 60 19 300 x 150 x 60 19 300 x 150 x 65 19 350 x 200 x 65 19 450 x 150 x 65 19 450 x 200 x 70 19 500 x 200 x 70 19

Electromagnetic Lifter is Device, Which is Easy And Smooth to Handle, It Requires Continuos Power supply And is Operated ( On / Off) by Push Button, We Also Provide Batery Backup Unit (If Required) in Absence of Electricity

Electro Permanent Magnetic Sheet Metal Lifter : This Device is Used for Handling of Sheets of Big Size. An EPM Sheet Lifter Requires Power Supply to De-Energies Only (Off) During The Operation Power Supply is Not Required EPM Sheet Lifter Generates More Magnetic Power to Create Rigid Uniform And Clamping Force Hence It Ensures About Reliable And Safe Handling

      • Select the spring carefully at the design stage.  • For longer stroke - select light load or medium load spring.   • For more load - select heavy load or extra heavy load springs.  • Calculate spring stroke (required compression.)   • Pre-loading compression should be equal to 5 % of the length.  • Use guide pin, a locating bore as a guide - this is essential for spring having a free length / diameter ratio exceeding      3.5  • If possible use longer springs for lower loadings.   • Never compress springs beyond the average life load and compression.   • Always check spring holder heights and working strokes of moving elements after die tools has been reground.  • Protects springs from corrosive agents.   • Do not exceed a working temperature of 2500 C, No significant load reduction occurs up to 1200 C, beyond this    temperature an average loss of 1 % for every 400 C must be calculate.  • Do not replace one spring at a time, if they are multiple in use.   • Do not alter physical characteristics of springs like cutting of coils, grinding of internal or external diameter.

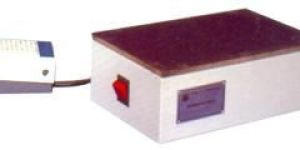

Demagnetizer Required to Eliminate Residual Magnetism of Work Piece, Which is Automatically Generated Due to Manufacturing Process Like Turning, Milling Grinding Operations. Demagnetizer is Available in Suitable Sizes And Shapes Table Type Demagnetiser Size (In mm) L x W 150 x 100 150 x 150 150 x 225 150 x 300 350 x 350

Battery Operated Electromagnetic Lifter This Lifter is Designed to Eliminate The Problem of Conventional Lifters, it Operated on Inbuilt Battery, External Power Supply is Required For Charging The Battery Only Not Operating The Lifter. The Batery Power is Required For Energies and Denergies The Lifter Only, Continues Battery Power Supply is Not Required
