The cable fault locating system LOCOMP is used to pre-location of fault distance with the help of pre-locator and pin-point cable fault using surge tester in acoustic method with the help of surge wave receiver in low voltage power cable network.
Specifications
Pin-point location of cable faults in Low voltage cables by acoustic method.
Output voltage selectable in two ranges 0-2kV & 4 kV continuously variable.
High energy of 500 Joules ( Optional 1000Joules).
Full energy delivering capacity at each select range.
Single Impulse and 4, 8 seconds intervals Sequence.
Pre-location of cable fault distance with TDR method.
Maximum range of 8 km for pre-location of cable faults.
The cable fault locating system LOCOMP is used to pre-location of fault distance with the help of pre-locator and pin-point cable fault using surge tester in acoustic method with the help of surge wave receiver in low voltage power cable network.
Specifications
Pin-point location of cable faults in Low voltage cables by acoustic method.
Output voltage selectable in two ranges 0-2kV & 4 kV continuously variable.
High energy of 500 Joules ( Optional 1000Joules).
Full energy delivering capacity at each select range.
Single Impulse and 4, 8 seconds intervals Sequence.
Pre-location of cable fault distance with TDR method.
Maximum range of 8 km for pre-location of cable faults.

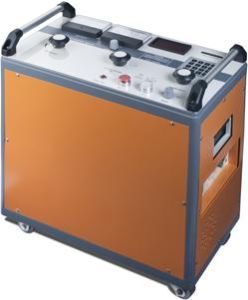

It is use to Conditioning / DC Test / Burn, Pre-locate and Pin-point sheath faults in underground extra high voltage power cable transmission networks.
Key Features
Test Voltages 0 – 3 & 0 - 6 kV DC continuously variable.
Test Current 3 kV - 200 mA & 6 kV - 100 mA DC.
Pulse ratio for Pin-pointing 1:3 second and 1:6 second selectable, ON OFF time ratio.
Fault distance Calculator LCD display-16x2 characters with back light.
Cable sheath fault pin pointing by pool of potential method.
Burn mode for conditioning the sheath fault.
Power Supply 230V AC + 10%, 50 Hz, Single phase.
Receiver - Sheath Fault Locator EFL 1.
It is use to Conditioning / DC Test / Burn, Pre-locate and Pin-point sheath faults in underground extra high voltage power cable transmission networks.
Key Features
Test Voltages 0 – 3 & 0 - 6 kV DC continuously variable.
Test Current 3 kV - 200 mA & 6 kV - 100 mA DC.
Pulse ratio for Pin-pointing 1:3 second and 1:6 second selectable, ON OFF time ratio.
Fault distance Calculator LCD display-16x2 characters with back light.
Cable sheath fault pin pointing by pool of potential method.
Burn mode for conditioning the sheath fault.
Power Supply 230V AC + 10%, 50 Hz, Single phase.
Receiver - Sheath Fault Locator EFL 1.
Application

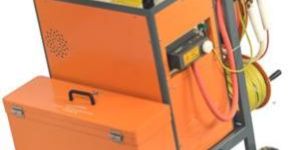

It is used to pin-point underground cable faults in power transmission, distribution cable networks in acoustic mode with the help of suitable surge wave receiver.
Key Features
Pin-point location of cable faults in Low voltage cables by acoustic method.
Output voltage selectable ranges 0-2kV, 4 kV continuously variable.
High energy of 500 Joules (Optional 1000Joules).
Full energy delivering capacity at each select range.
Single Impulse and 2, 4 seconds intervals Sequence.
Pre-location of cable fault distance with suitable pre-locator unit in ICM mode.
Power Supply 230V AC + 10%, 50 Hz, Single phase.
LT Network 1.1Kv.
Application
It is used to pin-point underground cable faults in power transmission, distribution cable networks in acoustic mode with the help of suitable surge wave receiver.
Key Features
Pin-point location of cable faults in Low voltage cables by acoustic method.
Output voltage selectable ranges 0-2kV, 4 kV continuously variable.
High energy of 500 Joules (Optional 1000Joules).
Full energy delivering capacity at each select range.
Single Impulse and 2, 4 seconds intervals Sequence.
Pre-location of cable fault distance with suitable pre-locator unit in ICM mode.
Power Supply 230V AC + 10%, 50 Hz, Single phase.
LT Network 1.1Kv.
It is used to pin-point underground cable faults in power transmission, distribution cable networks in acoustic mode with the help of suitable surge wave receiver.
Key Features
Pin-point location of cable faults in Low, Medium and High voltage cables by acoustic method.
Output voltage selectable ranges 8kV, 16kV, 32kV continuously variable
High energy of 1000 Joules at each range (Optional 2000J).
Full energy delivering capacity at each select range.
Single Impulse and 1.5, 3 & 6 seconds intervals Sequence
Pre-location of cable fault distance with suitable pre-locator unit in ICM mode.
Easy to connect with arc reflection filter and pre-locate fault distance in SIM mode.
Power Supply 230V AC + 10%, 50 Hz, Single phase
HT Network 33Kv
Protection Class – IP 54
It is used to pin-point underground cable faults in power transmission, distribution cable networks in acoustic mode with the help of suitable surge wave receiver.
Key Features
Pin-point location of cable faults in Low, Medium and High voltage cables by acoustic method.
Output voltage selectable ranges 8kV, 16kV, 32kV continuously variable
High energy of 1000 Joules at each range (Optional 2000J).
Full energy delivering capacity at each select range.
Single Impulse and 1.5, 3 & 6 seconds intervals Sequence
Pre-location of cable fault distance with suitable pre-locator unit in ICM mode.
Easy to connect with arc reflection filter and pre-locate fault distance in SIM mode.
Power Supply 230V AC + 10%, 50 Hz, Single phase
HT Network 33Kv
Protection Class – IP 54

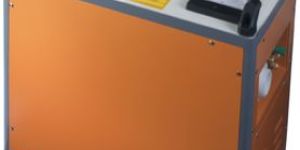

High voltage DC test set is used to check Di-electric strength of Cable, Transformers, Switchgear & Relays, Motors, Coils & Chokes, Generators, Capacitors, Wires & Cables, and other Electrical apparatus manufacturers or in power transmission and distribution network.
Key Features
Output Voltage 0-40 kV DC continuously variable.
Output Current 10 or 20mA manually selectable ranges selected by rotary switch.
Duty Cycle 5 min ON / 10 min OFF.
Timer Mode Manually selectable as required.
Power Supply 230V AC + 10%, 50 Hz, Single phase.
High voltage DC test set is used to check Di-electric strength of Cable, Transformers, Switchgear & Relays, Motors, Coils & Chokes, Generators, Capacitors, Wires & Cables, and other Electrical apparatus manufacturers or in power transmission and distribution network.
Key Features
Output Voltage 0-40 kV DC continuously variable.
Output Current 10 or 20mA manually selectable ranges selected by rotary switch.
Duty Cycle 5 min ON / 10 min OFF.
Timer Mode Manually selectable as required.
Power Supply 230V AC + 10%, 50 Hz, Single phase.
Cable Identification System can be effectively used to identify any power cable low, medium, high or extra high voltage single or multi core cable of any grade, size and insulation in any power distribution networks companies.
Key Features
Identification of wanted cable from the bunch of cables in power network.
Suitable for single and multi core armored or unarmored power cables.
Impulse Voltage 36 V
Impulse current up to 60 Amp.
Special tongs CT 120 & CT 150
Power Supply 230V AC + 10%, 50 Hz, Single phase or from built in-Accumulator with internal charging supply
Protection Class – IP 67
Cable Identification System can be effectively used to identify any power cable low, medium, high or extra high voltage single or multi core cable of any grade, size and insulation in any power distribution networks companies.
Key Features
Identification of wanted cable from the bunch of cables in power network.
Suitable for single and multi core armored or unarmored power cables.
Impulse Voltage 36 V
Impulse current up to 60 Amp.
Special tongs CT 120 & CT 150
Power Supply 230V AC + 10%, 50 Hz, Single phase or from built in-Accumulator with internal charging supply
Protection Class – IP 67
Cable Fault Pre-locator is used to pre-locate short circuit, open circuit cable faults distance in TDR mode in power transmission & distribution / telecom network companies or any metallic cables.
Key Features
TDR mode
Measurement maximum 8 km in selectable ranges.
Portable design and easy to use.
Menu driven operation.
Tests any type of telecom, coaxial, network or power metallic cables.
Comparison between healthy with faulty cables.
Use of high speed Micro-controller.
Automatic selection of Range, VOP and Gain in Auto mode.
Automatic and Manual testing mode.
Fully English Menu is easy to master and use.
Color LCD Display
Six function keys and simple operation.
Pulse reflection testing (TDR) can test broken/open, short type of faults in all metallic cables.
USB Pen drive, it is easy to upload memory data to computer.
Rechargeable lithium battery with intelligent charger
Continued 8 hours operating time on internal battery.
Small size, light weight and Palm-held unbreakable ABS plastic housing.
Rugged construction and easy to carry on site.
Cable Fault Pre-locator is used to pre-locate short circuit, open circuit cable faults distance in TDR mode in power transmission & distribution / telecom network companies or any metallic cables.
Key Features
TDR mode
Measurement maximum 8 km in selectable ranges.
Portable design and easy to use.
Menu driven operation.
Tests any type of telecom, coaxial, network or power metallic cables.
Comparison between healthy with faulty cables.
Use of high speed Micro-controller.
Automatic selection of Range, VOP and Gain in Auto mode.
Automatic and Manual testing mode.
Fully English Menu is easy to master and use.
Color LCD Display
Six function keys and simple operation.
Pulse reflection testing (TDR) can test broken/open, short type of faults in all metallic cables.
USB Pen drive, it is easy to upload memory data to computer.
Rechargeable lithium battery with intelligent charger
Continued 8 hours operating time on internal battery.
Small size, light weight and Palm-held unbreakable ABS plastic housing.
Rugged construction and easy to carry on site.

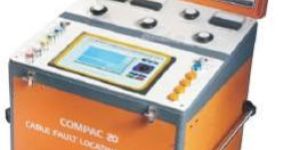

The Cable Fault Locating System COMPAC 20 is used to perform DC high pot test, Pre-location of fault distance with the help of pre-locator unit and Pin-point underground cable fault in acoustic method with the help of suitable Surge wave receiver and Pin-point sheath faults in power transmission and distribution networks or service provider companies.
Key Features
Operating Mode Surge, Arc / SIM, DC / Proof Test/ Pre-location and Sheath Fault
Pin-point location of cable faults in Low, Medium and High voltage cables by acoustic method.
Perform DC / Proof test up to 20 kV.
DC Test Current 10/20mA.
Burn test up to 16 kV - 60mA for short period.
Surge Output voltage selectable in three ranges 4, 8 and 16 kV continuously variable.
Full energy delivering capacity at each select range.
High Surge energy of 1500 Joules
Single Impulse and 1.5, 3 and 6 seconds intervals or as per sequence customer request.
Pre-location of cable faults distance with TDR, ICM, SIM/MIM & Decay mode.
Big LCD touchscreen color display.
Maximum measuring pre-location range up to 64km.
Sheath fault location up to 8kV – 60mA.
The Cable Fault Locating System COMPAC 20 is used to perform DC high pot test, Pre-location of fault distance with the help of pre-locator unit and Pin-point underground cable fault in acoustic method with the help of suitable Surge wave receiver and Pin-point sheath faults in power transmission and distribution networks or service provider companies.
Key Features
Operating Mode Surge, Arc / SIM, DC / Proof Test/ Pre-location and Sheath Fault
Pin-point location of cable faults in Low, Medium and High voltage cables by acoustic method.
Perform DC / Proof test up to 20 kV.
DC Test Current 10/20mA.
Burn test up to 16 kV - 60mA for short period.
Surge Output voltage selectable in three ranges 4, 8 and 16 kV continuously variable.
Full energy delivering capacity at each select range.
High Surge energy of 1500 Joules
Single Impulse and 1.5, 3 and 6 seconds intervals or as per sequence customer request.
Pre-location of cable faults distance with TDR, ICM, SIM/MIM & Decay mode.
Big LCD touchscreen color display.
Maximum measuring pre-location range up to 64km.
Sheath fault location up to 8kV – 60mA.

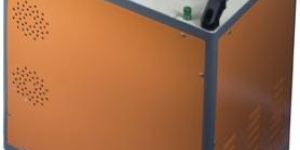

It is use to burn down unstable, medium and high resistance faults for to per-location using normal ordinary TDR unit or it can be used to dry wet cable faults in transmission and distribution power cable network.
Specifications
Both AC and DC range for burning operation.
Six selectable ranges for easy operation.
Burn down medium, high resistance and unstable faults to become in fault condition.
High current output, suitable for drying long wet cables under controlled condition.
Maximum burn down voltage of 14 kV DC.
Power consumption up to 7kVA max.
Power Supply 230V AC + 10%, 50 Hz, Single phase.
It is use to burn down unstable, medium and high resistance faults for to per-location using normal ordinary TDR unit or it can be used to dry wet cable faults in transmission and distribution power cable network.
Specifications
Both AC and DC range for burning operation.
Six selectable ranges for easy operation.
Burn down medium, high resistance and unstable faults to become in fault condition.
High current output, suitable for drying long wet cables under controlled condition.
Maximum burn down voltage of 14 kV DC.
Power consumption up to 7kVA max.
Power Supply 230V AC + 10%, 50 Hz, Single phase.
