Vatturkar Industrial Shivane, Pune, Maharashtra

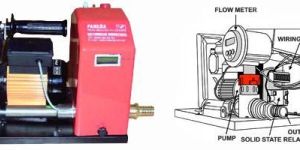

The VATS PANERA is a robust & compact water dispenser suitable for industries like construction where proportion of water to cement is crucial. PANERA reliably dispenses the desired quantity of water batch after batch. Electrical accessories are protected by the unique design and electronic instrumentation is in IP-65 protection grade to protect from dust and water. Features:• Advance GSM Technology and simplicity.• Protection Structure IP 65.• Password Protected Meter.• Display Total Rate.• Output through SMS as per set schedule• Cost effective.• Lower installation and maintenance cost.• Sending through GSM/CDMA Network.• Maximum 3 SMS .• SMS Schedule - Max. 1 SMS/HR Applications:• Energy• Agriculture• Water• Audit• Paper and pulp• Food and beverages• Waste water• Power• Textiles

Turbine Flocounter+ is another step to delivver superb Technology and convenience. All in one compact package to suit the growing needs to industry.Our Whetherproof grade enclosures make our flow mwter versatile for field uses. The "Easy to fit" Flocounter increase the efficiency of any plant. This easily programmable, horizontal or vertically mountable Flocounter provides schematic perfection. Variety of materials in sensor like ABS; SS. Features:• Advance Technology and simplicity.• Protection Structure Whetherproof.• Password Protected Meter.• Display Flow Rate /Total.• Cost Effective.• Lower Installation and maintenance Cost.• Battery Operated.

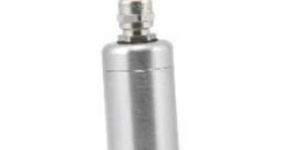

XP is a Full Bore SS body Turbine Flow Sensor suitable for High Pressure water and oil application. Turbine flow sensor is a combination of freely rotating turbine assembly; SS housing and solid state pick-up tungsten carbide-Ceramic bearing makes it practically frictionless producing large linear range.Detachable square wave generated pick-up assembly is much advance solid state device to give output at noisy industrial environment. Variety of matching controllers and indicator are available suitable to match different electronic requirements.  Features: • Outstanding accuracy• Fast response to change of flow.• Suitable for pressurized Oil applications.• Industry Standard End Connections• Cost effective.• Available in 20 mm, 25 mm & 50 mm.» Use of filter before Flowmeter is necessary.» Straight Run condition given in manual must be maintain while installation.    Applications:• Hydraulics• Agriculture• Automobile• Diesel• Wind energy• Food and Beverages• Heavy Engineering• Power

LP-20 is general purpose flow sensor,Its working rane can be defined according to its nozzle size for low flow range application.With proper installations,sensor achieves better accuracy Special Features:Inlet and outlet on same side,Compact Design.   Applications:• Hydraulics• Agriculture• Automobile• Diesel• Wind energy• Food and Beverages• Heavy Engineering• Power• Off Shore

Accuracy : : +/-2% of Full Scale Deflection

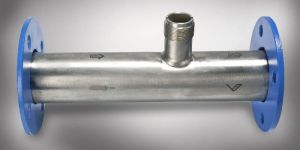

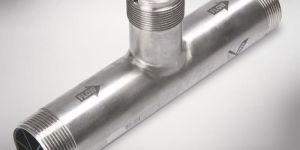

Our comprehensive range of fittings offer an unlimited installation possibilities. Designed according to the law of Fluid Dynamics our fittings are capable of positioning the sensor accurately in any piping to ensure correct reading of flow in any situation

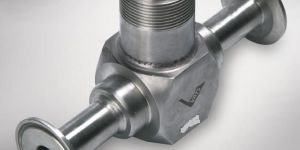

Our comprehensive range of fittings offer an unlimited installation possibilities. Designed according to the law of fluid dynamics our fittings are capable of positioning the sensor accurately in any piping to ensure correct reading of flow in any situation.

Our comprehensive range of fittings offer an unlimited installation possibilities. Designed according to the law of Fluid Dynamics our fittings are capable of positioning the sensor accurately in any piping to ensure correct reading of flow in any situation.

Our comprehensive range of fittings offer an unlimited installation possibilities. Designed according to the law of Fluid Dynamics our fittings are capable of positioning the sensor accurately in any piping to ensure correct reading of flow in any situation.

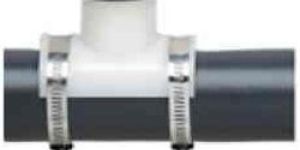

The Next Level of Convenience ... Take the trouble out from assembly work. The most convenient solution as easy as 1, 2, 3 ...1. Drill a hole of 35 mm in the line. 2. Insert the saddle fitting. 3. Strap it up with the clamps. Done!

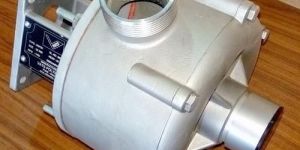

Number Of Flower : Reversible pump

Model Number : RP-200

Application : Industrial

Brand Name : VATS

Max Flow Rate : 230LPM @ 1400 RPM

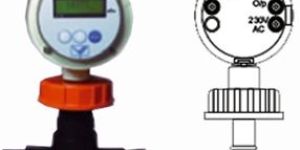

The VATS J110 is a field mounted flow meter using VATS insertion type Flow Sensor. It gives a digital readout of the flow in M3/Hr, LPH or LPM also. These are the most user friendly meters, anybody can easily calibrate & install them online without any technical knowledge.These meters use advanced micro controller to calculate the flow rateWiring Connections:Red wire: Supply 5-12 VDC Black wire: Output signal TTL Shield wire: Common Note: Sensor is reverse polarity protected.

Material : Plastic

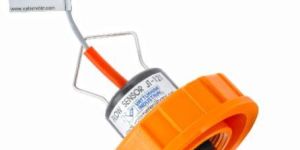

Jt-121 is paddle wheel type polymer body flow sensor suitable for clear liquid application. Being light weight and compact, installation is easiest, still robust. Vats jt-121 is most simple and most economical flow sensing device for clear liquids.proven and long lasting bearing materials has made this sensor a common choice of all oems. Jt- 121 sensor can be installed in wide range of pipe sizes. Variety of materials is available in installation fittings like abs, pvc, ms, and ss. These fittings include tees, saddles, with specific weld ends, thread ends or flange ends and weldon adaptor.

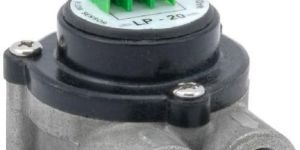

The LP-20 Flow Sensor is a SS body Mini Sensor suitable for Low pressure Application, and general purpose device. Its flow rate range can be individually specified according to its nozzle size. It is developed for measuring, regulating or metering and guarantees most precise measurement of fluid quantities. Compact package to suit the growing needs of Low flow measurement of liquid in Industry. Another advantage is that; it’s Inlet and outlet on the same side

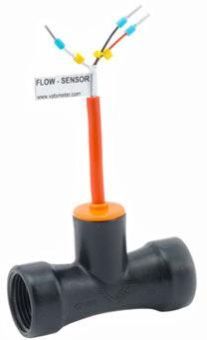

The LP-30 Turbine Sensor is a G.F body Mini Sensor suitable for Low pressure Application, and general purpose device.LP-30 provides simple pulse output in proportion to supply voltage and fluid flow which makes interfacing easy. It is developed for measuring regulating or metering and guarantees most precise measurement of fluid quantities. Compact package and light weight design to suit the growing needs of Low flow measurement of liquid in Industry. Features:• Suitable for Low Pressure Industrial Application.• Lower installation and maintenance cost.• High Accuracy• Light Weight and Compact design.• Cost effective.• High reliability and durability.     Applications:• Water Treatment• Agriculture• Textile• Paper and Pulp• Food and Beverages

Jt-122 is only choice for raw water application in ms pipelines with ferrus particlesrust,featured with stainlesssteel paddle and non-magnetic coupling between paddle and electronics, jt-122 is most robust and advance sensor in the family of paddle wheel sensor worldwide in all industrial apllication .with proper installations, jt-122 sensor can be installed in wide range of pipe sizes.

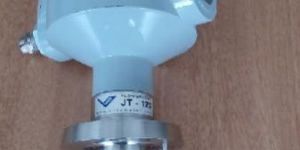

Jt-123 is paddle wheel type ss body with flameproof enclosure flow sensor suitable for high temperature liquid application. It is unique combination of robost design and easy to use type flow sensor.vats come out with flame proof connection flow sensor for chemical industry with important features like stainless steel rotar and high temparature application.with proper installations jt-123 sensor can be installed in wide range of pipe sizes. Variety of materials is available in installation fittings like, ms, and ss. These fittings include tees, with specific weld ends, thread ends or flange ends and weldon adaptor

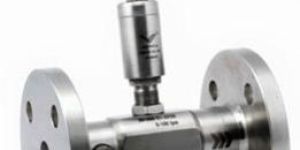

XP is a Full Bore SS body Turbine Flow Sensor suitable for High Pressure water and oil application. Turbine flow sensor is a combination of freely rotating turbine assembly; SS housing and solid state pick-up tungsten carbide- Ceramic bearing makes it practically frictionless producing large linear range. Detachable square wave generated pick-up assembly is much advance solid state device to give output at noisy industrial environment. Variety of matching controllers and indicator are available suitable to match different electronic requirements.

AJ - 510 are most advance monitors with built in Re-Transmission facility .AJ 510 electronic flow monitor are high speed micro- controller based units with a high resolution back-lit display. By using front panel tactile keys, one can view program different parameters one can read the flow rate in LPH, M3 Hr only and corresponding Total reading in Liter or M3only. Our IP 65 grade enclosures make our flow meter versatile on both Panel & Field uses Along with these two consecutive displays these monitors also have relays to operate in various modes such as: Batcher, Pulser, and Rate Switch. As standard Fluid Computer provide 4-20 mA current output proportional to the flow rateflow velocity. With optional addition on cards these monitors can also provide RS-232 or RS-485 output for further advance connectivity. With this facility direct printing option or computer connectivity becomes simple.

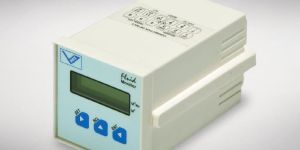

A/J 210 electronic flow monitor are high speed micro- controller based units with a high resolution back-lit display. By using front panel tactile keys, one can view / program different parameters A-210 / J-210 is a Digital Rate Indicator and Totaliser suitable for VATS sensors or others giving pulse output of 200 Hz max.A/ J-210 one can read the flow rate in LPH, M3 / Hr only and corresponding Total reading in Litre or M3 only. Our IP 65 grade enclosures make our flow meter versatile on both Panel & Field uses Along with these two consecutive displays these monitors also have relays to operate in various modes such as: Batcher, Pulser, and Rate Switch

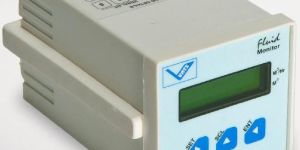

AJ 110 electronic flow monitor are high speed micro- controller based units with a high resolution back-lit display. By using front panel tactile keys, one can view program different parameters A-110 J-110 is a Digital Rate Indicator suitable for VATS sensors or others giving pulse output of 200 Hz max.A J-110 one can read the flow rate in LPH, M3 Hr only and corresponding. Our IP 65 grade enclosures make our flow meter versatile on both Panel & Field uses.

Flocounter is another step to deliver super Technology and convenience. All in one compact package to suit the growing needs of industry. Our IP 65 grade enclosures make our flow meter versatile on both Panel & Field use.The “Easy to fit” Flocounter increase the efficiency of any plant.All this available with two power sources and most competitive OEM price. This easily programmable, horizontal or vertically mountable Flocounter provides schematic perfection. Variety of materials is available in installation fittings like ABS; PVC and SS.These fittings include Tees, Saddles, Thread Ends and Weldon AdaptorFeatures:• Advance Technology and simplicity.• Protection Structure IP 65.• Password Protected Meter.• High response Time.• Display Flow Rate /Total.• Cost Effective.• Lower Installation and maintenance Cost.• Mains operated and also battery operated.Applications:• Water Treatment• Agriculture• Construction• Paper and Pulp• food and beverages• Waste Water• Power• Textiles

The VATS A110 is a field mounted flow meter using VATS insertion type Flow Sensor. It gives a digital readout of the flow in M3/Hr, LPH or LPM also. These are the most user friendly meters, anybody can easily calibrate & install them online without any technical knowledge. These meters use advanced micro controller to calculate the flow rate.Wiring Details:• Wiring connections• Red wire: Supply 5-12 VDC • Blackwire: Output signal TTL • Shield wire: Common

Microprocessor based electronics allow wide operating range and long term signal stability. Optional relays provide control for adjustment or alarms. Also the meter comes with saddle mounting option or standard fittings to adopt to any process flow solution. CT 20 can be used for conductance, TDS signal transmission and display with 4-20 mA OP. Features: • Easy installation • Display in microSCM, ppm (TDS) • Customized 4 digit LCD • Weather proof enclosure • Tactile keys on front panel • Easy programming with front panel keys • Branded meter at the most economic price. • Clearly marked terminal labels • 4-20 mA Current OP
