Vidyut Controls and Automations Pvt Ltd Shivane, Pune, Maharashtra

It is used to supply DG set power in absence of main power. It comprises of control of DG set as well as switching of breakers. In absence of main source it start DG set automatically i.e. Auto mains failure (AMF), synchronizes DG set with each other automatically along with auto load sharing and load dependent startstop of DG set. On resumption of mains it operates respective breakers and switches off DG set.

Relay and metering panels are used to control HT breaker on remote operation. It contains various protective relays required for the system and metering to measure electrical parameters.

Power Distribution Panels are used for distribution of power on down streams. Since it is located at down stream fault level is normally lower about 20 to 35 KA. Normally it is designed to carry current up to 800A. Advantage of usingPower Distribution Panel is to clear fault locally hence it does not affect Upstream Switchgear.

Number Of Flower : Fixed floor mounted / Wall mounted\r\n ACB OR MCCB.

Rated Voltage : 440 / 415 V 50 Hz

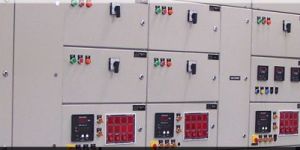

Motor Control Centers are suitable for operation of motors ranging from 0.5HP to 500 HP capacity. Motor control center contains various types of starting viz. Direct on line (DOL), Star-Delta, autotransformer, Soft starter etc. Local and remote operation facility, compatible to PCC/DCS based operation. Motor Control Center is properly ventilated in case of higher size of motor starter. Component layout is made so as to facilitate ease of operation and maintenance.

Number Of Flower : Modular /non-modular, Fixed/Draw out, single front/double front, dust and Vermin proof

Country of Origin : 380 / 415 / 440 V, 50 HZ, 3 phase, 4 wire

We manufacture HT Panels suitable for medium voltage levels of 3.3 KV, 6.6KV, 11KV, 22KV, 33KV. It is suitable for fault level of 25KA 3 sec. HT Panels are used for operation of potential transformers, capacitors and motors.

Auto mains failure (AMF), synchronizes DG set with each other automatically along with auto load sharing and load dependent startstop of DG set. On resumption of mains it operates respective breakers and switches off DG set.

Automatic Power Factor Control Panel is designed to maintain power factor of plant to unity. To maintain power factor of unity means to achieve demand in KVA on lower side. Power factor is maintained to set value using APFC relay in auto mode where as in case of failure of APFC relay push buttons are used. Auto as well as manual mode is provided for power factor control. Various types of capacitors are used depending on load conditions. Typically MPP, APP or mix dielectric types of capacitors are used. In case of non linear loads like VFD, UPS thyrister switching, suitable reactors are used along with capacitors to filter harmonics.

  Air Circuit Breaker Panels are normally used for protection of power source and electrical equipment situated on downstream. It isolates and protects source from short circuit, overload, earth fault, under voltage, etc.

We are offering vacuum circuit breaker panels.3.3, 11, 22 and 33 kv vcb panels 33 kv sf6 breaker panels 11, 22 kv sf6 load break switch panels.
