Vijayjyot Engineers Pvt. ltd. Wadgaon Sheri, Pune, Maharashtra

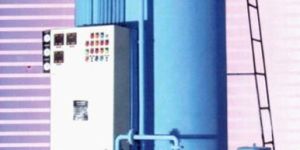

We offer thermic fluid heaters. Technical specification: type: thermic fluid heater capacity: 70,000 kcalhr to 20,00,000 kcalhr. Working: temperature 300°c to 350°c. Fuel: l.d.o.f.o.lpg thermal efficiency: 87% ± 2% based on n.c.v. Of oil fuels. Heat recovery unit economizer. Air preheater in-built.

Country of Origin : India

Number Of Flower : Thermic Fluid Heater

Material : Mild Steel

Application : Industrial

Feature : Easy Installation, Minimal Maintenance, Noiseless Operation

Automatic Grade : Fully Automatic

Driven Type : Electric

Temperature : 250-300°C, 300-350°C

We take the credit of providing clients with supreme range of Thermic Fluid Heater. The Thermic Fluid Heaters offered by us are being highly appreciated because of high quality standards and durability. We offer our Thermic Fluid Heater at market leading rates to the clients across the globe. Salient Features Fully automatic in operation Saves fuel and electricityIBR regulation not necessarySubstitute for steam and electricityNo water softening plantsIdeal for indirect heatingClean and smokeless combustionNo corrosion or scale formation inside coil pipeLow level switch in top tanks Differential pressures switch for low flow/ no flowSpring loaded relief valveThermic Fluid low flow trippingThermic Fluid level switch on expansion tank (optional)The shell assembly consists of two concentric shells and Aluminum radiator in between Helical concentric coil made out of B.Q. seamless pipesDown firing type pressure jet burnerHigh furnace volume for long furnace residence time ensuring complete combustion of fuel at low excess AirSmoke Index is considerably low with low excess Air improving Combustion efficiencyLarge radiation surface giving very high heat absorption in furnace with moderate heat flux and heat release rate.Three pass design giving highest total length of passes and longer residence time of flue gases

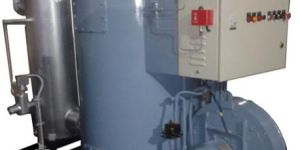

We offer steam boilers- oil fired. Technical specification:   type : 3 pass vertical, non-ibr coil type instant steam generator capacity : 100 kghr to 850 kghr f. Working pressure : up to 15 kgcm2 (g) . Fuel : l.d.o.f.o. thermal efficiency : 87% ± 2% based on n.c.v. Of fuels. Heat recovery unit : economizer. Air preheater: in-built salient features: larger combustion chamber volume. Two blow down provided to coil. Compactness. Less floor spacerequired. Fully automatic in operation. Saving in fuel & electricity.

We offer the best quality Steam Boilers, which are durable and come at affordable rates. Customer satisfaction is of prime importance at VIJAYJYOT ENGINEERS PVT. LTD. and so the supreme quality raw materials are used for manufacturing the Steam Boilers. The Steam Boilers can be obtained by the clients at competitive prices by clients. Salient Features Larger combustion chamber volumeTwo blow down provided to coilCompactness. Less floor space requiredFully automatic in operationSaving in fuel and electricity Components Shell assembly consists of two concentric shells made out of Mild Steel CRC sheet with Aluminum radiator in betweenEconomizer is provided to preheat the feed waterDown firing type pressure jet burnerVertical Coil type forced Water circulation instant Steam GeneratorsSpirally wound Steam Coil concentrically placed within the assembly formed by outer shell and inner shellThe passage between inner shell and outer shell provided with the Radiator along with the Radiator itself act as a Combustion Air PreheaterMaterial of construction for Steam Coil is BOILER QUALITY STEELSteam Coil hydraulically tested for pressure of 25 kg/cm2 applied for about 30 minutesBlower provided with balanced impeller for smooth operation Advantages Outside the purview of IBR, no shutdown due to annual inspectionNo IBR approved boiler attendant is necessaryNo water switchLow steam pressure switchHigh stem pressure switchBlow down switch/ bottom coil thermostatIndicator for no fuelSpring loaded safety valve

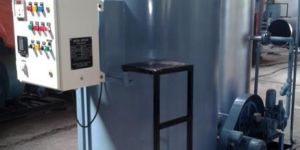

We offer steam boiler- gas fired. Type : 3 pass vertical, non-ibr coil type instant steam generator capacity : 100 kghr to 700 kghr f. Working temperature : up to 15 kgcm2 (g) fuel : lpg png thermal efficiency: 92% ± 2% based on n.c.v. Of fuels. Heat recovery unit : economizer. salient features: larger combustion chamber volume. two blow down provided to coil. compactness. Less floor space required. fully automatic in operation. saving in fuel & electricity.

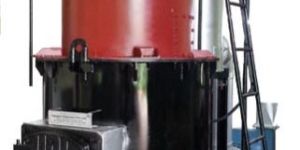

We offer non ibr wood fired steam boiler. Technical specification:   type: coil type hot water generator capacity: 70,000 kcalhr to 20,00,000 kcalhr. Working temperature: 95°c to 140°c fuel: l.d.o.f.o.lpg thermal efficiency: 87% ± 2% based on n.c.v. Of fuels. Heat recovery unit: economiser. Air preheater: in-built. the shell assembly consists of two concentric shells with mineral wool insulation in between. Furnace with grate bar, fire door, ash door, economizer is provided to preheat the feed water. Vertical coil type forced water circulation instant steam generators. Spirally wound steam coil concentrically placed within the assembly formed by outer shell and inner shell. The material of construction for steam coil is boiler quality steel. Steam coil hydraulically tested for pressure of 25 kgcm2 applied for about 30 minutes. Induced fan provided with statically and dynamically balanced impeller for smooth operation.

Country of Origin : India

Number Of Flower : Vertical Boilers

Material : Mild Steel

Application : Liquid Boiling

Availability : 1000-2000kg

Country of Origin : 440V.540V

Fuel : Wood

Condition : New

Capacity : 0-2Tph

Power : 3-6kw

Driven Type : Electric

Pressure : 250-500Psi

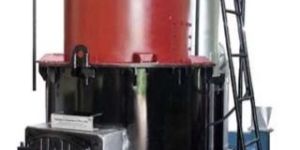

Type : 3 Pass Vertical, Non-IBR, Coil Type Instant Steam Boiler Capacity : 300 kg/hr to 600 kg/hr Working Pressure : Up to 10 kg/cm2 (g) Fuel : Agrowaste, wood, Briquette. Thermal Efficiency: 70% ± 2% based on N.C.V. of Fuels. Heat Recovery Unit : Economiser. Construction: The shell assembly consists of two concentric shells with mineral wool insulation in between. Furnace with grate bar, fire door, ash door, Economizer is provided to preheat the feed water. Vertical Coil type forced Water circulation instant Steam Generators. Spirally wound Steam Coil concentrically placed within the assembly formed by outer shell and inner shell. The material of construction for Steam Coil is BOILER QUALITY STEEL. Steam Coil hydraulically tested for pressure of 25 kg/cm2 Induced Fan provided with statically and dynamically balanced impeller for smooth operation.

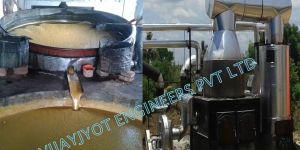

We are offering jaggery making machine. We hvae manufactured and successively installed the jaggery or gul making plant. We are the manufacturer of jaggery making by indirect heating by using thermic fluid heter. The satisfaction of customers is our prime motto salient features: simple and easy to operate. Clean process than conventional method higher efficient that conventional method saving in fuel. Semi automatic in operation. Faster than conventional. Due to constant temp. Can control the same quality for all batches less manpower required. No watersteam required for unit hence efficiency is more than steam operated unit

We offer hot water generators. Technical specification:   type: coil type hot water generator capacity: 70,000 kcalhr to 20,00,000 kcalhr. Working temperature: 95°c to 140°c fuel: l.d.o.f.o.lpg thermal efficiency: 87% ± 2% based on n.c.v. Of fuels. Heat recovery unit: economiser. Air preheater: in-built.

We are involved in Manufacturing, Supplying and Exporting of Hot Water Generator that is constructed with advanced technology for better performance. These Hot Water Generators consists of larger combustion chamber volume in comparison to the others available in the market. We offer larger combustion chamber volume in various specifications to cater the needs of the domestic as well as international market. Salient Features Larger combustion chamber volume Two blow down provided to coil No water switch Low level switch in top tanks Differential pressures switch for low flow/no flow Spring loaded relief valve Fabricated from boiler quality steel Economizer provided to preheat the feed water Shell assembly consists of two concentric shells made out of Mild Steel CRC sheet with Aluminum radiator Advantages No corrosion or scale formation inside coil pipe Fully automatic in operation Saving fuel and electricity Superlative quality

Country of Origin : India

Number Of Flower : Hot Water Generators

Brand Name : vijayjyot

Fuels : Diesel

Country of Origin : 440V

Condition : New

Application : Industrial Use

Power Source : Electric

Total Carbohydrate : 1 Year

Material : Steel

Temperature Capacity : 50-100C

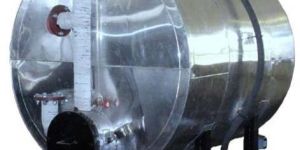

We Manufacture Heat Recovery Units and Offer to Clients are Custom Built as per the Industry Standards. Our Heat Recovery Units Include Flash Steam Generator, Evaporator & Super Heater and Thermosyphon. all These are Designed to Meet the Variegated Demands of Clients.

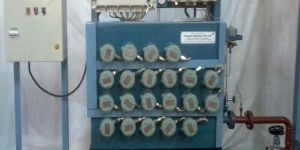

We Provide Wide Range of Flame Proof Electric Thermic Fluid Heater the Maximum Working Temperature of Thermic Fluid Heater is 300 deg C. These are More Efficient Than Steam . Clients Can Procure Them in Various Capacities from 10,000 Kcal/hr to 1,00,000 Kcal/hr.   Features Fuel and Electricity are Saved Because of Full Automatic Operation. Flame Proof Insulated Body, Flameproof Control Panel Jacket,Hence Can Operate in Flammable Chemical Area. Corrosion and Abrasion Resistant. No Water Softening Plants indirect Heating Can Be Done Easily No Requirement of IBR Regulations.

We are offering bagasse wood fire thermic fluid heater. Thermic fluid heater capacity 1,00,000 to 20,00,000 kcalhr thermic fluid heater (pro-therm): it consists of three pass helical concentric coil fabricated out of bq seamless tubes as per. Bs 3059 part ii. Schedule 40. One no. Of coil covering shell assembly made out of mild steel crc. And insulate outer surface with mineral wool and al cladding furnace: the fuel burns on the grate bars & grate bars fitted in the furnace chamber. Adequate grate area is providing for complete combustion. Boiler furnace is designed on induced draft phenomenon the draft helps in rate of firing. Adequate fire door and ash door are provided to feed the fuel. The fire bricks, castable cement, ceramic board are used to construct the furnace refractory. Radiant coil: the radiant coil is single pass and mounted on the top of furnace to transfer maximum heat to thermic fluid.
