FeatureLess Power Consumption, Longer Functional Life
Access MethodBiometric
Acess Storage Capacity100-200

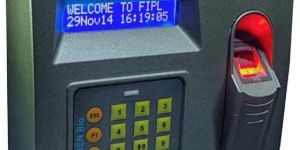

We are a credible Manufacturer and Supplier of Fingerprint Access Control System in India. Time & Attendance is made easy and manageable with irrefutable personal Identification using “Touch-n-Go” Biometric Finger Print Technology used in our Fingerprint Access Control System. With real time Finger identification, our Fingerprint Access Control System is a self-contained device with FVC 2004 & FVC 2006 award winning finger print sensor to enroll & store the finger record, identify users, save event logs and provides interface with computer for generating MIS attendance reports & data required for payroll calculation. This system provides superior speed and eliminates buddy/proxy punching. It gives the operator a choice of access modes in any combination of Fingerprint, Card & PIN entries. We provide Fingerprint Access Control System at the best market prices.Operation
Finger Print enrollment using MicroBEN_Bio is done once in the built-in memory.
User places their enrolled finger on the finger sensor for clocking IN/OUT.
The MicroBEN compares live finger with the finger stored in built-in memory and then stores Attendance data only upon “MATCH”.
LCD displays Employee Name and “Granted” message upon authentication (with Date & Time).
Optional
The Proximity Card is shown on the reader. If the card is Valid, user is prompted to put the finger on fingerprint reader (1:1 mode)
User Friendly reports can be generated by Time Pro Software, a high end Attendance Analysis software (optional)
CommunicationNetworking of this system can be accomplished via the RS232C/RS485 or Ethernet (LAN/WAN/WiFi) or dial up modem communication (using suitable External Hardware). The attendance data can be pushed from anywhere in the world, in online mode using Broad Band to a Server. GPRS may also be used as medium for data communication. Technical Data
CPU : 400MHz DSP CPU with 9000 Finger data storage (upgradable)
Enrolment Time : 2 second for finger capture
Identification Time (1:N) : <1 Sec. (Typical) for 1000 Fingers, supports 1:1 mode
Allowable Finger Rotation : +/-90 Degree
Allowable Finger Displacement : +/- 5mm
Sensor : Optical (16mm x19mm),Scratchproof
Image Size : 280 x 320 Pixel, 500 DPI
Finger Template Size : 256 Bytes, supports ISO 19794-2 template standard also
Minutiae-only Template Extraction Algorithm with EER : <0.1%
Technical Specification
Memory : 90,000 Transaction Storage
Battery Back-up : Retention of Clock & Data upto 10 Years
Communication : Ethernet/LAN(TCP/IP) Optional : WiFi, Broad Band, GPRS
Card Reader Input : Optional Biometric EM Proximity Reader/ MIFARE / HID / iClass
Match-on-Card : Feature supported with ISO 14443 Type A, MIFARE 1KB/4KB Classic Card
Out Reader Interface : Card Reader of any type mentioned above may be interfaced
Keyboard : 4x4 Membrane Keyboard
Printer Interface : Serial Strip Printer
Display : 16x2 Backlit LCD(White in Blue)
USB Pen Drive Interface
Human Voice Interface (on request)
Access Control : Dry/Wet (12V) Contact O/P & ReX (Request-to-Exit)& DOTL input
UPS with Battery : Battery Back-up for 4 Hours with Intelligent Charging(Optional)
Environmental Specifications
Power : Wide Range SMPS Adapter (110-260V@50Hz +/-5Hz )
Dimension : 146 (H) X 154 (W) X 45 (D)mm
Enclosure : Dust Resistant ABS enclosure
Operating Temperature : 0-55 Degree C
Ordering Information
MicroBEN Bio : Finger Print Terminal(1:N) with TCP/IP & Adaptor
OPT 01 : Add-on PoE Option for Ethernet
OPT 02 : Add-on Smart Card Reader(MicroBEN Bio_Pro)
OPT 03 : Add-on Proximity Card Reader(MicroBEN Bio_Smart)
OPT 07 : Add-on HID Proximity Reader(MicroBEN Bio_HID)
OPT 08 : Add-on HID iClass Reader(MicroBEN Bio_iClass)
OPT 04 : Add-on UPS & Battery with 4 Hrs Backup
OPT 05 : Add-on WLAN Port
OPT 06 : Add-on GPRS with 1 SIM Slot with GPRS connectivity
OPT 12 : Metal Enclosure with 4 Hours Battery Back-up
OPT 13 : Metal Enclosure for Protection with Lock & Speaker
MicroTIP : Finger Print based Slave Out Reader
MicroPROX/Prox Point/MicroSMART : Out Reader option
COMPRO 7 : Data downloading, Configuration & enrollment Software
DXS : Online Data Xchange Service for Server
Smart Finger Plus : Finger Print Enrollment Software with DXS
MIS Time Pro Enterprise : Windows based Time Office Software
Swayam Seva : Web based Employee Self Service with Workflow
ID Card : (a) Proximity Card (b) Contact less Smart Card
Door Lock : (a) Strike (b) EM Lock (c) Turnstile (d) Drop bolt
Accessories : (a) Exit Switch (b) Lock/Reader Cable(c) Comm. Cable
