ALL Geared Lathe Machine Dealers in Gokulnagar, Rajkot

(11 products available)
Atika Industrial Area Mavdi Dhebar Road

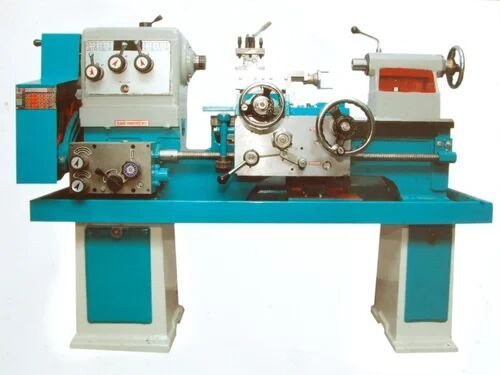

  • Medium Duty All Gear Lathe Machine

    Medium Duty All Gear Lathe Machine

    198,000 / piece
    • Brand NameArjun
    • Availability590 Kg
    • Length Of Bed1370 mm
    • Height of Centre215 mm
    • Spindle Bore52 mm
    • Swing In Gap620 mm
    • Tool Slank Section22 x 22 mm
    • Length Of Bed In Of Face Plate125 mm
    • Floor Space1650 x 970 mm
    • Metric19/0.50 to 8mm
    • Movement Of Cross Slide225 mm
    • Main Motor2H.P/440v
    • Swing Over Bed425 mm
    • Tail Stock Spindle TaperMT-4
    • Range40-550 mm
    • Length Of Gap In Bed110 mm
    • No Of Speeds8
    • Taper Bore In Spindle SleeveMT-4
    • Swing Over Cross Slide260 mm
    • Admit Between Centre450 mm
    • Spindle Nose Thread6 TPI 60.2mm
    • Bed Width279 mm
    • Diameter Of Screw31.75mm x 4 TPI
    • Bed Type2V & 2 Flat
    • Tail Stock Ram50.8 mm
    • Ram Travel150 mm
    • Compound Travel135 mm
    • Length Of Bed 1830(6 ") Height Of Centre 215 Swing Over Bed 425 Swing Over Cross Slide 260 Movement Of Cross Slide 225 Swing In Gap 620 Admit Between Centre 1000 Bed Bed Type 2V & 2 Flat Bed Width 279 Length Of Gap In Bed 110 Length Of Bed In Of Face Plate 125 Main Spindle Spindle Nose Thread 6 TPI75mm Taper In Spindle MT-5 Spindle Bore 52mm Tail Stock Tail Stock Ram 50.8 Taper In Tail Stock Quill MT-4 Ram Travel 150 Compound Slide Compound Travel 135 Tool Shank Size 22 x 22 Speeds No. Of Speeds 8 Range 45-1220 Thread/No. Range Diameter Of Screw 32x 4 TPI Metric 19/0.50 to 8mm Inch 23/4 to 40 TPI Electricals Main Motor 2H.P/440v Weight 590 kg Floor Space 1650 x 970 Request Callback
    ...more

    Seema Industries

    Gokulnagar, Rajkot
    13 yrs
  • All Geared Lathe Machine

    All Geared Lathe Machine

    Get Price Quote
    • Height165 mm
    • Length1370 mm
    • All geared lathe machine Hardened & ground bed ways for long life. Easy speed selection & gear changing, Norton gear box for multiple thread, Hardened spindle mounted over proven make taper roller bearins, All spare parts completely interchangeable & easy available.
    ...more

    New Dilip Industries

    Mavdi, RAJKOT (0.9 km from Gokulnagar)
    18 yrs
  • All Geared Lathe Machine

    All Geared Lathe Machine

    Get Price Quote
    • TYPE OF BEDHardened Bed Ways
    • SWING OVER BED325 MM
    • HEIGHT OF CENTER165 MM
    • WIDTH OF BED240 MM
    • SWING OVER CROSS SLIDE175 MM
    • SWING IN GAP500 MM
    • LENGTH OF GAP IN FRONT OF FACE PLATE115 MM
    • NUMBER OF SPINDLE SPEED8
    • TAIL STOCK RAM DIAMETER31 MM
    • LEAD SCREW DIAMETER22 MM
    • NO. OF SPINDLE SPEEDS3
    • SPINDLE SPEED RANGE40-1200 RPM
    • SPINDLE BORE38 MM
    • SPINDLE NOSEThreaded/A2-4
    • SPINDLE NODE DIAMETER61.85 MM
    • SPINDLE THREADS8 TPI
    • NO. OF BRITISH THREADS44
    • RANGE OF BRITISH THREADS2 to 60 TPI
    • NO. OF METRIC THREADS24
    • RANGE OF METRIC THREADS0.5 to 15 MM
    • NO. OF FEEDS40
    • RANGE OF LONGITUDINAL THREADS0.066 to 2 MM/Rev.of spindle
    • RANGE OF TRANSVERSE FEEDS0.0165 to 0.50 MM/Rev.of spindle
    • LEAD SCREW DIAMETER / PITCH25.4 MM/4 TPI
    • TAIL STOCK SPINDLE DIAMETER38.1 MM
    • TAPER IN TAIL STOCK QUILLMT-3
    • CROSS SLIDE TRAVEL200 MM
    • COMPOUND SLIDE TRAVEL125 MM
    • TAIL STOCK SLEEVE TRAVEL120 MM
    • TOOL POST SQUARE88×88 MM
    • TOOL SHANK SIZE19 MM
    • SUITABLE ELECTRICAL HP1 HP
    ...more

    Gayatree Enterprise

    Bhaktinagar, Rajkot (1.2 km from Gokulnagar)
    15 yrs
  • Heavy Duty All Geared Lathe Machines

    Heavy Duty All Geared Lathe Machines

    Get Price Quote
    • ColorGrey
    • Bed Length5'6
    • Admit Between Centers1'9
    • Bed Width12-3/4
    • Centre Height10
    • Bed Length 5'6" to 24' Admit between Centers 1'9" (530) to 20'3" (6175) Bed Width 12-3/4" (323), 14-3/4" (374) & 18" (457) Centre Height 10" (254), 12" (305), 15" (381) & 18" (457) Spindle Hole 2-1/8" (54) & 3-1/8" (80)
    ...more

    ACCURATE MACHINE TOOLS

    Atika Industrial Area, Rajkot (0.7 km from Gokulnagar)
    8 yrs
  • All Geared Lathe Machine

    All Geared Lathe Machine

    Get Price Quote
    Four Position Tool Post, Toolpost Spanners, Center Adopter, 2 Nos. MT-3 Dead Centers, Electrical controls, Thread Dial Indicator, Mechanical Brack with Starting Third Shaft, chuck flange, Coolant Pump with Fitting, Rear Splash Guard (except GHL - 300) chip Tray. Collet attachment & collets, Taper Turning Attachment, Rear Tool Post, Machine Lamp, Face plate, Follow Rest, Steady Rest, Quick change Tool Post, Carrier Plate, True Chuck, Dog Chuck.
    ...more

    Nutech Mechatronics Pvt. Ltd.

    Atika Industrial Area, Rajkot (0.7 km from Gokulnagar)
    9 yrs
  • All Geared Lathe Machine

    All Geared Lathe Machine

    Get Price Quote
    We are reckoned as one of the prime Manufacturers and Suppliers of the efficient All Geared Lathe Machine in India. Our All Geared Lathe Machine is fabricated with the help of the finest components that impart extra durability. The All Geared Lathe Machine can be availed at the most competitive prices from us. Attributes Long working lifeEasy installationLow maintenanceEfficient performance
    ...more

    K. K. Tools

    Atika Industrial Area, Rajkot (0.7 km from Gokulnagar)
    11 yrs
  • All Geared Lathe Machine

    All Geared Lathe Machine

    Get Price Quote
    To retain our goodwill as the competent manufacturer and retailer, we are offering a commendable range of All Geared Lathe Machine. The offered machine is developed keeping in mind the standard of industry using high quality of components & leading technology. This machine is used in various automotive and engineering industries. Furthermore, we are offering this machine on varied specifications to choose from. Features: Require less maintenance Easy to operate Rugged design
    ...more

    Kiran Manufactures

    Mavdi, Rajkot (0.9 km from Gokulnagar)
    11 yrs
  • All Geared Lathe Machine

    All Geared Lathe Machine

    Get Price Quote
    • ApplicationDrilling, Metal Working
    • TypeAll Geared Lathe Machine
    • CertificationISO 9001:2008
    • NameAll Geared Lathe Machine
    • Headstockconstruction for thermal displacement & vibration
    • Gear Boxgear mechanism is easy to handle quick gear system
    • Tailstockconstruction with Tang Shank type tailstock sleeve
    • Carriage-Saddlelong life, accuracy & cutting strength
    • Surelia Industries are famous for All Geared Lathe Machine Manufacturers Suppliers Exporters, in Rajkot, Gujarat, India. Here all machines are manufactured by advanced technology and best in class raw quality as approved under government standards. We have skilled professionals for manufacturing the products and our aim is to achieve client satisfaction. It contains : ->Headstock ->Gear Box ->TailStock ->Carriage-Saddle ->Apron ->Carriage Stopper
    ...more

    Surelia Industries

    Mayani Chowk, Rajkot (1.0 km from Gokulnagar)
    6 yrs
  • All Geared Medium Duty Lathe Machine

    All Geared Medium Duty Lathe Machine

    Get Price Quote
    All Geared Medium Duty Lathe Machine, CNC Turning Machin

    Maruti Machine Tools

    Mavdi, Rajkot (0.9 km from Gokulnagar)
    GST 9 yrs
  • All Geared Lathe Machine

    All Geared Lathe Machine

    Get Price Quote
    We are leading supplier of huge range of All Geared Lathe Machine.

    ACME INDUSTRIES PVT LTD

    Atika Industrial Area, Rajkot (0.7 km from Gokulnagar)
    17 yrs
  • All Geared Lathe Machine

    All Geared Lathe Machine

    Get Price Quote
    All Geared Lathe Machine, Milling Machine, Heavy Duty Lathe Machin

    Arun Machine Tools

    Bhaktinagar, Rajkot (1.2 km from Gokulnagar)
    13 yrs
