Edge Automation Laxmi Nagar, Rajkot, Gujarat

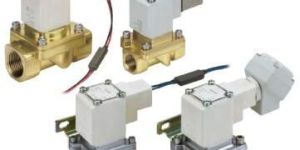

・For steam・Long service life : 3 million cycles (Based on SMC’s test condition)・Improved air filtration・Reduced apparent power : 18VA→12VA, 20VA→15VA・Reduced coil temperature rise : 120℃→100℃・IP65

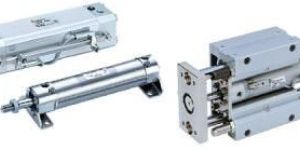

・Can be used in environments where contact with water or coolant occurs. ・With water-resistant 2-color indication auto switch ・Suitable for factory machinery, food manufacturing machinery, car 　washes, etc.

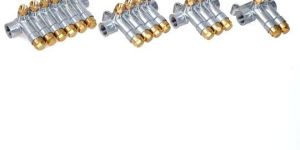

AD Volume type distributor is designed and manufactured by Nihon Yuki Co., Ltd based on patented product RH volume type distributor to special installation and piping needs. In design and material selection, full consideration has been made. Advanced Japanese processing techniques and testing measures are adopted to guarantee reliably, and service life of the distributor. 1. Working Principle As shown in diagrams below, grease press delivered from lubrication system is injected via main pipe (A), and injected by push opening the umbrella-shaped valve (B),and press delivered via channel (C) into piston chamber (F). Pressured oil causes measurement piston to go upward, and the spring (G) is compressed, and measured oil reserve takes place. When grease pressure in main pipe (A) is taken off, the umbrella-shaped valve (B) moves leftwards due to pressure difference, and at the same time opens the outlet (E). Then grease inside the piston chamber enters oil pipe (H) via outlet (E) due to spring force. Thus, one grease delivery cycle is finished.

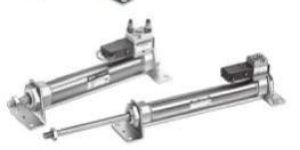

・Valve is mounted on a round cylinder. ・Built-in speed controller for some models. ・Cylinder with a valve makes it easy to adjust speed. ・With auto switch (Series CDVJ: CDVJ5, CDVJ3, Series CDVM: 　CDVM5, CDVM5K, CDVM3, CDVM3K, Series CDV3: CDV3, CDV3K, 　Series CDVS1: CDVS1, CDVS1K)

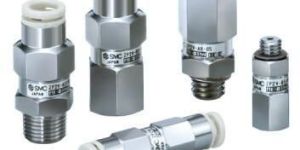

・Can restrict the reduction of vacuum pressure even when there is no workpiece.・No need for switching operation when changing workpieces・Built-in filter (40 μm)・With One-touch fitting type available !

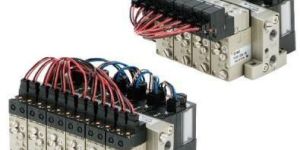

・2 built-in spool valves ・Possible to control vacuum adsorption and release with a single valve unit. ・Width 10 mm (Same size as Series SJ3000) ・With a restrictor that can adjust the flow rate of the release air. ・Built-in replacement filter on both vacuum and release sides. ・Combination of the 4 port solenoid valve SJ2000/3000 is possible. (Made to 　Order).

・Allows adjustment of vacuum line pressure. ・Single sided connections series ・Weight reduced by 20% (Compared with the existing IRV2000 with 　IRV20 fitting) ・Built-in One-touch fittings ・Easy to attach/detach the pressure gauge or digital pressure switch due 　to attachment by clip. ・Mounting direction of the pressure gauge or digital pressure switch can 　be changed. (Standard connections only) ・Mounting angle of the pressure gauge or digital pressure switch can be 　changed easily (in 60 degree increments).

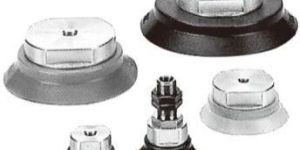

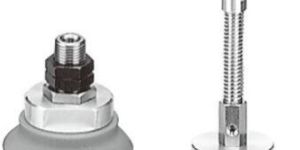

・For heavy or large workpieces・Pad diameter: ø32 to ø340

・Ejector and pad are integrated. Space saving and reduced piping labor! ・Two-stage ejector 　Suction flow rate 50% increased, Air consumption 30% reduced. ・Easier maintenance 　Mounting with the lock plate reduces the pad replacement work steps! ・Pad Diameter: Ø63, Ø80

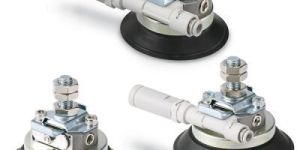

・Ball joint type ideal for adsorption on slanted work surfaces・Pad diameter: ø10 to ø50

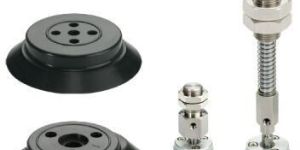

・A variety of models accommodate a wide range of applications.・Pad shapes: Flat, Flat with ribs, Thin flat, Thin flat with ribs, Deep, and　Bellows shape・Pad diameters: ø2 to ø50

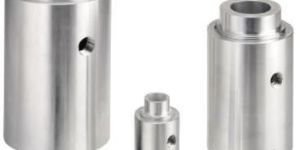

・By supplying compressed air, large blow and vacuum flow rate available ・A blow flow rate 4 times the supply air ・A vacuum flow rate 3 times the supply air ・Large passage diameter available for suction of machining chips, particles, etc. ・Maintenance free ・Mounting bracket available ・Application examples 　- Blow: Blowing away water droplets and machining chips. 　- Vacuum: Vacuuming the smoke during soldering. Transferring materials such as pellets or fine particles.

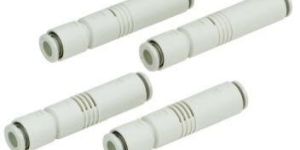

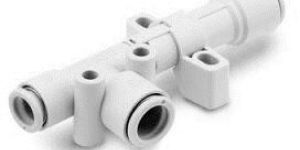

・Vacuum port and supply port are located collinearly to facilitate piping. ・A lightweight construction is achieved through the use of the resin body. ・Nozzle diameter ø0.5: 6.5 g 　　　　　　　　　ø0.7: 7.0 g ・Built-in One-touch fittings (copper-free countermeasures taken)

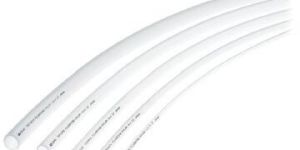

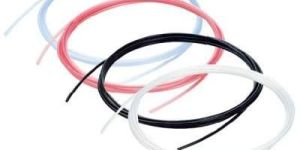

・Carries fluid such as solvent with a soft and abrasion resistant tube.・2-layer structure　Outer layer: Special nylon resin　Inner layer: Special fluoropolymer・Internal smoothness: Equivalent to Ra 0.02 μm

・Equipment having a safety circuit ・When starting an operation, accidents such as fingers being caught can be 　prevented, by requiring both hands to start these push button operated valves. ・An output is available through synchronized, two-handed operation (within 0.5 s).

・Max. operating pressure 2.3 MPa or less (at 20℃)＊ ・Compatible with the Food Sanitation Law ・Complies with FDA (Food and Drug Administration) 　§ 177-1550 dissolution test. ・Maximum operating temperature: 200℃ 　(This can vary according to operating pressure.) ＊It varies according to each size
