Ekta Industries GIDC, Rajkot, Gujarat

We offering an excellent quality range of Wire Supplyer Tools.Tools are available to the clients in different specifications at affordable prices.

We are one of the prominent manufacturers and suppliers of wire stripping tools in india. Easy to use and low in maintenance, it can be operated even by an unskilled worker. Offering accurate performance and rust resistant, our wire stripping tools are in huge demands in the market. We offer these at minimal prices for the benefit of the clients.

Country of Origin : Made in India

Shank Diameter : 0.072 Inch

Material : Iron

We are one of the well-known manufacturers and suppliers of EI N6 Wire Nail Machines in the market. This particular variant EINI Wire Nail Machine has a new feeding system that permits the use of large wire bundles and maintains high tolerance. It is a very user friendly machine with low maintenance cost that promises to take an industry towards growth path without any obstructions. Technical Data :Wire Diameter S.W.G. (mm)8 - 4 / (4.0 - 6.0)Nail Length inch (mm)2.00" - 6.00" / ( 50 - 152)Max. Nails/min.150Power Required hp/kW10Appox. Nett Weight kgs.2500 kgs.Appox. Gross Weight kgs.2750 kgsCase Size ( m.m. )2450 X 1500 X 1900Appox. Floor Area (m.m.)1350 X 1270

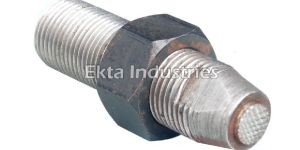

We offering an excellent quality range of Wire Nail Header Punch Tools. Wire Nail Header Punch Tools are available to the clients in different specifications at affordable prices.

We offer Wire Nail Header Punch.

We offering an excellent quality range of Wire Nail GrippingTools.Tools are available to the clients in different specifications at affordable prices.

We offer Wire Nail Gripping Die.

We offer Wire Nail Cutting Tools.We offering an excellent quality range of Wire Nail CuttingTools. Wire Nail Cutting Tools are available to the clients in different specifications at affordable prices.

Frequency : 50 Hz

Tips On Polishing Wire Nails 1. Load the polishing barrel with Wire Nails up to a level 3 to 4 inches above the half filled level. (If nails are rusty, ad half a litere of Kerosene before adding saw dust and run the Barrel for about 10 minutes with blind lid fixed) Add saw dust in the barrel the upto 80% of the full level. Fix the blind lid and run the barrel for about 40 minutes. Stop the barrel and change the lid from blind to perforrated. Run the barrel for about 45 minutes with perofrrated lid in order to remove the saw dust. This will result in bright & shiny nails. 2. If the mirror finished is required on the Nails, it is advisable to use SOFT LEATHER PIECES in second sequences of polishing instead of Saw Dust 20 to 25 Kgs. Of such LEATHER PIECES are required for our 250 Kgs. Cap. Polishing Barrel. These LEATHER PIECES can be applied again for about 15 to 20 cycles till they become very oily.

We manufacture and supply high quality and highly efficient Polishing Barrels, which are mainly used for polishing wire nails. These Polishing Barrels are made from very good quality material that is very durable and has high resistance to corrosion. Our polishing barrels are very easy to operate that can be handled by even a slightly trained worker without much hassle. Features : Made of good quality raw materialVery durableCorrosion resistanceEasy to operate Applications : Heavy metal industryDie casting industryPlastic industryMachine manufacturing industry

Brand Name : Ekta

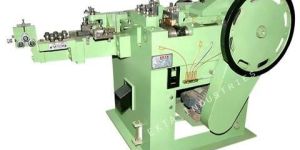

Manufacturer & Supplier Of HS100 Wire Nail Making Machine Model : High Speed (HS100) Wire Nail Making Machine   Wire Nail Making Machine HS100 is developed by EKTA INDUSTRIES with expertise engineering with intention of increasing production of Nails and reducing cost of production. With new upgraded technology this model becomes first in one of its kind in INDIA with automation and electrification.   Features :  500 Nails/Min.  Capacity 2mm to 4mm Die  Bearings Installed In All Shafts  Sensor System  Electric Panel Board  Automatic Oil Pumping With Timer  Top Cover Safety

We are one of the well-known manufacturers and suppliers of ei n3 wire nail machines in the market. This particular variant eini wire nail machine has a new feeding system that permits the use of large wire bundles and maintains high tolerance. It is a very user friendly machine with low maintenance cost that promises to take an industry towards growth path without any obstructions. technical data :wire diameter s.w.g. (mm)14 - 09 / (1.6 - 3.6)nail length inch (mm)1.00" - 4.00" / ( 25 - 100)max. Nails/min.350power required hp/kw3appox. Nett weight kgs. 975 kgs.appox. Gross weight kgs.1140 kgscase size ( m.m. )1315 x 1120 x 1130appox. Floor area (m.m.)1610 x 1020

We are manufacturing & exporting wire nails making machine in Rajkot, Gujarat, India.

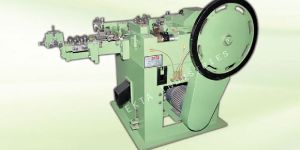

We are one of the well-known manufacturers and suppliers of ei n2 wire nail machines in the market. This particular variant eini wire nail machine has a new feeding system that permits the use of large wire bundles and maintains high tolerance. It is a very user friendly machine with low maintenance cost that promises to take an industry towards growth path without any obstructions. technical data :wire diameter s.w.g. (mm)16 - 11 / (1.5 - 2.8)nail length inch (mm)0.50" - 2.40" / ( 12 - 60)max. Nails/min.400power required hp/kw2appox. Nett weight kgs.765 kgs.appox. Gross weight kgs.915 kgscase size ( m.m. )1205 x 175 x 1145appox. Floor area (m.m.)1375 x 950

We are manufacturer & exporter of Wire Nail Making Machines at Rajkot, Gujarat, India.

We are one of the well-known manufacturers and suppliers of ei n1 wire nail machines in the market. This particular variant eini wire nail machine has a new feeding system that permits the use of large wire bundles and maintains high tolerance. It is a very user friendly machine with low maintenance cost that promises to take an industry towards growth path without any obstructions. technical data :wire diameter s.w.g. (mm)20 - 15 / (0.8 - 1.8)nail length inch (mm)0.30" - 1.75" / ( 8 - 45)max. Nails/min.500power required hp/kw1.5appox. Nett weight kgs.460 kgs.appox. Gross weight kgs.625 kgscase size ( m.m. )1185 x 155 x 1125appox. Floor area (m.m.)1100 x 755

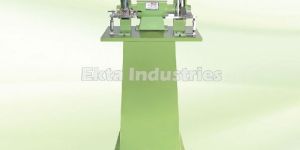

We are one of the leading manufacturers and suppliers of Cutter Grinding Machines in India. The tools of nail making machine tends to become blunt due to regular use so their regrinding is done by the Cutter Grinder Machine. This efficient Cutter Grinder Machine manufactured by “Ekta Industries” is provided with a special kind of fixture, which can be operated by even a semi-skilled worker. This machine is very time saving, as within a very short time it can complete the work. Features : Requires less timeHighly efficientVery user friendlyProvided with jigs and fixturesEnergy efficient Applications : Engineering industryHeavy metal industryPlastic industry

The Cutting tools of the Nail making Machinesbecome blunt and they require re-grinding. We have developed a special Cutter Grinder for grinding all the profiles of cutters. These machines are provided with special type of jigs and fixtures so that even a semi-skilled worker can grind (re-sharpen) the cutting tools easily after a short training. It takes only a few minutes to re-sharpen. These three wheel type Cutter Grinder is available in 300 mm wheel size.

Material : MS +SS

Country of Origin : Made in India

Country of Origin : 20V

Production Capacity : 450 kg to 550 kg
