Gayatri Machine Tools in Dhebar Road, Rajkot, Gujarat - Medium Duty Lathe Machine Dealer

Plano Bed Lathe Machine

Get Latest Price

Extra Duty Lathe Machine 24"+26"+28"+30" Bed Width Lage type and plano bed lathe machine Standard Accessories 16" Chuck Plate Change Gear Set (Heavy Rype) Tool Post Bolt Key Motor Pulley Steady Rest 20" Bore
...more
Plano Bed Lathe Machine

Request for Price

Extra Duty Lathe Machine 24"+26"+28"+30" Bed Width Lage type and plano bed lathe machine Standard Accessories 16" Chuck Plate Change Gear Set (Heavy Rype) Tool Post Bolt Key Motor Pulley Steady Rest 20" Bore
...more
Get Best Price

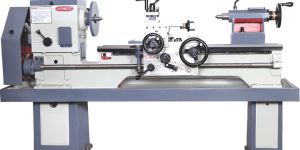

Medium Duty Lathe Machine

Get Latest Price

Height of Center215mm
Bed Width279mm
Swing Over Bed425mm
Swing over Cross slide260mm
Movement of cross slide250mm
Swing in Gap620mm
Bed Type2V & 2 Flat
Drive V-BeltB-48
Spindle Bore50mm
Spindle Nose & Threadad75mm / 6TPI
Tail stock Spindle Dia/Taper50.8mm/MT-4
Tail stock Spindle Travel150mm
Compound Dlide Travel150mm
Lead screw Diameter & pitch31.75mm/4TPI
Renge of Matric Threads0.5 to 7
Renge of inch Threads4 to 48 TPI
Electric Motor 1440 RPM.2 HP/3 Phase

Standard Accessories 10" Chuck Plate Spindle Sleeve 2 Dead Center Change Gear Set Tool Post Bolt Key Motor Pulley
Medium Duty Lathe Machine

Request for Price

Standard Accessories 10" Chuck Plate Spindle Sleeve 2 Dead Center Change Gear Set Tool Post Bolt Key Motor Pulley
...more
Get Best Price

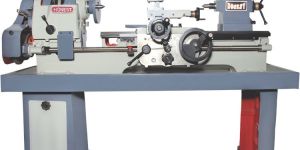

Light Duty Lathe Machine

Get Latest Price

Height of Center165mm
Bed Width238mm
Swing Over Bed315mm
Swing over Cross slide180mm
Movement of crossdlide225mm
Swing in Gap500mm
Bed Type2V & 2Flat
Drive V-BeltSingle B-42
Spindle Bore40mm
Spindle Nose & Threadad8T P1 / 61mm
Tail stock Spindle Dia/Taper38.1mm/MT-3
Tail stock Spindle Travel115mm
Compound Dlide Travel120mm
Lead screw Diameter & pitch25.4mm/4TPI
Renge of Matric Threads0.5 to 7
Renge of inch Threads4 to 48 TPI
Electric Motor 1440 RPM.1 HP/3 Phase

Standard Accessories 8" Chuck Plate Spindle Sleeve 2 Dead Center Change Gear Set Tool Post Key Motor Pulley
Light Duty Lathe Machine

Request for Price

Standard Accessories 8" Chuck Plate Spindle Sleeve 2 Dead Center Change Gear Set Tool Post Key Motor Pulley
...more
Get Best Price

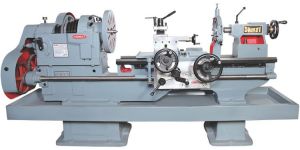

Heavy Duty Lathe Machine

Get Latest Price

Height of Center254mm
Bed Width325mm
Swing Over Bed490mm
Swing over Cross slide290mm
Movement of cross slide300mm
Swing in Gap800mm
Bed Type2V & 2 Flat
Drive V-BeltDouble Belt C-70
Spindle Bore53mm
Spindle Nose & Threadad6TPI / 75mm
Tail stock Spindle Dia/Taper57.15mm/MT-4
Tail stock Spindle Travel190mm
Compound Dlide Travel150mm
Lead screw Diameter & pitch38mm/4TPI
Renge of Matric Threads1 to 6
Renge of inch Threads2 to 24 TPI
Electric Motor 1440 RPM.3 HP/3 Phase

Standard Accessories 10" Chuck Plate Face Plate Steady Rest Spindle Sleeve 2 Dead Center Change Gear Set Tool Post Bolt Key Motor Pulley

...more
Heavy Duty Lathe Machine

Request for Price

Standard Accessories 10" Chuck Plate Face Plate Steady Rest Spindle Sleeve 2 Dead Center Change Gear Set Tool Post Bolt Key Motor Pulley
...more
Get Best Price

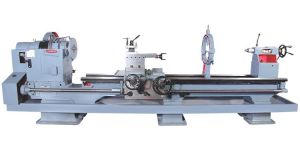

Extra Duty Lathe Machine

Get Latest Price

Height of Center457.2mm
Bed Width457.2mm
Swing Over Bed900mm
Swing over Cross slide550mm
Movement of cross slide215mm
Swing in Gap1200mm
Bed Type2V & 2 Flat
Drive V-Belt2v & 3 Belt 'C' Type
Spindle Bore80mm to 200mm
Spindle Nose & Threadad6TPI
Tail stock Spindle Dia/Taper76.2mm/MT-5
Tail stock Spindle Travel250mm
Compound Dlide Travel200mm
Lead screw Diameter & pitch50.8mm/2TPI
Renge of Matric Threads1 to 6
Renge of inch Threads1 to 24 TPI
Electric Motor 1440 RPM.5 HP/3 Phase

Standard Accessories 14" Chuck Plate Change Gear Set (Heavy Rype) Tool Post Bolt Key Motor Pulley Steady Rest 14" Bore
Extra Duty Lathe Machine

Request for Price

Standard Accessories 14" Chuck Plate Change Gear Set (Heavy Rype) Tool Post Bolt Key Motor Pulley Steady Rest 14" Bore
...more
Get Best Price

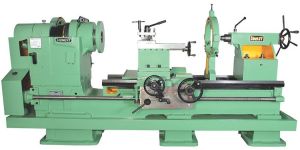

Bed Width Extra Duty Lathe Machine

Get Latest Price

Height of Center609.6mm
Bed Width609.6mm
Swing Over Bed1150mm
Swing over Cross slide865mm
Movement of cross slide750mm
Swing in Gap1600mm
Bed Type2V & 2 Flat
Drive V-Belt3 Belt 'C' Section
Spindle Bore90mm to 200mm
Spindle Nose & Threadad6TPI
Tail stock Spindle Dia/Taper100mm/MT-5
Tail stock Spindle Travel350mm
Compound Dlide Travel250mm
Lead screw Diameter & pitch50.8mm/2TPI
Renge of Matric Threads1 to 6
Renge of inch Threads1 to 24
Electric Motor 1440 RPM.7.5 HP/3 Phase

Extra Duty Lathe Machine 24" Bed Width Standard Accessories 14" Chuck Plate Change Gear Set (Heavy Rype) Tool Post Bolt Key Motor Pulley Steady Rest 16" Bore

...more
Bed Width Extra Duty Lathe Machine

Request for Price

Extra Duty Lathe Machine 24" Bed Width Standard Accessories 14" Chuck Plate Change Gear Set (Heavy Rype) Tool Post Bolt Key Motor Pulley Steady Rest 16" Bore
...more
Get Best Price
