Hydraulic Press Brake Machine Dealers in Bhaktinagar, Rajkot

Hydraulic Press Break Machine, Lathe Machine, Milling Machine, Power Pres

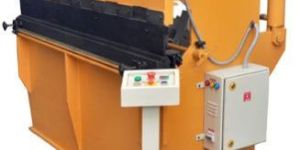

Electrical Control Panel with of 'AUTO' 'ONCH' & 'SINGLE CYCLEAUTO' mode of operation. Pair of Foot Switches. Fine Stroke Adjustment Rod with Limit Switches.

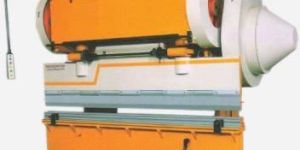

We offer mechanical press brake. Weldor press brakes are designed and developed through years of experience in sheet metal working machines. Weldor press brakes are widely accepted in industries for continuous production runs and in areas requiring accuracy and repeatability coupled with high production. 1. Frame: frame is of robust steel construction of rigid and interlocked design. It is stain-free and supports the ram and bed against undesired deflection under permissible load condition. 2. Ram and bed: made from steel plates of suitable thickness. Machined for straightness and parallelism of the working surface. Ram is guided and supported throughout the stroke by accurately machined guideways. 3. Drive system: power is transmitted to the ram through two individual gear drives for uniform load distribution throughout the length. This also reduces the torsional stresses on the eccentric shaft. The gear and pinion are made out of carbonalloy steel. 4. Ram adjustment: motorized ram adjustment through a simple drive mechanism, facilitates quick bending angle adjustment. Angular ram adjustment is made simple by incorporating a spring loaded dog clutch. 5. Clutch and brake: all series of press brakes are provided with high-torque low-inertia friction clutch, synchronized with heavy duty mechanical brake ensuring immediate braking of ram on releasing the pedal. Clutch operating levers are designed in such a way that minimum, engaging force is required at the pedal.

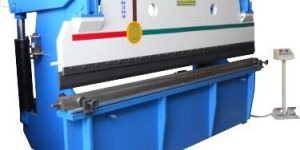

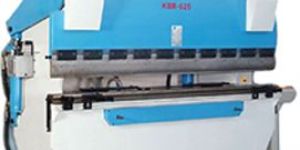

We are offering hydraulic press brake. Hydraulic press brakes are designed and developed through years of experience in sheet metal working machineries. Weldor hydraulic press brakes are developed by keeping latest technology in mind. Both cylinders are mounted at back side of press brake and are synchronised for parallelism between ram and table, by providing mechanical links connected with cylinder. The heavy duty steel construction frame is so designed to absorb heavy shocks of overload. All welding edges are properly machined for weld joints. The electric control panel is fixed on side wall at convenient place for easy reach of operator. It includes push button pendant and foot switch. Standard v' block & v' punch and manually operated back gauge system which is front operated are supplied as standard accessories. Hydraulic components are of reputed make like vickers

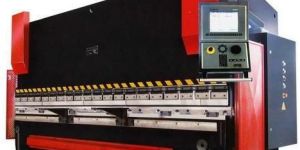

Press Brake Machines are designed taking in to consideration all severe service conditions of sheet metal shop. The machine are heavy duty robust in design and acclaimed recognition in requiring high accuracy productivity & efficiency. Frame Construction: Frame in made of steel fabricated construction of interlocked robust design. Machines are constructed with safeguards against undesired deflections and breakage. The frame distributes the stresses, supporting the bed directly on the frame. The double support shoe of frame gap provides extremely high rigidity, alignment, accuracy and keeps frame structure at right angles to the bed. Ram & Bed: Ram and bed are straight and parallel of both the working surface under the rated load. The bed is accurately machined and upper surface is grinded to keep the die in correct alignment. The ram is guided and supported throughout the stroke by accurately machined guide ways. Lubrication System: The lubrication system on a machine is an assurance for its trouble free running. The bearing parts are linked with high density polythene pipe – line spread at every point where lubrication is required. Clutch and Brake: Press brake are provided with high-torque low-inertia friction clutch, synchronized with heavy duty. The powerful disc type clutch is easily accessible, simple to adjust and picks the load from standing start and it frequent start & stop. The brake is interlocked with clutch to stop the ram immediately at any point of motion. When the clutch is released. Clutch operating levers are designed in such a way that minimum engaging force is required at the pedal. Drive System: Power is transmitted to the ram through two individual gear drives for uniform load distribution throughout the length. This also reduces the torsion stresses on the eccentric shaft. Electric motor used is of sufficient H.P. which reduces slowdown of flywheel and increases energy available per stroke. The gear and pinion are made out of carbon steel. Ram Adjustment Mechanism: Motorized ram adjustment making it very easy to adjust the shut height to a desired value. The clutch offered easy operation in disconnecting either of Right or left screws in order to set the ram in correct position. This mechanism facilitates quick bending angle adjustment. Angular ram adjustment is made simple by incorporating a spring loaded dog clutch.

We are a trusted supplier of Press Brake Machine, providing the lucrative deals to the widespread customers at easy terms. To handle both automated inbound and outbound orders, we have exceptional warehousing solutions. We keep the wide array of products sorted in the warehouse to make sure that the delivery commences systematically.   Product Details : Machine Type - Lathe Machine,Milling Machine,Drilling Machine,Boring Machine Operation Mode - Semi Automatic Service Location - Any Where in India   Approx Price : Rs 3,000 / Piece

Buyers can order our products in bulk, as we maintain year around availability. In addition, we have reliable transportation system to make timely delivery. Our products are packed under controlled conditions to ensure their quality is not compromised and buyers are presented with brand new products. We have an ultramodern facility to pack our products.

Mechanical Press Brake Machines, Sheet Metal Machin

Press Break Machine, Drilling Machine, High Speed Tapping Machin

Mechanical Press Break Machine, Industrial Machine, Lathe Machin

C Hydraulic Press, Horizontal Hydraulic Press, Hydraulic Pipe Bendin

A. P. Machine Tools is one of the leading manufacturing & supplying company of high quality press brake machine from India.
