Hydraulic Presses Dealers in Kotharia, Rajkot

Our Automatic high speed Hydraulic press Machine is devised using premium quality material. This machine is widely used for cutting collars, cuffs, plackets, chalkpatti, flowers or any of the design in any shape in any cloth, and leather. Operated by fully controlled integrated circuit with double buttons, our machines is accident free.

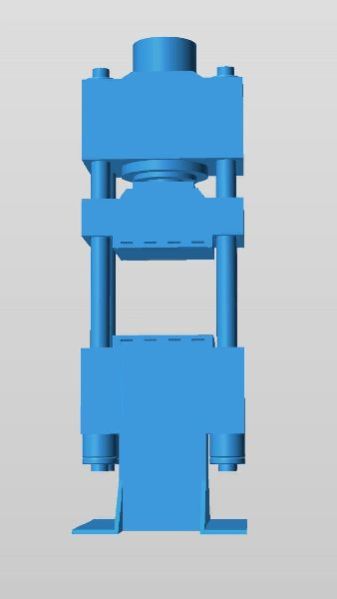

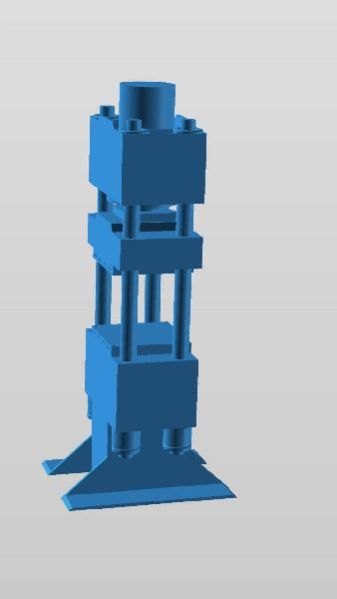

Although Advanced Machine Design has a wide variety of hydraulic presses for many different applications; our hydraulic press designs can be broken down into basic categories to include: two post presses, four post Presses, C-frame presses, vertical presses and horizontal hydraulic presses. The most common press design is the four post hydraulic press. This design is the most versatile as a result of having no size limits, and can be adapted to nearly any process. The four post press design can be configured in a vertical or horizontal position as the process and space available dictate. Precise control Technologies ensures that the four post presses are precise and efficient. Operator access is allowed from all four sides of the hydraulic press so it is very well suited for many different applications. The C-frame press derives its name from the shape of the frame. The primary advantages to the C-frame design are an open work area and increased accessibility. The C-frame press features become even more advantageous when multiple presses are used for progressive operations with automated material handling moving parts from press to press. The C-Frame hydraulic presses, however, are generally limited in maximum tonnage due to the design.The two post hydraulic press is basically a hybrid of the previous two designs. It has good accessibility of the work are for the operator and maintenance personnel while generally allowing for higher tonnage ratings than the C-frame press. Advanced Machine Design Company utilizes over 26 years of engineering knowledge and experience to design and manufacture heavy duty state of the art hydraulic presses. Our presses are available in standard designs or can be customized to individual specifications. Advanced Machine Design Company Hydraulic Presses can be supplied with entry and exit automated material handling with the value added of purchasing an entire turnkey system from one vendor. Standard Press Features: Optional Accessories: 1.  PLC Control with digital operator interface2.  Meets or exceeds OSHA regulations for safety3.  Heavy duty industrial design with 4 to 1 safety factor4.  Guarding to individual specifications with E-Stop circuits5.  Minimal deflection design6.  Overload protection7.  NEMA rated panels8.  Oil cooler9.  JIC/NFPA standard components10. IEC rated electric components11. Full tonnage throughout stroke or cycle 1. Light curtains2. Pressure strips3. Remote system monitoring4. Remote diagnostics5. Die tables6. Die loaders7. Die clamping8. Die storage9. Local or centralized controls Special Feature:  These presses offer maximum access to tool area for tool changing & component feeding Applications Slide guidance can be either twin pillars or face slide. Hydraulic power pack is inbuilt & all valves are manifold mounted for easy & quick maintenance & a pressure relief valve protects against overloading of the press.

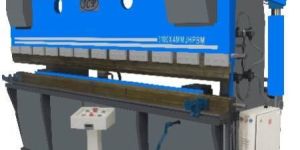

We are offering hydraulic press brake. Press brake machine capacity 80 ton bending capacity. (length x thick 2540 x 4 mm dist. Between housing 1700 stroke length 75 stroke per minute 30 ram adjustment 75 shut height ram stroke down 220 table height 800 depth of throat 300 main moter hp 10 ram adjustment moter hp 1.5 die-space (length x width) 2540 x 200 machine diamensions (l x w x h) 2900 x 1500 x 2850 approx weight kg 5500

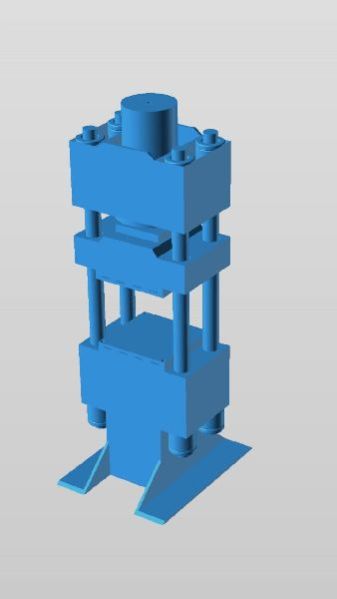

We offer Four Piller Compression Moulding Press. Four Pillar Hydraulic Press is used for compression molding of various materials like rubber, Viton, Teflon, Bakelite etc. This press include facilities like guided hot platen, PLC HMI, Temperature module & Linear port for stroke, Pressure, Temperature, slow start and slow stop adjustment. You can create a recipe programme as per your requirement

Buyers can contact us to buy Manual Press Brake Machine. The Hand Operated Press Brake, offered by us, is fabricated from quality-tested parts and components following the industry defined norms. The Manual Press Brake Machines that we offer are known for excellent performance apart from flawless construction. Manual Press Brake Machines can be acquired at reasonable prices from us. We are a well-reckoned Manual Press Brake Machine Manufacturer and Supplier in Gujarat, India.

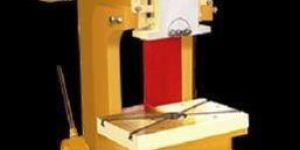

FMT ®brand Heavy Duty mechanical Power Presses are coming in "C" frame versions from 5 tons to 200 tons capacity in most economical type of construction with several std./optional features such as manual/auto lubrication systems, knockouts electronics safety, Single/Double or Un-geared versions as also Pneumatic feeders/straightness & die-coilers for automatic Purpose. FRAME: The frame is fabricated from solid steel plate with heavy cross ribbing, the structure is designed for perfectly balanced distribution of stress over the cross section eliminating deflection & vibration, in result increased tool & machine life. CLUTCH: The Clutch is made of special alloy steel, The pin / rolling key is manufactured from W.P.S. / EN24 material & with proper heat treatment to ensure trouble free long life & give continues stroke for mass production. CRANK SHAFT: The Crank shaft is made of special alloy steel & precisely machining it to grind finish & fitted in Graded Gun-Metal Bushes for smooth working, longer life & accuracy. ADJUSTABLE STROKE: The unique feature of adjustable stroke enables the press to perform all kinds of operations by employing short stroke for blanking and forming operation. LUBRICATION: An efficient shot lubrication system has been provided for lubricating the sliding surfaces and moving parts. The lubricant is applied by hand pump.Oil cups & Grease point are provided for lubricating the sliding surfaces & moving parts. 50 ton & above Hand operated pump provided. Also Automatic lubrication system offered against request. RAM SLIDES: Ram Slides is made of high grade heavy duty cast iron & properly seasonal & fitted with Hylum Sheet on back side for friction free travel through slides, ensuring longer life of die and easy operation. FLYWHEEL: Properly sized flywheel is made of high grade cast iron, for storing and releasing adequate energy for the pressing operation, and properly balanced for smooth running. BED: Bed is made of high grade heavy duty cast iron & properly seasoned & properly aligned with ram to obtain high accuracy and precision press operation. GEARS: The Gears are made of steel cast or fabricated. Gear teeth are generated by precision hobbing machine.

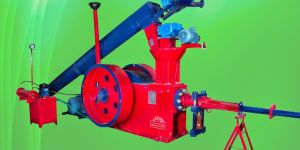

We are offering briquetting machine. Super70 briquette press is used to make 70mm dia, briquettes form any type of agriculture waste like groundnut shells, jute waste, coconut leaves, sugar cane bagasse etc. It has 750kghr production capacity and need 49hp power to make briquettes. This machine is specially made for medium scale industries.

Capacity5/15/25/40/60/75/100/150/200 & More TonnesFeatures Single power pack unit to save electric energy. Separate pressure setting , Stroke setting, speed setting, foot switch etc. Pressure,speed, stroke etc. Adjustable Rigid Frame Structure Useful in assembly work, die work, production work Both machine will work at a time The machine will be built up per customer specification

This is a steel fabricated body hydraulically operated 300 tons press specially designed for minting gold and silver coins and medals. This hydraulic coin minting press is an upstroke Coining press with higher ram travel speed and with extra hydraulic cylinder for return stroke to increase the production. The hydraulic Coin minting press is equipped with hydraulic Power Pack consisting of Piston Pump, Electric Control panel board operated directional Control Valve, relief Valve, Pressure Gauge and standard hydraulic accessories. This hydraulic Coining Press can be operated through the control panel board or manually with foot pedals and has the provision to adjust the final coining pressure. A timer is provided to adjust the time for which the pressure remains applied before return stroke. Our standard version Hydraulic Coining Press is available in four models: 50 Tons, 100 Tons, 200 Tons and 300 Tons Capacity.

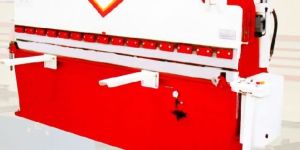

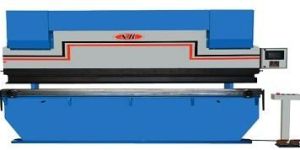

RT Power Press Hydraulic Press Brakes are designed and developed through years of experience in sheet metal working machinaries. RT Power Press Hydraulic Press Brakes are developed by keeping latest technology in mind. Both cylinders are mounted at back side of Press Brake are synchronized for parallesm between ram & table, by providing mechanical links connected with cylinder. The heavy duty steel construction frame is so designed to absorb heavy shocks of overload. All welding edges are properly machined for best weld joints. The electric control panel is fixed on side wall at conventional place for easy reach of operator. It includes push botton pendant and foot switch. Standard “V” block & “V” Punch and manually operated back guage system which is front operated are supplied as a standard accessories. Hydraulic components are of reputed make like Videkers, Rexroth, Dowty, Yuken, Polyhydron etc. Capacities rated for M.S. (U.T.S. 45kg/mm2). Bending capacities stated are only representative and not binding. Allow extra capacity for material inconsistencies, bending conditions. Right to change specification, features without notice reserved. Compliance with safety requirements as per local regulations is responsibility of the user.   Standard Features:   Electric motor, Control Panel with selection of INCH-ONCE-AUTO Mode of operation. Foot switch. Fine stroke adjustment rod with limit switches, Manual Lubrication, Manual Back Guage, Standard V Block Punch, Insruction Manual.   Options:   Goose Neck Punch & other tooling (drawing required), Electronic Stroke Counter, NC Operated Back Guage, Automatic Lubrication System.   All Dimensions are in mm. Power supply 400/440 volts, 3 Phase, 50 Cycle. As day to day Improvements are contemplated for better performance of the machine. We reserve the rights to alter the specifications without prior notice. All the machines undergo a through check-up by our expert engineers before dispatch to ensure their smooth and trouble free operation. Electricals are not under warranty.

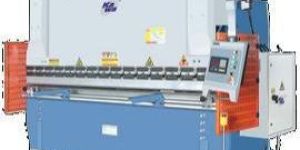

We are offering hydraulic press brake. standard accessories : * main drive motor. * electrical control panel with of 'auto' 'onch' & 'single cycleauto' mode of operation. * pair of foot switches. * pair of lifting links. * pair of sheet supports. * fine stroke adjustment rod with limit switches. * manual back gauge with fine setting. * one suitable 5 way die and blade. * centralised lubrication system with hand pump. optional accessories : * nc - operated stroke (y - axis) control. * nc - operated back gauge and stroke control. * sheet support with swing - away stoppers for front gaufing. * hardened tools & special toolings. * first fill of hydraulic oil. * goose neck punch. * automatic lubrication system. * motorised back gauge with dro.

This Sturdy well-made unit features Microprocessor Based Digital PID Temperature for maximum accuracy and proper operation. PID Temperature Memorize the Temperature you set until you reset it & Lets you know when the vulcanizer has reached the set temperature and is ready to use. Temperature is accurately maintained in °C with the & the built–in 1-hour timer automatically shuts off the vulcanizer at the end of the cycle.
