Its an construction in which all types of electrical noise predominantly common mode noise is eliminated by this UIT. Since it isolates primary and secondary and separated neutral to ground bond on the secondary side it can be used to create separately derived source to combat current loops. The special construction use Faraday's shielding box to totally block the transfer of electric noise even by static charge or by way of proximity of R.F. Noises. High insulating materials with special shielding techniques attenuate common mode noise as well minimize transverse mode noise. The specially selected core with its magnetic properties exhibit sufficient leakage inductance to attenuate noise with proper transfer of fundamental power frequency. The UIT is designed with split winding construction and bifilar connections to reduce coupling capacitance of winding. Rating 10 KVA to 2000 KVA Input Voltage : 230 / 415 V (acceptable ± 10%) 1ø / 3ø + Neutral (OR as per customer's requirement) Output Voltage : 230 / 415 V (same as input) 1ø / 3ø + Neutral (OR as per customer's requirement) Transformer Ratio : 1:1 (Or as per customer's requirement) DC Galvanic Isolation : Over 100 mega-ohms between windings or any winding to ground at 500 V DC Breakdown Strength Common Mode Noise : 2500 volts AC for 2 minutes Rejection : Better than 110 dB Coupling Capacitance : 0.005 to 0.009pF Line frequency : 47 to 63 Hz Load Regulation : Within & upto 4% Cooling : Air/Oil cooled Construction : Powder coated sheet metal enclosure with Input/Output terminations through brass/copper studs   USP No impedance matching required Low leakage current Wide operating power factor Low transverse mode noise

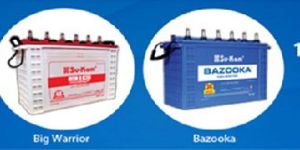

Features   Extra thick gauntlets. Thick spines and bus bar for excellent discharge performance. Life - Promise of 1200 cycles at 80% DOD. Special tubular positive spines cast at 100 bar pressure to enhance corrosion life under extreme situations. Float guide indicators to show electrolyte level in the battery.   Benefits   Provides consistent performance under different climatic conditions. Quick charge acceptance. Extra top electrolyte for less frequent water topping. Extremely long life. Environment Friendly - Micro porous ceramic vent plug ensures minimum acid fumes. Batteries specially designed for places with frequent power cuts. Aesthetically designed- Low foot print to suit homes, offices and business centers. Readily available factory charged batteries reducing commissioning time.

Su-Kam DSP Sine Wave Inverter – Colossal Series, with reliable, regulated and stabilized Pure Sine Wave Output, is a complete power generation system that is suitable for all types of commercial establishments and is capable of running everything from Lights to Air Conditioners to Lifts and Elevators, in the most cost effective manner. Su-Kam DSP Sine Wave Inverter supplies pure power and is 100% safe to run most sophisticated, expensive and sensitive office equipment without the irritating humming sound. It has already established itself as a most reliable option to generators in the following industries/ segments Salient Features Banks/ ATM's BPOs / Call centers Data Centers Deep Freezers Elevators & Escalators Hospitals Restaurants and Hotels Industrial Drives & Motors Laboratories Petrol Pumps Clubs, Pubs and Discotheques Schools / Educational Institutions Super Markets / Shopping Malls Telecom Towers Textile Industry ........ and many more

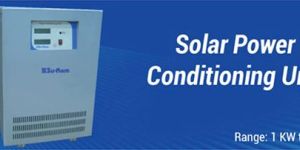

Dual Advantage of Hybrid PCU Su-Kam's Solar Power Conditioning unit (PCU) is an integrated system consisting of a solar charge controller, inverter and a Grid charger. It provides the facility to charge the battery bank through either a Solar or Grid/DG set. The PCU continuously monitors the state of battery voltage, solar power output and the load. Due to constant usage of power, if the battery voltage goes below a set level, the PCU will automatically transfer the load to the Grid/DG power and also charge simultaneously. Once the batteries are charged to the preset level, the Su-Kam's Solar Power Conditioning unit cuts off the Grid/DG Power from the system and restores it to feeding the loads from the battery bank while also returning to charging the battery from the available solar power. The PCU always gives preference to the solar power and will use Grid/DG power only when the solar power / battery charger is unable to meet the load requirement. Features Pure Sine Wave Pure Sine Wave Output with low Total Harmonic Distortion (THD) High Efficiency & High reliability Thermal protection High surge capability (upto 300%) for starting heavy load Noiseless in operation User- friendly display Solar Home Lighting System Kit Our solar inverter finds application in the following areas. Electrification of villages in remote areas Medical facilities in rural areas Microwave / Radio repeater stations Emergency communication systems Water quality and environmental data monitoring systems Pumping systems for irrigation, rural Water supplies and livestock watering Aviation obstruction lighting systems Rail/Road signals Electrification of school in rural areas Power source for summer vacation homes/resorts Shops, micro enterprises, offices etc.

The sun is the most well distributed source of energy and solar power harnesses this abundant resource, more so in India, where the sun is hot and blazing almost across the country. With advances in technology, solar power has become affordable and available to a larger section of the society. Su-Kam’s Brainy Solar Hybrid UPS aims to provide access to this solar energy to you at an affordable price. Su-Kam’s Brainy Solar Hybrid UPS is a modern artificial intelligence machine – a first in the power back-up industry. It is the world’s first UPS to harness solar energy into electricity and use its artificial intelligence to maximize solar energy to power homes and offices. (Download leaflet give in folder) 98% of efficiency delivered when charging battery from solar power as against mains. Brainy Solar Hybrid UPS draws power from solar energy as the first preference. Unlike conventional energy fuel, Solar PV Panel do not emit any gases or leave any residues, thus reducing the global warming and contributing towards a greener environment. 30% increase in battery life as a solar PV panel converts sunlight directly into pure direct current (DC). Features Brainy Solar Hybrid UPS can operate on both Solar Power as well as Grid Power. Integrated with an in-built Solar Charge Controller that enables the conversion of solar power to electricity. Brainy Solar Hybrid UPS always gives preference to solar power while charging the battery. It senses the availability of solar power, grid power and gives charging preference to the solar power charge and only switches to the grid when the solar power is not available. It is designed to give you maximum benefit from the sun and minimize your electricity bill. Contemporary, futuristic design. Affordable pricing to suit any budget Easy system installation Multi-information LCD display panel showing Rs saved from Solar, Battery voltage etc.

Lights your home Su-Kam's Solar Home Lighting System (SHLS) harnesses the sun's energy to light up your home and power your small applications. With benefits that extend both to your wallet and to the environment, Su-Kam's Solar Home Lighting System is not just a 'brilliant' idea; it is a 'responsible' one. Su-Kam's Solar Home Lighting System provides illumination powered from the?sun's renewable energy. Solar cells in the system convert the sun's energy directly to electricity. ?This electricity is stored in the battery and used for lighting whenever required. Su-Kam's Solar Home Lighting System is an economical solution to all your power problems and comes in an easy-to-install kit. Su-Kam's Solar Home Lighting System is compact, portable and easily mountable. Benefits Economical: The sun provides energy at no charge. Enjoy the benefits of illumination without having to pay for it. Power Saver?Saves 30% of your electricity bills if used on a day-to day basis. Long back-up lighting system Provides long back-up Lighting System with zero running cost 30 hrs (with single lamp) 12 hrs (with double lamp) 8 hrs (with double lamp + Radio) The System is easy to assembly, with no confusing wires, and safe for and pets.   Non-Polluting: Powered by the sun's renewable energy, the system is energy neutral and an absolutely clean source of illumination. 1kwp solar installation can reduce 1/2 ton CO2 per annum. No Maintenance: The system has few moveable parts - reducing the risk of breakage. Once installed, it lasts for long time and requires little attention. Solar Home Lighting System Kit: Solar Panels: These 5 watt panels are solid-state semi conductor device that converts the sun's energy directly into electricity. LED Lamps: Solar Home Lighting system comes equipped with 2 LED Lamps with 18 LEDs per lamp. Each lamp consumes 1.5 W nominal power and is more luminous than a CFL or tube light. These LED lamps have much longer life of approximately 10,000 hrs. Grid/External Charger: In absence of sunlight, one can charge the system through this external charger that can be directly connected to the main electricity supply. Control Unit: A compact system with one 7.2/12v S.M.F in-built battery and a controller to protect the battery from overcharging or deep discharge.   Applications The Su-Kam Solar Home Lighting System can be used at many different locations - homes, walkways, verandahs, and balcony or in any non-electrified area.

Your key to solar power generation Su-Kam's MPPT Solar Charger Controller is a system with advanced MPPT (Maximum Power Point Tracking) Technology. The term "charge controller" refers either to a stand-alone device or a control circuitry integrated within a battery pack, battery-powered solar device or a battery recharger. This photovoltaic charge controller is the key component in off-grid or stand-alone solar power generation systems. It can track the maximum power point and transfer energy to various types of batteries. The build-in MPPT microprocessor enables the Solar Charge Controller to increase the energy transfer efficiency by upto 30% compared to traditional charge controllers. Easy installation with parallel connection capability makes Su-Kam MPPT Solar Charger Controller the perfect solution for your home as well as any large solar system application. Su-Kam's Solar Charger Controller's MPPT technology operates in a unique fashion. It calculates the maximum power voltage (V) at which the PV module delivers maximum power, and then the MPPT operates the module at a level, which extracts the maximum available power. The Solar Charger Controller continuously recalculates the maximum power voltage according to the changing operating conditions. MPPT Controllers converts excess voltage into average. Converting excess voltage into Amps, the charge voltage can be kept at an optimal level while the time required to charge the battery is reduced. Su-Kam's MPPT Solar Charger Controller also regulates the rate at which electric current is added to or drawn from batteries. It prevents overcharging, over and variable voltage which if not controlled can reduce battery performance or life span and may pose a safety risk. It also prevents complete drainage ("deep discharge") of a battery and facilitates controlled discharge thereby maintaining the battery's longevity. Equipped with Micro controller and Digital Signal Processing (DSP) technology Su-Kam's MPPT Solar Charger Controller is fully protected against transient over voltage and reverse the current flow, and can charge any type of battery. Protection against various parameters:   Solar /battery reverse polarity. Reverse current flow battery to solar array during night Over charging current and short circuit. Output over voltage Excessive temperature of heat sink   Features Intelligent microprocessor control Silent, solid state pulse Width Modulation (PWM Charging) process User selectable configuration 12Vor 24V or 48 V configuration Test point allows precise adjustment of settings Electronic over current protection Communication interface with PC or LCD modular for data logging or parameter display Protection against various parameters Potentially increase the charging efficiency by 30% Real time sensing of voltage and current to optimize charging   Applications: Solar portable light Solar Home systems Roof top solar solutions

The world's most advanced commercial UPS Based on the world's most advanced DSP Sine Wave Technology, Fusion Pure Sine Wave UPS is the World's most advanced Commercial UPS. The power it supplies is actually purer than the power supplied from the mains. This is clearly evident, as appliances don't make any irritating, humming sound as they do on normal UPS available in the market. Today, with expensive equipment like computers, water motor pumps, microwave ovens and air conditioners being used extensively, an ordinary UPS cannot supply the right kind of power to run these everyday utilities. Here the Fusion gives the consumer the additional advantage of being able to power all their electronic appliances, whenever required

Designed For Deep Cycling Capabilities & Longer Service Life Higher Reliability Greater Protection against Leakage and Corrosion due to Heat Shield Tamper-proof lid Excellent Charge Acceptance laeger Electrolyte Volume Reduces Frquency of Water Topping

It is widely believed that active harmonics filters (AHF) are very costly and, therefore, are the last choice for power quality solutions. The answer is it depends. Every harmonics mitigation and power factor correction device has its place in the market. Harmonics Are a Problem Harmonic distortion has become an increasing concern for facility managers, users of automation equipment and specifying engineers alike. Harmonics not only waste energy, but they reduce equipment life, electrical system reliability, system efficiency and equipment productivity.   Typical Applications Include:     Mission critical facilities AC variable frequency drives DC adjustable speed drives Electronic welders Battery chargers Fans and Pumps Water Treatment Facilities Induction heating equipment Elevator drives 3-phase power supplies Any 6-pulse rectifier Detail: Active harmonics filters provide controlled current injection to remove harmonic current from the source side of electrical system s and reactive current to correct for poor displacement power factor (PF). Active harmonics filters can be applied to a single nonlinear load or many. The nonlinear loads can be mixed types or devices, such as variable frequency drives (VFD), DC motor speed controls (aka DC drives), uninterruptible power supplies (UPS), or thyristor (DC) power supplies, to name a few.

Your powerful partner for uninterrupted success Shark Digital UPS is a two-in-one system that eliminates the need to have separate power back-up solutions for computers and other appliances. It is designed to be aesthetically pleasing, and does not detract from the decor of your home or office while meeting the demands of today's modern living. The neat, compact design hides a powerful heart that comes with a 7-year guarantee on the transformer. Shark is a Digital Home UPS System that works as an Inverter as well as a UPS saving you both Space and Money! This simply means that while using it as an inverter you don't need to buy a UPS for your computer or other sensitive equipment and gadgets at home that require a consistent supply of power of correct specification.
