Plastic Extruder Machine Dealers in Rajkot

(9 products available)
  • Plastic Extruder Machine +2

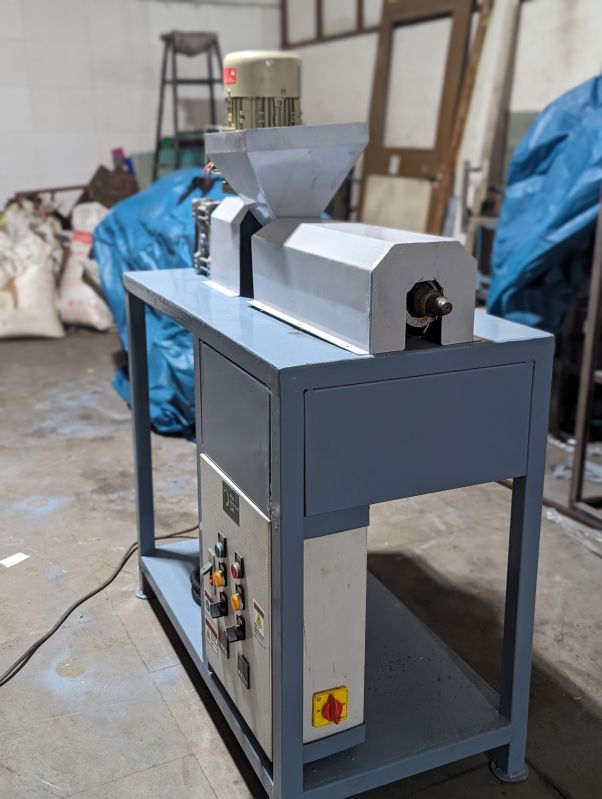

    Plastic Extruder Machine

    214,200 / piece

    • MOQ1 piece
    • Driven TypeElectric
    • ConditionNew
    • Automatic GradeAutomatic
    • Power1-3kw
    • ApplicationIndustrial
    • Country of OriginIndia
    • ⮚ DESIGN PARAMETERS WITH STANDARD SUPPLY: 1) 790 mm / 30 D / 3 HP Smooth Screw extruder – HDPE/PP/LDPE/PS/PET: 1 nos. 2) Process Control Panel synchronized by one master control: 1 nos. ⮚ SPECIFIC DATA 1) Material to be processed: Recycled HDPE/PP/LDPE/PS Grinded Scrap 2) Size to be manufactured: Up to 4ft Length 3) Screw RPM: 70 / Max. 4) Screw size: L- 790 mm, OD – 30 mm 5) Barrel Size: L- 578 mm, OD- 40 mm, ID- 30 mm 6) Max. Extrusion Output: Max. 15-20 Kg/Hr. ( Depending on the material) 7) Advanced extrusion control with optimized workflow to fill moulds 8) Total Connected Load: 8* kW (Approx.)  MAIN EXTRUDER 1) Barrel Type : Smooth Feed Barrier type high speed design 2) Screw Barrel Material : EN 41B Nitro alloy steel duly gas nitride 3) Gear Reducer : Helical Gearbox with heavy duty thrust bearing 4) Main Motor: AC Motor 3 HP With Frequency Drive 5) Barrel Heating Zones: 3 Heating Zones (Ceramic Band Heater with Energy Saving) 6) Barrel Heating Loads: 4 kW. 7) Hopper Loader: Advance Inlet Hopper System with safety cage. 8) Structure: MS fabricated heavy‐duty structure made from angles, channels and Covered with sheet
    ...more
  • Plastic Extruder

    Plastic Extruder

    Get Price Quote

    • thickness0.2 mm to 0.8 mm

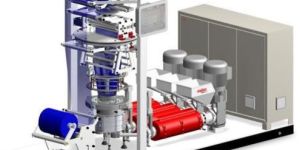

    • As a technology partner for polymer producers, developers, universities and processors - Rajoo has consistently followed impelling technological developments in plastics extrusion with its own new developments. As a technology partner for polymer producers, developers, universities and processors - Rajoo has consistently followed impelling technological developments in plastics extrusion with its own new developments. LabEX – Combo can be used as a laboratory line for testing and developing of new formulations and products, process and parameter control is of utmost significance. An innovative barrier sheet cum blown film line is one of its kinds in the whole world. This combo line consists of four extruders, screen changers, melt pumps, flat sheet die, Universal Co ex Five Layer blown film die head UCD® and fully automatic touch screen based integrated process control panel to give an output of up to 75 kghr. of co extruded barrier sheets or films.
    ...more
  • Plastic Extruder

    Plastic Extruder

    Get Price Quote

    Ocean offers various models for palletizing plant to make granules form resin in various range in screw diameter 75mm, 90mm and 100mm with without vent system screw and barrel, die and pattletizer.
  • Plastic Pipe Extruder

    Plastic Pipe Extruder

    Get Price Quote

    • Number Of FlowerPipe Extruder
    • Capacity2.5 kg Per/Hr
    • Machine TypeAutomatic
    • BrandPrasad Plast
    • Power Consumption1.5 kw
    • Screw DesigConventional
    ...more
  • Plastic Extruder Granule Machine

    Plastic Extruder Granule Machine

    Get Price Quote

    • MACHINE SIZE70 mm to 150 mm
    • BARREL MATERIALEN 41B
    • SCREW MATERIALEN 41B
    • FRAME TYPEC-CHANNEL
    • BEARINGBLOCK TYPE BEARINGS
    • We believe that quality is our first and foremost priority and hence, we are manufacturing and exporting a remarkable range of plastic recycling Granule Machine. These plants are specially designed for reprocessing of plastic waste, HIPS, ABS, Nylon, LDPE, HDPE, PP, PS, PET and PVC materials that contains high moisture level. In order to manufacture high quality Recycling Granule machine, our professionals employ advanced machines and utilize quality tested materials procured from the authentic vendors. We offer these plants to the clients at the reasonable price. These machines are also called as Extruder Machine. Features: Less maintenance - Durable design - Rust proof - Unmatched performance OUT PUT : 70-150 KG/HOUR HEATERS PROCESSING MACHINE HEATING CONTROL PANEL BOARD SIX ZONE DIGITAL TEMPERATURE CONTROLLER COOLING BLOWERS HELICAL GEAR BOX
    ...more
  • Plastic Extruder

    Plastic Extruder

    Get Price Quote

    PVC Extruder Machine is used extensively for mixing, compounding or reacting polymeric materials. The flexibility of twin screw extrusion equipment allows this operation to be designed specifically for the formulation being processed. For example, the two screws may be co-rotating or Counter-rotating, intermeshing or non intermeshing. In addition, the configurations of the screws themselves may be varied using forward conveying elements, reverse conveying elements, kneading blocks, and other designs in order to achieve particular mixing characteristics.
    ...more
  • Plastic Extruder

    Plastic Extruder

    Get Price Quote

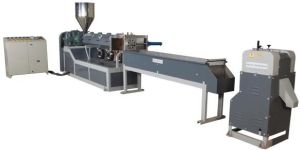

    This plastic reprocess machine is used to process PET and polyethylene plastic waste to recover the scraps and byproducts at the end of plastic fabrication. PET reprocess plant and PE reprocess plant are the two extrusion machineries with plastic extruder are widely used in plastic extrusion process. Reducing plastic wastes by recycling process is a great help to save environment. There are list of re process plant than can be chosen from and PPHDPE reprocess machine is one among the best choices. PPHDPE reprocess plant can be fed with plastic and raffia wastes and this plastic reprocess machinery stays a cost effective solution that can be applied to make quality ropes, molded components and yarns. This equipment is compatible to accept ingredients including BOPP waste, HDPE wastes and polypropylene residues as well
    ...more
  • Plastic Extruder Machinery

    Plastic Extruder Machinery

    Get Price Quote

    Plastic Extruder Machinery, PP Sutli Making Machine, Plastic Washing Plan
  • Plastic Extrusion Machinery Including Extruder

    Plastic Extrusion Machinery Including Extruder

    Get Price Quote

    Plastic Extrusion Machinery Including Extruder, Ball Pen Refil
