Ravi Machine Products Gondal, Rajkot, Gujarat

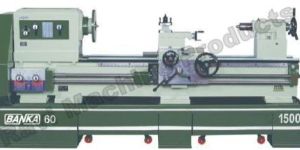

We are offering workshop lathe machine. Model 60 semi universal gear box: a.b.c. : 1500 mm 2500 mm 3000 mm bed length : 9' feet 12' feet 14' feet center height : 300 mm 300 mm 300 mm swing over bed : 600 mm 600 mm 600 mm spindle bore : 80 mm 80 mm 80 mm spindle speed : 30-1050 rpm 30-1050 rpm 30-1050 rpm width of bed : 375 mm 375 mm 375 mm.

Brand Name : BANKA

Size 9′ x 12″ 10′ X 12″ Height of Centre 12″ Length of bed 9′ No. of Inch threads & range 1″ to 30″ Maxi. Admit between Centre 4″1 18, Max. tappor turning length 10cm/137cm

Table Size 600 * 250mm T-slot-dimension 3 * 14 * 75mm Distance from Floor to Table 820mm Max. load on table 100Kg Dist. from Spindle Axis to Column Guide Way 325mm Dist. from Spindle face to tabletop 60-400mm

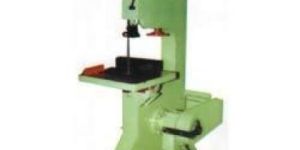

Maximum Throat Capacity 13” Cutting Capacity 6.5” Dia. of Saw Wheels 14” Speed of Wheels For Cutting Metal 800 R.P.M. Size of the tiling Table (45’) 14” x 14” Power Required / R.P.M. 2 HP/ 1440 Weight : 200 Kg.

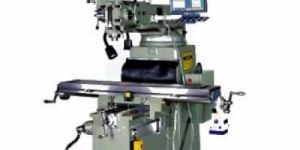

VERTICAL TURRET MILLING MACHINE – BORING – SLOTTING – CIRCULAR MILLING DIVIDING – RACK AND GEAR CUTTING – DRO MILLING – MODEL M4A     Table Size 1370 x 254 mm T Slot 3 x 16 mm X Axis 860 mm Travel Y Axis 400 mm Z Axis 405 mm Ram Travel 580 mm Spindle Taper R8(NT30-optional) Quill Travel 127 Spindle Nose to Table 0-440 mm

VERTICAL TURRET MILLING MACHINE – BORING – SLOTTING – CIRCULAR MILLING DIVIDING – RACK AND GEAR CUTTING- DRO MILLING – MODEL M1TR     Table Size 1200 x 280 mm T Slots ( No:/width /pitch) 3/14/70 Table Travel (X,Y,Z) 320/260/400mm Automatic Feed Of Spindle 0.04/0.08/0.15/r Table Feed ( X,Y) 30-855 (8 Step) mm/ min Table feed (Z) 9-270 mm/min

MEDIUM DUTY LATHE MACHINE – PRECISION QUALITY LATHE – MANUFACTURERS IN RAJKOT LATHE – MASS PRODUCTION – 6 FEET LATHE – 225 MM CENTER HEIGHT – 4 / 6 FEET

Min. With Bellows 5 inch Max. Without Bellows 14 inch Axial Distance Between Table & Hob Spindle 0 to 7 inch Hob Speed Rang (RPM) 60/75/90/115/190 Rang Axial Feed Of Hob Side Min. to Max. 0.007” to 0.15 inch Weight of the Machine 1500 kg (approx) Main Drive Motor 1.5 hp Rapid Motor 0.5 hp Coolant Pump 0.15 hp

UNIVERSAL GEAR HEAD MILLING MACHINE – DIE WORK – TEETH CUTTING – KEY WAY – SLOTTING – RACK CUTTING – MASS PRODUCTION – MODEL M2

Number Of Flower : Horizontal

Condition : New

Centre Height – 143 mm Swing over bed- 286 mm Swing over Cross Slide – 145mm Spindle Bore Dia – 34 mm Collet Capacity- 32 mm Gross Weight Approx : 750 Kgs.

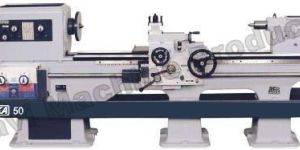

we are offering workshop lathe machine- banka 50. model 50 semi universal gear box a.b.c. : 1000 mm 1500 mm 2500 mm bed length : 7' feet 9' feet 12' feet center height : 250 mm 250 mm 250 mm swing over bed : 500 mm 500 mm 500 mm spindle bore : 53 mm 53 mm 53 mm spindle speed : 30-1550 rpm 30-1550 rpm 30-1550 rpm width of bed : 325 mm 325 mm 325 mm

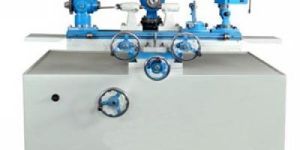

TOOL CUTTER GRINDER MACHINE – INTERNAL AND EXTERNAL GRINDING OPERATION – SHARPENING AND MILLING CUTTER – HEAVY GRINDER – MODEL ATC2

TOOL CUTTER GRINDER MACHINE – INTERNAL AND EXTERNAL GRINDING OPERATION – SHARPENING AND MILLING CUTTER – SMALL GRINDER – MODEL ATC1

Weight of The Machine With Standard Accessories : 325 kg

TILTING TABLE FOR RADIAL DRILL MACHINE   Use For Redial Drill Machine 0 – 60 Degree Range (Both Side). Height : 300 mm Manufactured from High-Grade Casting. Number of T-slot : 3 Approx Weight : 100 kg.

Thickness Capacity 6″ x 3″ Speed of Cutter Block 4500 RPM Feed Speed 28 fPM Power Required 1 HP Running Motor RPM 1440

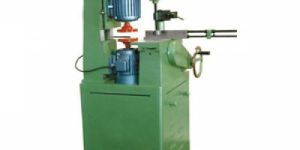

Table Size 18″ X 7″ Table movement 8″ Max length of Tenon 5″ Power Required HP/RPM 2 motor of 2 HP / 2800 3 PH 2 nos. carbide cutter block of size 5″ Dia. x 0.875″ width each

Specifications USED IN MAKING MACHINES PRODUCT DESCRIPTION :         More Production of Tapper Jobs     Consistent Accuracy up to 300 mm Weight - 18kg

SHAPING MACHINE KEY WORK – T SLOT – V BLOCK – ROUGH WORK – DYE MOLD – COLLEGE PURPOSE – TOOL ROOM WORK – 14 INCH – 350 MM STROKE

Type : Horizontal

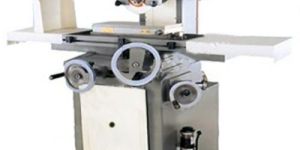

Model type : Surface Grinder Machine – SM Colour : Blue White Combo  /  Gray White Combo Working Surface : 225 x 450 mm Weight :  800Kg Motor – 1Hp – 2800 RPM

Availability : 800Kg

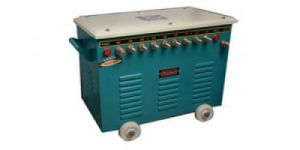

STUD TYPE WELDING MACHINE AIR & OIL COOLED MODELS Types : Stud 200AMP High efficiency Uninterrupted performance Fast speed
