Maximum sheet thickness in PPGI/PPGL Strips that can be formed0.5 mm
Horizontal distance between shafts500mm
Number of forming stations23 nos.
Total HP for Line15
Speed of the machine0 To 25 mt / minute
Size of machine9500 x 1700 x 1100 mm
Coil weight5 MT Max
Coil width1450 MM
Coil bore450 MM min, 510 MM max dia.
Mandrel movementManually adjusted
Back TensionManually adjusted
D coiler 5 ton cap.
Entry Gate with
Roll Forming Line with 23 station , 10 H.P. electrical.
Control Panel semi auto
Cutting Unit (Hydro.)
Entry Gate
Entry gate will be provided for movement of sheet to roll former.
Main Base
The main base is MS fabricated structure and adequately ribbed to minimize the distortion. It is accurately machined on top and bottom surfaces the threaded holes are made on the bed for positioning the stands.
Mill stands (Station)
The stands are mounted on the bed of the machine the line alignment can be easily done due to guide ways arranged on the bed of the machine. Each forming head consists of a fixed housing and sliding type out board housing. The mill stands will be arranged to locate shafts mounted on taper bearings. For the top shafts the bearings are housed in the cartridge type bearing blocks. The bottom shaft bearings are located in the bored machined in the housings. The bottom arbors are fixed in position whereas the top arbors along with cartridge blocks could be raised or lowered in vertical guides machined in housings.
Roll shafts
The roll shafts dia. 70mm will be manufactured from quality steel and will be keyed to locate tooling.
Drive
The drive to the roll former will be by means of a chain. The main drive will be provided by means of 10 HP motor
Tooling
One set of Tooling with EN grade will be from imported material suitable for your machine as standard supply. The same is involved in operations like rough machining, keyway, rough profiling, profile machining and inspection with final template for above.
Cutting Unit (Hydro)
Hydraulically operated power pack along with cutting die with 3 HP electrical.

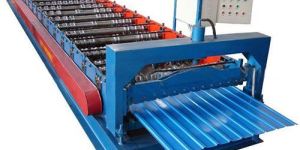

We offering finest quality Roof Tile Making Machine to clients. This is the fastest machine on the market. The newly servo drive punch simultaneously advances and punches with accuracy as the material continually moves through the machine. Not only does this considerably increase the speed of the roll forming machine, but also increases the life of the equipment tools.
