Thermal InsulationThe melting chamber is insulated on all sides with 64 Kg/m3 Ceramic fiber and clad
Heat SourceLaw current density electrical heaters
Tank SizeDiameter 800mm x Height 1000mm
Tank Mat.S.S.304
Working Temp.120 degree
Electrical Load10 Kw.
Wax drain1'' heavy-duty ball valve.

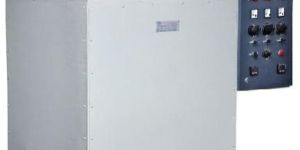

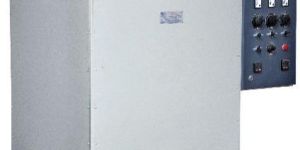

The wax melter is a wax-melting machine. Purchased IC Wax is in the form of solid slabs. This is melted and brought to certain pre-determined temperature before transferring it to the conditioning tank.The wax melting machine is using for melting the solid wax slabs as per pre determine temperature.
The wax melter is a wax-melting machine. Purchased IC Wax is in the form of solid slabs. This is melted and brought to certain pre-determined temperature before transferring it to the conditioning tank.The wax melting machine is using for melting the solid wax slabs as per pre determine temperature.
Heat SourceLaw current density electrical heaters.
Tank SizeDiameter 800mm x Height 1000mm
Tank Mat.S.S.304
Working Temp.100 degree
Wax drain1'' heavy-duty ball valve.
Machine Total Power12 Kw

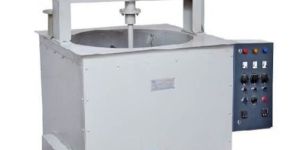

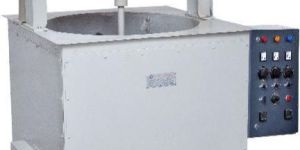

The wax-conditioning tank is used for preparation of wax for its subsequent feeding into the injection Press and Gravity casting of wax molds.The wax conditioning machine is using for unforming and settling the melted wax temperature and make it ready for injection.
The wax-conditioning tank is used for preparation of wax for its subsequent feeding into the injection Press and Gravity casting of wax molds.The wax conditioning machine is using for unforming and settling the melted wax temperature and make it ready for injection.

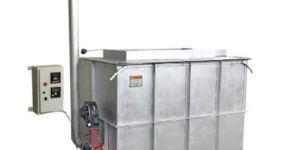

After the shell building procedure is complete, the wax within monolithic shell is removed. The wax and water de waxing quickly melts out the wax from the shells.
After the shell building procedure is complete, the wax within monolithic shell is removed. The wax and water de waxing quickly melts out the wax from the shells.
Once the shells are poured and cooled, the shells ceramic has to be removed to reveal the poured castings. The breaking off of the shell is done on a pneumatic knockout machine. Here about 80% to 90% of the shells material is removed quickly and efficiently without in any way damaging the cast parts.
Once the shells are poured and cooled, the shells ceramic has to be removed to reveal the poured castings. The breaking off of the shell is done on a pneumatic knockout machine. Here about 80% to 90% of the shells material is removed quickly and efficiently without in any way damaging the cast parts.

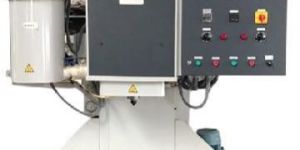

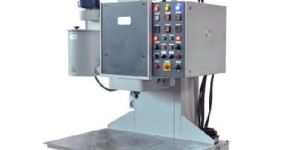

This is C – frame, Vertical wax injection machine. The die/tool is placed on the work table. The Down stroking injection Nozzle is brought in contact with the injection port of the die.Wax is injected top-down into the die. This machine offers full pressure, flow – rate, temperature and dwell time controls.
This is C – frame, Vertical wax injection machine. The die/tool is placed on the work table. The Down stroking injection Nozzle is brought in contact with the injection port of the die.Wax is injected top-down into the die. This machine offers full pressure, flow – rate, temperature and dwell time controls.
To formulate and thoroughly mix the primary slurry before it is added tho the slurry pot. The quality & consistency of the primary slurry decides the quality of the casting produced. Hence the this is essential equipment in shell room of any IC foundry.
To formulate and thoroughly mix the primary slurry before it is added tho the slurry pot. The quality & consistency of the primary slurry decides the quality of the casting produced. Hence the this is essential equipment in shell room of any IC foundry.
Driven TypeGear Motor - Bonfiglioli Make Belt Drive.
Machine Total Power1125 W
Tank Revolution24 rpm
Motor Rating1.5 Hp
Vessel600mm Diameter x 600mm Height.

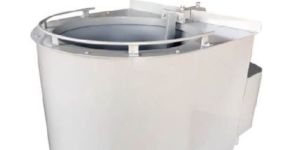

The prepared slurry from the slurry mixer is feed to the slurry pot. This machine is also known as dipping pot, as wax trees are dipped into slurry held in this pot. This slurry is kept under continuous stirring throughout its use, in order to prevent the setting or separation of heavier refectories used in the slurry.
The prepared slurry from the slurry mixer is feed to the slurry pot. This machine is also known as dipping pot, as wax trees are dipped into slurry held in this pot. This slurry is kept under continuous stirring throughout its use, in order to prevent the setting or separation of heavier refectories used in the slurry.
Driven Type : Gear Motor - Bonfiglioli Make Belt Drive.

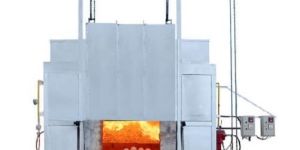

The shells are placed into a shell baking furnace before pouring of metal. After the molten metal reaches the desired temperature the shells are taken out from the baking furnace and are kept on the pouring bed to pour the molten metal in to it, the desired shaped metal is casted.
The shells are placed into a shell baking furnace before pouring of metal. After the molten metal reaches the desired temperature the shells are taken out from the baking furnace and are kept on the pouring bed to pour the molten metal in to it, the desired shaped metal is casted.
The Fluidized bed types of stucco machines are meant for backup stucco. For the backup coats the fluidized bed gives a uniform coating and higher stucco efficiency.
The Fluidized bed types of stucco machines are meant for backup stucco. For the backup coats the fluidized bed gives a uniform coating and higher stucco efficiency.
Sand blasting machine is generally used for cleaning the mill scale, residues, dirt of casting, wedding, heat treatment work pieces, cleaning the surface of non metals of items, cleaning the black sports on the ceramic embryo surface, restoring paint grain pattern etc.
Sand blasting machine is generally used for cleaning the mill scale, residues, dirt of casting, wedding, heat treatment work pieces, cleaning the surface of non metals of items, cleaning the black sports on the ceramic embryo surface, restoring paint grain pattern etc.
in the shell building process, after dipping the cluster in the slurry, they have to be coated with sand. The machine produces uniform sand rain in which the slurry dipped wax cluster is manipulated to obtain a uniform coating of the refractory particles on the cluster.
in the shell building process, after dipping the cluster in the slurry, they have to be coated with sand. The machine produces uniform sand rain in which the slurry dipped wax cluster is manipulated to obtain a uniform coating of the refractory particles on the cluster.

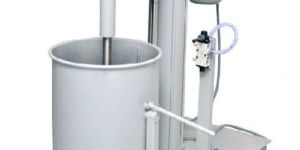

This High Speed Mixer Machine has the feature of frequency conversion speed-regulating, air-powered elevating, anti explosion and seepage-proof. They can work continuously, disperse the materials very well and can be installed easily.
This High Speed Mixer Machine has the feature of frequency conversion speed-regulating, air-powered elevating, anti explosion and seepage-proof. They can work continuously, disperse the materials very well and can be installed easily.
Cartridge collectors use perforated metal cartridges that contain a pleated, nonwoven filtering media, as opposed to woven or felt bags used in baghouses. The pleated design allows for a greater total filtering surface area than in a conventional bag.
Cartridge collectors use perforated metal cartridges that contain a pleated, nonwoven filtering media, as opposed to woven or felt bags used in baghouses. The pleated design allows for a greater total filtering surface area than in a conventional bag.
The component system having auto cleaning system, so after every half an hour dust which collected on filters will be removed and collected in buttom drainage trolly for move the specific place. The component will blast in cabinet, during the blasting big grains of sand will drop down through the hopper and dust sucked by collection system.
The component system having auto cleaning system, so after every half an hour dust which collected on filters will be removed and collected in buttom drainage trolly for move the specific place. The component will blast in cabinet, during the blasting big grains of sand will drop down through the hopper and dust sucked by collection system.
Secondary Business TypeManufacturer / Exporters / Wholesale Suppliers
GSTIN Number24ABWPA6453E1ZO
Opening Hours
SUN : Closed
MON : 9:30 AM - 6:30 PM
TUE : 9:30 AM - 6:30 PM
WED : 9:30 AM - 6:30 PM
THU : 9:30 AM - 6:30 PM
FRI : 9:30 AM - 6:30 PM
SAT : 9:30 AM - 6:30 PM
We introduce Shree Mayur Engineering Co. as a leading in engineering industries with strong foundation in the Manufacturer Of All Types Of Investment Casting Machinery. Our plant is located at Rajkot industrial area. The plant has modern facility for manufacturing quality products. Shree Mayur Engineering Co. has technically strong management team having rich and diverse experience of 29 years in Investment Casting Machinery Industry. We already Full Plant Successfully installation in 200 Industries and Machinery Supply more than 150 industries in India & Abroad Countries. We have qualified professional and experience personel in all our department, efficient management, skill team, state-of-art infrastructure and standard process are the real strength of Shree Mayur Engineering Co. for meeting complete customer satisfaction.
