Speedwell Technologies Pvt Ltd Metoda, Rajkot, Gujarat

These types of bonds are used for bonding pipes into the earthing or lightning protection system. Speedwell watermain pipe bond are used for bonding tape to large diameter pipes. Materials: body - gunmetal, bolts - al bronze, phosphor bronze and ss

These clamps used to bonding ground conductor to water pipe, copper tube and rebar. It cast from high strength electrolytic bronze to provide reliable grounding connection. Materials : Body - Bronze, Screw - Bronze, GI and SS

U BOLT ROD CLAMP - TYPE E1 These clamps are used to connect tape to the earth rod. Material : Body - Gunmetal, U Bolt - Copper BS EN 50164-1:2000 (12 Nm.)

These 'U' Bolt Pipe to Cable Clamp are used for universal parallel or 90° connection of cable to pipe. It is also used for fence post grounding connection Materials: Body - Gunmetal, U Bolt - Copper

U BOLT PIPE TO CABLE CLAMP - TYPE GU These 'U' Bolt Pipe to Cable Clamp are used for two universal parallel or 90° connection of cable to pipe. It is also used for fence post grounding connection

SPEEDWELL Tower Earth Clamps are designed for bonding copper conductor to metal surfaces. Materials: Body - Gunmetal, Bolts - Al Bronze, Phosphor Bronze and SS Torch: BS EN 50164-1:2000 (12 Nm.)

SPEEDWELL Tower Earth Clamps are designed for bonding copper conductor to metal surfaces. Materials: Body - Gunmetal, Bolts - Al Bronze, Phosphor Bronze and SS Torch: BS EN 50164-1:2000 (12 Nm.)

TINNED COPPER TAPE The Bare Copper Tape are Annealed and Tinned for easy use and extended life of the conductor. Materials: Tinned Oxygen Free Copper BS EN: 13601 (Before BS: 1432 C101 C103)

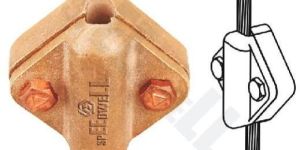

SPEEDWELL Test Clamp is for end to end joints of circular conductors. Materials: Body - Gunmetal Bolts - Silicon Bronze, Phosphor Bronze, SS Torch: BS EN 50164-1:2000 (12 Nm.)

These Tee Clamps are suitable for forming tee joints of circular conductors. Materials: Body - Gunmetal Fasteners - Silicon Bronze, Phosphor Bronze, SS Torch : BS EN 50164-1:2000 (12 Nm.)

Air termination Network is the point of connection of Lightning Strike to the Protection System and Speedwell Taper Pointed Air Rods are used for this application. These can be used with or without multipoint, however researches conducted in this regard suggest use of multiple points with taper air rods are more effective than only taper air rods. The Taper Pointed Air Rods on one side have taper of less than 5 Deg. for a perfect taper fit with multipoint and on the other side has suitable threads for fixing into terminal Base, Flat Saddle, Ridge Saddle, Air Rod Base, Rod Brackets and Air Rod Couplings.

These are used to flush the tape with the building surface. These are fixed using two screws and plugs. Material: Copper Torch: BS EN 50164-1:2000 (12 Nm.)

Material : Copper , Copper

Speedwell Strike Pad is used where it is not possible or preferred not to fix conductor on the roof or side of the building. Applications like Ware houses or Multistory car park building, where the conductors are laid into the tarmac, or the side of the building but not possible to run the conductor outside. Materials: Body - Gunmetal Bolts - Aluminum Bronze, Silicon Bronze, SS

SPEEDWELL Static Earth Receptacle are used for sating into runways and roadways to provide a static discharge point for aircraft, fuel tankers, etc... These receptacles are used in open areas or any where a temporary earthing point may be required such as airfields or petrol stations. These are also available with welded tails of different length.

Stainless Steel Earth Rods are used where galvanic corrosion is likely to affect earth rods due to dissimilar metals buried in close proximity as copper earth rods are more vulnerable to galvanic corrosion. Stainless Steel rods are more anodic than copper and are more effective against corrosion problem. These rods are manufactured from austenitic stainless steel to BS 970, GRADE 304 316 S12.

SPEEDWELL Square tape Junction Clamps are used for crossing over tapes or or for T joints or for making straight through Joints in a network of Tapes. These camps can be fastened to the building by recommended csk woodscrew 1 12" x No 10 plugs. Materials: Body - Gunmetal Screws - Naval Brass

SPEEDWELL Square Conductor Clamp are used for forming straight, Through, Cross or T Joints in Cables and round conductors. Materials: Body - Gunmetal Fasteners - Naval Brass Torch: BS EN 50164-1:2000 (6 Nm)

These clamps are suitable for forming cross or tee Jointing. Materials: Body - Gunmetal Fasteners - Silicon Bronze, Phosphor Bronze, SS Torch: BS EN 50164-1:2000 (12 Nm.)

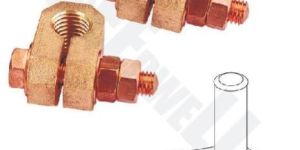

SPLIT CONNECTOR CLAMP - TYPE L Used with threaded and unthreaded rods, suitable for connecting earth rod with cable lugs. Materials : Body - Gunmetal, Bolts - Al Bronze, Phosphor Bronze and SS

SPEEDWELL Split Bolt Connectors are used to couple a range of Stranded or Solid circular Conductors and no specialised tool is required for installation. Materials: Tin Plating and Copper plating on High Strength copper Alloy Torch: Hand Tightened

SPEEDWELL offers pure copper earth rods for use where extreme soil condition such as high salt or moisture content demands high corrosion resistance and exceptionally long life of rods. SPEEDWELL Solid Copper Earth Rods are made from high conductivity hard drawn copper to BS2874 C101

SPEEDWELL offers pure copper earth rods for use where extreme soil condition such as high salt or moisture content demands high corrosion resistance and exceptionally long life of rods. SPEEDWELL Solid Copper Earth Rods are made from high conductivity hard drawn copper to BS2874 C101. Threads are formed by roll threading process to ensure extra strength and avoid the risk of chipping while driving the rods in the ground.

These solid circular copper conductor are used in Lightning Protection application, these are available both Bare as well as PVC covered.

Material : Bare Copper , PVC - Copper

These Clamps provide easy access to copper tapes for inspection or testing. The heavy duty lid easily screws onoff the base. Due to easy operation these are not suitable near the ground or with in easy reach of public for security reasons.
