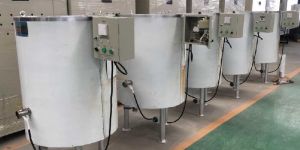

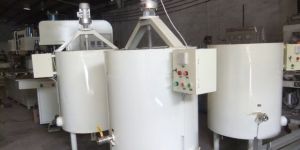

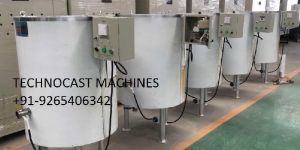

The wax -meltingconditioning tank is used for preparation of wax for its subsequent feeding into the injection press and gravity casting of wax moulds. The melting tank is made of S.S.-304 and heated all around by low current density electrical heaters. The output shaft of the geared motor is directly coupled to the stirrer. The stirrer uniformly blends the wax causing a continuous and complete turnover of wax in the tank.
Small pieces of wax are loaded from the top and heaters switched ON. The stirrer motor may be started when it is felt that the stirrer is free to rotate. Temperature controller maintains the wax temperature. It may take a long time to melt all the wax if the machine is started from the cold. Heated wax valve allows easy draining of wax.
The electrical Panel Box Temperature controller, heater relay, motor contactor, motor overload, MCBs, main switch etc.
The wax -meltingconditioning tank is used for preparation of wax for its subsequent feeding into the injection press and gravity casting of wax moulds. The melting tank is made of S.S.-304 and heated all around by low current density electrical heaters. The output shaft of the geared motor is directly coupled to the stirrer. The stirrer uniformly blends the wax causing a continuous and complete turnover of wax in the tank.
Small pieces of wax are loaded from the top and heaters switched ON. The stirrer motor may be started when it is felt that the stirrer is free to rotate. Temperature controller maintains the wax temperature. It may take a long time to melt all the wax if the machine is started from the cold. Heated wax valve allows easy draining of wax.
The electrical Panel Box Temperature controller, heater relay, motor contactor, motor overload, MCBs, main switch etc.
Heating ElementUniformly Heated By Electric Flat Heaters
ControlTemperature Controlled By Digital Aâ Meter Phase Indicates By Lamps, Auto Controls By Thermo States
Electrical PartsStandard Ce Marked
Rating6 K.w
melting capacitysize of tanktank materialheating elementcontrolelectrical partsrating
100 kg.
φ 600 x 550mm.
s.s.304
uniformly heated by electric flat heaters.
temperature controlled by digital a’ meter phase indicates by lamps, auto controls by thermo states.
standard ce marked.
6 k.w.
.
melting capacitysize of tanktank materialheating elementcontrolelectrical partsrating
100 kg.
φ 600 x 550mm.
s.s.304
uniformly heated by electric flat heaters.
temperature controlled by digital a’ meter phase indicates by lamps, auto controls by thermo states.
standard ce marked.
6 k.w.
.
mechanismwork spacenozzlewax cylinderfillinginjection timewax temperaturepower packcontrolheighttable sizerating
die clamping and injecting the wax with 5 tones of pressure, at vertical action by auto nozzle.
350 mm distance between nozzles & table.
8 mm.
φ 175 x h475 mm, accommodate 7.5 kg. Wax.
by vacuum pressure.
bay 30 sec. To 10 minutes indication timer.
minted by hot water.
rating 3 hp.
temperature controlled by temp. Cont., phase indicates ryb indicators, auto controls by thermo states.
2620 mm.
825 x 1250 mm.
3½ hp & 2 kw.
mechanismwork spacenozzlewax cylinderfillinginjection timewax temperaturepower packcontrolheighttable sizerating
die clamping and injecting the wax with 5 tones of pressure, at vertical action by auto nozzle.
350 mm distance between nozzles & table.
8 mm.
φ 175 x h475 mm, accommodate 7.5 kg. Wax.
by vacuum pressure.
bay 30 sec. To 10 minutes indication timer.
minted by hot water.
rating 3 hp.
temperature controlled by temp. Cont., phase indicates ryb indicators, auto controls by thermo states.
2620 mm.
825 x 1250 mm.
3½ hp & 2 kw.
The wax -meltingconditioning tank is used for preparation of wax for its subsequent feeding into the injection press and gravity casting of wax moulds. The melting tank is made of S.S.-304 and heated all around by low current density electrical heaters. The output shaft of the geared motor is directly coupled to the stirrer. The stirrer uniformly blends the wax causing a continuous and complete turnover of wax in the tank.
Small pieces of wax are loaded from the top and heaters switched ON. The stirrer motor may be started when it is felt that the stirrer is free to rotate. Temperature controller maintains the wax temperature. It may take a long time to melt all the wax if the machine is started from the cold. Heated wax valve allows easy draining of wax.
The electrical Panel Box Temperature controller, heater relay, motor contactor, motor overload, MCBs, main switch etc.
The wax -meltingconditioning tank is used for preparation of wax for its subsequent feeding into the injection press and gravity casting of wax moulds. The melting tank is made of S.S.-304 and heated all around by low current density electrical heaters. The output shaft of the geared motor is directly coupled to the stirrer. The stirrer uniformly blends the wax causing a continuous and complete turnover of wax in the tank.
Small pieces of wax are loaded from the top and heaters switched ON. The stirrer motor may be started when it is felt that the stirrer is free to rotate. Temperature controller maintains the wax temperature. It may take a long time to melt all the wax if the machine is started from the cold. Heated wax valve allows easy draining of wax.
The electrical Panel Box Temperature controller, heater relay, motor contactor, motor overload, MCBs, main switch etc.
Slurry Tank Dimension
Diameter 600mm. X H 600mm.
Tank Material
Stainless steel 304.
Mixing Tool
L type stirrer.
Drive
Geared box of 60:1Elecon make.
Tank Cover
Φ712mm. X 630mm. height made by M.S. Provision to open/close.
Tank Position
Mounted on base frame.
Slurry Tank Dimension
Diameter 600mm. X H 600mm.
Tank Material
Stainless steel 304.
Mixing Tool
L type stirrer.
Drive
Geared box of 60:1Elecon make.
Tank Cover
Φ712mm. X 630mm. height made by M.S. Provision to open/close.
Tank Position
Mounted on base frame.

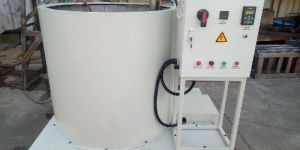

Wax tree coating fluidized bed machine,Fabricated Structure M.S. Square Pipe,Electric Motor For Blower Make – CromptonABB or equivalent make,Metal Filter for fluidizing,Pipe connection and butterfly valves.
Wax tree coating fluidized bed machine,Fabricated Structure M.S. Square Pipe,Electric Motor For Blower Make – CromptonABB or equivalent make,Metal Filter for fluidizing,Pipe connection and butterfly valves.

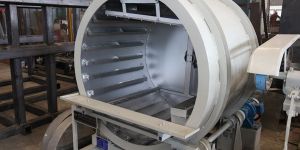

type
drum rotates at low speed inside the fix horizontal drum.
structure
frame made from m.s. Angle & hopper 3mm m.s. Sheet & covered.
working area
φ900 x 900mm. Depth.
motor
1.5 hp 1440 rpm motor.
gear box
made by elicon.
type
drum rotates at low speed inside the fix horizontal drum.
structure
frame made from m.s. Angle & hopper 3mm m.s. Sheet & covered.
working area
φ900 x 900mm. Depth.
motor
1.5 hp 1440 rpm motor.
gear box
made by elicon.
pulse valve
40 mm solenoid valve.
filter cartridge
04 no. Ptfe coatedsize: φ327 x l 700.
dust suction
by pipe connection.
cleaning
auto control air by pulse valve & timer.
required air
5 kg. Dry air from compressor.
motor rating
5 hp. 2800 rpm.
dust exhaust
movable hopper clamp at bottom to collect dust.
pulse valve
40 mm solenoid valve.
filter cartridge
04 no. Ptfe coatedsize: φ327 x l 700.
dust suction
by pipe connection.
cleaning
auto control air by pulse valve & timer.
required air
5 kg. Dry air from compressor.
motor rating
5 hp. 2800 rpm.
dust exhaust
movable hopper clamp at bottom to collect dust.
Type
Gas fired.
Size
600mm. x 1200mm. x 800mm.
Metal
S.S. 304 3mm.
Lining
Bottom is covered by firing bricks, Both sides and top is insulated cerawool blankets.
Firing
Gas fired burner controls by electric panel.
Type
Gas fired.
Size
600mm. x 1200mm. x 800mm.
Metal
S.S. 304 3mm.
Lining
Bottom is covered by firing bricks, Both sides and top is insulated cerawool blankets.
Firing
Gas fired burner controls by electric panel.

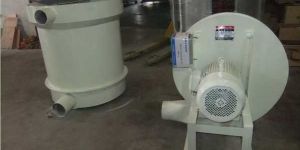

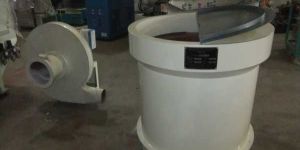

sand fluidizes bed
3 drums of ms sheet 600mm. x 600mm. high includes metal filters for universal air blow.
control
control butterfly valves.
blower
7.5 hp blower.
sand fluidizes bed
3 drums of ms sheet 600mm. x 600mm. high includes metal filters for universal air blow.
control
control butterfly valves.
blower
7.5 hp blower.
Secondary Business TypeManufacturer / Exporters / Service Providers / Wholesale Suppliers
Year of Establishment2017
No. of Employees6 - 20
Annual TurnoverBelow Rs. 0.5 Crore Approx.
Ownership TypeIndividual (Sole proprietorship)
GSTIN Number24BDTPJ2518P1Z0
Opening Hours
SUN : Closed
MON : 9:30 AM - 6:30 PM
TUE : 9:30 AM - 6:30 PM
WED : 9:30 AM - 6:30 PM
THU : 9:30 AM - 6:30 PM
FRI : 9:30 AM - 6:30 PM
SAT : 9:30 AM - 6:30 PM
Technocast Machines is a Gondal,Rajkot (Gujarat / India) based leading manufacture & exporter of All Types Of Investment Casting Machinery. All the products are manufactured with latest technology. Our endeavor is to produce top most quality products and to provide a very high level of customer service.
