unisteel engineering works GIDC, Rajkot, Gujarat

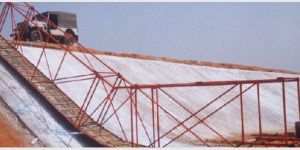

Its is pipe structure, Working on Same Rail of Paver, it is use for mention to work and walk.

We are offering work bridge.

High precision cylinder finisher for concrete slabs such as Streets, Parking, Factory floors, Bridges, Airports, Tennis Courts, Canal, Reservoir etc. It can finish a width from 3.5 mtrs. To 20 mtrs. ( It is a custom design paver ) Machine can finish a width up to 180 Sq. Meter/hour at suitable site condition. The special under carriage consists of a spreader extra length auger to spread the concrete to level, the finishing cylinder to compact and finish the concrete to the grade. Finishing roll bracket is equipped with Electric vibrator. Heavy Duty Track Chain, Heavy Duty Hydraulic Jacks & Moba Make Electronic Sensor Technical Specification PRIME MOVER (With Needle Vibrator) 15HP 1440-RPM for Fix Console.20HP 1440-RPM for under carriage PRIME MOVER (Without Needle Vibrator) 15HP 1440-RPM for Fix Console.7.5HP 1440-RPM for under carriage Fix Console This hydraulic console controls the forward and reverse movement of the under carriage and the travel track chain by means of hydraulic motors. Under Carriage/Finisher Assembly Under Carriage accommodates the most critical components of the machine. It encompasses the vibratory finishing drum, Spreader AugerHydraulic Needle Vibrators(Optional) The Under Carriage travels with a speed 30 meters/ minute. Vibratory Finishing Drum The finishing drum is 4 feet length and 10.7 inches (272mm) in diameter. It rotates at a speed of 195 rpm. The finishing drum vibrates at 1500 vpm. This drum is precisely balance with the help of computerized balancing system to obtain quality finish. Spreader Auger The Auger is welded with hard faced welding to obtain maximum life. The auger is designed to work in the direction of travel movement to the machine. Traction System Heavy duty hydraulically driven Track Chain. Sensor Gradation Moba ( Germany) Make Electronic Sensor system to obtain maximum accuracy. Jack System Heavy duty hydraulic jack system. Hydraulic Oil Capacities Fix console: 110 Liters.Under carriage: 140 Liters.

High precision cylinder finisher for concrete slabs such as Streets, Parking, Factory floors, Bridges, Airports, Tennis Courts, Canal, Reservoir etc. It can finish a width from 3.5 mtrs. To 20 mtrs. ( It is a custom design paver ) Machine can finish a width up to 150 Sq. Meter/hour at suitable site condition. The special under carriage consists of a spreader extra length auger to spread the concrete to level, the finishing cylinder to compact and finish the concrete to the grade. Finishing roll bracket is equipped with vibrator. Heavy Duty Hydraulic Jacks & Moba (Germany) Make Electronic Sensor. TECHNICAL SPECIFICATION PRIME MOVER (With Needle Vibrator) 10HP 1440-RPM for Fix Console.20HP 1440-RPM for under carriage PRIME MOVER (Without Needle Vibrator) 10HP 1440-RPM for Fix Console.7.5HP 1440-RPM for under carriage Fix Console This hydraulic console controls the forward and reverse movement of the under carriage and the travel track chain by means of hydraulic motors. Under Carriage/Finisher Assembly Under Carriage accommodates the most critical components of the machine. It encompasses the vibratory finishing drum, Spreader Auger.Hydraulic Needle Vibrators(Optional)The Under Carriage travels with a speed 30 meters/ minute. Vibratory Finishing Drum The finishing drum is 4 feet length and 10.7 inches (272mm) in diameter. It rotates at a speed of 195 rpm. The finishing drum vibrates at 1500 vpm. This drum is precisely balance with the help of computerized balancing system to obtain quality finish. Spreader Auger The Auger is welded with hard faced welding to obtain maximum life. The auger is designed to work in the direction of travel movement ot the machine. Traction System Two Hydraulically driven flanged wheels bogie. Sensor Gradation Moba ( Germany ) Make Electronic Sensor system to obtain maximum accuracy. Jack System Heavy duty hydraulic jack system. Hydraulic Oil Capacities Fix console: 110 Liters.Under carriage: 140 Liters.

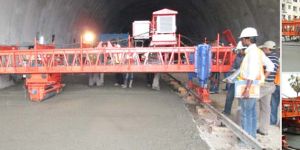

We offer Road Paver. High precision cylinder finisher pavement for concrete slabs such as Streets, Parking, Factory floors, Bridges, Airports, Tennis Courts etc. It can finish a width from 3.5 mts. To 20 mts Machine can finish upto 150 Sq. Meter hour at suitable site condition. Light weight construction for easy erection and transportation from site to site The special Under carriage consists of a spreader augar to spread the concrete to level, The finishing Cylinder to compact and finish the concrete to the grade Finishing roll bracket can be equipped with vibrator (Optional) Works to any slab height Special texturing and curing machine are made to get line on concrete surface and spraying curing compound (Optional) When the road paving works special arrangement is made to create camber on road. UNISTEEL RCP 750 PAVER MACHINE is also equip with two Needle vibrators and it inserts automatically in fresh concrete one after other, this will give vibrating deep in slab height creating a homogeneous bounding of slab without air gap in between the concrete slab. This function is not in any other method. One should insert manually needle vibrator in any other method of paving except slip-form method. In manual method it is not possible for man to get each and every portion of concrete cannot be achieve. (Optional) Toeing arrangement of UNISTEEL RCP 750 PAVER MACHINE is very easy to attach, simply fix bolts and it is ready for toeing. There is no need to take any part of paver away for fixing the toeing arrangement. In less time you can sift the paver from one end to another. (Optional)

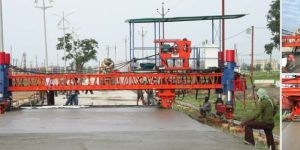

We offer Electronic Sensor Paver Srcp . SRCP 720 Concrete Electronic Sensor Paver High precision cylinder finisher for concrete slabs such as Streets, Parking, Factory floors, Bridges, Airports, Tennis Courts, Canal, Reservoir etc. It can finish a width from 3.5 mtrs. To 20 mtrs. ( It is a custom design paver ) Machine can finish a width up to 150 Sq. Meterhour at suitable site condition. The special under carriage consists of a spreader extra length auger to spread the concrete to level, the finishing cylinder to compact and finish the concrete to the grade. Finishing roll bracket is equipped with vibrator. Heavy Duty Hydraulic Jacks & Moba (Germany) Make Electronic Sensor.

High precision cylinder finisher pavement for concrete slabs such as Streets, Parking, Factory floors, Bridges, Airports, Tennis Courts etc. It can finish a width from 3.5 mts. to 20 mts Machine can finish upto 150 Sq. meter / hour at suitable site condition. Light weight construction for easy erection and transportation from site to site The special Under carriage consists of a spreader augar to spread the concrete to level, The finishing Cylinder to compact and finish the concrete to the grade Finishing roll bracket can be equipped with vibrator (Optional) Works to any slab height Special texturing and curing machine are made to get line on concrete surface and spraying curing compound (Optional) When the road paving works special arrangement is made to create camber on road. UNISTEEL RCP 750 PAVER MACHINE is also equip with two Needle vibrators and it inserts automatically in fresh concrete one after other, this will give vibrating deep in slab height creating a homogeneous bounding of slab without air gap in between the concrete slab. This function is not in any other method. One should insert manually needle vibrator in any other method of paving except slip-form method. In manual method it is not possible for man to get each and every portion of concrete cannot be achieve. (Optional) Toeing arrangement of UNISTEEL RCP 750 PAVER MACHINE is very easy to attach, simply fix bolts and it is ready for toeing. There is no need to take any part of paver away for fixing the toeing arrangement. In less time you can sift the paver from one end to another. (Optional)

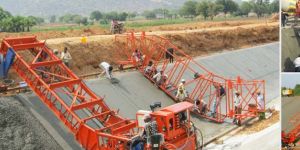

We offer Concrete Paver Machine - Rcp 750 Paver for Canal. High precision cylinder finisher for concrete slabs such as Streets, Parking, Factory floors, Bridges, Airports, Tennis Courts, Canal, Reservoir etc. It can finish a width from 3 mts. To 20 mts. (It is a custom design paver) Machine can finish upto 180 Sq. Meter hour at suitable site condition. Light weight construction for easy erection and transportation from site to site The special Under carriage consists of a spreader augar to spread the concrete to level, The finishing Cylinder to compact and finish the concrete to the grade Finishing roll bracket can be equipped with vibrator Machine can be used alternatively for bed and slope finishing canal projects. Special arrangement is made for PVC INSERTER, which can insert longitudinally as well as vertically, and also Groove Cutter arrangement is made, which ever you may require

High precision cylinder finisher for concrete slabs such as Streets, Parking, Factory floors, Bridges, Airports, Tennis Courts, Canal, Reservoir etc. It can finish a width from 3 mts. to 20 mts. (It is a custom design paver) Machine can finish upto 180 Sq. meter / hour at suitable site condition. Light weight construction for easy erection and transportation from site to site The special Under carriage consists of a spreader augar to spread the concrete to level, The finishing Cylinder to compact and finish the concrete to the grade Finishing roll bracket can be equipped with vibrator Machine can be used alternatively for bed and slope finishing canal projects. Special arrangement is made for PVC INSERTER, which can insert longitudinally as well as vertically, and also Groove Cutter arrangement is made, which ever you may require

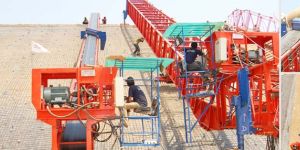

We offer Concrete Paver Machine Rcc 750 Conveyor. The RC Conveyor concrete spreader are used in bridge paving and flat slab paving. It can spread in a width from 3 Mts. To 19 Mts. The RC Conveyor place concrete in front of the Paver Finisher by Divertar car. Divertar car speed and travel speed are variable and can be controlled from the operator's station Conveyor belt unit used alternatively for bed as well as slope position, with minor alteration in the pin connected bolted structure High production capability will spread up to 35 CuMt per hour with constant concrete supply and suitable site condition Conveyor with standard flange wheel runs on rail, Travel speed of each end is controlled separately. This negotiate the curves easily Special charging hopper to permit feeding of concrete by Transit mixer. The conveyor can also run bank to bank on smaller canal with suitable shute to place concrete from the canal height

The RC Conveyor concrete spreader are used in bridge paving and flat slab paving. It can spread in a width from 3 Mts. to 19 Mts. The RC Conveyor place concrete in front of the Paver Finisher by Divertar car. Divertar car speed and travel speed are variable and can be controlled from the operator's station Conveyor belt unit used alternatively for bed as well as slope position, with minor alteration in the pin connected bolted structure High production capability will spread up to 35 CuMt per hour with constant concrete supply and suitable site condition Conveyor with standard flange wheel runs on rail, Travel speed of each end is controlled separately. This negotiate the curves easily Special charging hopper to permit feeding of concrete by Transit mixer. The conveyor can also run bank to bank on smaller canal with suitable shute to place concrete from the canal height

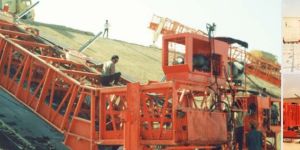

we offer Concrete Paver Machine - Pvr 1001 Paver. Heavy duty paver for concrete slabs as Airport, canal etc. Finishing width from 15 Mts. to 28 Mts. and more Machine can finish up to 150 Mts. sqhour The special Under Carriage consists of a spreader augar, spreads the concrete to level, the finishing Cylinder to compact and finish the concrete to the grade Machine can be used alternatively for bed and slope finishing Special arrangement is made for PVC INSERTER, which can inserter PVC longitudinally as well as vertically, and also Groove Cutter arrangement is made, whichever you may require

    Heavy duty paver for concrete slabs as Airport, canal etc. Finishing width from 15 Mts. to 28 Mts. and more Machine can finish up to 150 Mts. sq/hour The special Under Carriage consists of a spreader augar, spreads the concrete to level, the finishing Cylinder to compact and finish the concrete to the grade Machine can be used alternatively for bed and slope finishing Special arrangement is made for PVC INSERTER, which can inserter PVC longitudinally as well as vertically, and also Groove Cutter arrangement is made, whichever you may require.

-The machines are used where both slope and bed have to be done in single pass -It can finish the concrete to desired level and line -It can finish maximum 8 Mt. bed and 10 Mt. slope on both side

The machines are used where both slope and bed have to be done in single pass It can finish the concrete to desired level and line It can finish maximum 8 Mt. bed and 10 Mt. slope on both side

High precision cylinder finisher pavement for concrete slabs such as Streets, Parking, Factory floors, Bridges, Airports, Tennis Courts etc. It can finish a width from 3.5 mts. to 20 mts. Machine can finish upto 150 Sq. meter / hour at suitable site condition. Light weight construction for easy erection and transportation from site to site The special Under carriage consists of a spreader augar to spread the concrete to level, The finishing Cylinder to compact and finish the concrete to the grade Finishing roll bracket can be equipped with vibrator (Optional) Works to any slab height Special texturing and curing machine are made to get line on concrete surface and spraying curing compound (Optional) When the road paving works special arrangement is made to create camber on road. UNISTEEL RCP 750 PAVER MACHINE is also equip with two Needle vibrators and it inserts automatically in fresh concrete one after other, this will give vibrating deep in slab height creating a homogeneous bounding of slab without air gap in between the concrete slab. This function is not in any other method. One should insert manually needle vibrator in any other method of paving except slip-form method. In manual method it is not possible for man to get each and every portion of concrete cannot be achieve. (Optional) Toeing arrangement of UNISTEEL RCP 750 PAVER MACHINE is very easy to attach, simply fix bolts and it is ready for toeing. There is no need to take any part of paver away for fixing the toeing arrangement. In less time you can sift the paver from one end to another. (Optional) General Specifications Technical Specifications Construction Actual Working The frame structure is light in weight and therefore very easy for transport and erection. The frames are available in the lengths of 4feet; 8feet and 12feet.These is pin bolted together according to the size of the slab width. RCP-750 can be incorporated in use for a working width between 3mtr to 20mtrs. Hydraulically operated needle vibrators are provided on the mobile assembly to stir the concrete to remove any air bubbles if present in the mix and thus reduce the porosity. Due to Needle Vibrator may struck side partition you have to do 400mm manually on both side (Optional) Hydraulic Needle vibrators vibrate with a frequency 10,500 vpm. (Optional) The paving is carried out with a Vibrating-finishing drum of 4 feet in length and 10.7 inches (272 mm) in diameter. The finishing drum is equipped with vibrator to achieve better finishing. Crowning arrangement is provided for cambering the surface of the road. 4 no's of mechanically adjustable jacks are provided for maintaining the machine level. The forward and reverse motion of the machine is controlled by hydraulically operated bogie. The finishing drum bracket has an ability to swivel at an angle of 20° in either direction to accommodate harsh mix for a quality finish. Leveling screws are used to level the rails on which the machine moves to maintain the smoothness of surface and to avoid irregular paving.

High precision cylinder finisher for concrete slabs such as Streets, Parking, Factory floors, Bridges, Airports, Tennis Courts, Canal, Reservoir etc. It can finish a width from 3.5 mtrs. To 20 mtrs. ( It is a custom design paver ) Machine can finish a width up to 150 Sq. Meter/hour at suitable site condition. The special under carriage consists of a spreader extra length auger to spread the concrete to level, the finishing cylinder to compact and finish the concrete to the grade. Finishing roll bracket is equipped with vibrator. Heavy Duty Hydraulic Jacks & Moba (Germany) Make Electronic Sensor.

Brand Name : UNiSTEEL

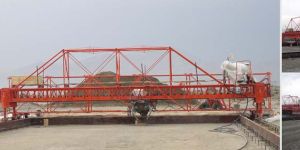

We offer Airport Paver. High precision cylinder finisher pavement for concrete slabs such as Streets, Parking, Factory floors, Bridges, Airports, Tennis Courts etc. It can finish a width from 3.5 mts. To 20 mts. Machine can finish upto 150 Sq. Meter hour at suitable site condition. Light weight construction for easy erection and transportation from site to site The special Under carriage consists of a spreader augar to spread the concrete to level, The finishing Cylinder to compact and finish the concrete to the grade Finishing roll bracket can be equipped with vibrator (Optional) Works to any slab height Special texturing and curing machine are made to get line on concrete surface and spraying curing compound (Optional) When the road paving works special arrangement is made to create camber on road.
