Phul Sons Pumps Pvt. Ltd Rajpura, Punjab

These Multi Stage Coolant Pump High Pressure - A-serie are ranging from A-05 to A-15 and A-04 to A-12 providing discharge of 45 to 145 LPM and head from 20 to 70 Metres. The depth of immersions ranges from 195 to 495 depending upon head and discharge requirements. These pumps are available in the power range of 0.37 kw. to 1.5 kw operating on 415 Volts,50HZ,3 Phase AC supply. Other voltages and frequency are available on request. These pumps are specifically designed for small CNC Lathes and Machining Centres, suitable for EMD Wire Cut, Spark Erosion Machines, Chilling Units and Industrial washing etc. These pumps are also used for deep drilling operation. The pumps are manufactured as per BIS- IS-2161 and International Standard DIN-5440. Thus are interchangeable against any make adhering International Standard.

Number Of Flower : A-05 to A-15 Series & A-04 to A-12 Series

Application : SMALL CNC LATHES, MACHINING CENTRES, EMD WIRE CUTS, SPARK EROSION MACHINES CHILLING UNITS & WASHING

Availability : 15 TO 30 KG.

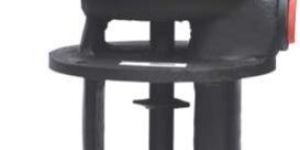

The Coolant Pumps for Machine Tools - Cp-40 Serie provides discharge of 40 LPM at 2 Metres Head. the standard depth of immersion is 120, 170 and 220 mm. These pumps are available in the power range of 0.12 kw operating on 415 Volts,50HZ,3 Phase AC supply. Other voltages and frequency are available on request. These pumps are specifically designed for Machine Tools to circulate coolant used for turning, drilling, milling, grinding and to keep the cutting edges cool. There by the life of the cutting edges is increased up to five times or more depending up on the cutting conditions. These pumps are manufactured as per BIS- IS-2161 and International Standard DIN-5440. Thus are interchangeable against any make adhering International Standard. Applications: Radial Drilling Machines, Lathes, Milling and Grinding Machines.

Number Of Flower : CP-40/120, 170, 220

Application : RADIAL DRILLING MACHINES, LATHES, MILLING & GRINDING MACHINES

Availability : 9 KG

These Coolant Pumps are ranging from CP-63 to CP-300 providing discharge of 63 to 300 LPM at 2 Metres head. The standard depths of immersions are 220 to 440mm. These pumps are available in the power range of 0.18 kw. to 3 kw operating on 415 Volts,50HZ,3 Phase AC supply. Other voltages and frequency are available on request. These pumps are specifically designed for Machine Tools to circulate coolant used for turning, drilling, milling, grinding and to keep the cutting edges cool. There by the life of the cutting edges is increased up to five times or more depending up on the cutting conditions. These pumps are also used for flushing of the machine beds. The pumps are manufactured as per BIS- IS-2161 and International Standard DIN-5440. Thus are interchangeable against any make adhering International Standard.

Number Of Flower : CP-40/120 TO CP-600/300

Application : CNC AND MANUALLY OPERATED LATHES, RADIAL DRILLS, MILLING, GRINDING, CUTTING, POLISHING MACHINES.

Coolant Pump Multistage Non-Corrosive are multistage vertical pumps with built-in-motor and designed to operate at pressure from 1 bars to 5 bars and discharge ranging from 20 LPM to 150 LMP as per the need of the customer. These are specifically designed for CNC Machine Tools. Suitable for deep drilling, cutting edges cooling. The mounting of the pump is as per international standards. The pump side construction material is non-corrosive.

Number Of Flower : C- 02 -05 SERIES

Application : CNC MACHINE TOOLSMACHINES NEEDING NON-CORROSIVE OPERATION, WASHING & GRINDING MACHINES

Availability : 20 TO 40 KG.

Power : 0.37 KW TO 2.2 KW.

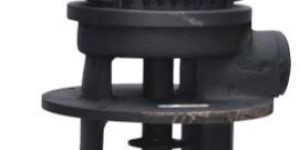

These Coolant Pumps High Pressure are ranging from CHP15/15 to 15/50 providing discharge of 15 to 50 LPM and head from 15 to 55 Metres. The depth of immersions ranges as required by the customer. These pumps are available in the power range of 0.37 kw. to 1.1 kw operating on 415 Volts,50HZ,3 Phase AC supply. Other voltages and frequency are available on request.   These pumps are specifically designed for small CNC Lathes and Machining Centres, Chilling Units and Industrial washing, spindle cooling etc. These pumps are most suitable for through tool cooling and temperature control.   The pumps are manufactured as per BIS- IS-2161 and International Standard DIN-5440. Thus are interchangeable against any make adhering International Standard.

Number Of Flower : CHP-15/15 TO 15/50

Application : Cnc Lathes,Machining Centres,Chilling Units, Washing Machines, Spindle & Through Tool Cooling

Availability : 15 TO 32 KG.
