FeatureCrack Free, High Ductility, High Tensile Strength, Quality Assured
Power1-3kw, 3-6kw

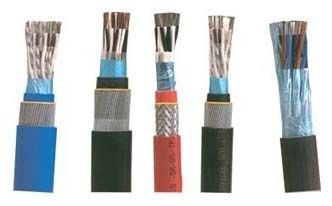

Revti Electronics Industries manufactures multi-core screened (Sheilded / braided) flexible cables used for low noise signal cables and control purposes. These cables are generally confirming to IS : 694 (1990) BS-5308 and are manufactured with flexible copper conductors, PVC insulated, Tinned copper braided / sheilded with overall PVC sheath. These cables are especially developed for defense, Telecommunication and electronic applications. Very feeble signals can be transmitted with least interference.
Revti Electronics Industries manufactures multi-pair/triad instrumentation cables for use inside plants and electrical equipment where there is low frequency. These cables consist of annealed copper conductor drawn from bright electrolytic grade copper, PVC / POLYETHEYLENE / XLPE insulated, individually, or overall sheilded with BOPP & AL MYLAR. Tape, Tinned copper drain wire & overall PVC sheath. Here bunched conductors are insulated with specially formulated and developed compounds with high resistance & low capacitance values.
COLOUR CODE :
Two Core : Red & Black
Three Core : Red, Black & Green
Four Core : Red, Yellow, Blue & Green
As per International practice, as also adopted by BIS, the size of conductor is decided by its resistance only. The construction of conductor is maintained within requirements of IS : 8130 – 1984 as presented by IS : 694.
1 Pair: White + Blue
2 Pair: White + Blue : White + Orange
4 Pair: White + Blue : White +
Orange : White + Green : White + Brown
6 Pair: White + Blue : White +
Orange : White + Green : White +
Brown : White + Grey : Red + Blue
