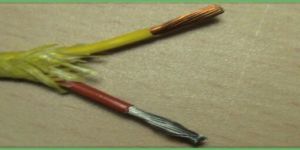

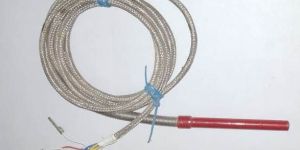

In 1821 Thomas Seeback discovered that if a circuit is formed using two dissimilar metal conductors with one junction at a higher temperature than the other then a difference in temperature creates a small current (EMF) within the circuit. The resultant EMF (Electro Motive Force) is proportional to the temperature difference between the junction and is measured in millivolt.There are several different recognized thermocouple types available. Each type has different temperature ranges as well as different recommended applications. For connecting the thermocouples to the temperature indicators Extension and Compensating cables are used. Extension Cables are manufactured from conductors having the same nominal composition as well as the same emf output as those of the corresponding thermocouple. Letter ‘X’ following the designation of the thermocouple, e.g. KX, denotes these cables.Compensating Cables are manufactured from conductors having different composition from the corresponding thermocouple but have similar emf output over a limited temperature range (generally 200°C). Letter ‘C’ following the designation of the thermocouple, e.g. ‘KC’, denotes these cables.We manufacture RTD, Thermocouple Extension and Compensating cables with the PTFE (Teflon®) and Fibre Glass Insulation. We make following constructions commonly with parallel as well as twisted form. PTFE/ PTFE PTFE/ PTFE/ SS Braided PTFE/ (SPC/ NPC/ BC) Braided/ PTFE PTFE/ PTFE/ Fibre Glass Fibre Glass/ Fibre Glass Fibre Glass/ Fibre Glass/ SS Fibre Glass/ Fibre Glass/ PTFE We manufacture the above Insulated cables as per the requirement or specifications of the customer with insulating material PTFE and Fibre Glass.We manufacture 2 Core, 3 Core, 4 Core and 6 Core RTD cables with above mentioned constructions using best quality Bare Copper, Silver Plated Copper and Nickel Plated Copper Conductors.

Number Of Flower : Bare

Conductor Type : Solid

Application : Temperature Measurement

Salient Features In a process industry the temperature detector is an integral part of the machine, and is subjected to various shocks vibrations in a rotating machine. It may be subjected to direct compression forces as in case of slot RTDs. We manufacture our RTDs Accordingly; All the Materials used are as per particular process requirements. The reproducibility is a very important factor. We ensure proper reproducibility in long run of use.For some requirements, IR values are very important; we ensure proper sealing for good IR values. Where high voltage surges are likely the RTDS are tested for enhanced high voltage values. For some applications thermal response time is an important factor we test and declare the value for each type.For RTDs which are to be embedded in the rotating machines the long run reliability is ensured by a vibration and compression proof design.For bearing metal temperature measurements, air, gas or flue gases requirements and for pipeline measurements sealed units Assembled with or without thermowells are available.Some of the RTDs are provided with interchangeable measuring inserts especially in thermowell type measuring systems.Protective tubesThe elements (Sometimes measuring inserts) are protected in metal sheaths, it is constantly subjected to hazardous conditions and material of protective tubes is decided as per DIN43763 and DIN 437230. Normally for temperatures up to 600'C SS304, SS316 and SS321 sheathe are used. Thermowells are made of SS321 or chromium molybdenum wieldable alloy steels.Connection headsThese are light metal alloy weather proof to IP. 67 (IS2147) category heads with hinged lids. The heads are provided with one or more cable entry glands as per customer choice. The connection Terminal Block is of pure Alumina with plated brass terminals. Terminals ensures very good grip of inside and outside leads.Thermal ResponseEven slight difference in wall thickness or material will cause substantial increase in Thermal Response Time and values are reported accordingly.LeadsThe RTDs with Integral leads such as slot RTDs are provided with silver plated copper conductor having PTFE insulation. Some designs are provided with braids of SPc or SS and again provided with PTFE jacket, other leads available are of silicon and ETFE for nuclear radiation resistance. All the leads are tested for enhanced HV, IR and pull test values. The specs conform to BHEL Customer requirements.Each RTD/TC is provided with with following Routine test. Calibration accuracy at minimum2 points Material T.C Dimensions TC H.V.test results (for RTD's'only) IR test results Hydraulic pressure test for'thermowells Each lot is tested for followings additional tests. Lead Pullout test. Insulation resistance at elevated Temperature. Thermal response time test. Type test for RTD’s as per BS 1904:84,IS 2848:86 are conducte regularly (IS 7358 for TC’s) Accuracy test for full range. Thermal Stability test. Vibration / Endurance test. Pressure / Compression strength test. Measuring insert leak tightness test. IP-55 weather proof test for connection head. Immersion error test. Thermo electric effect test. Thermal response time test.

Accuracy : ±1.5C

Accuracy : Class A

Application : Industrial

ApplicationTo ensure very low humidity levels inside the generator and improvement in installation also enhances prevention of stress and corrosion rotor retaining.OperationThe system comprises two heat exchangers. the hydrogen shell and lube type called precooler in which temperature of hydrogen reduces around 25⁰C to 30⁰C the cooled hydrogen now enters the second heat exchanger named evaporator further cooling up  to 0⁰C to 3⁰C is accomplished in this H₂. the set dew point is adjustable. the cooling coil inside the evaporator have propelled through a refrigeration system due to low temperature in evaporator the moisture in the H2 condenses and converts in water from the water is collected in a well protected condensate collector and can be drained out when desired leaving the evaporator H2 again travels to pre cooler where it has dual functions of cooling the input H2 and outgoing leaving dry H2 is again rises to a safe tem H2 of around 25⁰C to 40⁰C before entering the generator to reduce stress on the systemAdvantage of Jindal Refrigerated H₂ gas Driers over Conventional Driers Highly efficient in taking away moisture from gas. Only 8 Hrs. per day (24 Hrs.) service is sufficient. No need to replace or regenerate silica gel. Energy efficient and have great saving in energy consumption.

Certification : CE Certified

Country of Origin : 110V

Condition : New

Total Carbohydrate : 1yrs

Power : 1-3kw

We offer PTFE Insulation on following conductor materials. However, customized single or multi-strand conductors may also be used according to application and requirement of customers. Silver Plated Copper (SPC) Nickel Plated Copper (NPC) Annealed Bare Copper Pure Nickel Pure Silver (99.99%) Silver Plated Copper Clad Steel (SCCS) for RF & RG cables Various alloy conductors like Alumel, Chromel, Constantan etc. for Thermocouple cables Stainless Steel (SS) Various alloy and resistance wires like Cupro Nickel (CuNi), Nirchrome etc. Reasons for using PTFE Insulated wires and cables.PTFE Wires and Cables are made using the best quality material to ensure higher flexibility and long durability. The PTFE Insulated Wires and Cables can endure a large range of temperature starting from (-) 60º C to (+)260 ºC. These are not inflammable and totally safe to be used. These are made weatherproof using a special technology. Moreover, these save a lot space and very much comfortable to use. Consequently, we have enlisted ourselves among the well-known PTFE Insulated Cables Manufacturer based in India.

Condition : Good

Country of Origin : 240 V

Purity : Solid/flexible construction finish.

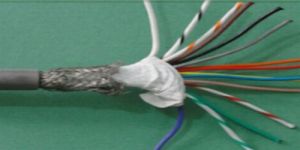

We manufacturer and exporters of PTFE cables, We offer Multi-core and Multi-pair High Temperature cables required in Electronics, Automation, Signal transmission and Equipment Control applications. We are offering PTFE cables of following constructions for Multi-core and Multi-pair PTFE Cables: PTFE/ PTFE PTFE/ PTFE or Polyamide Isolator/ Shielding/ PTFE PTFE/ PTFE/ Varnished Fiber Glass PTFE/PTFE/ Shielding PTFE/Fiber Glass/ PTFE Multi-Pair Cables with individually shielding PVC Jacket is also provided on requirement And many more constructions for PTFE cables as per customer requirements and applications. Shielding Material: Silver Plated Copper (SPC), Nickel Plated Copper (NPC), Stainless Steel (SS) and Annealed Bare Copper (ABC). We offer three type of Insulation Type and wide range of color coding with Single and Bi Colors for above cable constructions. Advantages of PTFE Cable Flexible, Less Overall Diameter Fire and Flame Proof Chemical resistant Corona Resistant Long life RoHS and Resistant to UV rays

Feature : Flexible

hdpe/pp reagent diagnostic bottles in 04ml, 08ml,15ml, 30ml,60ml & 125ml in natural, amber and in milky white .

Number Of Flower : Reagent Bottles

Material : Plastic

Application : Storing Liquid

Feature : Light-weight

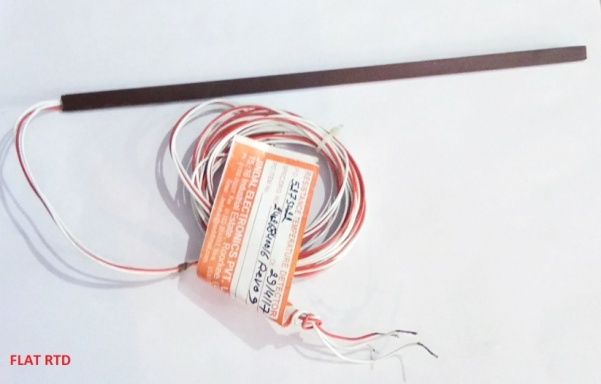

With profound experience, we present a large assortment of flat sensors that is manufactured from optimum quality raw materials. Usage of high technology machines in the production adds durability and efficiency in flat panel sensors. Our flat panel sensors are extensively used in several industries for winding applications and for slater slot. Excellent performance, robust construction and high durability are some of the salient features of our flat panel sensors. We provide flat panel sensors within the stipulated time frame as we know the value of time vested by prestigious clients. We have firmly positioned ourselves as one of the overriding flat touch sensors manufacturers and suppliers, based in India.

Application : Pressure Sensor

Output : Analog Sensor

Theory : Resistance Sensor

Empowered with advanced technology machines and well qualified team, we bring forth a wide gamut of superlative bearing temperature detectors. Our bearing temperature indicator is manufactured from the optimum quality raw materials under the guidance of experts. Our turbine bearing temperature detectors are strictly tested by our talented quality control executives to ensure flawless production of detectors. Widely used in generators, motors etc. our turbine bearing temperature detectors are the perfect fusion of utility and performance. We offer turbine bearing temperature detectors at very competitive prices and that too at brisk pace. Today, we have carved a niche as one of the leading bearing temperature detectors manufacturers, based in India.

Number Of Flower : BTD PT-100

Certification : Jindal

Country of Origin : Hv Test On 1.5 Kv

Total Carbohydrate : 12 Months
