Magnetic Meter Dealers in Roorkee

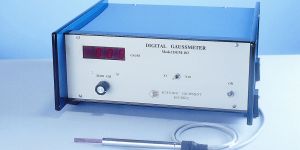

We offer Digital Gauss meter, it operates on the principle of Hall Effect in Semi-conductors. A semiconductor carrying current develops an electromotive force, when placed in a magnetic field, in a direction perpendicular to the direction of both electric current and magnetic field. The magnitude of this e.m.f. is proportional to the field intensity, if the current is kept constant. This e.m.f. is called the Hall Voltage. The small Hall Voltage is amplified through a high stability amplifier so that a millivoltmeter connected at the output of the amplifier can be calibrated directly in magnetic field unit (gauss). Features Mag. Field Measurement Excellent Linearity IC Controlled Circuit Excellent Stability Applications Wide application in industry where accurate measurements of magnetic field is required. Measurement of steady magnetic field e.g. in loud speakers, dynamos, moving coil instruments etc. Useful in laboratory experiments involving electromagnets. Specifications Range: 0-2KG & 0-20KG Resolution: 1G at 0-2KG range Accuracy: ±0.5% Temperature: Upto 50oC Display: 3½ digit, 7 segment LED DPM with auto polarity and over flow indication Power: 220V ±10%, 50Hz Transducer: Hall Probe – InAs Special Feature: Indicate the direction of the magnetic field Weight: 3Kg Dimensions: 280mm X 255mm X 120mm
