Sensing Element: Bi-metallic StripRecording Resolution: 0.5 C
Range: -20 C to +60 CDrum Diameter: 933 mm
Accuracy: ± 1 CHousing Material: FRP/ Aluminium enclosure with window

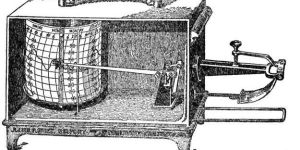

The Bimetallic Thermograph is designed for measuring & recording atmospheric temperature as function of time on recording chart. It is used in the meteorological service as also in cold stores, spinning mills, harmaceutical factories, telephone exchanges & pollution control equipment.In Bimetallic Thermograph bimetal. strip is used as sensor for air temperaturemeasurement. It consists of to layers of metals having different coefficient of thermal expansion. This strip is wound in helical coil form to give more magnification. This coil is fixed on a holder at one end while other end isconnected to the link mechanism, Due to temperature change bending stress arises in bimetal strip, this stress causes a rotation of the free end of helical coil. This rotary movement is transferred to the pen arm. The recording chart is fixed on a drum. This drum is put in to motion by precision clockwork mechanism. As a result of these to motions graph of time against air temperature is drawn on the chart.The arms of recording pens are supported in articulated joints with slant axis that makes possible uniform & constant pressure of the pen tip on the chart drum. Precision clockwork is set inside the recording drum. The precise make of all components of clockwork & recording mechanism ensures high accuracy and longer field-life.Bimetallic element of thermograph is designed to give linear indication range from -20°C to +60°C. Normally daily minimum to maximum temperature difference is not more than 25°C to 30°C. As such to give better & magnified record, range of graph is kept 40°C only. ‘Floating Zero’ adjustment is provided to utilize & accommodate full working range of bimetallic element i.e. – 20°C to + 60°C. ‘Floating Zero’ means that the base line of graph can have different temperature value as per seasonal temperature change.In the thermograph this-adjustment is provided with the help of:i) Rapid range setting by pen arm setting screw.ii) Fine adjustment by spring loaded radial arm & zero setting screw.iii) In the chart blank boxes are kept to mark temperature range values.
The Bimetallic Thermograph is designed for measuring & recording atmospheric temperature as function of time on recording chart. It is used in the meteorological service as also in cold stores, spinning mills, harmaceutical factories, telephone exchanges & pollution control equipment.In Bimetallic Thermograph bimetal. strip is used as sensor for air temperaturemeasurement. It consists of to layers of metals having different coefficient of thermal expansion. This strip is wound in helical coil form to give more magnification. This coil is fixed on a holder at one end while other end isconnected to the link mechanism, Due to temperature change bending stress arises in bimetal strip, this stress causes a rotation of the free end of helical coil. This rotary movement is transferred to the pen arm. The recording chart is fixed on a drum. This drum is put in to motion by precision clockwork mechanism. As a result of these to motions graph of time against air temperature is drawn on the chart.The arms of recording pens are supported in articulated joints with slant axis that makes possible uniform & constant pressure of the pen tip on the chart drum. Precision clockwork is set inside the recording drum. The precise make of all components of clockwork & recording mechanism ensures high accuracy and longer field-life.Bimetallic element of thermograph is designed to give linear indication range from -20°C to +60°C. Normally daily minimum to maximum temperature difference is not more than 25°C to 30°C. As such to give better & magnified record, range of graph is kept 40°C only. ‘Floating Zero’ adjustment is provided to utilize & accommodate full working range of bimetallic element i.e. – 20°C to + 60°C. ‘Floating Zero’ means that the base line of graph can have different temperature value as per seasonal temperature change.In the thermograph this-adjustment is provided with the help of:i) Rapid range setting by pen arm setting screw.ii) Fine adjustment by spring loaded radial arm & zero setting screw.iii) In the chart blank boxes are kept to mark temperature range values.
Accurate, one person measurement of tree canopies. Measure forest overstory density from unobstructed sighting positions. The instrument uses a spherical-shaped reflector mirror engraved with a cross-shaped grid of 24 quarter inch squares. To take readings, hold the instrument level, 12" to 18" in front of body and at elbow height. Assume four equi-spaced dots in each square of the grid and systematically count the dots equivalent to quarter-square openings. Multiply the total count by 1.04 to obtain percent of overhead area not occupied by canopy. The difference between this and 100 is an estimation of overstory density in percent. Units are housed in a 3" x 3" x 1" thick walnut case with operating instructions permanently affixed to the lid. A leveling bubble is also included for accurate positioning during estimations
Accurate, one person measurement of tree canopies. Measure forest overstory density from unobstructed sighting positions. The instrument uses a spherical-shaped reflector mirror engraved with a cross-shaped grid of 24 quarter inch squares. To take readings, hold the instrument level, 12" to 18" in front of body and at elbow height. Assume four equi-spaced dots in each square of the grid and systematically count the dots equivalent to quarter-square openings. Multiply the total count by 1.04 to obtain percent of overhead area not occupied by canopy. The difference between this and 100 is an estimation of overstory density in percent. Units are housed in a 3" x 3" x 1" thick walnut case with operating instructions permanently affixed to the lid. A leveling bubble is also included for accurate positioning during estimations

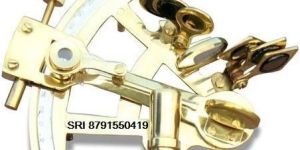

This beautiful polished brass sextant is a must have for any nautical enthusiast. This sextant is fully functional and includes a silver vernier scale, adjustable eye piece, glass mirror and viewing telescope.
Made of quality polished brass
Measures approx. 4" wide and approx. 1.5" tall Fully functional
This beautiful polished brass sextant is a must have for any nautical enthusiast. This sextant is fully functional and includes a silver vernier scale, adjustable eye piece, glass mirror and viewing telescope.
Made of quality polished brass
Measures approx. 4" wide and approx. 1.5" tall Fully functional
