Jaw Crusher Dealers in Dhansura, Sabarkantha

V TechMakkers offer an extensive assortment of jaw crushers. From single toggle jaw crushers to double toggle jaw crushers, our crushers are designed to reduce large rocks into smaller pieces of rock, gravel or even dust. Double toggle jaw crushers use comprehensive force to break a particle and find use in mines due to their ability to crush tough and abrasive materials. In double toggle jaw crushers, the crushing is done by compressing the feed material between two enormous jaw plates. Our double toggle crushers are made up of heavy duty steel plates with reinforcing ribs; the moving jaw compresses the feed against the stationary jaw. As the moving jaw moves up and down, the stationary jaw closes thereby crushing the material to the required size which is generally a cubical product. Because there is no rubbing of parts, the machine automatically compensates for periodic wear and tear. Our double toggle jaw crushers are highly efficient and require smaller size motors thereby reducing the power costs and increasing operational life. We manufacture our jaw crushers in accordance with industrial standards; we conduct periodic quality checks on our machines to make sure our customers receive the best service. Features: Compact design Increased operational life Top quality construction High efficiency Lower power costs

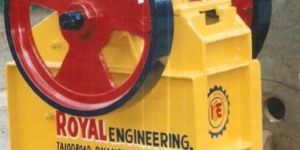

We are offering Mini Jaw Crusher Our Jaw Crushers are configured for Primary & Secondary crushing of even hardest rock at hardest speed with minimum power. The crusher is designed on principal of “Crushing without Rubbing” with high impact pressure. Our Jaw Crushers are considerably higher than that of conventional crushers, without rubbing & requires minimum dust oil lubrication. The company crushers are designed for long life service with minimum maintenance with high quality promised for hard, tough, abrasive material and overload high capacity. The company all products are also well suited to high efficiency, large capacity size operation. Mainly Jaw Crusher Are In The Two Lubrication System : Oil lubricationGrease lubrication Main Parts Of Jaw Crusher : BodyManufactured from Fabricated with tested quality of M.S. Plates which consists of box beam design on outside of machine Those body used after heat treatment processReinforced by the M.S PlatesProviding as horizontal members & vertical members to the bodyLever Fabricated with M.S plates Consists of M.S pipe, Forged M.S pin, bushes etc.PitmanAssembly has main body of mild steel Pitman is always in compression condition Pitman having unique design, one is always in contact with crank shaft and other is in contact with PinThe bottom of the pitman body the toggle bearings are inserted to house the toggle platesJaw PlatesJaw plates are made of High Manganese Steel & Suitable for easy setting & less rubbingContaining 12 to 14% ManganeseConforming to I.S.276Different types of Jaw plates are available to suit particular crushing applicationToggle BearingsToggle bearings are either of cast MN steel or tempered steelFlywheelFlywheels are two in numbersOne flywheel is used for balancingAnother is prime mover that rotates and hence rotates the Cranck Shaft alsoUsed for rotation on electric power or diesel engineToggle Block and Viz. BlockC.I materialsProperly machinedProvided in the rear portion of the jaw bodyToggle Block is to control thrust produced in the pitmanUsed to Adjustset the stroke of the swing jaw plateLubricationAutomatic continuous splash lubrication by gear pump to prevent bearing pitman, eccentric shaft and toggle mechanism, enables the crusher to run safely at relatively higher speedSelf-aligning double roller bearingsCylindrical roller bearings are fitted providing grease holding space Anti friction grease-3equivalent should be used as lubricant greaseCrank Shaft (Eccentric shaft)Eccentric shaft is made of special steel ( EN 8 EN 24) and having high strength to resist load, which is mounted on the two roller bearings Typical Applications : In taking boulder & crushing it to smaller sizes stone of different sizes Granite, River GravelBasalt, BauxiteCoalLead & ZincQuartz & Quartzite Iron ore, Manganese ore & Copper OreDolomite, LimestoneCalcium carbide Specifications : Carborundam Capacity up to 450 mmFeeding size up to 1260 mm aprox Final grain size

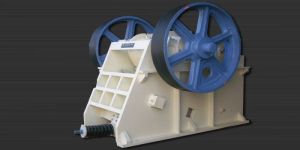

In single toggle “LION” crusher crank shaft is accurately machined. Diameters are of considerable over size for normal loading thus it provide an important fatty factor against deflection. The crusher are specially fitted with anti friction roller bearing instead of brass on motor ending and will give greater production at lowest maintenance possible. In “lion”   single toggle jaw crusher, will designed compression spring and spring-road provide  to the toggle mechanism. Eliminate knocks and reduces the resultant wear. The easily replaceable toggle plate is designed for correctly jaws movement and act, as safeguard in the event unbreakable material accidently entering jaws. In “lion”  single toggle, positive pressure grease lubrication protects bearing  through specially designed labyrinth dust covers bearing and prevent excessive wear. Two heavy cast iron fly wheels are fitted plates made of manganese steel serve double faction of holding the fixed jaw in position and protecting the sides of the crushing chamber. It is very easily replaceable when wean wear becomes excessive. The body is made form best quality tested M.S. plate, welded fabricated construction. The end and side walls are stiffened with steel ribs of substantial proportion. The body is very strong and very light. In “LION” single toggle, heavy external ribs are wiled in place to reinforce of stiffen the frame points of maximum stress. Cast manganese steel jaw are highly wear resistant element of “”LION” crusher, the crushing surface of the jaw plates are suitably corrugated so that the riffles of the swing jaw exactly oppose the recesses of fixed jaw. The jaw plates are reversible when they wear at the throat.

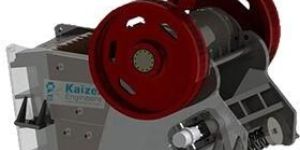

Arya industries single toggle jaw crushers are used for primary crushing. Single toggle jaw crusher is designed for exceptionally heavy and continuous applications. single toggle jaw crushers are provided in heavy and light versions with welded steel housing and a moving jaw in a welded or cast steel version, as well as an eccentric shaft made of high-grade forged steel.

Single Toggle Jaw Crusher, Conveyors, Truck Loaders, Rotary Screen

jaw plates & side plates the jaw plates are made from manganese steel casting, grade -iii having 14% manganese. The side plates are of closed fitting type which prevent any wear to the body. pitman always in compression it is very light weight and has maximum load bearing capacity due to its unique design. eccentric shaft high strength eccentric shaft of special steel is mounted in self aligned double row spherical roller bearing of ample capacities which ensures smooth running.

The Jaw Crusher supplied by us is popular under the brand name of Supreme Rock. The high grade Jaw Crusher ideally saves power, labor as well as time. Moreover, the Jaw Crusher that we present is available in different types and sizes in order to completely satisfy the customers. Availability : Single Toggle (Grease Type) Double Toggle (Oil Type) Sizes : 20 Inch x 12 Inch to 42 Inch x 36 Inch Features : Steel body Sturdy structure Smooth performance Longer functional life Negligible maintenance

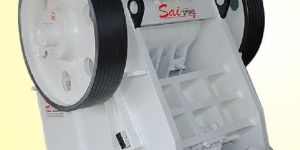

Maruti barnd grease type jaw crusher.1 year bearing ,shaft warranty.&no.1 quality this brand .
