Liquid Packaging Machinery Dealers in Sabarkantha

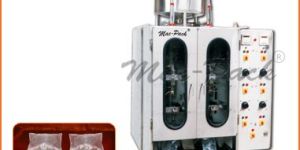

Double Head Liquid Pouch Packing Machine  FEATURES The machine can pack mineral water, milk, butter milk, ghee, oil etc. Fully Mechanical Model “no air compressor ’’required, so low power consumption. Power saver model Latest Technology ‘Micro Controller’ used in this machine, for sharp accuracy for filling & sealing. Presentable six digit digital counter used. “Selectable Buzzer” on adjustable mode. S.S.R. based latest technology for faster & non-arching switching. Only 1HP /Three Phase Main Drive Total power consumption 3 kW/ Hr OPTIONAL ATTACHMENT Friction Drive Batch Coding (2 Nos) OR Mechanical Batch Coding (2 Nos)

Complete detailes and specifications feeding head : gravity flow with float balance tank production speed : 2200 pouches per hour packing range : 100 � 1000 ml film thickness : 60 � 80 microns film width : 225 � 325 mm film material : co � extruded poly virgin film heating system : continues pouch style : central seal pillow pouch pouch width : 100 � 150 mm pouch length : up to 150 mm power consumption : 1.2 kw hr. Power requirement : 220 v, 1 ph. 50 hz. Pouch counter : provided hour meter : provided u.v tube : provided machine dimensions : 1700 (h) x 800 (w) x 1200 (d) mm net wt. : 425 kg
