Saharanpur Testing Instruments Pvt Ltd Delhi Road, Saharanpur, Uttar Pradesh

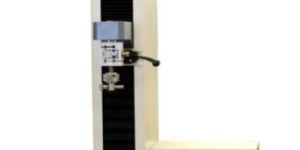

Device Description: This sturdy machine is easy to operate due to its on screen LCD and the clear control buttons. Its software has many pre-installed tests like standard 100 mm tensile test for 15mm stripes. It comes with one load cell of 500 N Load. The pneumatically driven clamps are optional, as standard delivery the machine comes with hand operated clamps. Separate Start, Stop button for easy use .The maximum distance between the clamps is 300mm. On the panel is provided a USB connection for easy PC transfer of test data and export in excel format. The test speed is adjustable between 0.1 to 700 mm/minute. Test Description: the user places the strips and the clamps are closed manually. By pressing the start button the sample is stretched until there is break in the sample. The figures, curves, statistics with max, min, mean as well as the standard deviation are shown on the PC software screen and can be printed simultaneously . After the test the clamps move to their original position for next sample and so on . The software comes with the preinstalled tests as they are described in the standards. Company specific tests can be set as well. All the parameters like testing speed, testing length, breaking and preload levels can be adjusted individually.

Brand Name : STIPL

Power : 1-3kw

Application : For The Determination Of Tensile Resistance Of Paper In Dry State,Elongation And Tensile Energy Absorption In Paper Or Tissue.

Number Of Flower : Tensile Strength Tester

Country of Origin : India

Automatic Grade : Automatic

Definition : Thickness or caliper of paper, paperboard, or combined board as measured by this method is defined as the perpendicular distance between the two principal surfaces of the paper or paperboard under prescribed conditions, as measured between hard metal platens.. Standardization : ISO 534, EN 20534 , SCAN P7 , TAPPI T 411 . Device Description : Measuring Spindle with constant lowering speed (1mm/sec) , Hardened and lapped measuring face . Provided with dial type indicator. Test Description : A C frame structure having two parallel plane circular faces fitted with high precision distance measuring display , a piece of sample placed between these faces under constant load and specified speed is measured .

Application : Industrial Use

Feature : Accuracy, Durable

Automation Grade : Automatic

Definition : when pulp suspension passed through a standard wire mesh fitted on a circular grid plate under standard barometric height to provide the necessary vacuum over the grid plate to form the paper sheet under uniform parameter such as consistency , temperature , water volume is defined as lab hand sheet making. Standardization : TAPPI T 205 , ISO 5269/1 , SCAN C26 Device Description : the sheet former is intended for installation into a laboratory bench (not included). The individual stages are carried out by moving hand levers . Swirling is done with an agitator with perforated bottom plate and the couching is done with the 10kg stainless steel roller (both included in the delivery). Additionaly 10 polished mirror plates and drying rings are included in the delivery for drying . all parts are constructed of corrosion resistant materials Test Description : by opening the hand valve the former column is half filled with water and suspensions, which has been prepared in the disintegrator , and equalizer is added . Then the former column gets filled up until the mark is reached . the agitator is used to swirl the content of the column , once the settling phase is finished , the second hand lever gets moved to open the drainage valve and the water is drained through the forming screen. The freshly formed hand sheet remains on the screen. The former column can then be opened and two blotting papers are placed on the top of wet hand sheet. With the stainless steel roller the sheet is couched and then carefully be removed from the screen and further processed with the sheet press, the drying rings or the speed dryer.

Material : Stainless Steel

Automatic Grade : Semi Automatic

Number Of Flower : Sheet Forming Machines

Country of Origin : India

Sheet Size : 165mm dia = 214cm2 Area

Trimmed Size : 200cm2

Stock Container and dewatering vessel : Stainless Steel

Brand Name : STIPL

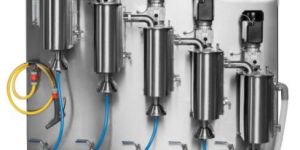

Device Description : the Baure Mcnett fibre classifier consists of up to 5 narrow tanks 255mm deep , 127 mm wide and 320mm high, mounted in a cascaded arrangement , with screens of 335cm2 mounted on the flat side . A vertical , cylindrical agitator with short paddles rotates at 580rpm near one semi circular end of each tank . this causes suspension to flow horizontally across the screen and circulate around the tank . an overflow weir is provided at outgoing side of each screen , and a short pipe leads to the next tank with a finer screen at a slightly lower level , or from the last tank to drain away . A flow regulator supplies water at the rate of 11.35 l/m to the first tank. The motion of the water keeps the water from settling and presents them repeatedly to the screens through which they will pass if the length is less than twice the screen opening. The primary unit has an inlet funnel with an overflow and the nozzle for a constant water flow rate. Fractionating unit is completely self contained having its own electric motor for the rotor and is made of non-corrosive material. Fibre collection box with rapid locking device, support wire and suction connection. Interchangeable screens are available with wire of 4, 6, 8, 10, 14, 20, 30, 50, 100 and 200 standard mesh. The screen frames are clamped spring loaded self clamping system. Classifier gives a very low spread in the results with a variation coefficient of less than 1%.   Test Description: With the screens correctly mounted in the tanks press the start button to start the water flow into thje top tank . as soon as the lowest tank starts overflowing , press the stop button again and simultaneously start to pour the prepared sample of 3,333ml with 24 grams of moisture free pulp during the period of 18second in the top tank. Subsequently the flow at the rate of 11,355 l/m into the top tank, the stirrers and the timing of 20minutes are started automatically . A green light shows that the classification is in the process . during this time the drainage cups are furnished with weighed and marked filter papers.   After the test (20 minutes acc to TAPPI and 15 minutes according to SCAN) the water flux is stopped automatically and green light goes out . the stirrers continue running for another 2 minutes until there is no more water to drain away from the lowest tank . now the drain plug and tap below the cup of the first tank is opened and the pump is turned on to allow the contents to drain into the cup. After the tank has been drained the screen and the tank is flushed carefully with the provided hose. When all the tanks are emptied in this way the pads are taken out of the cups and folded in the middle. As much water as possible is removed using a wringer , a blotter or towel . before weighing to within to 0.01 g the pads are dried in an oven at 100*c to constant weight

Driven Type : Electric

Application : Testing Use

Number Of Flower : Pulp Testing Instruments

Country of Origin : India

Brand Name : STIPL

Definition: Freeness of pulp is a measure of precisely how rapidly water can drain from a diluted fiber furnishes suspension. The freeness of pulp is designed to give a measure of the rate at which a dilute suspension of pulp (3 g of pulp in 1 L of water) may be drained. The freeness, or drainage rate has been shown to be related to the surface conditions and swelling of the fibers. Besides these factors, the result is dependent also on conditions under which the test is carried out, such as stock preparation, temperature, and water quality. Device Description : The Schopper Reigler Type Beating & Freeness tester measures the drainage of beaten pulp suspension and expressed as SR number.The manual pulley with wire and fixed load system of loading and unloading of the sealing cone ensures a constant lifting rate for the sealing cone during the test Test Description : The Shopper Reigler Type Beating & Freeness tester measures the drainage capacity of beaten pulp and is universally used to check the progress of beating process. The drainage of pulp suspension is express in SR number.

Automatic Grade : Automatic

Power Source : Electric

Country of Origin : India

Sample : 2 g. Oven Dried

Consistency : 0.2%

Reproducibility : Approximately 1 0sr

Brand Name : STIPL

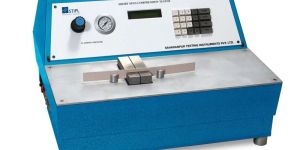

Device Description : The short span compression tester is used for paper or board strips with 15mm width. The jaws clamps the strips with definite force and then the jaws move from 0.7mm towards the center until a break is detected . on the LCD the values are displayed Test Description: the sample is put into the open clamps by pressing the start button , the clamps close and move together with a speed of 3+- 0.1mm/minute , the curve is displayed and as soon as the break is detected the value is shown on the LCD . After several tests the statistics values and the ratio between MD and CD are displayed. Optionally a sample feeder can be delivered, which moves the sample strip for next test sequence. The sample feeder moves the sample approx 3cm and allows several tests on one strip.

Automatic Grade : Semi Automatic

Number Of Flower : Compression Testers

Country of Origin : India

Application : For Determination of Compression Strength and Compression Index On Paper and Board Samples

Brand Name : STIPL

Device Description : the Somerville shive content analyzer is built upon a robust stainless steel frame , which holds the membrane chamber and the container. The control box can be mounted on a wall . the wash chamber and container are separated by an exchangeable slot plate . the attached overflow container regulates the water level in the container. The slot plate can be easily removed due to fasteners. Test Description : Place the slot plate between wash chamber and the container . pressing the start button initiates the process and the water will be sprayed through the ring plate onto the slot plate. Once the water reached the 25mm mark , the sample is added. The motor will start moving the rubber plate as soon as the water will reach the overflow container. Hence the rubber plate will create suction and sucks fibers and pieces through the opening of the slot plate that are smaller than the slot width. After draining the water , the remaining fibers and shives on the screen can be used for calculating the shive content.

Driven Type : Electric

Automation Grade : Automatic

Storage Condition : Analytical

Country of Origin : 220V

Number Of Flower : Somerville Type

Country of Origin : India

Brand Name : STIPL

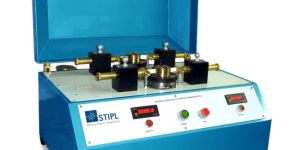

Definition : In paper testing, folding endurance is defined as the logarithm (to the base of ten) of the number of double folds that are required to make a test piece break under standardized conditions: F = log10 d, where F is the folding endurance and d the number of double folds. Folding endurance is especially applicable for papers used for maps, bank notes, archival documents, etc. Standardization : ISO 5626 , TAPPI 423 , ISO 5626 Device Description : the device measures the number of folds until the sample breaks . The tests require that two samples be tested simultaneously. This is a standard device designed for security papers. It has automatic stop function after sample break. Standard version for paper up to 0.25 mm thickness , alternatively available for board . Measurement and display of the folding head temperature optionally available. Test Description : two samples are clamped in the folding heads for a simultaneous test . the spring supported samples support are pulled apart, so that samples are clamped at specified force , after pushing the start button the folding knives begin to guide the sample around the sapphire supported folding rolls , that way samples are folded at both sides at a radius of about 0.25mm. if one sample breaks the folding of second sample continues , until it breaks so . the movement of the folding heads stop after test termination , so that samples can be removed the device records and displays number of folds until sample breaks.

Material : Mild Steel

Power Source : Electrical

Number Of Flower : Folding Endurance Tester

Country of Origin : India

Brand Name : STIPL

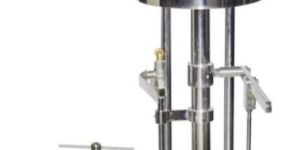

Definition : when pulp suspension passed through a standard wire mesh fitted on a circular grid plate under standard barometric height to provide the necessary vacuum over the grid plate to form the paper sheet under uniform parameter such as consistency , temperature , water volume is defined as lab hand sheet making. Device Description : Sheet Former of SCA model is intended for production of laboratory sheets for physical tests The design of the dewatering vessel gives a constant flow across the entire wire, thus permitting extremely uniform sheets. The Sheet Former is easy to install in a laboratory and produces square sheet size 165x165 mm. Test Description : by opening the hand valve the former column is half filled with water and suspensions, which has been prepared in the disintegrator , and equalizer is added . Then the former column gets filled up until the mark is reached . the agitator is used to swirl the content of the column , once the settling phase is finished , the second hand lever gets moved to open the drainage valve and the water is drained through the forming screen. The freshly formed hand sheet remains on the screen. The former column can then be opened and two blotting papers are placed on the top of wet hand sheet. With the stainless steel roller the sheet is couched and then carefully be removed from the screen and further processed with the sheet press, the drying rings or the speed dryer.

Sheet Size : 165mm Dia = 214 Cm2 Area

Trimmed Size : 200cm2

Wire Screen upper : 100 mesh (ASTM std. )150 mesh (TAPPI std.) ,

Wire Screen support : 20 Mesh

Suction Height : 800 mm

Stock Container and dewatering vessel : Stainless Steel

Brand Name : STIPL

The stainless steel Rapid Sheet Dryer is designed for shortening the drying time of wet pulp sheet or paper samples to determining the dry weight or moisture content. A wet sample is placed between the cover and the heated surface to dry , the temp of the dryer plate is adjustable through thermostat to control the drying condition , after prescribed time the sample can be weighted to determine its moisture contents Square Drying Plates. Lower plate is lined with wire cloth to lead off the vapour during the drying process. Provided with over heating protector, Switch provided with indicator lamp. Upper and lower drying plates are heated with flat electrical elements.

Material : SS

Power : 800 W

Power Source : Electric

Automatic : Semi Automatic

Country of Origin : 220V

Brand Name : STIPL

Device Description : this high quality product is characterized by simplicity of the operation. Only premium stainless steel and aluminum parts are used to manufacture this instrument . the balanced hinged head allows the operator to open the device with only one hand. On the front side of the device there is start and stop button with an adjustable revolution counter , hence is the possibility of exact amount of revolutions needed to disintegrate the pulp. Test Description : the disintegration pot needs to be filled with water and required amount of pulp. Now the pot can be placed on the disintegrator and the balanced hinged head can be moved down until it catches. preset the amount of revolutions needed for disintegration. After pressing the start button the device will disintegrate the pulp until full amount of revolutions has been accomplished and stops automatically. now the device can be opened and retrieved samples can be taken for further processing.

Driven Type : Electric

Country of Origin : India

Capacity : 2 Litres with for Equally Spaced Spiral Baffles

Brand Name : STIPL

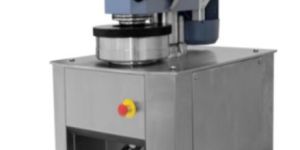

Device Description : The PFI Laboratory Mill consists of an inner toothed roll of 33 blades and a smooth beater housing . the roll rotates in the same direction at different peripheral speeds . A beating force of exactly 3.33 N/mm ensures that the pulp is beaten under standard conditions . A measured amount of pulp of specified consistency is beaten between a roll with bars and a smooth beater housing both rotating in the same direction but at different peripheral speeds. Test Description : A weighed and disintegrated amount of pulp is put inside the housing . the operation must be done manually , placing the pulp along the housing wall . the roll is lowered and inserted into the housing . the security cover is also put out. After pushing the start button , the test starts . the housing will rotates with 710rpm and the roll @1455 +- 30rpm , both in the same direction . the roll exerts a constant pressure of 3.33 N/mm against the housing wall , where the pulp is located. This way due to the pressure applied between the housing g wall and roll blades the pulp is refined . the refining time varied from 2 to 10 minutes depending upon the type of pulp used . after having rotated the pre selected rotations , the roll and the housing stops and refining process ends. Finally the roll is situated in the center initial position and the refined pulp is extracted to measure the freeness of the pulp in degree SR or CSF.

Brand Name : STIPL

Driven Type : Electric

Automatic Grade : Semi Automatic

Number Of Flower : Laboratory Beater

Country of Origin : India

Beating Time : 2 - 10 Min Depending Upon The Pulp Quality

Application : For Beating of Chemical Pulps in Lab Scale Under Standardized Conditions

Device Description :The Punch is made of special steel and has a shape of circular knife in wave form. It is exchangeable and can be easily resharpened. Test Description :For cutting out circular sample of paper, board and similar materials. One / several test specimen at a time by the precision punch and die cutting to cut the exact area required for the purpose of the grammage testing using precision balance to display the weight directly in terms of gram/m2  Circular Punch & Die Cutter is an excellent and convenient precision cutter for speedy and accurate cutting of specimen without any deformation and damage. It saves a considerable amount of time in sample preparation and is suitable for cutting a very wide range of sheet material such as plastics, textiles, paper and paper board. It is extremely useful for the determination of basis weight in paper machines profile when used in conjunction with GSM Scale. The Punch Cutter has a high capacity and several layers of paper profile can be punched out in one operation simultaneously.

Power : 3-5kv

Application : Labouratory Use,To Measure the Grammage of the Paper

Feature : Durable

Country of Origin : 220V

Number Of Flower : Paper Gsm Tester

Frequency : 50Hz

Country of Origin : India

Brand : STIPL

Definition : Brightness is a commonly used industry term for the numerical value of the reflectance factor of a sample with respect to blue light of specific spectral and geometric characteristics. This method requires an instrument employing 45° illumination and 0° viewing geometry with the illuminating and viewing beams adjusted so that translucent materials are evaluated on an arbitrary but specific scale . the directional reflectance is measured at 457 nm. Standardization : ISO 2469, 2470, 3688, 5631, 9416, 11475, 11476, 22891, 22754 TAPPI T519, T525, T527, (T534, T560, T567) DIN 53145, 53146, 53147, 54500 Paptac E1, E2 SCAN G3, 5, 8, 66, 71, 72, each/P JIS P8148 etc. Device Description : NOVICOLOR a modern , easy to use and feature rich Color-QC application for paper and packaging industries and automotive supply chain members. It enables customers to analyze report and visualize accurate colour QC results . it incorporates the indices , tolerances methods , graphs and sight sources D65 , c UV ex.. the device either comes with a built in touch screen or can be connected with a PC. Test Description : the device is easy to control due to its touch screen and windows use of program. The data files can be saved directly on the computer. A printer can be connected to the USB port or the device enabling direct printout. The light source is filtered according to D65 , C, and UV ex level.

Number Of Flower : Paper Brightness Tester

Frequency : 50Hz

Country of Origin : India

Power : 100-240V AC 50-60Hz 25W AC (with a dedicated AC adapter)

Brand Name : STIPL

Definition : This method is used to measure the absorbency rate of paper for printing inks having an oil vehicle. It is normally used only for easily permeable papers such as news, book, and mimeograph ; however, it can be helpful for any paper where the absorbency of an oil based vehicle is important. Device Description : The instrument chamber has an orifice for holding the liquid medium and a clamping device for holding the material. The penetration timer stops automatically after releasing the sample holder. Double processed castor oil having viscosity of 700 ± 30 centipoises at 250 C or mineral oils of the same viscosity and comparable wetting characteristics are used. Test Description : A correlation has been established between the results of this test and the printing quality of uncoated papers. The oil absorbency of paper is related to the porosity and internal structure of the paper.

Driven Type : Electric

Condition : New

Country of Origin : 440V

Number Of Flower : Williams Type

Country of Origin : India

Brand Name : STIPL

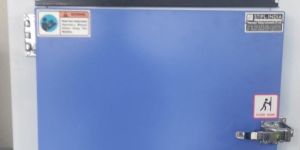

Usage: The Laboratory Muffle Furnace units are utilized in general purpose heating in laboratories, ashing tests on wool, rubber, fibers or fabrics, heat treatment requirements for gears and various research facilities in chemistry and physics. Device Description : Standard Single wall construction, body made of high grade mild steel sheet OR stainless steel (optional). Duly painted with rust proof paint. The gap between the Block and the Outer Body will be filled by high grade Blanket to avoid thermal loss. Heating elements are placed in each sides made of Super kanthal Aone wire (best quality wire in India).Temperature range +5oC ambient to 1200oC controlled by digital temperature controller cum indicator. To Work On 220/230VAC.

Power Supply : 220/230VAC.

Material : Stainless Steel

Driven Type : Electric

Rated Power : 12-15kw

Application : Heating Process

Number Of Flower : Muffle Furnace

Country of Origin : India

Brand Name : STIPL

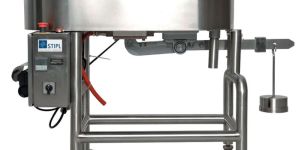

Device Description : The laboratory beater is mounted upon a stainless steel construction. The device itself is entirely made of stainless steel as well. The container is capable of holding a volume of 23 liters , therefore 360g of pulp can be beaten with one process .the rolls including the blade are 152mm wide and have a diameter of 190-194mm . the bed knife consists of seven 3.2mm thick stainless steel blades. The knives and bed of the beater are encased by a tank cover in order to ensure safe handling of device. Test Description : 360 g of pulp in a suspension is put into a beater. Now the suspension needs to be topped up with water until the whole mixture reaches a volume of 23 liters. Three minutes after starting the device a sample has to be taken , After that a weight of 5.5 kg has to be fixed to the lever in order to start the actual beating process. Samples can be taken at regular intervals and the pulp can be used to be tested for example on freeness or to form test sheets.

Brand Name : STIPL

Driven Type : Electric

Application : Testing Use

Country of Origin : 220V

Number Of Flower : Lab Testing Equipment

Country of Origin : India

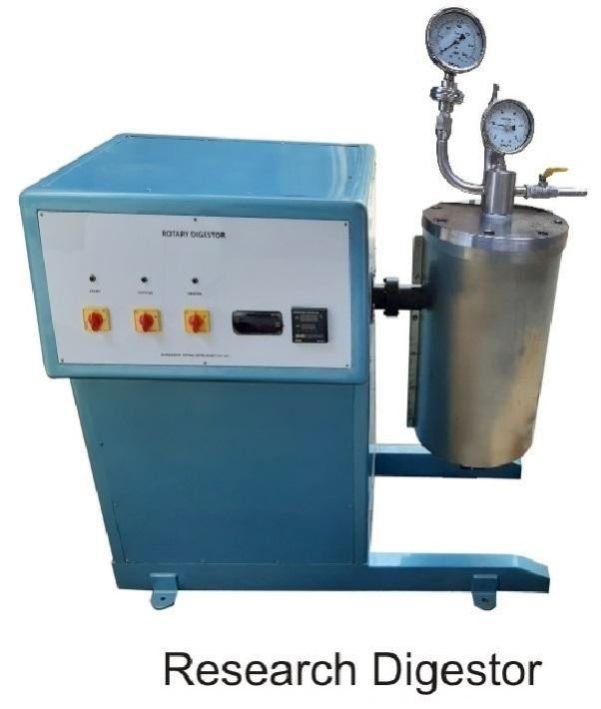

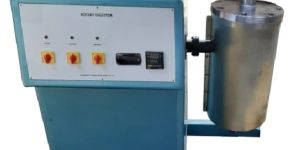

Device Description: The Digester is a complete pulping unit for producing pulps by cooking wood chips in a manner similar to a commercial digester. The unit is easy to operate and features precise control of pulping variables to ensure good repeatability of results. A sampling line with cooling attachments allows liquor samples to be withdrawn safely during the cooking process and a control valve determines the circulation rate of cooking chemicals.

Material : Stainless Steel

Application : Testing Equipment,Preparation of Pulp from Various Fibrous Materials Under Specified and Controlled Temperature , Pressure and Time

Country of Origin : India

Brand Name : STIPL

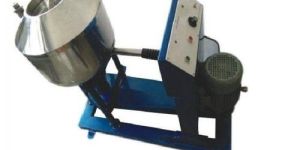

Definition : The laboratory hydra pulper is used for the de-fibreing of the virgin and secondary fiber in laboratory trial of different raw material for making pulp to measure properties, before making commercial production . A suitable and standard apparatus for making pulp, minerals fibres pulp like mica, asbestos etc. Device Description : the unit consists of a pulping container with a rotor at the bottom driven by a V belt in the lower part of the unit . the electric motor has an adjustable frequency convertor to regulate the rotational speed . a ball valve at the bottom drains the pulp . an acrylic cover prevents injuries during the pulping process . A smaller opening in the cover allows extra content during pulping.   Test Description : the pulp is torn out by hand into about 2 x 2 cm large pieces and soaked with water , then the pilper is activated to mix the pulp and take apart the single fibres without destroying their structures to a homogenous suspension

Material : Stainless Steel

Country of Origin : India

Usage : For Pulping of Dry Pulp Sample in Laboratory Scale

Brand Name : STIPL

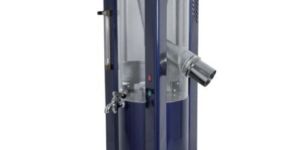

Definition : FLOATATION is a physio-chemical process of separating materials. It is based on the phenomenon that separation is achieved by influencing the wettability with water of the particles to be separated. The water repellency of the surface of the particles to be separated is achieved by the addition of special heteropolar chemicals, which deposit on the surface of the particles at the same time the treated particles can deposit on air bubbles that are introduce into the suspension. As a result of buoyancy of the air bubbles the adhering particles are conveyed to the surface of the suspension to concentrate as a forth, which can be removed. Device Description : The laboratory flotation cell consists of an acrylic glass vessel for 25 liter suspension with 300 mm diameter and a drainage pipe. On top of the vessel there is an automatic foam removal system, driven by a motor with magnetic coupling. On the bottom of the tank there is a self-suction aeration rotor. The air for the aeration rotor is regulated via an air flow meter. The air is guided by a baffle plate. Test Description : The foam outlet is covered and 25 liter of the suspension are poured into the container. The cover is removed and the motor on top is in place. The chemicals suspensions are added to the suspension and the motor is turned on. Air bubbles from the aeration rotor create a foam, which is taken away by the foam paddles, guided to the central foam outlet and collected in a basket.

Material : Stainless Steel

Automation Grade : Automatic

Application : Industrial Use

Country of Origin : 440 V AC

Number Of Flower : Floatation Cell

Frequency : 50 Hz

Phase : Three Phase

Country of Origin : India

Brand Name : STIPL

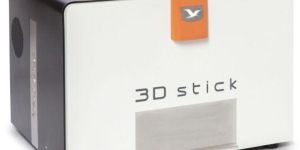

ACCURATE AND USER FRIENDLY MEASUREMENT OF INK, SHIVES, AND STICKIES...

Application : Laboratory Use

Country of Origin : 12-24 VDC

Number Of Flower : Laboratory Analyzer

Availability : 5-10 Kg

Total Carbohydrate : 1 Yr

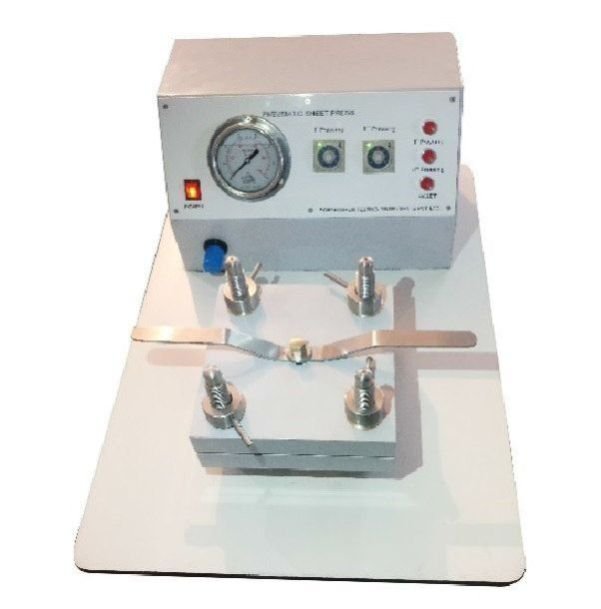

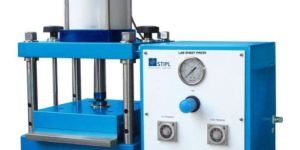

Device Description : For pressing and dewatering of the hand sheet quickly made on standard sheet making apparatus must be pressed in uniform manner for the distribution of pulp across the area. The press top made of duralumin for rigidity and lightness is secured by 4 rapid action clamping and release nuts. Control panel houses two timers one of 12 min and other of 6 min push button switches and pressure gauge. Precision air pressure and air flow regulators are housed in the cabinet. A fail safe pressure relief valve is fitted to the air storage chamber, which functions automatically if the inlet supply pressure exceeds the maximum. Press platens are of stainless steel. Centering template made of aluminum is supplied to adjust the location of sample sheets Multi-number samples can be placed simultaneously for pressing. Working pressure 7 Kg/cm2 Test Description : The Sheet Press is operated pneumatically by compressed air supply. The specimen is pressed by gradually raising the rubber diaphragm with compressed air, pushing up the floating square flat press platen with larger area and higher load capacity. The solid state timers provide the timing sequence for dewatering time.

Application : Paper Testing,Pressing and Dewatering Sheet Made On Sheet Making Machine.

Country of Origin : India

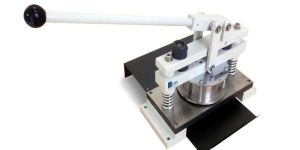

Definition: Precision Cutter for speedy and accurate cutting of samples of 100cm2 in area without any deformation and damage. Device Description : the cutter is made of casted aluminum base with a industrial grade corrosion resistant knife and easy to operate press handle for accurate cutting of the samples of size 100cm2 or desired range. The Cutter has a high capacity and several layers of paper profile can be punched out in one operation simultaneously. Test Description : Circular Punch & Die Cutter is an excellent and convenient precision cutter for speedy and accurate cutting of specimen 100 cm2 in area without any deformation and damage.

Material : Mild Steel

Automatic Grade : Manual

Number Of Flower : Circular Cutters

Country of Origin : India

Brand Name : STIPL

A simple and sturdy refiner with one fixed and one rotating disc refiner is intended for wet grinding and deliberating chips or experimental pulp making in lab or can be used as a small commercial production tools for pulping process It is utilized for developing pulping processes and strength development studies on raw steamed or semi chemically cooked chips, fully cooked pulp, cooked straw, waste paper and many other materials. The disc refiner mounted on a study metal frame and fitted with stainless steel disc, one immovable, the other rotating by means of a rotating wheel. The refiner disc are attached with six Allen screw and easily replaceable.

Material : Stainless Steel

Power : 6-9kw

Country of Origin : 440V

Country of Origin : India
