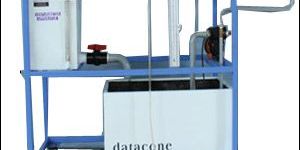

  Calibration of Venturimeter(Closed Circuit System)    Venturimeter 1” size of 13 mm throat diameter with 2 G.M. valves  M.S. reservoir with gauge glass & scale fitting, drain valve of½” size & a bend.  M.S. collecting as well as measuring tank with bypass arrangement & drain valve of 1” size. A gauge glass & scale fitting are fitted on measuring tank for discharge measurement.  ½ m height double column differential manometer. (without Mercury)  ½ HP high head monoblock pump for water circulation  Strong iron stand to support the unit  Entire unit is powder coated with good colour combination  Instruction manual 1 copy

Calibration of orificemeter, Venturimeter & Rotameter Test Rigs(Closed circuit system)      Venturimeter 1” size having 13 mm throat diameter with 2 G.M. valves  Orificemeter suitable for 1” size pipe line & d/D ratio is 0.6 with 2 G.M. valves  High precision properly calibrated rotameter suitable for 1” size pipe line having 4.2 to 42 LPM capacity  M.S. / G.I. piping system for mounting the Venturimeter & Orificemeter Each pipe having the pressure tapings with separate cocks connected to a common middle manifold which is connected to the manometer & G.M. gate valve  M.S. reservoir with gauge glass & scale fitting, drain valve of ½ ” size & a bend  M.S. collecting as well as measuring tank with bypass arrangement & drain valve of 1” size. A gauge glass & scale fitting are fitted on measuring tank for discharge measurement  1 m height double column differential manometer (without Mercury)  1 HP high head monoblock pump for water circulation  Strong iron stand to support the unit  Entire unit is powder coated with good colour combination  Instruction manual 1 copy

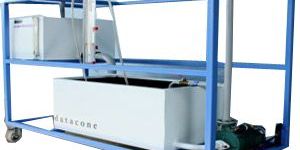

 Precision Prandle Pitot Tube made of Copper, nickel plated suitable for 1“ size pipe line to measure the total pressure head & velocity head & static head  M.S. reservoir  M.S. collecting as well as measuring tank with bypass arrangement & drain valve of 1” size. A gauge glass & scale fitting are fitted on measuring tank for discharge measurement  0.5 m height double column differential manometer (without Mercury)  ½ HP high head monoblock pump for water circulation  Strong iron stand to support the unit  Entire unit is powder coated with good colour combination  Instruction manual 1 copy

Pipe Friction Apparatus (Darcy’s Low Apparatus)(Closed circuit System)    Piping circuit with 3 M.S. / G.I. pipes lines of sizes 25 mm, 15 mm. & 9 mm (¼ “). dia. with G.M. cocks tapings, at 1 m distances. Each pipe having the pressure tapings with separate cocks connected to a common middle manifold which is connected to the manometer & G.M. gate valve.  M.S. reservoir with gauge glass & scale fitting, drain valve of ½ ” size & a bend.  M.S. collecting as well as measuring tank with bypass arrangement & drain valve of 1” size. A gauge glass & scale fitting are fitted on measuring tank for discharge measurement.  1 m height double column differential manometer. (without Mercury)  1 “ HP high head monoblock pump for water circulation  Strong iron stand to support the unit  Entire unit is powder coated with good colour combination  Instruction manual 1 copy

Calibration of Orificemeter (Closed circuit system)      Orificemeter suitable for 1” size pipe line & d/D ratio is 0.6 with 2 G.M. valves  M.S. reservoir with gauge glass & scale fitting, drain valve of½” size & a bend  M.S. collecting as well as measuring tank with bypass arrangement & drain valve of 1” size. A gauge glass & scale fitting are fitted on measuring tank for discharge measurement  1/2m height double column differential manometer (without Mercury)  ½ HP high head monoblock pump for water circulation  Strong iron stand to support the unit  Entire unit is powder coated with good colour combination  Instruction manual 1 copy

 Semi circular sectioned hollow ship model, arrangements for loading as cargo & war ship are provided Fine arrangement for accurate angle measurement Extra weight for the tilting couple to determine the metacentric height M.S. collecting tank with a drain plug for floating model ship Entire unit is powder coated with good colour combination Instruction manual 1 copy

 M.S. Sheet metal Manometer are mounted on the strong M.S. stand (without mercury) Differential Manometer double column type 0.3m height 0.5 height 1.0m height  Inclined Manometer 0.5 height 1.0m height

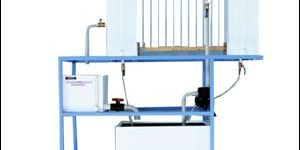

 Supply & receiving chambers with gauge glass & scale fittings for the measurement of total potential head, & interlinking duct made of thick transparent perspex sheet smooth variable cross section, qualitytransparent piezometer tubes to measure the pressure head along the duct, & a flow control valve.  M.S. reservoir with gauge glass & scale fitting, drain valve of ½ ” size & a bend.  M.S. collecting as well as measuring tank of size 94.5 Ltr. height with bypass arrangement & drain valve of 1” size. A gauge glass & scale fitting are fitted on measuring tank for discharge measurement.  ½ HP high head monoblock pump for water circulation.  Strong iron stand to support the unit.  Entire unit is powder coated with good colour combination.  Instruction manual 1 copy.

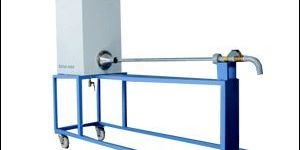

Reynold’s Apparatus      M.S tank with drain cock and gauge fitting for measuring discharge. A small tank for supply of colored liquid, Glass tube of 30 mm diameter and 1 m. height fitted Horizontally at the bottom of supply tank with control valve for discharge regulation. Strong iron stand to support the whole unit Entire unit is powder coated with good colour combination Instruction manual 1 copy

Calibration Test Rigs for Measuring Discharge of Water Through Venturimeter & orificemeters(Closed circuit system)    Venturimeter suitable for following different sizes pipe lines with 2 G.M. valves.i. 50 mm. inlet dia.ii. 40 mm. inlet dia.ii. 25 mm. inlet dia.  Orificemeter suitable for different sizes of pipe lines & d/D ratio is 0.6 with 2 G.M. valves.i. 50 mm. inlet dia.ii. 40 mm. inlet dia.iii. 25 mm. inlet dia.  M.S./G.I. piping system for mounting the Venturimeters & Orificemeters. Each pipe having the respective Venturimeters, & Orificemeters, the pressure tapings with separate cocks connected to a common middle manifold which is connected to the manometer & G.M. gate valve  M.S. reservoir with gauge glass & scale fitting, drain valve of ½ ” size & a bend.  M.S. collecting as well as measuring tank with bypass arrangement & drain valve of 1” size. A gauge glass & scale fitting are fitted on measuring tank for discharge measurement.  1 m height double column differential manometer (without Mercury)  1 HP high head monoblock pump for water circulation  Strong iron stand to support the unit  Entire unit is powder coated with good colour combination  Instruction manual 1 copy

FLOW THROUGH NOZZLES(Closed circuit System)    Nozzlemeter suitable for 1” size pipe line & d/D ratio is 0.6 with 2 G.M. valves  M.S. reservoir with gauge glass & scale fitting, drain valve of ½ ” size & a bend  M.S. collecting as well as measuring tank with bypass arrangement & drain valve of 1” size. A gauge glass & scale fitting are fitted onmeasuring tank for discharge measurement  1 m height double column differential manometer. (without Mercury)  1 HP high head monoblock pump for water circulation  Strong iron stand to support the unit  Entire unit is powder coated with good colour combination  Instruction manual 1 copy

Power Transmission Through Nozzles(Closed circuit System)    Nozzlemeter suitable for 40 size pipe line & d/D ratio is 0.6 with 2 G.M. valves  M.S. reservoir with gauge glass & scale fitting, drain valve of ½ ” size & a bend  M.S. collecting as well as measuring tank with bypass arrangement & drain valve of 1” size. A gauge glass & scale fitting are fitted on measuring tank for discharge measurement  1 m height double column differential manometer (without Mercury)  2 HP high head monoblock pump for water circulation  Strong iron stand to support the unit  Entire unit is powder coated with good colour combination  Instruction manual 1 copy

 Pipes in Parallel of 15 mm dia. x 1 m length x 3 Nos with inlet & outlet header  Each pipe having the pressure tapings with separate cocks connected to a common middle manifold which is connected to the manometer & G.M. gate valve  M.S. reservoir with gauge glass & scale fitting, drain valve of ½ ” size & a bend. M.S. collecting as well as measuring tank with bypass arrangement & drain valve of 1” size. A gauge glass & scale fitting are fitted on measuring tank for discharge measurement. A swiveling hopper is provided to direct the discharge of water to the measuring tank or reservoir, as desired by the Operator.  0.5 m height double column differential manometer. (without Mercury)  1/2 “ HP high head monoblock pump for water circulation  Strong iron stand to support the unit  Entire unit is powder coated with good colour combination  Instruction manual 1 copy

Hammer Blow / Water Hammer Test Rig(Open Circuit System)    Water supply tank with diffuser, over flow arrangement, drain cock, gauge glass & scale fitting. Supply line of 50 mm dia. & 6 m. length with coupling at both ends to connect the supply tank to the bottom valve & vertical pipe line, with control  Pitot tube & differential manometer (Without Mercury) for measurement of velocity head  Rising pipeline with transparent cylinder at the top  Strong iron stand to support the unit  Entire unit is powder coated with good colour combination  Instruction manual 1 copy OPTIONAL :i. 2 HP high head centrifugal pump (Monoblock)

Flow Through Helical Coils    A copper coil of ½ “ diameter & 10 number of helical turns  M.S. reservoir with gauge glass & scale fitting, drain valve of ½ ” size & a bend.  M.S. collecting as well as measuring tank with bypass arrangement & drain valve of 1” size. A gauge glass & scale fitting are fitted on measuring tank for discharge measurement.  1 m height double column differential manometer. (without Mercury)  ½ HP high head monoblock pump for water circulation  Strong iron stand to support the unit  Entire unit is powder coated with good colour combination  Instruction manual 1 copy

Pizometers for measurement of static pressure in pipe lines. Scale fitting, with G.M. cock 30 cm length 45 cm length 60 cm length
