Hindustan Nylons Miraj, Sangli, Maharashtra

Hindustan Nylons manufactures PTFE Wear Strips / Bands. PTFE Wear Strips / Bands are manufactured in Virgin PTFE, Chemically Modified PTFE, Carbon Filled PTFE, Bronze Filled PTFE & other filled grades of PTFE. Standard Sizes : 5.8, 9.5, 14.8, 19.8 & 24.8 mm Widths, 2.5 mm Thk in 25 Metres Length. PTFE Wear Strips / Bands can be manufactured as per Customer specific sizes subject to minimum order quantity. Non-standard Sizes: upto 50 mm Width, upto 5 mm Thk & 25 Metres Length.

Material : Virgin PTFE, Chemically Modified PTFE, Carbon Filled PTFE

Application : Wear Strips / Bands

Hindustan Nylons manufactures PTFE Skived Sheet in variety of standard sizes. Thickness : Up to 3mm. Width: Up to 1200mm. PTFE Skived Sheets are available in Standard grades such as Virgin Conventional PTFE & Virgin Chemically Modified PTFE. End Use: Gasketing, Sealing & support Pads in Chemical, Pharmaceutical plants.

Material : Virgin Conventional PTFE, Virgin Chemically Modified PTFE

Number Of Flower : Skived Sheet

Thickness : Up To 3mm

Width : Up To 1200mm

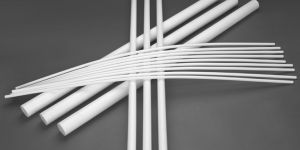

Hindustan Nylons manufactures Ram Extruded PTFE Rods in variety of standard sizes. Diameter: 5mm - 100mm. Length: 900mm / 1000mm / 2000mm. PTFE Rods - Ram Extruded - are available in Standard grades in Virgin Conventional PTFE & Virgin Chemically Modified PTFE. End Use: As insulation parts in Electrical & Electronic applications.

Material : Virgin Conventional PTFE, Virgin Chemically Modified PTFE

Number Of Flower : Rod

Diameter : 5mm - 100mm

Length : 900mm / 1000mm / 2000mm

Hindustan Nylons manufactures PTFE Skived Sheet in variety of standard sizes. Diameter: Up to 100mm. Length: Up to 3300mm. PTFE Pipe - Ram Extruded - are available in Standard grades such as Virgin Conventional PTFE & Virgin Chemically Modified PTFE. End Use: PTFE Pipe - Ram Extruded - are available in Standard grades such as Virgin Conventional PTFE & Virgin Chemically Modified PTFE.

Number Of Flower : Ptfe Pipe

Material : Virgin Conventional PTFE, Virgin Chemically Modified PTFE

Length : Up To 3300mm

Hindustan Nylons manufactures Paste Extruded PTFE Tubings - in variety of standard sizes. Wall Thickness: 0.8, 1, 1.5, From 1.6 mm ID, up to 25 mm ID. End Use: For transporting aggressive chemicals, Petroleum products, Adhesives, Pharmaceuticals, Medical Instruments.

Material : PTFE

Number Of Flower : Tubing

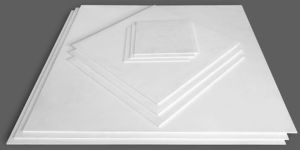

Hindustan Nylons manufactures Molded PTFE Sheet in variety of standard sizes. Dimension: Up to 1200mm X 1200mm. Thickness: Up to 100mm. PTFE Sheet - Molded - are manufactured in Virgin & Filled Grades of PTFE. End Use: Gasketing, Sealing & support Pads in Chemical, Pharmaceutical plants. Filled Grades:Standard Filled Compositions: 15 / 25% Glass Filled PTFE. 25 / 35% Carbon Filled PTFE. 15% Graphite Filled PTFE. 40 / 60% Bronze Filled PTFE. 55% Bronze + 5% MoS2 Filled PTFE. 15% Glass + 5% MoS2 Filled PTFE. PTFE Components can be available in Non standard - customer specific composition, subject to minimum order quantity. PTFE Component can be available with Sodium Itching / Chemical Treatment, subject to minimum order quantity.

Number Of Flower : Molded PTFE Sheet

Material : Virgin & Filled Grades Of PTFE

Thickness : Up To 100mm

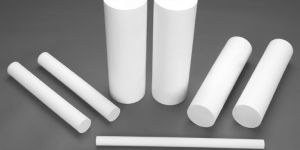

Hindustan Nylons manufactures Molded PTFE Rods in variety of standard sizes. Diameter : 25mm - 500mm. Length: 300mm. PTFE Rods - Molded are manufactured in Virgin & Filled Grades of PTFE. 15 / 25% Glass Filled PTFE. 25 / 35% Carbon Filled PTFE. 15% Graphite Filled PTFE. 40 / 60% Bronze Filled PTFE. 55% Bronze + 5% MoS2 Filled PTFE. 15% Glass + 5% MoS2 Filled PTFE. PTFE Components can be available in Non standard - customer specific composition, subject to minimum order quantity. PTFE Component can be available with Sodium Itching / Chemical Treatment, subject to minimum order quantity.

Number Of Flower : Molded Rods

Material : PTFE (Polytetrafluoroethylene)

Length : 300mm

Hindustan Nylons manufactures Molded PTFE Bush in variety of standard sizes. Outer Diameter: Up to 500mm. Length: Up to 1000mm. PTFE Bush - Molded are manufactured in Virgin & Filled Grades of PTFE. End Use: For making BV, BFV, PGV components for chemical & pharmaceutical applications. Filled Grades:Standard Filled Compositions: 15 / 25% Glass Filled PTFE. 25 / 35% Carbon Filled PTFE. 15% Graphite Filled PTFE. 40 / 60% Bronze Filled PTFE. 55% Bronze + 5% MoS2 Filled PTFE. 15% Glass + 5% MoS2 Filled PTFE. PTFE Components can be available in Non standard - customer specific composition, subject to minimum order quantity. PTFE Component can be available with Sodium Itching / Chemical Treatment, subject to minimum order quantity.

Material : Virgin & Filled Grades Of PTFE

Outer Diameter : Up To 500mm

Length : Up To 1000mm

Number Of Flower : Gaskets

Material : PTFE (Polytetrafluoroethylene)

Packaging Type : Usually Sold In Packs Or Rolls

Usage : Commonly Used In Sealing Applications Due To PTFE\'s Chemical Resistance And Low Friction Properties

Hindustan Nylons manufactures PTFE Bridge Bearing Pads as per Indian Standard: Code IRC-83 with one side dimpled for lubricant holding & other side - Sodium Itched - for Gluing. Size: upto 1000mm Square or Circular. Thickness: 3mm ~ 6mm. PTFE Bridge Bearing Pads can be manufactured as per Customer specific sizes subject to minimum order quantity.

Material : PTFE (Polytetrafluoroethylene)

Size : Up To 1000mm Square Or Circular

Thickness : 3mm - 6mm

Properties: Good chemical resistance, inert to most media Good Dimensional Stability Soft & Resilient High Density Self Lubrication / Low coefficient of friction Suitable to food contact application High Temperature Resistance Excellent volume stability Suitable to Medical / Pharmaceutical Applications Low Permeability Service Conditions: Temp (°C): -200~260 Pressure (kg/cm²): 50P, 150R, 250V PH Range: 0-14 Speed (M/s): 5P, 1R Not Recommended For: Fluorine, Fluorine complexes & Alkali Metals Service Medium: Drinking Water Liquor & Alcohol Juice Pharmaceauticals Food Stuff Medical Forms: Square section, Ring & Rope form Sizes Available: 3~25mm Packing Size: 1~10 kg depending upon size P=Pump, R=Rec Service Medium: Drinking Water Liquor & Alcohol Juice Pharmaceauticals Food Stuff Medical Forms: Square section, Ring & Rope form Sizes Available: 3~25mm Packing Size: 1~10 kg depending upon size P=Pump, R=Reciprocating, V=Valves

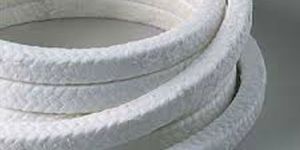

Style No: HN-222 Ideal For: Low cost, Universal packing for Water, Gas, Mild Chemicals Properties: Good chemical resistance, inert to most media Good Dimensional Stability Soft & Resilient Self Lubrication / Low coefficient of friction High Temperature Resistance Service Conditions: Temp (°C): -200~260 Pressure (kg/cm²): 20P, 100R, 250V PH Range: 0-14 Speed (M/s): 10P, 1R

Number Of Flower : Braided Packing

Material : PTFE

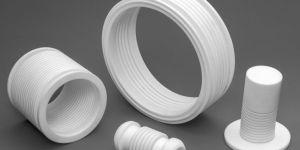

Hindustan Nylons manufactures PTFE Bellows / Expansion Joints from full vacuum up to high pressure (10 kg/cm²) application with accessories such as internal sleeve, external ring, connection Rods, Connection Flanges etc. Diameter: 25mm ID ~ 600mm ID. Length: upto 300mm. PTFE Bellows / Expansion Joints can be manufactured as per Customer specific sizes subject to minimum order quantity.

Number Of Flower : PTFE Bellows / Expansion Joints

Material : PTFE

Length : Up To 300mm

Properties: Good chemical resistance, inert to most media Soft & Resilient Self Lubrication/Low coefficient of friction High Temperature Resistance Service Conditions: Temp (°C): -240 to +260 Pressure (kg/cm²): 200 PH Range: 0~14 Not Recommended For: Fluorine complexes & Alkali Metals Service Medium: Non Drinking Water Chilled Water Warm Water Hot Water Mild Acids & Alkalies Paints & Dyes

Material : Expanded PTFE

PTFE & Filled PTFE Moulded Rods basically used in packing material..
