ApplicationIndustrial Sliding Gate For Controlling Flow
ColorGrey
MaterialAluminium
TypeSlide Gate
Packaging TypeBox
Size AvailableVarious Size Available
DurabilityDurable For Long-term Use
MaintenanceLow Maintenance Required
ISIS:5620, IS:4633 AWWA C:561, C:562, C:563

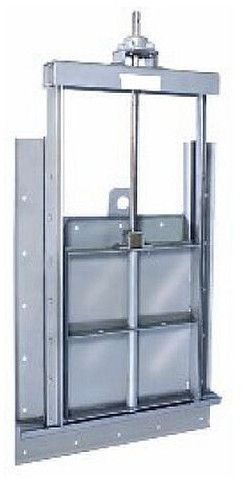

IntroductionThese slide gates are single faced, consisting of fabricated open frame and slide. These are light weight gates embedded on wall or in channel useful in low pressure reservoir or tank hydroelectric water tank.
Optional featuresThese gates are suitable for seating and non seating head. The gate leaf or operating member is rigid structure confirming suitable ribs in cross direction. The sluice gate seals are provided with rubber or metal led depending on the working pressure. Provision of adjustable wedges is used to reduce seal wear, while operation of slide gate couplings and stem guide are provided as per requirement according to operating height. The slide gates can be operated manually by hand-wheel with and without gears and mechanically by means pneumatic and electric actuators for operational ease depending on operating conditions and frequency. These slide gates can be provided with flush bottom wall mounted invert bottom arrangement. This gate can be self content with direct lifting arrangement fixed on gate frame.
Motor assembly, 2nos of remote controlled sensors, base plate, limit switch, on of power manual switch, photocell for obstacle detection; gear rack etc.
