ApplicationsOutdoor Application in Operation, Control & Protection of distribution network with or without PLC/BMS connectivity
System3 Phase, 3 or 4 wire, 50Hz
Rated CurrentUpto 6300 Amps
Operational Voltage110/230v 415v AC
Rated Insulation1000v
Rated Service Voltage690v
Ambient Temperature45 Deg C
Short Time Current50KA for 1Sec, 105KA peak
Degree of ProtectionIP55
Form of SeprationUpto 3B/4B
Type Tested forShort Time Current withstand Temperature Rise Degree of Protection
Bus Bar SystemInterleaved above 1600A
Bus BarAluminium or Copper
Ref. StandardIEC61439-12009, IS:8623
Feeder ConfigurationFixed

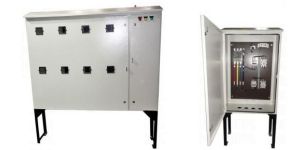

Feeder pillar is an effective electrical enclosure to provide electrical services for low voltage electrical distribution applications. It is designed as compact and robust for outdoor/rugged use with appropriate class of protection form dust/ solids and water/rain. SCPPL offer Feeder pillars that are mainly used for housing or installing various equipments or street lighting units. Low-voltage feeder pillars form a basic part of most public and many private distribution networks. Feeder pillars are connected to the distribution board.
