Adoni Tech Satara, Maharashtra

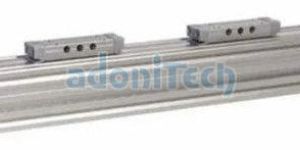

Product Details:\\nSpecial cylinder with 2 yokes arranged in series for supporting longer parts.\\nDepending on the requirement, ZT can be used in the ZS/ZK, ZF/ZFK or ZSS/ZKS versions.\\nThe installation distance of the 2 yokes in series can be selected independently of the stroke as per the application requirements (A1).\\nDepending on the installation of the ZT, it may be used as a parallel cylinder as well.\\nPart list

Material : Stainless Steel

Brand Name : Adoni Tech

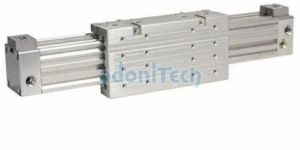

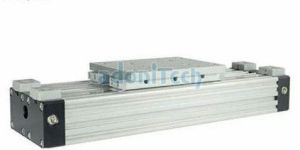

Product Details:\\nThese guiding cylinders are characterized by an additional external guide carriage. The carriage is stabilised by guiding bars in the grooves of the profile tube.\\nThanks to the stabilisation of the carriage in the profile tube grooves, the guiding cylinder has significant better performance data compared to the standard cylinder.\\nZF and ZFK are the standard models of various guiding cylinders.\\n \\nProfile Tube \\nThe profile tube system comprises the diameters 18 mm, 25 mm, 32 mm, 40 mm, 50 mm and 63 mm. The special outside geometry of the individual tubes has features such as furrows and grooves etc. that enable the attachment of various components such as guide carriages, guide rails, various accessories, switches etc. \\n \\nEnd Caps\\nThe standard end cap pair consists of an end cap with 5 connection openings and an end cap with 3 connection openings. Lanamatic normally assumes that the 3-hole end cap is located on the left end and the 5-hole end cap is located on the right end of a cylinder. This is also shown in the drawing of this catalogue. However, the cylinder can of course be installed the other way round in any given application without impairing its functionality. \\n \\nConnection Variants \\nThe special air ducting design inside the end caps and the profile tube (tube diameter 25 mm to 63 mm) enable numerous different connection variants for most of our cylinder models. The following connection variants are predominantly used: — Design with connection on one side of both end caps (standard) \\n \\nThe Article Numbers Schemes \\nScheme for cylinders consists of 3 blocks of numbers with 4 digits each. ls\\\' number block cylinder model and diameter: Digits 1 and 4 determine the cylinder model. Digits 2 and 3 determine the inner diameter of the cylinder (18 mm, 25 mm, 32 mm, 40 mm, 50 mm and 63 mm). 2nd number block — connection variant or special di-mensions and information for certain special cylinder models: In most cylinder models, the 4th digit of the number block provides information on the connection configuration of the cylinder. 0000 stands for standard connection via both end caps 0001 stands for the variant with connection on the underside of both end caps 0002 stands for the variant with connection on one side of one end cap 0004 stands for the variant with connection on the front side of both end caps In the ZTS/ZTK and ZGS/ZGK special cylinders, the 2nd number block determines the dimension Al of a model-specific distance (see detailed information on the corres-ponding cylinder models). \\nThe cylinder program has a modular design with standard cylinder models and various attachment parts. - The compact desing of the profi le tube and yoke allows the mounting of the cylinder at minimum space requirements. - An even shorter installation length can be achieved using the shorter yoke variant (approx. -40 %) with slightly lower performance characteristics. - The optimized profi le tube design guarantees low defl ec-tion and slot widening at minimum material usage. - The stroke can be freely selected up to 6,000 mm. - Longitudinal grooves on all sides of the profi le enable installation of attachment parts (guide carriage) over the entire stroke length. - T- and C-grooves enable installation of switches. - Front and side wipers of the yoke help prevent dirt accu-mulations along the slot. - The standard end caps enable various connection variants. - The pin cushioning damping can be adjusted without steps.\\n \\nNotes \\nThe provided data is for product description purposes only and is not to be construed as guaranteed properties in the legal sense.

Material : Alluminium Alloy

Brand Name : Adoni Tech

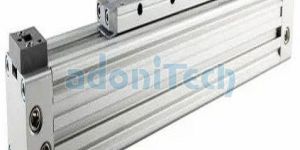

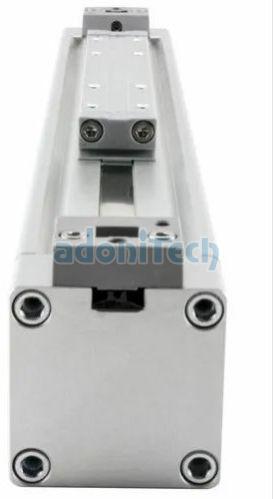

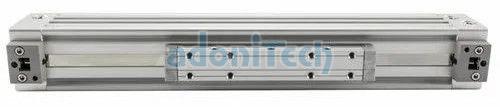

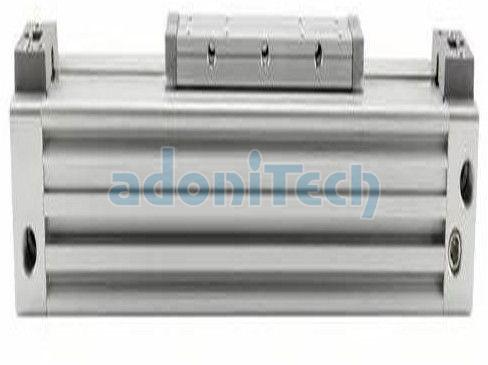

Product Details:\\n\\nZS and ZK are the basis cylinder models that almost all other cylinder models are based on.\\nThe ZK Standard cylinder short, compared to the ZS Standard cylinder, is characterized by offering up to 40 % shorter overall cylinder length at the same stroke due to its shorter yoke (depending on the stroke length).\\nThe shorter yoke of the ZK Standard cylinder short brings slightly lower performance data regarding forces and torques in comparison with the ZS Standard cylinder.\\nZS and ZK models are generally delivered with a yoke with an integrated magnet. Any additional guide systems and accessories can be installed to ZS and ZK models later on.\\n

Material : Aluminium

Material : Alluminium Alloy

Brand Name : Adoni Tech

Product Details:\\n\\nSpecial cylinder with 2 or more separate cylinder chambers in one profile tube with one yoke each. The cylinder chambers are controlled separately.\\nDepending on the requirement, ZG can be used in the ZS/ZK or ZF/ZFK version. Mixed versions are possible.\\nThe installation distance of the 2 yokes can be selected independently of the stroke as per the application requirements (A1).\\nZG can be used for various functions. Application-specific grippers enable \\n

Material : Alluminium Alloy

Brand Name : Adoni Tech

Product Details:\\n\\nThese guiding cylinders are characterized by an additional external guide carriage. The carriage is stabilised by guiding bars in the grooves of the profile tube.\\nThanks to the stabilisation of the carriage in the profile tube grooves, the guiding cylinder has significant better performance data compared to the standard cylinder.\\nZF and ZFK are the standard models of various guiding cylinders.\\n\\nProfile Tube \\n\\nThe profile tube system comprises the diameters 18 mm, 25 mm, 32 mm, 40 mm, 50 mm and 63 mm. The special outside geometry of the individual tubes has features such as furrows and grooves etc. that enable the attachment of various components such as guide carriages, guide rails, various accessories, switches etc. \\n\\nEnd Caps\\n\\nThe standard end cap pair consists of an end cap with 5 connection openings and an end cap with 3 connection openings. Lanamatic normally assumes that the 3-hole end cap is located on the left end and the 5-hole end cap is located on the right end of a cylinder. This is also shown in the drawing of this catalogue. However, the cylinder can of course be installed the other way round in any given application without impairing its functionality. \\n\\nConnection Variants \\n\\nThe special air ducting design inside the end caps and the profile tube (tube diameter 25 mm to 63 mm) enable numerous different connection variants for most of our cylinder models. The following connection variants are predominantly used: — Design with connection on one side of both end caps (standard) \\n\\nThe Article Numbers Schemes \\n\\nScheme for cylinders consists of 3 blocks of numbers with 4 digits each. ls\\\' number block cylinder model and diameter: Digits 1 and 4 determine the cylinder model. Digits 2 and 3 determine the inner diameter of the cylinder (18 mm, 25 mm, 32 mm, 40 mm, 50 mm and 63 mm). 2nd number block — connection variant or special di-mensions and information for certain special cylinder models: In most cylinder models, the 4th digit of the number block provides information on the connection configuration of the cylinder. 0000 stands for standard connection via both end caps 0001 stands for the variant with connection on the underside of both end caps 0002 stands for the variant with connection on one side of one end cap 0004 stands for the variant with connection on the front side of both end caps In the ZTS/ZTK and ZGS/ZGK special cylinders, the 2nd number block determines the dimension Al of a model-specific distance (see detailed information on the corres-ponding cylinder models). \\nThe cylinder program has a modular design with standard cylinder models and various attachment parts. - The compact desing of the profi le tube and yoke allows the mounting of the cylinder at minimum space requirements. - An even shorter installation length can be achieved using the shorter yoke variant (approx. -40 %) with slightly lower performance characteristics. - The optimized profi le tube design guarantees low defl ec-tion and slot widening at minimum material usage. - The stroke can be freely selected up to 6,000 mm. - Longitudinal grooves on all sides of the profi le enable installation of attachment parts (guide carriage) over the entire stroke length. - T- and C-grooves enable installation of switches. - Front and side wipers of the yoke help prevent dirt accu-mulations along the slot. - The standard end caps enable various connection variants. - The pin cushioning damping can be adjusted without steps.\\n\\nNotes \\n\\nThe provided data is for product description purposes only and is not to be construed as guaranteed properties in the legal sense.\\n

Brand Name : Adoni Tech

Material : Alluminium Alloy

Product Details:\\nThese guiding cylinders are characterized by an additional external guide carriage. The carriage is stabilised by guiding bars in the grooves of the profile tube.\\nThanks to the stabilisation of the carriage in the profile tube grooves, the guiding cylinder has significant better performance data compared to the standard cylinder.\\nZF and ZFK are the standard models of various guiding cylinders.\\n \\nProfile Tube\\nThe profile tube system comprises the diameters 18 mm, 25 mm, 32 mm, 40 mm, 50 mm and 63 mm. The special outside geometry of the individual tubes has features such as furrows and grooves etc. that enable the attachment of various components such as guide carriages, guide rails, various accessories, switches etc. \\n \\nEnd Caps\\nThe standard end cap pair consists of an end cap with 5 connection openings and an end cap with 3 connection openings. Lanamatic normally assumes that the 3-hole end cap is located on the left end and the 5-hole end cap is located on the right end of a cylinder. This is also shown in the drawing of this catalogue. However, the cylinder can of course be installed the other way round in any given application without impairing its functionality. \\n \\nConnection Variants \\nThe special air ducting design inside the end caps and the profile tube (tube diameter 25 mm to 63 mm) enable numerous different connection variants for most of our cylinder models. The following connection variants are predominantly used: — Design with connection on one side of both end caps (standard) \\n \\nThe Article Numbers Schemes \\nScheme for cylinders consists of 3 blocks of numbers with 4 digits each. ls\\\' number block cylinder model and diameter: Digits 1 and 4 determine the cylinder model. Digits 2 and 3 determine the inner diameter of the cylinder (18 mm, 25 mm, 32 mm, 40 mm, 50 mm and 63 mm). 2nd number block — connection variant or special di-mensions and information for certain special cylinder models: In most cylinder models, the 4th digit of the number block provides information on the connection configuration of the cylinder. 0000 stands for standard connection via both end caps 0001 stands for the variant with connection on the underside of both end caps 0002 stands for the variant with connection on one side of one end cap 0004 stands for the variant with connection on the front side of both end caps In the ZTS/ZTK and ZGS/ZGK special cylinders, the 2nd number block determines the dimension Al of a model-specific distance (see detailed information on the corres-ponding cylinder models). \\nThe cylinder program has a modular design with standard cylinder models and various attachment parts. - The compact desing of the profi le tube and yoke allows the mounting of the cylinder at minimum space requirements. - An even shorter installation length can be achieved using the shorter yoke variant (approx. -40 %) with slightly lower performance characteristics. - The optimized profi le tube design guarantees low defl ec-tion and slot widening at minimum material usage. - The stroke can be freely selected up to 6,000 mm. - Longitudinal grooves on all sides of the profi le enable installation of attachment parts (guide carriage) over the entire stroke length. - T- and C-grooves enable installation of switches. - Front and side wipers of the yoke help prevent dirt accu-mulations along the slot. - The standard end caps enable various connection variants. - The pin cushioning damping can be adjusted without steps.\\n \\nNotes \\nThe provided data is for product description purposes only and is not to be construed as guaranteed properties in the legal sense.

Material : Stainless Steel

Brand Name : Adoni Tech

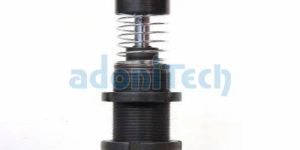

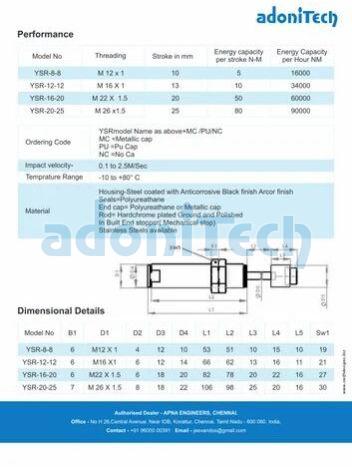

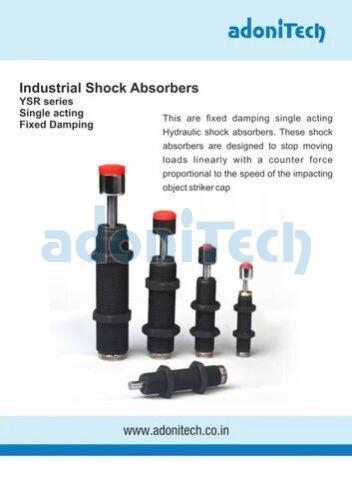

 \\n 🛠️ Fixed Hydraulic Shock Absorber – Model YSRA-32-60-C\\nThe YSR-32-60-C is a compact, high-efficiency fixed hydraulic shock absorber designed for industrial automation, rotary actuators, and linear motion systems. Manufactured by Festo, it features a galvanized steel body, high-alloy chrome-plated piston rod, and self-adjusting damping for consistent energy absorption across a wide range of impact conditions.\\n⚙️ Technical Specifications\\n\\n\\nParameterValue\\n\\n\\n\\nStroke Length\\n60 mm\\n\\n\\nMax. Energy per Cycle\\n380 J\\n\\n\\nMax. Energy per Hour\\n220,000 J\\n\\n\\nMax. Stop Force\\n6,000 N\\n\\n\\nImpact Velocity\\nUp to 3.0 m/s\\n\\n\\nReset Time\\n0.5 s (room temp), 1 s (low temp)\\n\\n\\nReset Force\\n20 N\\n\\n\\nMin. Insertion Force\\n160 N\\n\\n\\nLoad Range\\nUp to 400 kg\\n\\n\\nBody Material\\nGalvanized steel\\n\\n\\nRod Material\\nHardened high-alloy steel, chrome plated\\n\\n\\nMounting\\nLock nut\\n\\n\\nOperating Temperature\\n–10°C to +80°C\\n\\n\\nWeight\\n~1220 g\\n\\n\\nCorrosion Resistance Class\\nCRC 2 (moderate stress)\\n\\n\\nCompliance\\nRoHS, VDMA24364-B2-L (PWIS conformity)\\n\\n\\n\\n✅ Features\\n\\nFixed damping with self-adjusting internal throttle\\nCompact design for space-constrained installations\\nRapid reset time for high-cycle operations\\nHigh corrosion resistance for industrial environments\\nNo external adjustment required – ideal for standardized setups\\nRoHS compliant and suitable for cleanroom applications\\n\\n🏭 Applications\\n\\nPneumatic actuators\\nRotary indexing tables\\nLinear slides and pick-and-place systems\\nPackaging and printing machines\\nCompact automation modules\\n\\n

Material : Metal, Mild Steel

Shape : Round

Condition : New

Feature : FIXED HARDNESS

SS wire MS Lugs Available Ex stock

Application : Anti Vibration Mountings For Machines

Brand : Adonii Tech

Diameter : 30 Mm

Material : Stainless Steel

Shape : Round

Brand : Adonii Tech

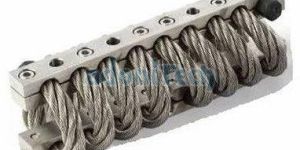

SS wire Steel Lugs Effecient Vibration Isolation

Number Of Flower : Machine Mounts

Material : Stainless Steel

Diameter : 45 Mm

Application : Saftey In Tranport And More Application

Brand : ADONI TECH

Brand : ADONI TECH

 \\n\\nA recent increase in demand for automation in drilling has evolved in to new products. The actuation being mostly pneumatic the feed rate is controlled by Hydraulic feed rate controllers. The required thrust is generated by controlling the size of a orifice by adjusting a knob in about 300 degrees of rotation from minimum resistance to the maximum resistance offered. The adjustment is infinitely variable over the complete damping range and a fine tuning can be done with the help of graduations provided on the speed controller.\\nDrilling equipment with pneumatic feeds, screw feeds and are the potential applications of the Hydraulic speed controllers.\\nGenerally the feed rates achieved are 12 - to 40 meters /minute .In special cases 0.015 to15 meters/min can be achieved by some special provisions and changes in the resistance mechanism. A return stroke is achieved by the virtue of a inbuilt spring and opening of a non return valve. AdoniTech also offers reconditioning services to imported speed controllers. For food or glass industries these are available in stainless steels. If required threading is also provided on the outer body to suit positioning in threaded holes or fixtures. These Hydro speed regulators are available ex-stock at an affordable price.\\n

Country of Origin : Made in India

Material : Stainless Steel

Brand Name : Adoni Tech

A recent increase in demand for automation in drilling has evolved in to new products. The actuation being mostly pneumatic the feed rate is controlled by Hydraulic feed rate controllers. The required thrust is generated by controlling the size of a orifice by adjusting a knob in about 300 degrees of rotation from minimum resistance to the maximum resistance offered. The adjustment is infinitely variable over the complete damping range and a fine tuning can be done with the help of graduations provided on the speed controller.Drilling equipment with pneumatic feeds, screw feeds and are the potential applications of the Hydraulic speed controllers.Generally the feed rates achieved are 12 - to 40 meters /minute .In special cases 0.015 to15 meters/min can be achieved by some special provisions and changes in the resistance mechanism. A return stroke is achieved by the virtue of a inbuilt spring and opening of a non return valve. AdoniTech also offers reconditioning services to imported speed controllers. For food or glass industries these are available in stainless steels. If required threading is also provided on the outer body to suit positioning in threaded holes or fixtures. These Hydro speed regulators are available ex-stock at an affordable price.

Country of Origin : Made in India

Brand Name : Adoni Tech

Availability : 495 G

Application : Pneumatic Auto Drill Feeding

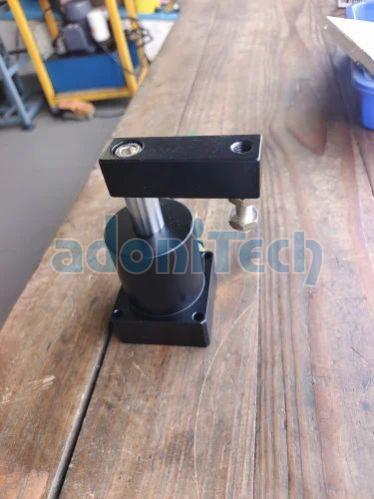

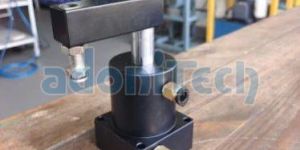

Air Operated\\nFast clamping\\nCalmping for ce 630 N at 5 Bat and 1008 N at 10 Bar

Country of Origin : India

Number Of Flower : Pneumatic Swing Clamp

Feature : Durable, Easy To Fit

Power Source : Pneumatic

Material : Aluminium

Country of Origin : India

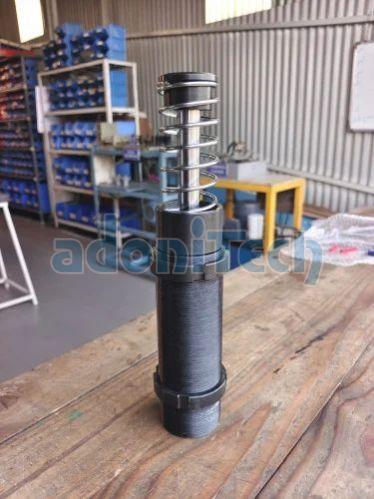

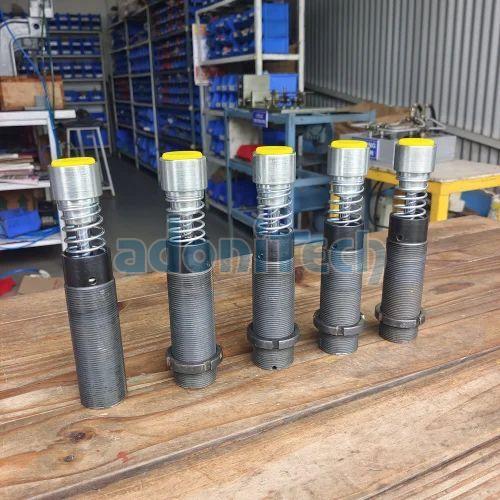

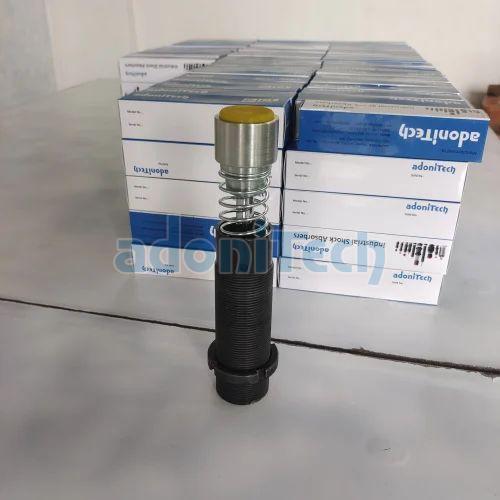

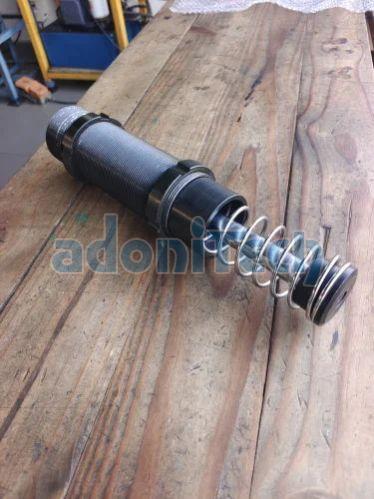

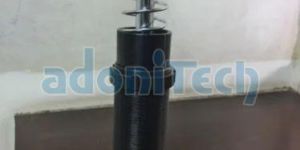

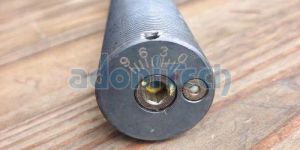

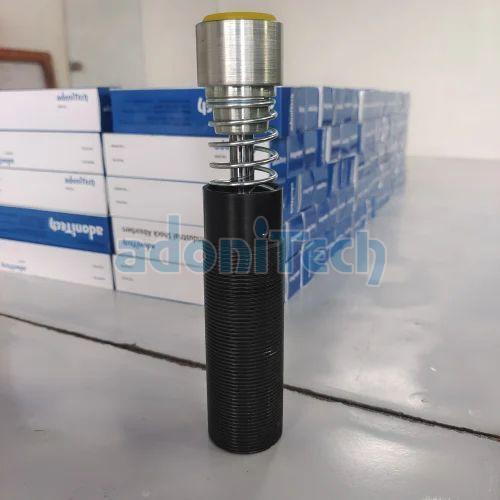

Number Of Flower : Industrial Shock Absorbers

Application : Industrial Use

Condition : New

Shape : Round

Material : Alloy Steel

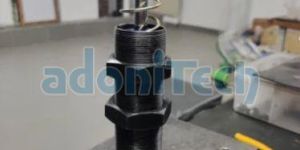

Threading M 45 x 1.5\\nStroke 50 mm\\n

Brand Name : Adoni Tech

Application : Industrial

Material : Mild Steel

Application : Industrial

Material : Mild Steel

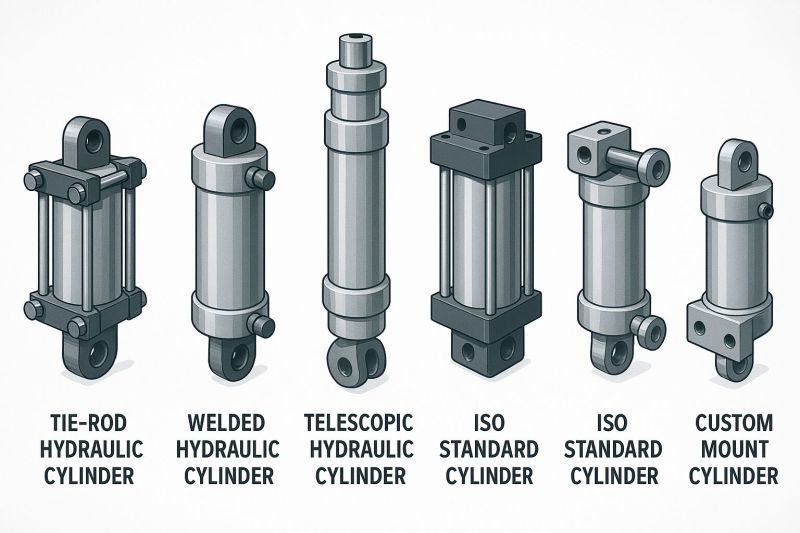

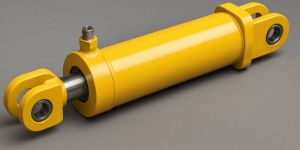

 🔩 Hydraulic Cylinders – Custom-Built for Precision, Power & VersatilityAdonitech’s hydraulic cylinders are engineered to deliver high force, smooth motion, and long service life across demanding environments—from industrial automation to defense-grade actuators.🧰 Mounting Options – Tailored to Your ApplicationWe offer a wide range of mounting configurations to suit fixed and dynamic installations:🔧 Mount Type📌 Description & Use CaseClevis Rod EndAllows pivoting motion; ideal for mobile or articulated systemsRod Eye / Spherical BearingEnables angular movement and self-alignment; reduces side loadingFront Flange (MF1)Compact and rigid; used in presses and robotic armsRear Flange (MF2)Fixed mounting at cylinder base; suitable for stationary applicationsSide Lug / Foot Mount (MS2, MS3, MS7)Provides stable base; common in industrial setupsTrunnion Mount (MT1, MT2, MT4)Allows pivoting around a fixed axis; used in cranes and heavy machineryTie-Rod MountModular and easy to maintain; ideal for standardized systemsSwivel Ball EndOffers full angular freedom; used in dynamic or misaligned setups💡 Need help choosing the right mount? We guide you based on load path, space constraints, and motion requirements.🔍 Technical HighlightsPressure Rating: Up to 250 bar (customizable)Stroke & Bore: Fully configurableSeal Kits: High-performance, leak-proofSurface Finish: Optional nitriding, chrome plating, or epoxy coatingTesting: 100% pressure and leakage tested🛠 ApplicationsAerospace ground supportDefense-grade actuatorsHydraulic presses and jigsMaterial handling systemsRail and automotive systems📞 Why Adonitech?✅ ISO-compliant manufacturing✅ Custom engineering support✅ Fast turnaround and responsive service✅ Integration with ERP and dispatch automation📩 Ready to upgrade your motion control? Contact us today for a quote or technical consultation.

Brand Name : ADONI TECH

Material : Carbon Steel

Finishing : Polished

Shape : Round

Condition : New

Rubber Buffer

Material : Mild Steel

Feature : Easy To Fit, Good Quality, High Grip

Material : Mild Steel

Application : Industrial

ifference sizes\\nSpring Actuated

Country of Origin : India

Material : MS

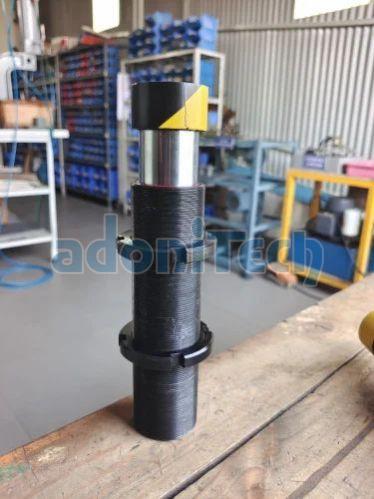

HYDRAULIC ACTION\\nENERGY CAPACITY 3000 NM\\nSTROKE 50\\nTHREADING FOR ADJUSTING ONOUTSIDE M 50 X 1.5\\n

Country of Origin : India

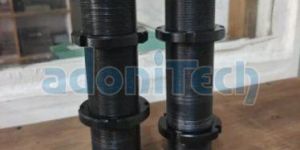

Number Of Flower : Elevator Hydraulic Buffer

Material : Mild Steel

Color : Black

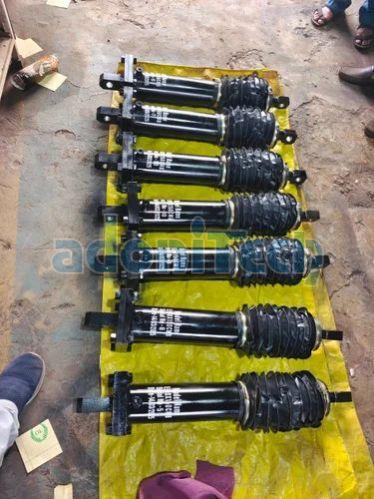

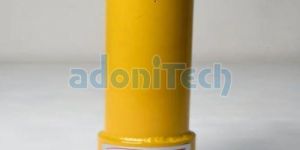

Hydtaulic Buffer with NItrogen Return\\nStroke 100 mm\\nSize 65/50\\nBellows included\\nEnergy Capacity 6900 NM

Material : MildSteel

Country of Origin : India

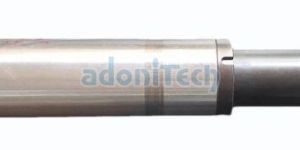

The Hydraulic Buffer EI 50 150 CMB appears to correspond to the CMB-50-150 model from Dayton Lamina\\\'s Accu-Bend Compact Bender series. This unit is designed for precision bending applications in industrial settings.\\n🔧 Key Specifications\\n\\n\\nBrand: Lamina\\n\\n\\nModel: CMB-50-150\\n\\n\\nBender Type: Accu-Bend Compact\\n\\n\\nBender Length: 150 mm (5.91 inches)\\n\\n\\nFront Saddle Width (B): 35 mm (1.38 inches)\\n\\n

Material : Stainless Steel

Country of Origin : Made in India

Dimension : Bender Length: 150 mm (5.91 inches) Front Saddle Width (B): 35 mm (1.38

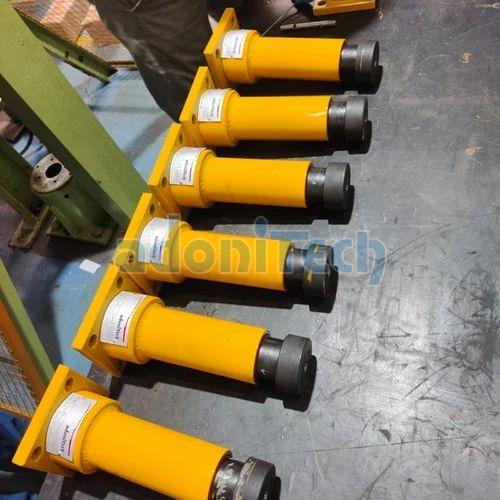

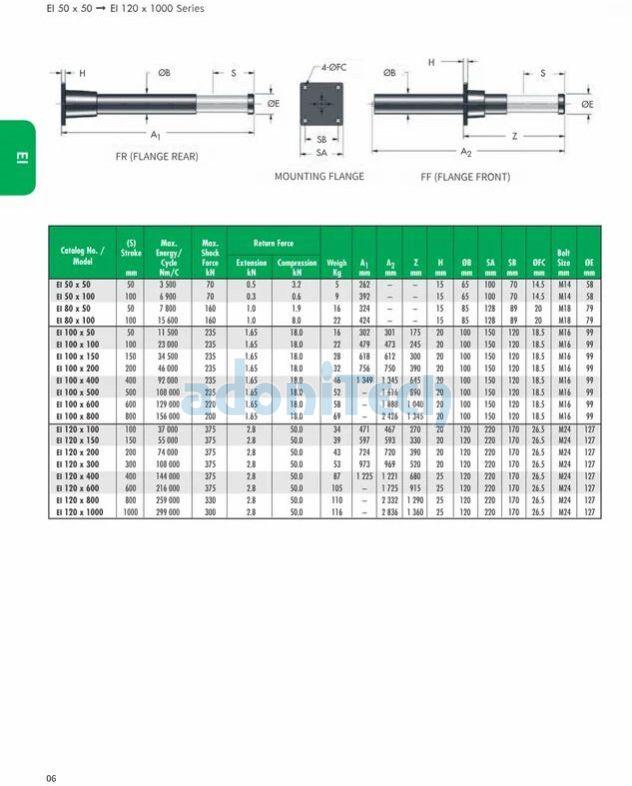

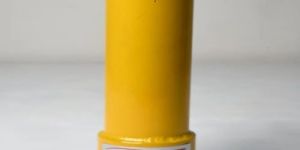

  🛠️ Hydraulic Buffer – Model EI 80 × 100 / AKHG 80-100 The EI 80 × 100 hydraulic buffer is a medium-duty energy absorption device designed for overhead cranes, transfer cars, and industrial safety systems. Featuring a Yellow epoxy-coated body, Arkor-finished hardened chrome-plated piston rod, and a PU stroker cap, it ensures long-term corrosion resistance and consistent damping performance in harsh environments. ⚙️ Technical Specifications ParameterValue Stroke Length 100 mm Max. Energy per Cycle 15.6 kJ Max. Buffer Force 160 kN Return Mechanism Nitrogen gas Filling Medium Oil + Nitrogen gas Rod Finish Hardened chrome plated with Arkor coating Body Finish Yellow epoxy paint Cap Material Polyurethane (PU) Mounting Options Front flange (FF), Rear flange (FR), or custom Weight ~22 kg Operating Temperature –10°C to +80°C (Standard), –35°C to +100°C (Optional) ✅ Features Self-adjusting damping for consistent deceleration across variable impact speeds Multi-orifice design tailored to application-specific energy profiles Arkor rod finish for enhanced corrosion resistance in coastal or chemical environments PU stroker cap for quiet operation and smooth reset Compact and rugged construction for space-constrained installations Global compliance: OSHA, AISE, CMMA, DIN, FEM standards 🏭 Applications Overhead and gantry cranes Transfer cars and rail systems Steel plant safety zones Amusement rides Defense-grade mobile platforms Port and container handling systems

Application : Overhead Cranes

Feature : Easy To Use
