Creep Drive Dealers in Patkhal, Satara

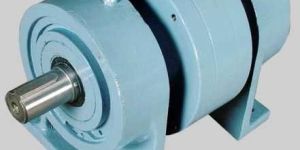

Cyclo Transmissions Ltd., a leading manufacturer of Power Transmissions Products has great pleasure to introduce Planetary Creep Drives for over-head Cranes. This range of Creep Drives has been designed to give an optimum creep speed requirement of crane manufacturers. Creep Drives work on the Planetary principle. Creep Drive consists of Planetary Speed Reducer mounted on the two bearings for achieving creep speed, by clamping the body of the drive with shoe brake or by any means which application demands. Creep Drive can be mounted on the single base frame to avoid alignment problems. Positive Creep Speed, Accurate Creep Speed with full load and light load or even with no load. Creep Drives are free input and free output type, we can supply braking system with the drive on customer’s request.   Features  Easy Installation. Totally enclosed construction. Speed reduction with Planetary drives. Gears are made with high alloy steel. Bearings are proportional,Robust. Long working life. Very high factor of safety. Drive Information Diameter Range : 150 to 400 mmReduction Ratio : 10 approx.Torque rating : 5000 NM.Power Rating : 037 kW to 37 kW

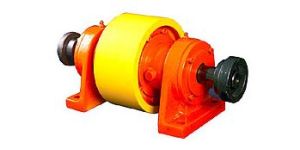

The Planetary Creep Drives that we bring forth are highly appreciated by the customers for their superb quality. The Planetary Creep Drives that we provide are fabricated from high grade components that results in their longer functional life. Additionally, we are one of the celebrated Manufacturers and Suppliers of Planetary Creep Drives. Ideal For Extra speed and power reduction in overhead cranes Attributes Thruster brake Diameter : from 100 mm to 400 mm Power : from 0.33 Kw to 15 Kw Ratio : from 3.5:1 to 30:1 Inline power transmission

We are counted among leading Hydrostatic Creep Drive Manufacturers in India. Our wide range of Creep Drive is widely recognized by leading manufacturers of Industrial Machinery, Steel Plants, packaging machinery and many more. Creep Drive is used for overhead cranes to achieve micro speed. Our Planetary Creep Drive have Torque Capacity of 50 Nm – 1000 Nm. We serve Foot Type Creep Drive with power rating 2 KW – 40 KW. The Brake Drum diameter of our product is 160 mm, 200 mm, 250 mm, and 300 mm. Their reduction ratio is 10:1 which can be modified as per requirements. These drives are used for overhead cranes to achieve micro speed Torque capacity – 5 Kgm to 100 Kgm. Brake drum dia. 160mm, 200mm, 250mm, 300mm Reduction Ratio – 10 : 1 Input – Solid ( free ) 0.5 HP to 50 HP Mounting – Foot type Torque capacity – 5 Kgm to 100 Kgm. Brake drum dia. 160mm, 200mm, 250mm, 300mm.

We offer a Easy-to-fit, Shaft Mounted Sugar Crystallizer Drive rated up to 10.0 HP & for Output speeds 0.25 to 1.5 RPM to cover standerd range of Sugar Crystallizer Drives. Sugar Crystallizer Drives are avialble at : Horizontal type Suger Crystallizer Drive 20T to 120T Capacities. Vertical type Sugar Crystallizer Drive up to 500T Capacity. Developed after an in-depth study of typical Crystallizer installations, BEACON GEAR TRANMISSIONS Crystallizer Drive employs High Efficiency Planetary gearing instead of conventionally used Worm Gearing. The overall efficiency of BEACON Sugar Crystallizer Drive is better than 90% and installed motor rating is optimally used resulting in attractive savings in power consumption.

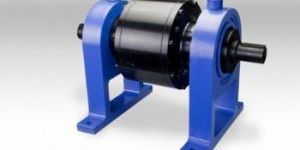

We, the GPRO drive, offer you with the finest Creep drives fabricated out of high grade raw materials. The explicit range of these creep gear drives we offer find extensive use and demand owing to their strength, durability and supreme quality in the markets today. They are manufactured keeping the needs and demands of the customers strictly. Theseplanetary creep drives are used in overhead cranes for the purpose of achieving micro speed. They usually work on the principles of planetary motion with differential drive system along with thruster brakes.   Below we shall see some of the features of the industrial creep drives:   They possess a torque capacity of the range 50 Nm to 1000 Nm. Their reduction ratio is usually 10:1. However, we can still provide you with different ratios on request. They have the power rating of usually 0.37 kW to 15 kW Their mounting is of foot type The diameters of their Brake drums are: 160mm, 200mm, 250mm, 300mm They have a good torque capacity and long service life. They are designed compactly and accurately They offer precision functioning They require an input power of usually Fractionalhp to 50 hp.
