Cyclo Transmissions Ltd. Patkhal, Satara, Maharashtra

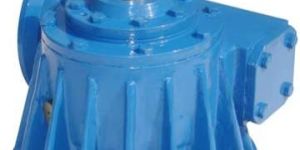

We bring forth a comprehensive range of Worm Planetary Drive that works on a simple principle of a worm and worm wheel drive combined with planetary gear mechanism. These drives offer excellent level of output torque transmission in a compact design as compared to a conventional worm drive. Moreover, the Worm Planetary Drive offered by us can be availed at the most affordable prices. Higher ratios can also be availed in the same size as of a conventional worm drive. Preferred for : Higher efficiency compared to equivalent worm driveCompact designHigh power to weight ratioQuieter operationSaving space Applications : Machine toolsMaterial handling equipmentSugar industryPackaging machineryTextile machineryPaper machineryPrinting machinerySteel industrySpecial purpose machines

We present to the clients a huge assortment of Wheel Drive that is primarily used for transmission of self propelled tyred vehicles that have motorized wheels. The whole unit is provided with a planetary type design that is used for mounting of standard wheel rims. This planetary unit can be assembled even inside the twin tyred wheels. Our range of Wheel Drive is high on demand in the market and is competitively priced. Available Ratios : 18.2524.8530.0535.1340.2549.2959.5068.00 Applications : Heavy machinery like earthmovers & cranesAgriculture & transport vehiclesMunicipal vehicle like road sweeper, garbage Collector etc.Material Handling vehicles: Fork lifter trucks & yard vehicles Technical Features : High torque transmission capacity Compact in sizeCo-axial input & outputWide reduction ratio rangeLong life & trouble free operationLarge radial & axial load capacity using amply sized taper roller bearings.

These drives consist of a planetary gear unit. The constructive solution of this unit is based on the design of planetary gears with rotating housings. Robustness, compactness, economy, and versatility are the most significant features of this product. The compactly shaped, plug-in type hydraulic motor will be directly flanged to the unit. Applications  Track Vehicles. Heavy duty tired machines. Road Roller, Compacters. Marine Capstans. Winches and Hoists Drive Information Diameter Range : 150 to 400 mmReduction Ratio : 10 approx.Torque rating : 5000 NM.Power Rating :037 kW to 37 kW   Design Features All the parts are designed and manufactured to high quality standards to perform under intended service. Output housing is made from cast steel that conforms to IS standards.High torque capacity achieved by careful selection of materials, heat treatment and geometrical design of the gears calculated in accordance with ISO Standards. All standard parts such as bearings, seals,hardware are procured directly from reputed manufacturers for genuiness and cost effectiveness.The Planetary gears of these Track Drive units are also used in the Cypla Winches, the Slew Drives, so that the complete drives are of the same construction and have common parts.High Output torques indicated are peak torques permits for short-term operation only.

We are regarded as one of the prominent manufacturers of Torque limiter for all types of machinery and equipment serving diverse applications. We offer Torque Limiter in versatile units like single or multiple positions, free wheeling and torque sensing, etc. this Torque Meter can be attached directly to the gear boxes, motors, intermediate shaft machines, etc. Features : Safe and reliableMinimizes repairs and downtimesDisengages immediately in case of overloadDisconnects input and outputElectrical signal is provided through mechanical actuationConstant disengaging torque limiterHigh and disengaging torque (+ 5 %)After removing the loadClutch automatically returns its initial state Application Areas : Packing MachinesConveyor SystemPainting LinesIndustrial FurnacesWood Working MachinesMining IndustriesFoundries and Rolling MillsAgitatorsSPMConstruction MachineryPaper Making MachineryFood IndustryPlastic IndustryTextile MachineryFilling and Cleaning Machines

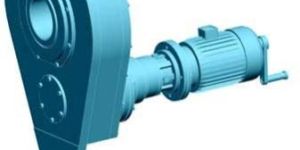

Cyclo Transmission Ltd. conducted a study in several sugar plants across India for crystalliser Drives based on speed and capacity of crystalliser, the Power consumption, size, maintenance frequency, and construction of the drives. It was observed that the power consumption of this application was two to three times the actual requirement at the crystalliser shaft. The existing drive unit was highly inefficient due to the double worm reduction arrangement. The maintenance costs of these units were also higher due to open gearing. As a solution to the above problems, Cyclo Transmissions Ltd. introduced planetary gearboxes for crystalliser in Sugar industry. Cyclo planetary gearboxes have helped in reducing the power consumption to almost one third compared to conventional double-worm reduction drives. The drives are fully enclosed to provide sealing against dust and other foreign particles, and hence longer gearbox life. All gears and bearings are splash lubricated which also facilitates heat dissipation. The gearbox has a handle for manual operation in case of power failure. CYCLO Crystalliser Keyed Series speed reducers are available in five models with a wide variety of reduction ratios and various choices of mounting options (Frame sizes). These units mount available in hollow shaft with torque arm.This drive builds with multi stages planetary (input side) and one stage spur (output side) hence offer the advantages of compact design, smaller size, required reduction ratios and higher efficiency than conventional Crystallizer drives. Planetary gears, Spur gears and shafts are of hardened alloy steel. Gears are manufactured to ensure smooth, quiet running with maximum life and efficiency. Ball bearings are used to carry adequate radial and thrust loads and support the shafts Drive Information Capacity : 10 ton to 600 tonReduction Ratio : 30 onwardsTorque rating : 95000 NM.Power Rating : 037kw to 75kw

CYCLO Crystalliser Keyed Series speed reducers are available in five models with wide variety of reduction ratios and various choices of mounting options (Frame sizes). These units are available in hollow shaft mounted with torque arm. The units are arranged with output shaft horizontal. Features : Compact designSmall sizeExcellent reduction ratiosHigh efficiencySturdy constructionLong performing lifeTrouble free operation Used in : Sugar industryFood processing industry, etc.

Cyclo Transmissions Ltd. is a professional manufacturer and exporter of slew Rings and Slewing drives, which are mainly applied in port machinery, mining machinery, welding machinery, construction vehicles, modular vehicles, single and dual axis solar tracking systems, and small wind power systems etc. There are produced in series to meet both regular and precise tracking requirements in PV, CPV and solar thermal power tracking fields. Slew ring and slewing drives can bear axial load, radial load and tilting moment. The diameter range of slew ring can be from 200 mm to 4000 mm. For slewing drive, there are nine (9) different sizes available from 3″ to 25″ with more than 60 models to meet both regular and precise tracking requirements in PV, CPV and solar thermal power tracking fields. Cyclo delivers custom-engineered solutions to various customers, according to requirement. We also manufacture and supply slewing ring with high precision for special purpose requirements. Cyclo is committed to keeping the spirit of continuous improvement and focus our strategy of strict quality control standards, quick response, prompt delivery and low price. We look forward to working with all our customer’s growing demands. Our ability to optimize the bearing design for your specific needs is unparalleled and we will assist you throughout the design, manufacturing and implementation process. Drive Information         Slewing DriveNumber of models : 9Center Distance : 3” to 25”          Slew RingsDiameter : 200 mm to 4800 mmRolling Type : Ball, Roller, Thrust.Gear Type : Gearless, Internal and External gear.

General Information These drives consist of a planetary gear unit having compact dimensions, robustness and versatility. The unit is equipped with a hydraulic fails safe wet type multi-disc brake or electromagnetic brake. The brake is released hydraulically or electrically. Input prime mover can be hydraulic, air or electric motors. Applications ExcavatorsTruck mounted concrete pumpsMobile cranesTower cranesDrilling machinesDock cranes & Deck cranesConstruction cranes & conveyorsLoading & cargo handling cranesAccess platforms Drive Information Diameter Range : 150 to 400 mmReduction Ratio : 10 approx.Torque rating : 5000 NM.Power Rating : 037 kW to 37 kW General Information These drives consist of a planetary gear unit having compact dimensions, robustness and versatility. The unit is equipped with a hydraulic fails safe wet type multi-disc brake or electromagnetic brake. The brake is released hydraulically or electrically. Input prime mover can be hydraulic, air or electric motors. Applications ExcavatorsTruck mounted concrete pumpsMobile cranesTower cranesDrilling machinesDock cranes & Deck cranesConstruction cranes & conveyorsLoading & cargo handling cranesAccess platforms Drive Information Diameter Range : 150 to 400 mmReduction Ratio : 10 approx.Torque rating : 5000 NM.Power Rating : 037 kW to 37 kW      Design Features All the parts are designed and manufactured to high quality standards to perform under intended service. Output housing is made from cast steel that conforms to IS standards.All the gear parts are manufactured from high alloy steel. Optimized for best possible tooth flank and root load capacity and minimum sliding speeds. Externally toothed gears case hardened and ground, internal gears heat-treated and nitrides.High torque capacity achieved by careful selection of materials, heat treatment and geometrical design of the gears calculated inAccordance with ISO Standards.All standard parts such as bearings, seals, hardware are procured directly from reputed manufacturers for genuiness and cost effectiveness.The Planetary gears of these Slewing units are also used in the Cypla Winches, the Track Drives, so that the complete drives are of the same construction and have common parts.

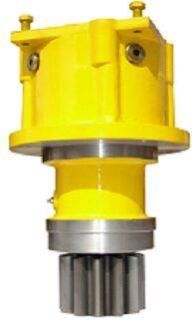

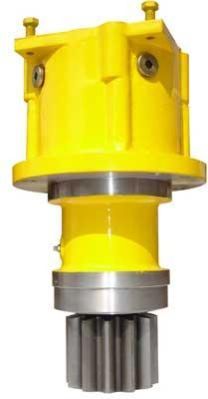

Slew Drive manufactured by us is designed specifically as per the need of the client. Our Slew Drive is widely appreciated because of its ability to serve the purpose in various environmental conditions. We offer Slew Drive at affordable market price. Features : Compact structureHigh efficiencyIncreases productivity of slewing machinesSimple mountingOperating reliabilityVersatilityWorks on planetary principleHydraulic brakeLong performing lifeWide transmission ratio rangeBrake and gearing has same lubrication but independent motor Optimized torque performance capacityRadial load capacityPerfect meshing between pinion and gear Application Areas : Electric motorHydraulic motor

We bring forth to the clients a wide array of Shrink Disc that is flexible and easy to maintain. This disc allows the attachment of hollow shaft gear reducers and other hollows. With shrink disc the hubs strongly gets connected to the shafts. Also keyless mechanical interference fit is used for transmitting torque and withstand axial thrust. Appropriate for high speed applications; our range of Shrink Disc is high on demand in the market. The array of Shrink discs offered by us provides superb torque transmission and high resistance to bending. Besides, these discs can be availed at the most affordable prices. Special Attributes : Self-centeringExceptional concentricity Axial hub position fixed during clamping.Eliminate cost of machining keyways or splineReduce the shaft stress by removing keyways or splineEliminating keyways often allows the use of a smaller diameter shaftCan place anywhere on shaft, and allows for easy angular timingEasier and quicker to installHigher contact pressure can transmit greater torqueEasy and quick to remove without damaging the shaft or hub - even after years of serviceNo Backlash due to fit tolerancesNo impact effect from reversing loadsAbility to adjust axial position and angular timingNo fretting corrosion due to movement at the fit interfaceEasy removal without damaging the shaft or hub means easier maintenance for your customer Suitable for : Hollow shafts Applications : Braiding MachinesMoving SidewalksBrake DrumsPackaging MachineryClutchesPasta MachinesCompressorsPrinting MachineryConveyor PulleysPulp Industry : Drive RollsCylindersConveyors Pump ImpellersTurbine RotorsCouplings RollsCrushers Shaker ScreensFansSheavesFlangesSki LiftsFlywheelsSprocketsFootwear MachinesThermal PumpsMotorsVegetable-oil Refining MachinesIndustrial Sewing MachinesWeaving, Tobacco, Mechanical Presses, Graphic, Lamination MachinesLeversCamsWinchesMilk Processing MachinesWind GeneratorsMilling and Drilling MachinesGear Boxes and Speed ReducersMixer Shafts SPM and more.

Cyclo Shaft Mounted Speed Reducers are the most convenient method of reducing speed. SMR can be directly mounted on the drive shaft of the equipment to be driven. The direct mounting principle assures correct alignment and reduces foundation, couplings, etc. A torque-arm anchors the reducers and provides quick, easy adjustment of the wedge belts by means of its turnbuckle. SMR is manufactured in twelve different sizes, and the Model No. is specified with respect to its rated torque capacity in Kg-m. The reduction ratios available are 5:1, 13:1 & 20:1. A very wide choice of output speeds can be determined by the use of an appropriate input belt drive.   hread Locking System Shaft mounted speed reducer can now be secured to the driven shaft by a unique bush locking system which overcomes the difficulties which can be experienced with other methods of mounting, particularly in corrosive environments. The principle of using locked tapers to secure power transmission components has been established for many years. The Thread Lock system is based on the well known locking capabilities of conventional taper bushes with one very significant difference. The thread lock bush has a series of short taper surfaces in the form of a continuous helix. Assembly After the bush is screwed into the hub the reducer can be conveniently positioned on the driven shaft. Locking is effected by sequentially tightening the screws which draws the bush axially against the opposing tapers in the hub thus generating the clamping force along the whole length of the bush in contact with the shaft.   Material Construction The SMR have distinct design and manufacturing featuring giving long-life performance. Gears The helical gears are manufactured from high alloy steel and heat treated forcase carburising or nitriding to achieve the optimum strength and wear resistance. Exacting quality standards throughout the manufacturing ensures the maximum working life. Input/Output Shafts Shafts are manufactured from high alloy steel and heat treated to achieve maximum strength to transmit power and absorb high impact load. Hollow Output Shafts having through keyway are manufactured and confirms to Indian Standards and Input shaft is integral part of pinion gear Torque-Arm Mounting Two positions are provided as per direction of rotation of Output Shaft for the mounting of torque-arm to have an advantage of universal mounting. Bought Out Parts All standard parts such as bearings, seals hardware are procured directly from reputed manufacturers for

The Shaft Mounted Planetary Drive offered by us is manufactured with two helical reduction stages for input and output. Shaft mounted Planetary Drive available with us offers appropriate reduction ratio, thus, it is widely appreciated by the clients. Features : Long performing life Compact size High overhang load capacityEasy mounting Uniform stress distribution High torque capacity Maintenance free performance Used in : Wind mills Plastic industry Rubber industry Chemical industry, etc.

Cyclo parallel shaft mounted top gear quality units are part of the Cyclo modular system. With helical and three- phase AC motors with or without brakes, this system covers all possible drive combinations, right up to electronic variable speed drives. Cyclo parallel shaft gear units are designed for continuous duty. The gear unit housings made of gray cast iron are developed and has an optimized structure in terms of rigidity and vibration absorption. Radial shaft seals with dust-protects lips prevent oil from leaking out of the housing and dust and water entering into it. CYCLO parallel shaft gear units are available in two-stage and three-stage designs. Standard series gear units can be supplied for attaching in any position. The gear units are available in a solid-shaft or hollow- shaft design with a parallel key connection, shrink disk connection or as per customer requirement. The Product is designed with the help of computers for the optimum power to weight ratio. All components are designed in keeping stringent requirements. Cyclo is committed to keeping the spirit of continuous improvement and focus our strategy of strict quality control standards, quick response, prompt delivery and low price. We look forward to working with all our customer’s growing demands. Our ability to optimize the bearing design for your specific needs is unparalleled and we will assist you throughout the design, manufacturing and implementation process. Drive Information Torque Capacity : 200 to 40,000NMReduction Ratio : 7.00 onwardsPower Rating : 037kw to 75kw

Cyclo Screw Jacks are ruggedly built, electromechanical transmission components suitable for a wide spectrum of industrial machinery with the best jacking solutions and support. Wide range provides engineer great flexibility in design and coupled with a modular approach to nut and installation arrangement, satisfying customers design requirements. Cyclo Screw Jacks can be provided with electrical, hydraulic, pneumatic and manual inputs. Precise relative motion is provided for screw jacks used in combination, but with unequal loads. Rest position is maintained by the self locking trapezoidal screw and using a brake motor. Cyclo delivers custom engineered solutions for various customers. We also supply customized linear actuators with high precision for special purpose requirements. Technical Features And Data Trapezoidal or Ball screw jack.Combined with hydraulic cylinders.With Base, Oscillating, Rotating types.Special screw to wheel ratios.Supports or coupling for direct motor assembly. Worm or two pinion bevel gears.Anti-backlash and anti-rotation system.Additional guides and mechanical stops.Electric limit switches and position detection system. Drive Information Load Capacity : 0.5 to 100 Ton.Screw Size : TR 24 to TR 100Power Rating : 0.25 to 50 HPScrew Type : Trapezoidal or Ball.

General Information Cyclo Safety Couplings provide accurate, reliable overload protection for all types of machinery and equipment’s with thousands of different applications. These versatile units are available for freewheeling in Sensor, Overload, Synchronous and Ratcheting, types. Cyclo Safety Couplings have manual or automatic re-engagement and a unique method for setting the overload torque which makes adjustment both accurate and easy. Applications Cyclo Torque Limiting Clutches can be used as flange coupling with or without mounting to take chain sprockets, gears, toothed and V-belt pulleys. These clutches also connect co-axially arranged shafts to a flange, torsion ally rigid or torsion ally flexible coupling. Cyclo clutches are used in almost all fields of mechanical engineering. E.g. machine tools, agitators, foundries, rolling mills, mining industries, in SPM machines, crushers, construction machinery, industrial furnaces etc.   Advantages Cyclo Torque Limiting Clutches helps to prevent damage to person, machinery & equipment, making machines safer & more reliable. Repairs and downtime are minimized. Availability and productivity are therefore increased. Torque limiting clutch is a mechanical device which disengages immediately in case often overload and disconnects input and output. Additionally, an electrical signal can be provided through mechanical actuation of a limit switch to switch off the complete element. After removing the load, the clutch automatically returns its initial state and again ready for use. Product Information Torque Capacity : 12000 NM.Pilot Bores : 7 mm to 150 mm.Types :Sensor,Overload,Ratcheting and Synchronous.

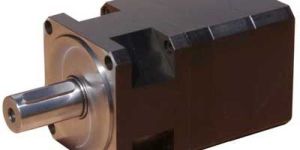

We are a prime manufacturer and supplier of an impeccable array of Robotic Drives that is manufactured using general planetary principle with internal arrangement for reducing the backlash which may occur, due to wear of components. Suitable for Servo Motor input and backlash is controlled to 8 arc minutes, these drives can be availed in different models. This device works on a simple principle that is based on simple planetary gear mechanism. It consists of a sun gear, planet, planet carrier assembly that also comprises of carrier and the planets rotating at constant centers along with the planet carrier. Besides, these functional devices are quite reasonably priced. Characteristics : Coaxial arrangement of input and output shaftsHigh power to weight ratioOptimum efficiencyEasy to maintainLow backlash up to 5 arc-minutesInput and output direction of rotation is sameCompact designMinimal sensitivity to shocksLow noiseEasy to fit and adaptable to any motorGrease filled, so can be mounted in any orientationThe input sun gear is directly mounted on the motor shaft hence compact.

General Information These drives consist of some multiple pair of gears. Power is transferred from a prime mover through central gear to the peripheral output gears. Output gear transmits power to directly fitted hydraulic motor. This construction gives compact dimensions, robustness and versatility. The unit is equipped with input flexible coupling mounted on the engine flywheel. These drives are available with two, three, four or five outputs depending on requirements. Design Features The inherent compactness and high efficiency of the gears. Simple mounting of Hydraulic pumps. The design of these units optimizes torque performance, capacity and radial load capacity. Longer service life. Adequate capacity bearings Applications to fit a wide range of Hydraulic motor. Wide range of transmission ratios.   Applications  Excavators. Road roller, compactors. Mobile cranes. Tower cranes. Drilling machines. Dock cranes & Deck cranes. Construction cranes & conveyors. Loading & cargo handling cranes. Drive Information Diameter Range : 150 to 400 mmReduction Ratio : 10 approx.Torque rating : 5000 NM.Power Rating : 037 kW to 37 kW.

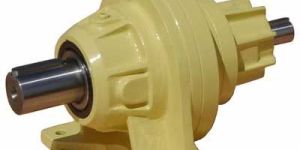

The modern and economic construction of Planetary Drive available with us has gained us accolades in the market. The power consumption of our Planetary Drive has made it highly cost effective for the industries having restricted power supply. We offer Planetary Drive at competitive market price. Features : Modular constructionNominal rated torque valuesVarious reduction ratiosMeet the power requirements of many industriesGreat flexibility in internal productionCompact sizeConstructive simplicityEnergy savingSturdy constructionHighly reliablePlanetary principle based working Applications : Steel PlantsGoods and Personnel LiftsSugar PlantsDerrick and Dockyard CranesMachine ToolsMaterial Handling EquipmentsPlastic MachineryTruck Mounted Mobile Cranes, etc. Special Products : Planetary Drive to Helical DriveShaft Mounted Planetary DriveSugar DriveCycloidal DriveWorm Drive We are Serving to : Ulka IndustriesBajaj Hindustan Ltd.

Cyclo manufacturing and supplying Planetary Gearboxes for last 25 years. The simple planetary comprises of sun gear, planet, planet carrier assembly and ring gear. Coaxial sun gear and planet carrier assembly which comprises of carrier and the planets rotating at constant centers along with the planet carrier. The input is from sun gear and the drive motion through the planet carrier via planets and ring gear is generally stationery. The rolling contact of the planets with the ring gear provides the appropriate reduction ratio.     By varying the number of teeth of the sun gear and planets it is possible to achieve various ratios per stage. Multi-stage gear boxes are available by connecting the individual stages in sequence. Input and output rotates in the same direction. The power is transmitted simultaneously through multiple planets and hence high-power transmission is possible in small size and will result in less weight. The Product is designed with the help of computers for the optimum power to weight ratio. All components are designed in keeping stringent requirements. These drives are energy saving, sturdy and compact speed reducers used for high torque requirement, based on modular design, with nominal rated torque value and various reduction ratios.   Drive Ratings Torque Capacity  : 1,000,000 NMReduction Ratio  : 3.48:1 onwardsPower Rating  : Up to 500 kWMounting Type  : Foot/Flange/FaceInput Type  : Free, Hollow, Motor

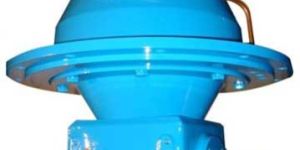

Avail from us an immaculate range of Mixer Drive that is high on demand in the market. These Mixer Drives are widely acclaimed by the clients, owing to their high efficiency and accurate designing. Our array of Mixer Drives finds application in many industrial areas and caters to the requirements of construction industries. Apart from this, these mixer drives can be availed at the most economical prices. Appreciated for : Corrosion resistanceRobust constructionPerfect mixing abilitySteady operationDimensional accuracy.

The excellent performing Hydraulic Winch Drive offered by us is one of the applauded products available with us. We offer Hydraulic Winch Drive with electromagnetic or hydraulic fail safe wet type multi disc brake for smooth operation. Their trouble free performance has given a boost to their demand in the market. Features : Compact designsRugged constructionPlanetary gear unitInbuilt hydraulic brakeAvailable in electrically driven versionHighly efficientExcellently designed gear unitEasy maintenanceLong service lifeElectric and Hydraulic motor with hollow inputMounting limit switch Application Areas : Mobile cranesLoading and cargo handling cranesConstructional cranesContainer handling cranesShipboard cranesMaterial handling equipment

We are engaged in offering a wide array of hydraulic pump drives that is constructed with helical gears. These are used for driving more than one hydraulic pump from single prime mover. Generally used in mobile equipments, these drives are widely acclaimed by the clients, due to their high efficiency and optimum performance. The hydraulic pump drives offered by us are quite reasonably priced. Popular for : dimensional accuracy trouble-free operation compact designhigh durabilityexcellent finishing
