GEAR TORQUE TRANSMISSION MIDC, Satara, Maharashtra

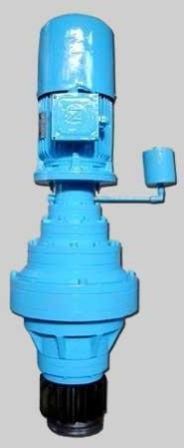

We are one of the renowned Hydrostatic Slewing Drive Suppliers in India. Our Slewing Drives are widely popular for high duty cycles by several Industrial Machinery Manufacturers. The Reduction Ratio of our Slewing Gear Drives is 15: 1 to 1500: 1. Their Input Power varies from 0.5 HP to 50 HP with Torque Capacity of 40 Kg to 3000 Kg. These drives are used in Cranes, Excavators, Rig drilling etc. Slew Drive Reduction ratio – 3 : 1 to 10000 :1 Input power – 0.2 Kw to 30 kw Torque Rating - 10 Kgm to 10000 Kgm

This product has been supplied with solid input or hollow input as per requirement. Electric or other type of motor can directly couple to gearbox with hollow input. This is a standard product which is available in foot, Flange or agitator mounting. These are of modular construction and can be offer in single double or multiple stages as a standard product. Reduction ratio is available from 3: 1 to 10000 : 1. Torque Capacity 1 Kgm to 20000 Kgm. Input power is 0.25 HP to 100 HP. Ratio – 3 :1 to 10000 : 1 Torque – 1 Kgm to 20000 Kgm Mounting – Foot / Flange / Agitator.

We are among leading Industrial Hydraulic Winches Manufacturers in India. Our products are in great demand by esteemed manufacturers of Industrial Machinery such as Shipboard Cranes and Mobile Cranes. Our Hydraulic Winches have inbuilt brake system and brake release pressure, usually of 18 to 30 bar. They are compact in design and have high efficiency level. The Line Pull and Line Speed of our Electric Hydraulic Winches are 100 Kg to 30000 Kg and 1 m/min to 100 m/min. Their Rope Diameter and Drum Diameter are 5 mm to 30 mm and 100 mm to 600 mm. Winch (Electric & Hydraulic) This products are using in material handling equipments. Driving motor can be electric or hydraulic. Electric motors come with electromagnetic fail safe type brake with minimum service factor 3. In case of hydraulic winch brake comes with gearbox and brake release pressure is normally 18 to 20 bars. All winches are provided as per customer requirements. This products are using for lifting as well as pulling of material.

This product has been supplied with solid input or hollow input as per requirement. Electric or other type of motor can directly couple to gearbox with hollow input. This is a standard product which is available in foot, Flange or agitator mounting. These are of modular construction and can be offer in single double or multiple stages as a standard product. Reduction ratio is available from 3: 1 to 10000 : 1. Torque Capacity 1 Kgm to 20000 Kgm. Input power is 0.25 HP to 100 HP.

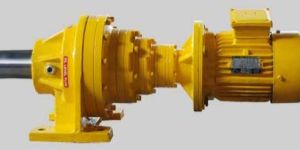

This product has been supplied with inbuilt motor which reduce total length of gearbox and weight. There is no need to any type of coupling or key to drive gearbox. Motor shaft is an integral part of gearbox which gives better performance and life of geared motor. This product is available in FootFlange mounting. Reduction ratio is available from : 3: 1 to 10000:1. Torque Capacity : 1 Kgm to 20000 Kgm. Input power : is 0.25 HP to 50 HP.YPE

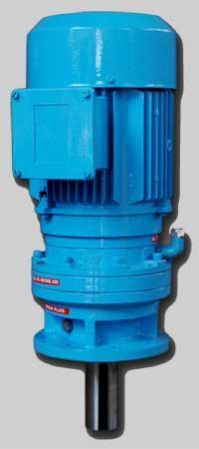

This product has been supplied with inbuilt motor which reduce total length of gearbox and weight. There is no need to any type of coupling or key to drive gearbox. Motor shaft is an integral part of gearbox which gives better performance and life of geared motor. This product is available in FootFlange mounting. Reduction ratio is available from 3: 1 to 10000:1. Torque Capacity 1 Kgm to 20000 Kgm. Input power is 0.25 HP to 50 HP. Ratio – 3 :1 to 10000 : 1 Torque – 1 Kgm to 20000 Kgm Mounting – Foot Flange Agitator.

We are one of the leading Double Drum Winch Manufacturers in India. It is applied in bridge building, transportation, dockyard construction, metallurgy, and many more. They are used in lifting and pulling equipments. They are made up of latest technology with quality raw materials due to which they are durable in nature. Our Hydraulic Double Drum Winch is used for heavy-duty applications. The Rope Speed of our Double Drum Winch is 0.2 m/min to 50 m/min and Rope Length of 10 m to 400 m. Their Drum Diameter and Rope Diameter is 200 mm to 1000 mm and 8mm, 10mm, 12mm, 14mm, 16mm, 20mm, 22mm, 25mm, 30mm or 35mm. Our products are easy to use and available at competitive prices. Double Drum Winch Special Purpose This products are using in material handling equipments. Driving motor can be electric or hydraulic. Electric motors come with electromagnetic fail safe type brake with minimum service factor 3. In case of hydraulic winch brake comes with gearbox and brake release pressure is normally 18 to 20 bars. All winches are provided as per customer requirements. This products are using for lifting as well as pulling of material.

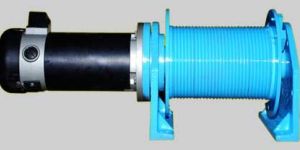

We are one of the most recognized Dc Motor Winches Manufacturers and Suppliers in India. Our product is supplied with Electric Motor. We serve Electric Dc Winches with Drum diameter of 150 mm x 200 mm and Rope Diameter of 6 mm, 8 mm, and 10 mm. The Line Pull of our Dc Winches is 500 Kg with Line Speed of 1 m/min. to 20 m/min. The Rope Length of our winches is 30 Meter. This products are using in material handling equipments. Driving motor can be electric or hydraulic. Electric motors come with electromagnetic fail safe type brake with minimum service factor 3. In case of hydraulic winch brake comes with gearbox and brake release pressure is normally 18 to 20 bars. All winches are provided as per customer requirements. This products are using for lifting as well as pulling of material.

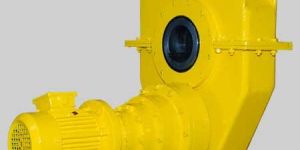

We are one of the most promising name in the domain of Crystallizer Gear Drive Manufacturers in India. We serve superior Crystallizer Drive with vertical and horizontal orientation to several manufacturing companies. Our Sugar Crystallizer Drive is in great demand by Food Products Manufacturing companies. We provide Crystallizer Drive of Hollow Output with Shrink Disc and only Hollow Output. The available reduction ratio with us is 3: 1 – 5000: 1. Our drives have input of 0.18 KW to 30 KW. The Torque Rating of our product is 2000 Nm to 100000 Nm and their Output RPM is 3 to 0.25. These drives are used for Sugar Industry Reduction Ratio – 3 : 1 to 10000: 1 Power Rating – 0.18 Kw. To 30 kw. Torque Rating – 100 Nm to 10000 Kgm. Mounting – Shaft mounted, Hollow Output With Shrink Disc. Orientation – Vertical Downward, Horizontal.

We are counted among leading Hydrostatic Creep Drive Manufacturers in India. Our wide range of Creep Drive is widely recognized by leading manufacturers of Industrial Machinery, Steel Plants, packaging machinery and many more. Creep Drive is used for overhead cranes to achieve micro speed. Our Planetary Creep Drive have Torque Capacity of 50 Nm – 1000 Nm. We serve Foot Type Creep Drive with power rating 2 KW – 40 KW. The Brake Drum diameter of our product is 160 mm, 200 mm, 250 mm, and 300 mm. Their reduction ratio is 10:1 which can be modified as per requirements. These drives are used for overhead cranes to achieve micro speed Torque capacity – 5 Kgm to 100 Kgm. Brake drum dia. 160mm, 200mm, 250mm, 300mm Reduction Ratio – 10 : 1 Input – Solid ( free ) 0.5 HP to 50 HP Mounting – Foot type Torque capacity – 5 Kgm to 100 Kgm. Brake drum dia. 160mm, 200mm, 250mm, 300mm.
