48 Results found for "Air Cooled Oil Cooler"

Abacus offers Shell & Tube type Inter After Coolers for use in multistage compressed air systems. These are designed for direct floor mounting arrangement. These are available in standard horizontal vertical models, with or without built in Moisture Separators. These are available from 30 CFM to 10,000 CFM. These are designed at 7 Kg per sq. cm gauge or as specified by client. For Inter After Coolers of higher capacities at different pressures please contact us.

Oil Coolers are generally used for cooling of oil, which gets heated up in gear boxes, ID fans, extrusion press, couplings, rotating shafts etc. We carry out thermal, mechanical design and then manufacture the entire ranges of Oil Coolers suitable for Gear Boxes manufactured by MS Elecon, Greaves, Shanthi Gears, Walchandnagar etc for their different capacities Gear Boxes. These Coolers are manufactured as per the codes specified by the customer like TEMA RCB and ASME Codes. Generally the Oil Coolers are manufactured out of the Carbon Steel and CopperAdmiraltyStainless SteelCupro-Nickel (90:10)Cupro-Nickel(70:30) Tubes depending upon the type of cooling water available. We also have data regarding the various Oil Coolers supplied with various Gear Boxes from gear Box manufacturers. In that case we confirm our design and parameters vis a vis the existing ones and manufacture the same. We carry out the manufacture of Oil Coolers exactly as per the Client's existing Coolers. For the same we depute our technical representative to Client's Site, examine the Cooler and manufacture the new Oil Cooler exactly as per the existing ones. This basically ensures that the new Oil Cooler is exactly inter-changeable with the old ones. If you are not satisfied with the amount of Oil Cooling provided by your Oil Cooler request you to kindly send us the following data to enable us to get back to you with a proper solutio

Oil Cooler for Road Making Machines, Transit Mixer, Hydraulic Sensor Paver, Tandem Vibratory Roller, TRACTOR LOADER, CONCRETE MIXER, BORE WELL, AIR COMPRESSORS, DRILLING RIGS, Inter coolers for Air Compressors. In which condition hydraulic system is working On stationary on road equipment, In factory premises etc. Surrounding temperature of air Of Hydraulic system. High temperature of oil during working and required temperature after connecting oil cooler Connection of Oil Cooler in size and place on cooler Electric Load in HP connected to Hydraulic System or engine HP.

Oil cooling refers to a process to heat is displaced from a 'hotter' object, into a cooler oil and is the principle behind oil cooler devices. The oil carrying the displaced heat usually passes through a cooling unit such as a radiator, less commonly a gas decompresser. The cooled oil repeats this cycle, to continuously remove heat from the object. An assembly for cooling oil in the lubrication system of an internal combustion engine. Oil coolers are installed mainly in motor vehicles, whose engines often operate under difficult thermal conditions. Oil coolers may be of the air-cooled or water-cooled type. The air-cooled oil cooler consists of brass tubing to which cooling fins are soldered. The oil circulated in the tubing by the oil pump is cooled by air when the vehicle is in motion. The oil cooler is connected to the lubrication system in parallel with the main oil pressure line.

Oil Coolers Heat Exchangers Manufacturer INDIA Oil Coolers are often baffles directing flow through the shell side so the fluid does not take a short cut through the shell side leaving ineffective low flow volumes. Oil Coolers are generally attached to the tube bundle rather than the shell in order that the bundle is still removable for maintenance.

Air cooled Heat Exchangers manufactured and supplied by us are also known as air fin coolers. We manufacture these heat exchangers with excellent quality raw materials. Our air fin coolers successfully reduce the temperature of the circulating fluid inside the finned tubes by pushing air over the tubes. We customize the air cooled heat exchangers as per the client’s requirements and needs.The finned tube bundles in the exchanger are provided by us in modular construction so that it is easy to transport.

In the recent age, you can see the air cooled oil coolers in the drain lines where several displacements pump is required. These are very cost effective and can be used where steady oil flow up to 10 LPM is required. It operates under the maximum pressure of 6 BAR. Some unique features you can get by using this device. These are as follows- It has an optimum level of efficiency. It’s operation is very easy. This device has cooling medium air. The manufacturers of air cooled oil coolers make a wide range of products as per client’s requirements. But it has some standard specifications. These are- Cast iron headers are used. Nitrile seals and Viton seals are preferred. The temperature should be greater than 100 Celsius.

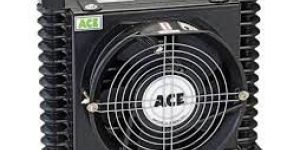

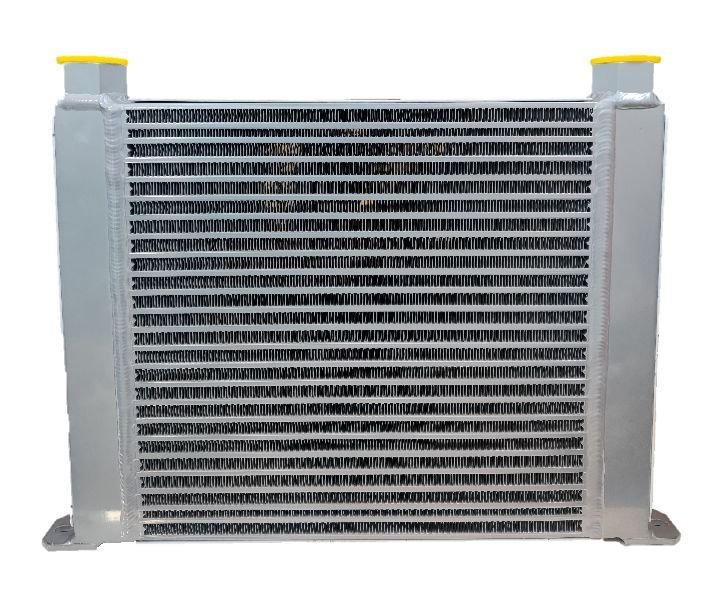

Air cooled heat exchangers oil coolers are D Cup Coolers (also known as Bar and Fin Cooler), or Plate and Fin type coolers, typically because cooling fins are attached to the heat sink, thereby increasing its surface area to greater cooling effectiveness.Keeping in mind the various industries these air cooled heat exchangers oil coolers find application, Ace presents to you 3 model series of the same. ‘D’ Cup cooler also known as Bar and fin coolerPlate and fin type cooler , Oil flow handling upto – 350 LPM, Cooling capacity upto –57000 Kcalh.

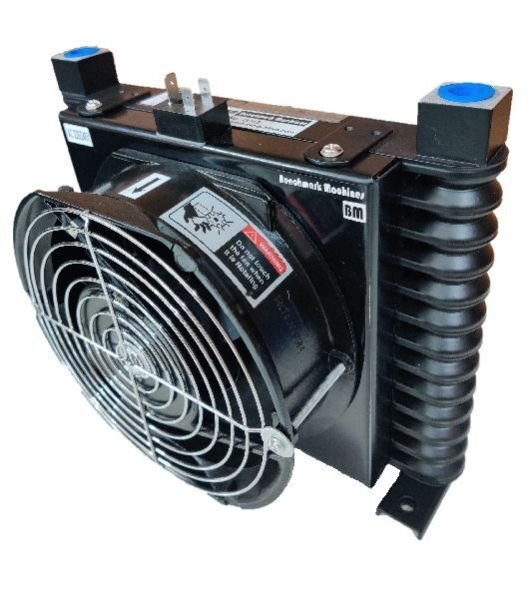

DC air-cooled oil coolers are a big advantage for locations with limited access to power sources but a high cooling requirement. Their design caters to diverse cooling requirements without relying on extensive electricity. Also known as heat exchangers, the mechanism of the device utilises a coil to facilitate the cooling process. Oil passes through this coil or core, allowing it to shed heat before entering the system. These play a crucial role in maintaining the oil's temperature, preventing excessive heat buildup that could lead to system failures or reduced efficiency.

Air Cooled Oil Cooler,Air Coolers,Air Cooled Heat Exchangers,Air Cooled Oil Cooler..
