Chandra Group. Athola, Silvassa, Dadra & Nagar Haveli

Dimension calculation 1. nom. Axial width (b) = fw + 2(b+e+ep) + l + I 2. nom. Radial height (h) = fh + (n+1) 2 (h+e+ep) + I fw = factor (1.01 for soft 1.02 for cpr) fh = factor for radial height b = norm. Width of single strand h = norm. Thickness of single strand e = increase due to enamel ep = increase due to epoxy l = thick. Of int. Col. Paper I = increase due to paper insulation or net tape

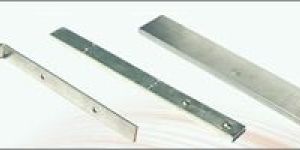

Oxygen free tin plated copper bus bar helps upgrade design and provide the best quality for switch gears, switch boards, electrical panels, power transformers and busducts. Tin plated copper bus bar is preferred over other bus bars mainly because of its numerous improved properties.

Paper Insulated Copper Conductors (PICC) are the most commonly used conductors for winding coils of transformers and other electrical equipment. PICC product is available in from 1 to 6 strands integrated into one wrapped strand. We use various types of insulating paper and insulation methods in accordance with international standards as well as per customer's design requirements .

Paper Insulated Copper Conductors (PICC) are the most commonly used conductors for winding coils of transformers and other electrical equipment. PICC product is available in from 1 to 6 strands integrated into one wrapped strand. We use various types of insulating paper and insulation methods in accordance with international standards as well as per customer's design requirements.

Ofhc copper rod. » elimination of dust from copper oxides. » excellent electrical & thermal conductivity » good workability » excellent long term resistance to hydrogen embrittlement under high hydrogen atmospheres » indispensable material in the electrical and electronic industries » high heat resistance and impact strength » high creep resistance

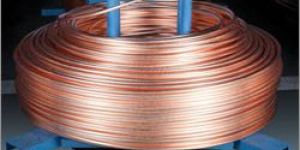

OFHC is produced by the convesion of LME Grade A (Purity 99.99%) refined Copper cathodes by the process of melting & casting under strictly controlled conditions producing product with oxygen contents of less than 10 ppm (ASTM Standard). By managing the process parameters, it is possible to keep the oxygen content to less than 5 ppm for usage in specific applications like Vacuum Interrupters

OFHC is produced by the convesion of LME Grade A (Purity 99.99%) refined Copper cathodes by the process of melting & casting under strictly controlled conditions producing product with oxygen contents of less than 10 ppm (ASTM Standard). By managing the process parameters, it is possible to keep the oxygen content to less than 5 ppm for usage in specific applications like Vacuum Interrupters. OFHC rods have higher electrical and thermal conductivity, higher recrystallization temperature and higher workability than standard grades of copper. Due to the lack of surface oxides, there is no dust generation during processing OFHC rod and such rod is ideal for use in applications such as CTC and enameled conductors where a dust-free conductor surface is critical. The application of OFHC is widely spread over electrical & electronic equipment which requires highly efficient, accurate and durable material.

Diameter : 8mm to 25mm

Dimension calculation 1. nom. Axial width (b) = fw + 2(b+e+ep) + l + I 2. nom. Radial height (h) = fh + (n+1) 2 (h+e+ep) + I fw = factor (1.01 for soft 1.02 for cpr) fh = factor for radial height b = norm. Width of single strand h = norm. Thickness of single strand e = increase due to enamel ep = increase due to epoxy l = thick. Of int. Col. Paper I = increase due to paper insulation or net tape

Hard drawn copper wire 65120 sq. mm Cadmium Copper Catenary Wires. 107 sq. mm HDGC wire manufactured with CCC Rods. 107120150 sq. mm Round Flat bottom Copper Contact Wire manufactured with ETPOFSilverTin alloyed CCC Rods. 193 sq. mm HDGC Wire manufactured with CCC Rods

Enameled rectangular wires are used for winding of motors, transformers, generators etc. Types of enameled wire produced are single coat, dual coat and triple coat depending upon thermal class desired.

Enameled Rectangular Wires are used for winding of motors, transformers, generators etc. Types of enameled wire produced are single coat, dual coat and triple coat depending upon thermal class desired .

We are offering dropper wire. » 65120 sq. Mm cadmium copper catenary wires. » 107 sq. Mm hdgc wire manufactured with ccc rods. » 107120150 sq. Mm round flat bottom copper contact wire manufactured with etpofsilvertin alloyed ccc rods. » 193 sq. Mm hdgc wire manufactured with ccc rods

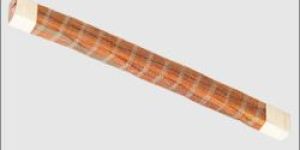

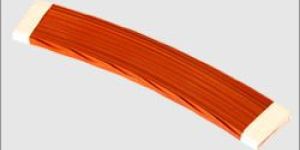

Continuously transposed conductors (ctc) consists of a number of enameled rectangular wires (5-95 strands) made into an assembly. Each strand is transposed in turn to each position in the cable and is then covered with layers of insulation paper. Transposition effectively eliminates inductance issues in the cable. Continuously transposed conductors are used in winding for medium to ultra high power transformers. Ctc is manufactured by ofhc copper, and on specific customer request can also be made from etp copper.

Continuously Transposed Conductors (CTC) consists of a number of enameled rectangular wires (5-95 strands) made into an assembly. Each strand is transposed in turn to each position in the cable and is then covered with layers of insulation paper. Transposition effectively eliminates inductance issues in the Cable. Continuously Transposed Conductors are used in winding for medium to ultra high power transformers

Oxygen free Tin Plated Copper Bus Bar helps upgrade design and provide the best Quality for switch gears, switch boards, electrical panels, power transformers and busducts. Tin plated copper bus bar is preferred over other bus bars mainly because of its numerous improved properties .

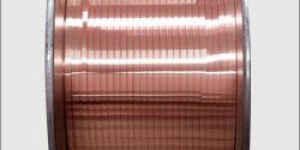

Bare-Copper-StripsFlatsProfiles Chandra Group is supplying both bare rectangular wire and bare round wire in accordance with every requirement of customer specifications.

Chandra Group is supplying both bare rectangular wire and bare round wire in accordance with every requirement of customer specifications. Production Range Width 3.0 – 300 mm Thickness 1.0 – 24.0 mm Round Ø 2.0 – 70 mm

Oxygen free tin plated copper bus bar helps upgrade design and provide the best quality for switch gears, switch boards, electrical panels, power transformers and busducts. Tin plated copper bus bar is preferred over other bus bars mainly because of its numerous improved properties.

We are dealing best kapton covered conductors supplying company.

type of conductor soft copper type of kaptontape fn grade of du pont with one side coated with fep film thickness of polyimide film 1 mic thickness of fep film ½ mic thickness of kapton film other than 1mic may also be used per customer's request. type of lapping - single or double layer with 50% or 60% overlapped as per customer requirement.

Type of copper soft coppe constructiondesign 1. Polyester backed mica tape with or without bond coat 2. Polyester + polyester backed mica tape polyester tape in contact with copper conductor * number of tape and increase in dimension due to tape covering are as per customer’s request.

Technical Specification Of Hard Drawn Grooved Contact Wire Material : ETP Grade copper as per DIN EN 13601:2002 or Oxygen free copper. Chemical Purity : Copper + Silver > 99.95% Cross Sectional Area: 107 Sq. mm, 150 Sq. mm and 193 Sq. mm. 120 sq. mm 65 sq. mm
