Galaxy Research Technologies Karaikudi, Sivaganga, Tamil Nadu

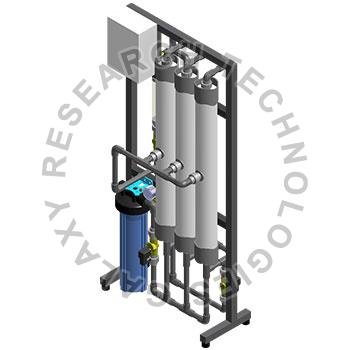

We have to do the STP plant at any capacity.  from 2KLd to 5 MLD

Capacity : 10 KLD To 1000 KLD

Driven Type : Electric

Brand Name : MEMFILL

Phase : Three

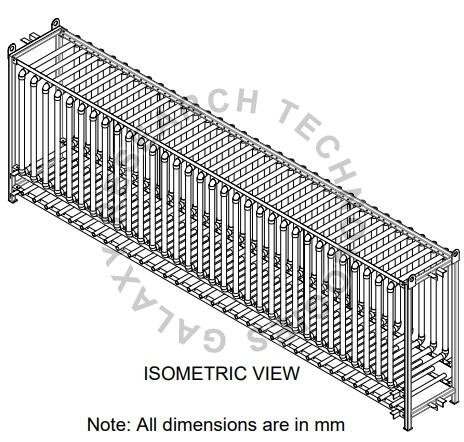

Model : MBR Aruvi

Plant Design : Semi Automatic / Automatic

Process : Membrane Bio Reactor Using Reinforced PVDF Hollow Fiber Membrane

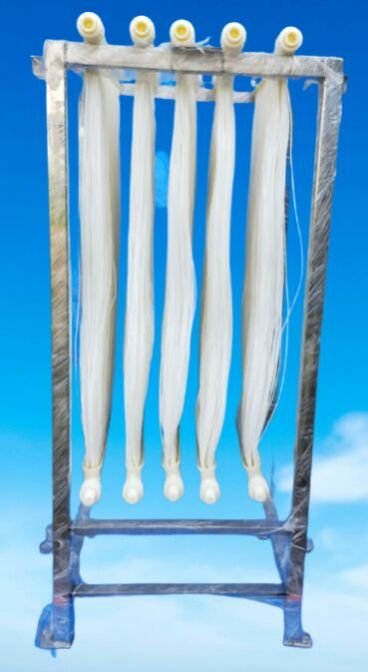

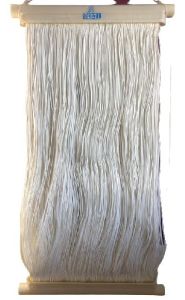

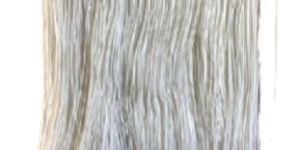

  MEMFILL’s HighFlux® MBR contains hybrid hollow fiber membranes which is made up of non-oven fabric with hybrid-PVDF (h-PVDF) coated on it. The hollow fiber membrane module performs solid-liquid separation in the biochemical pool, replacing the secondary and ternary filters which reduce the foot-print. The high-efficiency retention effect of the membrane allows the nitrifying bacteria to be completely retained in the bioreactor, which results in: a) high nitrogen removal b) efficient effluent disinfectants -c) efficient removal from effluent including COD, BOD and suspended solids d) low sludge production

Country of Origin : India

Number Of Flower : Membrane Bio Reactors

Automatic Grade : Semi-Automatic

Power : 0-25 KW

Driven Type : Electric

Plant Type : Sewage Treatment Plant

Treatment Capacity : 5 M3 To 5 MLD

Water Source : Sewage Waste

Treatment Type : Sewage Treatment

Bioreactor Type : Membrane

Module Length(mm) : 1000

Module Width(mm) : 655

Module Thickness(mm) : 50

Module Outlet Type : Dn25

Module Air Inlet Type : Dn25

Module Fitting Material : ABS/UPVC

Potting Material : PU/ Epoxy

Membrane Material : Reinforced-PVDF

Hollow Fiber Pore Size (um) : 0.05

Hollow Fiber Inner Dia (mm) : 1.0

Hollow Fiber Outer Dia (mm) : 2.4

Membrane Area (m2) : 10

PRODUCT UNIQUE FEATURES Indigenous PVDF Hollow Fibers Asymmetric Membrane Structure Enhanced Hydrophilicity Uniform & Consistent Pore Distribution Durable Hollow Fibers

Product Model Number : UF8-F50

Membrane Material : Proprietary Reinforced PVDF

Shell and Seal Materials : UPVC & Epoxy Resin

Diameter x Length (mm) : 200 x 1713

Effective Membrane Area : -50 m2

Molecular Weight Cut Off : 100,000 Dalton

Bacteria Removal Rate : > 4 log

Operating Mode : Cross Flow or Dead-end Flow

Flow Type : Out-In

Operating Temperature : 5-40°C

pH Range : 2-12

Suggested Operating Pressure : < 2 bar

Max Transmembrane Pressure : < 2 bar

Backwash Pressure : 0.5 1 bar

Permeate Turbidity : < 0.1 NTU

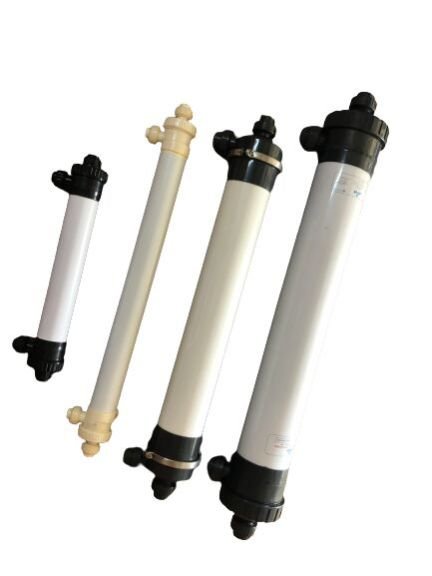

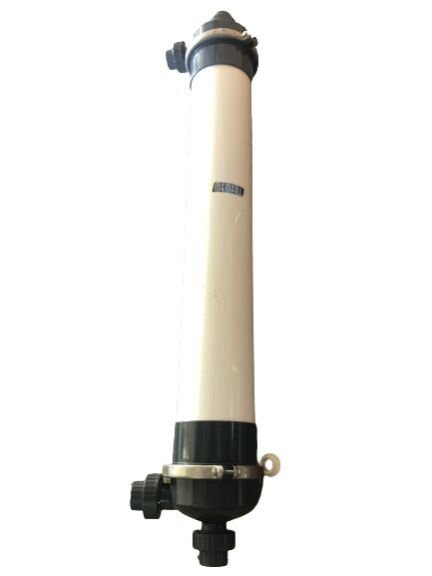

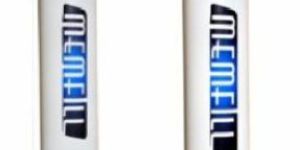

UF PES Hollow Fiber Cartridges (Industrial)(Ideal for municipal water, wastewater, RO pre-treatment & Industrial wastewater) Proprietary Membrane Technology Uniform & Durable Hollow Fibers Consistent Pore Distribution High Temperature & Chemical Resistant Excellent Permeability Low Fouling Low Energy Consumption Low Operating Pressure

Brand Name : MEMFILL

Material : PES

Condition : New

Pressure : 0-100Psi

Application : Water And Waste Water Treatment

Certification : ISO

Length : 1600 To 1800 Mm

Capacity : 2500 LPH

Number Of Flower : Ultrafiltration Membranes

Diameter : 8inch

Configuration : 8

Country of Origin : India

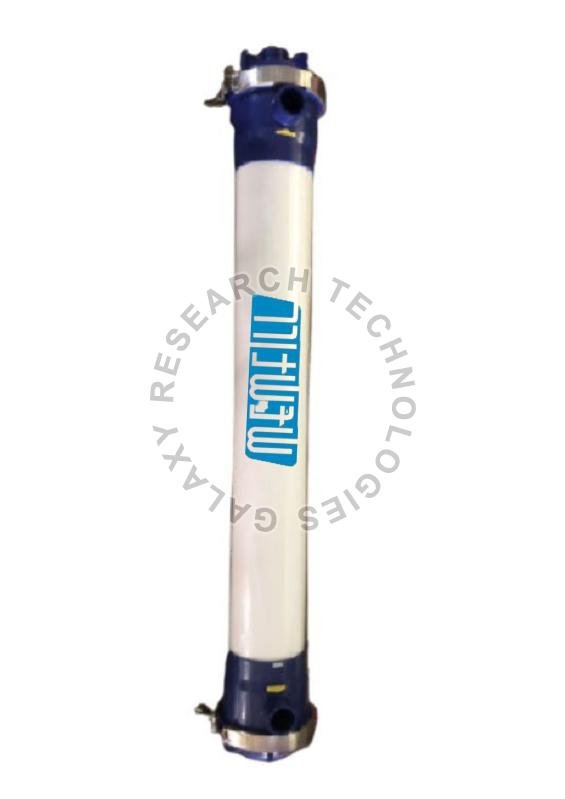

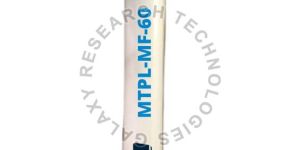

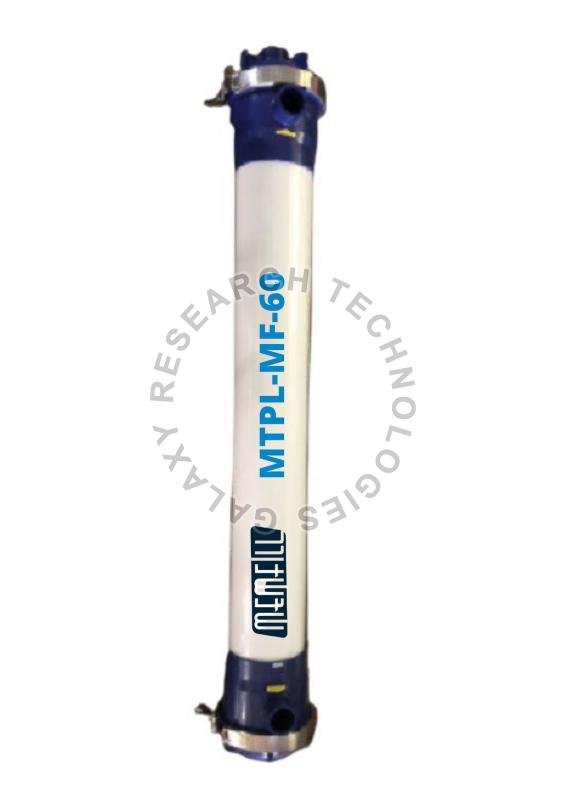

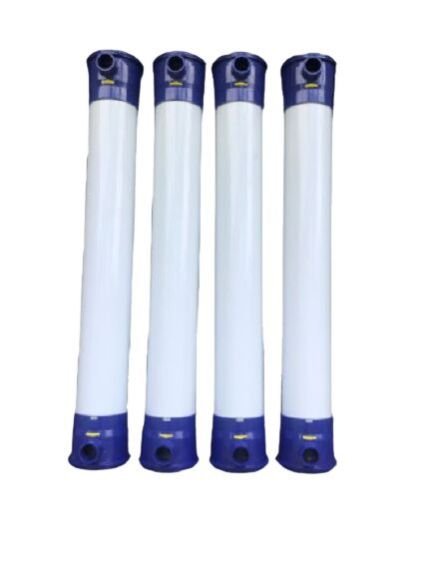

Memfill's Micro-Filtration (MF), PVDF Hollow fiber membrane has developed for high TSS and Turbidity removal from various industries. Our proprietary hydrophilized polyvinylidene fluoride (PVDF) membranes are extremely durable and strength .Nominal pore size is 0.1 μm offers equivalent permeate. We are expert in membrane technologies and manufacturing composite hollow fiber membranes for water, wastewater and water reuse applications covering various Industries. Our extensive R&D activities have resulted in indigenously producing a range of high quality and durable Hollow fiber membranes. Further, we offer our innovative process knowhow, tailor-made turnkey solutions to markedly reducing the operating expense. Microfiltration (MF) membranes have a retention defining microporous outer skin and a more open inner layer for increased filtration with higher recoveries. Applications 0.1μm pore size guarantees stable permeate Modified hydrophilic PVDF membrane with easy wetting performance High tolerance to varying influent water qualities  Reduced pre-treatment requirements due to outside-in flow High chemical resistance Energy saving due to low operating pressure Textile waste water Pre-treatment system Municipal wastewater treatment Industrial wastewater treatment Wastewater recycle Surface and groundwater treatment

Country of Origin : India

Product Code : MF-PVDF-60-8060

Operating Temperature : 5-40°C

Operating Mode : Cross Flow Or Dead-end Flow

pH Range : 2-12

Suggested Operating Pressure : < 2 Bar

Flow Type : Out-In

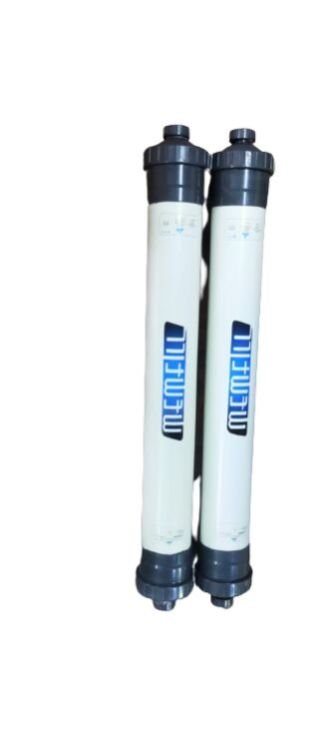

Product Model Number : Aruvi UF4-F3

Molecular Weight Cut Off : 100, 000 Dalton

Bacteria Removal Rate : > 4 Log

Max Transmembrane Pressure : < 2 Bar

Backwash Pressure : 0.5 -1 Bar

Permeate Turbidity : < 0.1 NTU

Hollow Fiber Membrane Material : Proprietary Reinforced PVDF

Housing and Seal Materials : PVC/UPVC & Epoxy Resin

Module Diameter x Length (mm) : 101 x 820

Hollow Fiber Membrane Dimensions &amp; Effective Membrane Area : OD:

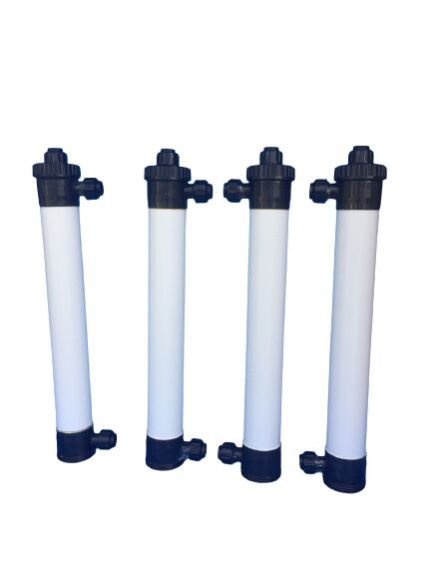

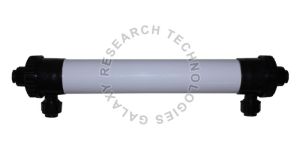

UF PES Hollow Fiber Cartridges (Industrial) (Ideal for municipal water, wastewater, RO pre-treatment & Industrial wastewater) Proprietary Membrane Technology Uniform & Durable Hollow Fibers Consistent Pore Distribution High Temperature & Chemical Resistant Excellent Permeability Low Fouling Low Energy Consumption Low Operating Pressure

Country of Origin : India

Number Of Flower : Ultrafiltration Membranes

Diameter : 4inch

Length : 1000 To 1200 Mm

Condition : New

Capacity : 0-500LPH

Pressure : 0-100Psi

Material : PES

Brand Name : MEMFILL

Certification : ISO

Application : Water And Waste Water Treatment

Configuration : 4

JUMBO_UF20_F1000   Ultra HighFlux HOLLOW-FIBER UF Filter for Residential and Commercial Use   Key Applications Municipal / Corporation Water Bore-well Water (before storage tank) Pre-filtration for Drinking Water (before RO Filter) Pre-filtered Kitchen/Restaurant Wastewater (after Screening Filters)   Key Advantages Indigenous Special-type PVDF Durable Hollow Fibers Low Cost for High-end Quality Product Ultrahigh Flux (900 - 1000 Liters Per Hour) Filters Bacteria , Virus and Cyst Filters Water Feed with high TSS No Flocculation & Coagulation chemicals required Works on Low Inlet Pressure (approx. 0.2 bar) Easy Backwash (Optional : Manual)

Country of Origin : India

Number Of Flower : Cartridge Filter

Brand Name : MEMFILL

Material : Plastic

Shape : Round

Certification : ISO 9001:2008

Country of Origin : 220V

Condition : New

Is It Washable : Yes

Corrosion Resistance : Yes

Total Carbohydrate : 1 Year

Operating Type : Automatic

Packaging Type : Carton Box

Overall Height : 20

Particle Size : 0.03 Micron

Pore Size : 0.03 Micron

Overall Weight : 3 Kg

Diameter : 4

Usage : Textile Industry, Water Filter, Residential And Commercial

Specialities : Ease Of Install

Flow Capacity Range : 500 And 1000Lit/hour

Operating Temperature : Room

Working Pressure : 1 Bar

Flow Range : 500 And 1000 LPH

Operating Mode : Dead-end or crossflow

Feed Trubidity : 30 NTU

Permeate Trubidity : <0.1 NTU

Feed Colour : 100 PCU

Permeate Colour : <0.2 PCU

Temperature : 15 - 40 deg C

Pressure : 0.1 - 1 bar

PH : 3-11

Number Of Flower : Hollow Fiber Membrane

Material : PES And PVDF

You've reached the right place if you're looking for a dependable firm that can provide superior installation services for your wastewater treatment facility. We at Galaxy Research Technologies, are a company that provides trustworthy sewage water treatment plant installation services to consumers at the most affordable prices. We employ high-quality technology and cutting-edge equipment to install the plant in your space's sewage area.   Located in Shivaganga, Tamil Nadu, we guarantee to give timely and accurate solutions in accordance with your schedule and other requirements, supported by current work techniques and a team of competent experts. Those who used our services were pleased with the results.

Battery : 500 mAh rechargeable

Power Voltage : 110-240V

Material : Plastic

Power Consumption : 100w
