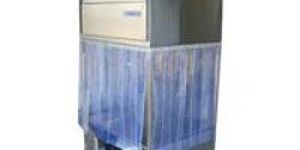

National Mobile laminar air flow units are used to safely transferring the product from non sterile area to sterile area. The unit is used in industrial manufacturing for protection of the product in Industries like Pharmaceutical, Bio-tech industries, Filling section, Assembling processes, Tissue culture and others. Further, the unit is ideal to protect product from particular contamination with the help of class 100 air & UV tube.Technical Specification :
Compact and transportable design.
Construction material used in inner & outer complete SS-304.
Provided with easy removable silicon wheels.
Standard Size – 4x2x2, 3x2x2, 2x2x2 (Feet)
Quiet operation 60db.
Light intensity – 600 Lux level & UV tube is also provided to disinfect the bacterial growth.
Class 100 work station.
Available vertical, horizontal & mobile unit with battery backup.
Counter balance weight glass shutter for ease of door operation.
MOC SS304, MS Powder coated.
Velocity 0.45m/s +/-20% below working area.
Air re-circulating type model
Power Supply 230 V/Single Ph.
Optional features :
Provision of Sliding Door
Material of Front Door 8mm Acrylic Sheet.
Battery Backup 900 Hrs.
Easy Removable SS PU Wheels
Inner & Outer SS 304
Digital Display with UV & Hepa Timer Facility.
General SpecificationsGlass side panels Fluorescent Lights with Milky White Diffuser Differential Pressure Gauge : 1 No.
Air Flow :Horizontal
Light intensity :> 300 lux
vertiflo™ is designed for offering highest product protection for samples and processes by providing ISO Class 5 particle free work area. vertiflo™ offers proven protection for the samples and processes. The work area is continuously supplied with positive pressure HEPA filtered Vertical air flow. Vertical unidirectional airflow prevents contamination from operator and environment to workarea. The laminarity of the flow prevents cross contamination between the items handled in the working space.
Aesthetic appeal, flawless functioning and efficiency and modular construction are features that define the Laminar Air Flow, which we offer. Providing the best filtration and illuminations, these Laminar Air Flows, which we provide, are also noise free, and ensure minimal vibration during functioning. Our Laminar Air Flow is designed to comply with Federal Standard. These Laminar Air Flows come with a convenient sitting working position for the operation. Highlights :
Rugged construction
Low power consumption
Industrial Standard - 209 B (BS 5295)
Providing air to meet class 100 (class I) conditions, to the extent applicable
Customized solutions
Uses :
The best for microbiological manipulations
Works with bioassays sterility testing & research work, vial filling & bunging operation in parenteral units
Used in general dry-processing work in Semiconductor industry
Construction : All Laminar Flow Clean Air cabinets are basically constructed out of thick teak wood board, which is termite and insect proof, fire retardant and weather resistant. All exterior surfaces are covered with white Laminates. Interior surfaces are epoxy painted. Work table is made of mica top and side panels of thick transparent plexiglass. Air Flow and Filtration : Laminar Flow principle involves double filtration of air. Atmospheric air is drawn through pre filter and is made to pass through highly effective HEPA (High EfficiencyParticular Air) filters having efficiency rating as high as 99.99% with cold DOP and 99.97% with hot DOP, thus retaining all airborne Particles of size 0.3 micron and larger. Double filtered air blows in laminar flow through the work table at designed velocity of 9 ft. min. Ã�± 20%. Blower Motor Assembly : Duly balanced, direct drive motor blower units sized to provide adequate air flow volume over the entire surface of HEPA filter. Fitted with reputed make motor and operates with minimum noise level i.e. lower than 65 db on scale and Vibration less than 2.5 um. Lighting : Work area properly illuminated by diffused, glare free fluorescent light. Power Requirement : 230 V. 1 Phase, 50 Hz, Ac Supply. Standard Accessories :
Satin finish S.S. Table Top (in lieu of Formica Top)
Transparent front door
Static Pressure. Inclined Manometer
Built in U.V. Germicidal light
Cock for gas, air or vacuum line
Particle dust count validation at site after installation
