Modern Polyurethane Technology Sonipat, Haryana

Cutting unit in solid welded construction designed for optimum performance.Four dynamically balanced knife wheels. The table top made from Aluminium sheet.A knife guide with hard metal sliding elements to maintain exact cutting position.

Output: 200-240 kg per hour. MOTOR: 40HP. Size of shreds: 15mm-25mm. Output: 30-40 kg per hour. MOTOR: 10HP. Size of shreds: 15mm-25mm.

The company is fully capable of manufacturing any machinery as suited to customer's requirements. Full responsibility is undertaken by our competent personnel for layout, planning, training and successful trial run of the machines. We have already supplied foaming plants to units in India, Nigeria, Zimbabwe, Sudan, Lebanon and Carribean subcontinents. We strive for excellence and customer satisfaction is our top priority. We ensure that the customers get their money's worth.

Batch Foaming Machine One can easily establish oneself in the foam industry with only modest capital outlay. Installation requires small building space. Easy to operate since no special training or skill required. Both Cylindrical and Rectangular Blocks can be produced with one extra mould only. Flat top blocks can be produced with the help of floating lid. 10 blocks per hour can be produced with two moulds.

With the increasing competition in the Flexible Polyurethane Foam Industry, emphasis has shifted to production techniques which involve low capital investment. Our latest Batch Foaming Machine aims at the same.

Output: 200-240 kg per hour. MOTOR: 40HP. Size of shreds: 15mm-25mm. Output: 30-40 kg per hour. MOTOR: 10HP. Size of shreds: 15mm-25mm.

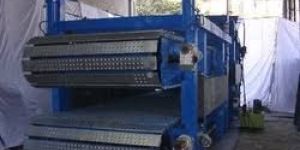

Continuous Foaming Machine, PROCESS: All the P.U. chemicals are first mixed together in a mixing chamber & then taken into a metal trough where the initial reaction takes place. The rising foam then passes from the top of the trough on to a variable width fall plate, which then leads the expanding foam block along a metal slat conveyor for further expansion. METERING SYSTEM: There are seven metering systems in all. All metering system are equipped with world class AC motors, AC variable speeddrives, special internal gear pumps (for very low slippage), pressure gauges & Recirculation network to ensure high class quality product.

The circular cutting machine is equipped with a rotating workbench which can be adjusted between 0.5 and 6 RPM. The workbench top consists of anti skid material. A vacuum device available in the cutting area, prevents the movement of blocks during cutting. Programmable solid state counter with a variation of 0.1 mm of cutting thickness. Operator controls mounted on a free standing podium connected by flexibl conduit to the machine. Standard electric are 400-440 v, 3 Phase, 50 hz.

Country of Origin : 400-440 v

Batch Foaming Machine With the increasing competition in the Flexible Polyurethane Foam Industry, emphasis has shifted to production techniques which involve low capital investment. Our latest Batch Foaming Machine aims at the same. One can easily establish oneself in the foam industry with only modest capital outlay. Easy to operate since no special training or skill required. Flat top blocks can be produced with the help of floating lid.

With the increasing competition in the Flexible Polyurethane Foam Industry, emphasis has shifted to production techniques which involve low capital investment. Our latest Batch Foaming Machine aims at the same. One can easily establish oneself in the foam industry with only modest capital outlay. Installation requires small building space. Easy to operate since no special training or skill required. Both Cylindrical and Rectangular Blocks can be produced with one extra mould only. Flat top blocks can be produced with the help of floating lid. 10 blocks per hour can be produced with two moulds.
