Arc Insulations & Insulators P Ltd. Bowali, South 24 Parganas, West Bengal

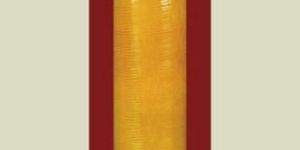

All the ARC strainers are constructed of corrosion resistant FRP materials with working pressures up to 30 psi and vacuum service up to 20" of mercury. All strainers have a minimum of a 4 to 1 open area ratio of the strainer basket to influent flanged connection, which results in longer strainer operation without excessive cleaning. Removal of the strainer basket is simplified through a proprietary design allowing for drainage of water, while maintaining strained debris retention, during lifting of the basket. All strainer baskets are self aligning during installation and come with a molded flow-indicating arrow to insure proper flow direction.   Available in 9 basic designs from 2" to 14" Corrosion resistant FRP, PVC and Stainless Steel Materials Clear Viewing window Corrosion Free Strong, durable & light weight Precise slot sizes from 0.5 to 1.5 mm Open area above 10% Lowering time of tube well casing / filter reduced. Draw down conditions are better. Cost effective as compared to brass filter. Rehabilitation of tube well more effective. Male & Female Coupling with Nylon strip. Made according to WAPDA & International standards. Made according to WAPDA & International standards ASTM D-2400 Tax

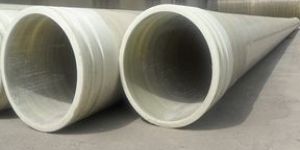

ARC GRP Pipes are made through a superior filament winding process in a modern plant in Kolkata. Arc Is capable to produce of producing pipes from diameter of 100 mm to 3000 mm  and lengths of 6 meter each. GRP Pipes fittings as per client requirement, can also be made. Grp Pipes are used in both underground and over-ground applications. GRP Pipes are extensively used in the following industries: Drinking water transportation by Municipalities across the world. Power plants for sea water intake and transportation to the plant. Sewage and waste water transportation by municipalities across the world. Storm water drainage. Cooling water supply and discharge by power plants. Relining applications Reservoir for chemical plants.   GRP Pipes are produced in accordance with all the national and international standards like IS, ISO, BS, DIN, ASTM and AWWA. GRP Pipes are made by filament winding process with isopthalic, vinyl ester resins, E-glass and ECR Glass and Quartz sand. Production is done on a CNC Machine enabling good quality output with proper finish.  Key advantages of GRP Pipes include :   GRP Pipes are ¼th of the weight of Ductile iron pipes, steel pipes and 1/10th of the weight of concrete pipes. Grp pipes installation provide significant savings in installation over traditional pipes as installation is very easy. Installation is fast and reliable with EPDM Gaskets . Adjustment to pipes on site is easy as GRP pipes can be easily cut and finished as per required lengths. Grp pipes do not require linings, cathode protection, coatings,  wraps and other forms of corrosion protection. Overall maintenance cost is very low as compared to traditional materials. Smoother inside walls provide savings from pipe diameters and also lower power cost due to low consumption in pumping lines. Grp pipes do not conduct electricity and hence are not affected by induction flows. Elastic Characteristics of the GRP Pipes accommodates earth movements.

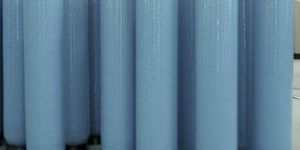

Over the years, a variety of materials has been used to construct storage tanks for water and wastewater storage. These systems – most commonly constructed of non-reinforced concrete, but also of polyethylene and steel – do not provide the many benefits of a fiberglass tank, a tank which is structurally strong, corrosion-resistant, watertight, lightweight and easily installed.  ARC Insulations manufactures one of the finest FRP tanks to meet the need for storage of various chemicals  like nitric acid, sulfuric acid in industrial plants. We also cater to the oil and gas sector by manufacturing tanks with sizes ranging from 1 KL to 20 KL, diameters ranging from 3 to 14 foot. FRP tanks and vessels designed as per BS4994 are widely used in the chemical industry in the following sectors: Chlor-alkali manufacturers, Fertilizer, Wood pulp and paper, Metal extraction, Refining,  Electroplating,  Brine,  Vinegar,  Food processing, Air pollution control equipment, especially at municipal waste water treatment plants and water treatment plants. We will design and fabricate tanks to your specifications in accordance with ASTM or other world industrial standards using the highest performance, high temperature epoxy vinyl ester resins. We offer a wide range of tank models and materials both vertical and horizontal. Let the professionals at ARC Insulations work with you to ensure your needs are met.

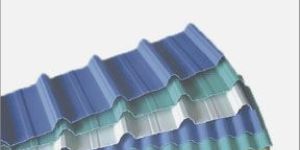

ARC FRP sheets are fiber-glass reinforced polyester sheets designed in compliance with international quality standards for use in various industries and segments such as chemical, pharmaceutical, petrochemical, cosmetics, civil construction, offices and institutions, electrical engineering, tanks and lab equipment, etching equipment, semiconductor processing equipment and so on. Our FRP sheets can be used for any kind of surface applications. It solves the problems of clearance and installation difficulty, easy pitting, distortion and abrasion, and poor performance on durability and collision found in its traditional alternatives. FRP panels have the characteristics of high temperature resistance, ultra violet resistance, aging resistance, corrosion proof, high intensity, light weight, anti-distortion, attrition proof, beautiful and comfortable appearance.   We design and manufacture an exclusive array of FRP sheets that are acknowledged for the following features: Volume resistivity Surface resistivity Arc resistance Comparative tracking index Non-hygroscopic These FRP sheets can preserve the dielectric properties even in existence of high humidity with following regards: Capable of withstanding continuous temperatures up to 1400 C Anti-corrosive and resistant to most acids, alkalis & chemicals Weather able and suitable for all kinds of climatic conditions Self-colored Les maintenance Light weight, strong, stiff and clean

Number Of Flower : Frp Sheet

Material : FRP

Shape : Rectangular

Thickness : 1.5-2mm, 2.5-3mm, 3.5-4mm, 4.5-5mm, 5.5-6mm, 6.5-7mm, 7.5-8mm, 8.5-9mm, 9.5-10mm

Feature : Corrosion Resistant, Durable, Fine Finish, Good Quality, Tamper Proof, Water Proof

Condition : New

Finishing : Polished

Country of Origin : India

Size : AS PER SPECIFICATION

Brand Name : ARC

Application : INDUSTRIAL

Raw Material : WR

Dimension : AS PER CUSTOMER SPEC

Size : AS PER CUSTOMER REQUIREMENT

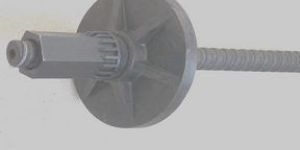

FRP Rock bolts are becoming the most common support system in the mining industry worldwide. ARC FRP rock bolt systems are being increasingly used in the coal mines in India. ARC FRP rock bolt system offers a fully developed range of FRP rock bolts which are meant to support the modern extraction method. High tensile strength, easy handling under the most confined conditions; low weight and surface free of protruding and skin irritating glass fiber translate the same into one of the best products in the industry. ARC FRP rock bolt systems are corrosion resistant and can be used for permanent roadway support and cater to the most aggressive environment. ARC FRP rock bolt systems offer the consulting and project engineers a useful alternative to the commonly used steel rock bolt systems. Applications: Our FRP rock bolt systems are best suited in applications that require high tensile strength and unique features of fiber glass materials. Our FRP bolt are intended for use in new construction in corrosive environments.

Brand Name : Arc

Material : Fiberglass

Surface Finishing : Polished

Shape : Round

Design : Threaded

Bolt Shape : Threaded round

Application : Mines

Size : 15-30mm

Certification : ISI Certified, ISO 9001:2008 Certified

Grade : ASTM

Feature : Dimensional, High Quality

Technics : Resin

Packaging Type : Sea worthy

Number Of Flower : Bolts

Diameter : 20-30mm

Thickness : 25mm dia

Country of Origin : India

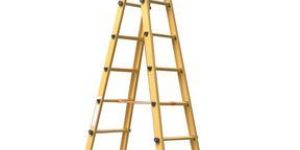

Every ARC ladder is built on a foundation of quality and safety. All of our products meet or exceed the applicable standards and requirements of the American National Standards Institute (ANSI) and the OSHA. ARC's FRP ladders are: Strong, lightweight, Long-lasting: Fibreglass now holds a significant market share of industrial ladders and is steadily replacing aluminum and wood in residential ladders. For the roughest, toughest jobs where a ladder takes a beating, fiberglass provides the ultimate in ruggedness and long-term durability. Stronger Than Other Materials: Fibreglass ladders are stronger than wood or aluminum ladders and will not rot or corrode. Non Conductive: Unlike aluminum, fiberglass ladders have low non conductive properties. High Strength: Fabricated from Pultruded sections having High Strength to Weight Ratio. Resistant: Corrosion & Ultraviolet resistant. Thermally Insulated & Non Slip: Comfortable to handle and safe to use. ARC's total capabilities in building the best ladders in the business are demonstrated every time our customers take a step of the ground. ARCs advanced design and carefully controlled manufacturing and inspection procedures assure safe, dependable performance and years of maintenance-free service when properly used.

ARC handrails, ladders and access structures are a very good and cost effective solutions for a wide spectrum of industries. Combining corrosion resistance, long life and a low-maintenance design, FRP handrail systems are superior to conventional metallic systems. These advanced systems are designed and manufactured to be easily installed with no guesswork involved. ARC FRP Handrails come in both Square and Round profiles. All FRP Handrails are designed to meet AS 1657-1992, OSHA, BOCA & other building code requirements. ARC Handrail systems offer the benefits of : Longer life Corrosion free and hence no maintenance required. UV Resistance. Light weight, easy to install and fabricate. Can be easily cut and install . Installation cost cheaper than other materials Non conductive to electricity Extremely durable. ARC handrails and ladders find extensive applications in the following sectors : Manufacturing Industries Offshore and Onshore Oil and Gas Installations Architectural Installations Bridges and Highways Chemical Industries Malls and shopping plazas All our handrail systems are fabricated as per our customers' specific requirements.

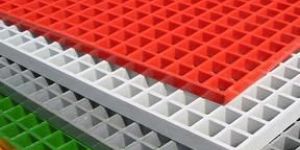

ARC is an established name in composites and has been providing complete system of FRP gratings for walkways, platforms, stairs, bridges, grids as tower packing supports, effluent trench cover, swimming pools & other allied usages of molded and pultruded type gratings.ARC offers system flexibility to optimize cost!. These are the ideal solution for corrosion problems faced in industrial environments. It forms the right replacement for Steel or aluminum gratings used in highly corrosive atmosphere. The ARC gratings outlast steel by a large margin and  is a long term investment, where frequent grating and walkway replacement costs are unacceptable. The pultruded gratings and treads are: Highly Corrosion Resistant Structurally Strong having High Impact and Fatigue Strength Lightweight Easy to Fabricate and Install Low in Maintenance Low in Electrical Conductivity Resistant to Chipping and Cracking having Aesthetically Pleasing Appearance Skid Resistant Rigid Low Thermal Conductivity Non-Sparking

We are engaged in offering comprehensive range of FRP Filament Winding Tubes that is manufactured using the best quality of raw material. Our tubes are produced using a filament wound technique that gives the tube, both hoop and axial strength. ARC FRP tubes have high durability, high stability and high performance. We do complete quality checking of these Filament Winding Tubes to ensure quality and durability.   Our FRP Filament Winding Tubes also find use in   Waste Water/Pollution Control Petro Chemical Cooling Towers Oil Air/Ventilation Water Fume Extraction Transport

ARC Insulations is one of the leading manufacturer and supplier of fiberglass earthing discharge rod. Our discharging rod is made of epoxy resin and boron free fiberglass roving pultrusion tubes, which are safe for exposing the worker to a large risk of electric shock. Our hot sticks are manufactured from the highest grade electrical rated fiberglass and meet or exceed all applicable industry performance criteria including ASTM F711, ASTM F1826, and OSHA 1926.951(d).or IEC 60060 and IS 2071 part. Application : ARC Earthing discharge rod is designed to protect people working at de-energized overhead lines or bus bar. This unique product provides 100% safety, against an unexpected return of power on network. By attaching different tools to the end of the hot stick, a worker can use discharge rod for below applications,   Test for voltage Tighten nuts and bolts Brush items Prune foliage Prune foliage Connect tie wires Install insulating sleeves Disconnect switches Replace cutout tubes and reclose Remove pole covers Replace bulbs And complete many other overhead tasks   Electrically Insulated Telescoping Tools have maximum convenience for the linemen because they permit them to perform many routine jobs from ground level. Specification :   Fiber glass discharge rod manufactured from high quality epoxy resin. Products manufactured in automatic pultrusion plant,  hence, strong and sturdy. Super smooth glossy finish prevents moisture. Excellent dielectric strength. Unique Telescopic design easy to assemble & easy to operate. Equipped with FRP/Rubber insulator to increase creepage distance. Bottom provided with slip resistance rubber grip. Canvas cover bag for protection of equipment. Tested as per IS & IEC standard.

ARC FRP cable trays are developed for a comprehensive range of cable management needs in environments beyond reach of conventional materials where corrosion resistance and lasting mechanical performance are key requirements. Constructed from glass reinforced thermoset isopthalic polyester fire retardant resins, ARC Cable Support Systems are designed and manufactured with a structural integrity normally only associated with steel and aluminum, but without their corrosion, weight and electrical conductivity problems. UV stabilizers & Fire retardants are added to enhance the properties. We manufacture cable trays by means of the pultrusion process, with a combination of cross strand glass mat which is resin soaked and pulled through a die to produce a very solid structurally sound profile. Our FRP Cable Trays can be supplied in a variety of sizes along with a comprehensive array of fittings to cater for any project large or small. ARC FRP cable trays can be supplied either as the cable tray or with the uniquely designed ‘Click-fit-Lid’ so it is fully enclosed. All our cable trays can easily be fabricated onsite or, offsite. All ARC Cable Tray Systems (CTS) are designed using high strength to weight ratio pultruded structural composite profiles. The ARC CTS are manufactured as per: • NEMA FG 1: 1993 Rev. 1 (1994) • IS 6746: 1994 • ONGC 4000 S • EIL-50 OEDS - 422 Rev. 4 Installation way of our cable trays are flexible. They could be laid overhead along with the process pipeline, lifted between floors and girders, installed on inside and outside wall, pillar wall, tunnel wall, furrow bank, also could be installed on the open air upright post or rest pier. ARC cable trays could be laid horizontally, vertically. They could turn angle, divided according to "T" beam or crossly, could be widened, heightened, changed track. On large projects, our cable systems have the ability to adapt to the said project and we are more than willing to discuss your requirements.

FRP and SMC  bus bar supports made of fiber class sheet are used mainly for supporting bus bar in control panel, bus ducts etc. to allow the fixation of copper and aluminum bar or bus bar. Due to heavy mechanical strength and high insulations resistance it is the best materials for use with various DC/AC current carrying conductors. Arc Insulation is a leading OEM supplier for bus bar supports to leading MNC in India and also export to other Asia and middle east markets. We can cater to designs as per our customer requirements.

FRP PLAIN SHEET

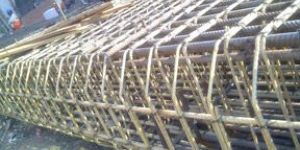

ARC GFRP Rebars are being made as per ACI 440 guidelines and stringent quality measures undertaken at every stage, enabling it to deliver impeccable end products. For many years, there have been many studies on the corrosion issue with steel rebars, and the interest in FRP (Fiber Reinforced Polymer) has arisen recently as prospective substitute for steel. Careful consideration on potential of FRP rebar to fill the cost and performance needs may suggest appropriate solutions. Glass fiber-reinforced polymer rebar is one of the new products on the market that could offer a number of benefits to the construction and tunneling industry. Applications Fiberglass rebar may be a suitable alternative to steel reinforcing in: Architectural Concrete:  column facades, window lentils, architectural precast elements, hand railing, and  fountains, etc. Concrete exposed to de-icing salts in: bridge decks, railroad grade crossings, median barriers, parking garage elements, and salt storage facilities, etc. Concrete exposed to marine salts in: seawalls, water breaks, buildings & structures near waterfront, aquaculture operations, and floating marine docks, etc. Concrete used near electromagnetic equipment such as: MRI rooms in hospitals, airport radio & compass calibration pads, and concrete near high voltage cables, transformers, substations, etc.
