AIR Cooled Chillers Dealers in Surat (9 products available)

In KW: 7KW – 42KW and above as per the requirements. In LitresHr.: 325Ltr. to 2000Ltr. and above as per the requirements. Depandable hermetic Scroll and Reciprocating Compressor Singificantly reducing energy consumption and noise levels.

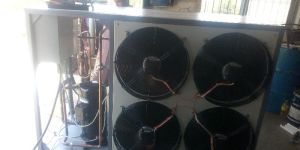

We are offering air cooled water chiller. Chiller are being designed keeping in focus the ever varying cooling need of such equipment and processes

• Weight: 1000-2000kg, 2000-3000kg, 3000-4000kg, 4000-5000kg
• Color: Black, Blue, Brown, Grey, Light Green, Light White
• Voltage: 110V, 220V, 380V, 440V
• Warranty: 1year, 2years
• Type: Air Cooled Chillers
• Application: Industrial
• Condition: New, Used
• Automatic Grade: Automatic, Manual, Semi Automatic
• Power: 1-3kw, 12-15kw, 15-18kw, 3-6kw, 6-9kw, 9-12kw
• Driven Type: Electric, Hydraulic

• Condition: New
• Speciality: Rust resistance
• Usage: Industrial
• Advantage: Easy to Operate
• Performance: Optimum
• Features: Long functional life

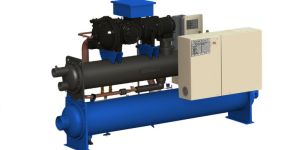

These Chillers have been designed to adopt variable cooling load with variable compressors like scroll, screw and reciprocating etc. and intelligent controller to help in precise cooling. A more Efficient Chiller is a motor step along the path of reduce energy consumption. The variable speed chiller with the variable frequency drive. Processor have to select chiller based on their maximum cooling capacity requirements and while this approach assures plenty of chiller capacity. it was not always very energy efficient. That is because typical chillers are equipped with fined speed / fined motor compressor which ran in full load capacity at low production time. In this case we can use variable speed compressor or VFD which operates effecting between 10% to 100% of its rated capacity. This means a 10-ton chiller can operate very efficiently as a 1-tonchiller. it give energy saving between 30%  to 50% of initial investments.  Features Energy Savings between 30 % and 50% of the initial investments Soft start Less wear and tear compared to compressor cycle Tight temperature control within ½ a degree Require 60% lower start up amps Serviceable on time, reducing downtime Better electrical protection

• Phase: Three Phase
• Material: Mild Steel
• Brand Name: Trane
• Type: Semi-Automatic
• Capacity: 20 to 130 Tons
• Voltage (volt): 220 V
• Application: Industrial
• Condition: New
• Air Flow: 43200 CMH
• Cooling Capability: 35.5 kW
• Power Source: Electric
• Frequency: 50 and 60 Hz

Voltas Electro-mechanical and Refrigeration Business Group, an 150:9001 company is the pioneer and leader in the field of electro-mechanical and refrigeration. Because of its commitment to provide customers with the latest green technology and ‘best value for money Voltas has introduced a new series of energy-efficient Chillers, using the environment friendly refrigerant R-134a. The chillers have become an ideal choice for Green Building Projects and other air-conditioning applications. Available in a wide range of capacities, each unit is tested in a state-of-the-art facility, matching international standards, prior to their delivery – thus ensuring reliability and optimum performance. WIDEST RANGEECBC Series – 100 TR to 380 TRGreen Series 90 TR to 360 TR(For models of higher & lower capacities than those mentioned here, please contact nearest Voltas sales office.) EIGHT POWERFUL FEATURES: Exceptional Energy Efficiency by Design • Basic equipments are designed to operate compressors on a comparatively better suction pressure and an optimum discharge pressure, to maximize efficiency benefit.• Compressor with step-less capacity control mechanism, operates in response to the chilled water outlet temperature, and precisely matches the part-load requirements without hunting.• Electronic expansion with controller and sensors, respond quickly to the variable operating conditions and enhances efficiency.• Fan cycling programmed on discharge pressure, saves the energy consumption during low ambient temperature, or at partial load operation.• Compressor staging has been programmed to save energy, by running adequate numbers of compressors at maximum efficiencies, even at different loads.• Economize, greatly improves efficiency of the unit and full-loadcooling capacity. Additional sub cooling is created by expandingsmall part of liquid refrigerant from condenser, to sub coolremaining part of total refrigerant, in a compact plate-type heat >,exchanger (PHE). The Economizer’s working process is depicted in the diagram. Screw compressor is provided with an additional suction port called ECO port, which makes it possible to suck the refrigerant vapour from PHE, to accomplish economizer heat transfer.Screw Compressor Means Efficiency and ReliabilityScrew Compressors are sourced from industry’s best manufacturers, and are tested in accordance with ARI Eurovent standards. The Compressors are known for efficiency, ruggedness, reliability and consistent part-load operations.

Online Chiller, Water Cooled Chillers

air cooled v shape chiller, Water Cooled Chillers, tube-in-tube type chiller
