Alidhra Weave Tech Pvt Ltd. Udhna, Surat, Gujarat

Market Segment: High Speed processing of wide range of yarns offering high versatility & quick-changeovers for flexibility Application Suitable for Large Package Twisting upto 12 Kgs Knotless Technology Drive System: Individual Motorized Spindle with Programmable RPM & TPM on every position for high versatility & flexibility Frame : Heavy Duty Frames with Conveyor Belt for easy collection of Large TakeUp Packages. Split Control for each side Denier Range: Free Balloon: 600-6000 denier; Controlled Balloon: 600-18000 denier Twist Range: 30-600 TPM (ideal) Spindle Type: 200mm, 230mm & 310mm Feed Type: D/F Bobbins, Assembly Wound Packages, Speeds: 9000 RPM & 400 mtrs/min (depending on Yarn)   Highlights Individual Motorized Spindle  High Speed Takeup with Individual CAMbox per position Extremely small lot production possible without loosing Overall Equipment Efficiency (OEE) Direct Assembly & Twisting for upto 4-ply on the same machine Multi-Ply Twisting with S & Z Ply/Cable Twist possible on the same machine. Upto 400 mtrs/min takeup speeds allowing high productivity Parallel processing of multiple types of yarns with different twists at the same time.

Market Segment:Technical / Industrial Yarns where Low Twists or Binding Twists need to applied for ease of use in downstream processes. Application Preparation of Assembly wound package of multi-ply Filament yarns of 3-10 Kgs for next Twisting Process. Technology Drive System: Fully Programmable Speed, Traverse Ratio, Winding Ratio, Length, Weight by PLC with Touch Screen HMI Denier Range: 400 - 18000 denier Filament Yarns Ply Range: upto 20 ply with Ply sensor & Auto-Stop system TakeUp: Cheese with 250mm Traverse Length & Max. 12 Kg TakeUp Weight Speeds: Max. upto 1000 mtrs/min (Mechanical)   Highlights Precision Winding for best weight-diameter optimisation while ensuring consistent tenion during unwinding. Single-Spindle winders with individual control system per Spindle Highest Performance with minimum space requirement Highest efficiency during Bobbin Change as only 1 spindle needs to stop Overfeed & Yarn Tension control systems available as option Exact metered length package to ensure minimum wastage in Ply Yarns Modular frame enables to purchase exact number of spindles as required

Brand Name : Weavetech

After-Sales Service Provided : Engineers available to service machinery overseas

Application : Spun Yarn Twisting

Automatic Grade : Automatic

Condition : New

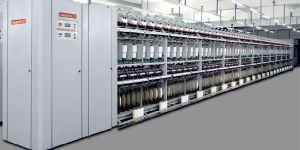

Market Segment: Filament Sewing Threads, Embroidery Threads, Technical Threads, Twines, Ropes etc Application Economic production of 2/3 ply yarns with S/Z twist in Ply & Cable Technology Drive System: Tangential Belt Drive with Programmable RPM & Mechanical TPM control Frame : Double-Deck with PRIMARY:SECONDARY in 2:1 ratio for perfect balance of 2/3 ply production Denier Range: Free Balloon: 2/50 - 3/300 denier; Controlled Balloon: 2/50 - 3/600 denier Twist Range: 150-1200 TPM (ideal) Spindle Type: PRIMARY: 70mm , 90mm, 110mm ;  SECONDARY: 110mm, 125mm, 150mm TakeUp Type: 230mm Parallel Tube with upto 2.5 Kg Capacity max. Speeds: 12000 RPM & 100 mtrs/min (depending on Yarn)   Highlights Optimised high speed Spindle Design for Energy Savings Yarn Path designed specifically for maintaining Tenacity & Strength of threads Yarn Sensor & Cutter ensures no missing-ply yarn are produced reducing wastage Soft-Package for direct dyeing is possbile with cradles designed to maintain optimised pressure Individual BiConical Tapering Mechanism for Excellent final packages High Speed Gearbox with upto 100 mtrs/min TakeUp Speeds

Model Number : SD-8 / SD-7

Lead Time : 30 days

Place of Origin : India

Automatic Grade : Automatic

Condition : New

Application : Spun Yarn Twisting

Brand Name : Weavetech

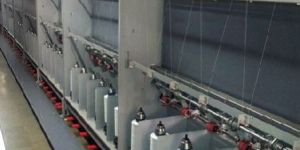

Market Segment: Label manufacturing, Knitting Application Continuous Twisting / Shrinking of Nylon & Polyester stretch yarns to increase softness, bulkiness & final count Technology Drive System: Tangential Belt Drive with PLC control for RPM, TPM, Shrink Ratio, Temperature Control Frame : Single-Deck with Pre-Assembled Frames including InFeed & OutFeed Overfeeds with Electric Heater Denier Range: 2/75 - 2/600 denier Twist Range: 80 - 600 TPM (ideal) Spindle Type: 110mm, 125mm, 145mm Feed Type: Very Soft Cheese or Muff package for Direct-Dyeing Speeds: 9000 RPM & 150 mtrs/min (depending on Yarn & Application)   Highlights Twisting, Shrinking, Setting & Stabilizing in single-process Energy Efficient electric heater with 2-zone sensing for consistent & even heating Advance PLC Control to set & monitor RPM, TPM, Shrinkage Ratio & Temperature

Market Segment: Industrial / Technical High Tenacity Yarns used in Technical Fabrics, Sewing Threads, Twines etc. Application Suitable for imparting Low Twists to fine-medium denier High Tenacity Filament yarns for use in Weaving. Technology Drive System: Inverter Driven VFD system for RPM Control, Mechanical quick-change gear system for TPM Control Denier Range: 110-800 denier Filament Yarns Twist Range: 60-1200 TPM (Ideal) Spindle Type: For Cops: 110mm, 125mm, 145mm;   For Cheese: 145mm, 190mm, 230mm TakeUp: 170mm, 200mm, 230mm, 290mm Parallel tubes Speeds: 12000 RPM & 120 mtrs/min (Mechanical Max)   Highlights Individual BiConical Tapering Mechanism for Excellent final packages Optimised high speed Spindle Design for Energy Savings High Speed Gearbox with upto 120 mtrs/min TakeUp Speeds Individual Spindle Brake for high-efficiency Electronic Dropper Sensor provides central indication for any yarn breakage. Dual Drive End to ensure lowest energy consumption with lowest maintenance

Market Segment Industrial / Technical High Tenacity Yarns used in Technical Fabrics, Sewing Threads, Twines etc. Application Suitable for imparting Binding / Low Twists to medium-Coarse denier Filament yarns Technology Drive System: Inverter Driven VFD system for RPM Control, Mechanical quick-change gear system for TPM Control Denier Range: 110-800 denier Filament Yarns Twist Range: 60-1200 TPM (Ideal) Spindle Type: For Cops: 110mm, 125mm, 145mm;   For Cheese: 145mm, 190mm, 230mm TakeUp: 170mm, 200mm, 230mm, 290mm Parallel tubes Speeds: 12000 RPM & 120 mtrs/min (Mechanical Max)   Highlights Individual BiConical Tapering Mechanism for Excellent final packages Optimised high speed Spindle Design for Energy Savings High Speed Gearbox with upto 120 mtrs/min TakeUp Speeds Individual Spindle Brake for high-efficiency Electronic Dropper Sensor provides central indication for any yarn breakage. Dual Drive End to ensure lowest energy consumption with lowest maintenance

Application : Winding

Condition : New

Automatic Grade : Automatic

Market Segment: Woven fabrics for furnishing-upholstrey & other medium to high GSM fabrics Application Suitable for imparting Low Twists to fine-medium denier High Tenacity Filament yarns for use in Weaving. Technology Drive System: Inverter Driven VFD system for RPM Control, Mechanical quick-change gear system for TPM Control Denier Range: 30-450 denier Filament Yarns Twist Range: 140-1500 TPM (Ideal) Spindle Type: 90mm, 110mm, 125mm, 145mm TakeUp: 170mm, 200mm, 230mm Parallel tubes Speeds: 14000 RPM & 100 mtrs/min (Mechanical Max)   Highlights Individual BiConical Tapering Mechanism for Excellent final packages Optimised high speed Spindle Design for Energy Savings High Speed Gearbox with upto 100 mtrs/min TakeUp Speeds Mechanically adjustible Anti-Patterning & Edge-Breaking Rust-Free metallurgy for Tensioner & Stationary Cups Electronic Dropper Sensor provides central indication for any yarn breakage. Dual Drive End to ensure lowest energy consumption with lowest maintenance

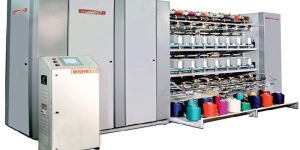

Market Segment: Fancy fabrics producers for use in garments & upholstery where a core & effect yarn is required to bring our the design Application Single / Double covering of any core yarn including spun, filament, elastomer, technical yarns for use in weaving Technology Drive System: Independent Drive for Top & Bottom covering spindle, TakeUp drive, Elastomer feed drive with PLC & HMI control Frame : Heavy Duty Pre-Assembled frames with Top & Bottom covering spindle & single-takeup Denier Range: Core: Any combination of 3 yarns upto 1000 denier;  Covering: Any yarn upto 300 denier would on a D/F Bobbin Twist Range: 300-3000 TPM (programmable) Core Ply: upto 3 ply with Yarn Sensing & Cutter TakeUp Type: 170mm Parallel Tube TakeUp with Central BiConical Traverse Speeds: 22000 RPM & 60 mtrs/min (depending on yarn combination & parameters   Highlights Unlimited creativity with multiple combination of 5 yarns at different twist variations High Speed spindles for upto 22,000 RPM for high production Capability for upto 3-ply core yarn with missing-ply detection gives extremely high flexibility for creative yarns Lycra/Spandex/Elastomer feed drive with programmable stretch ratio & ply detection Yarn Path designed specifically for maintaining Tenacity & Strength of threads Large knotless package of upto 1.8 Kg & upto final 1200 denier

Market Segment: Low GSM / light weight garment fabrics & liners Application Suitable for imparting High Twists to fine denier Filament yarns for use in Weaving. Technology Drive System: Inverter Driven VFD system for RPM Control, Mechanical quick-change gear system for TPM Control Denier Range: 20-150 denier Filament Yarns Twist Range: 600-3000 TPM (Ideal) Spindle Type: 60mm, 70mm, 80mm, 90mm TakeUp: Double-Flanged Roll (135, 155mm) / Parallel Tube (155mm) Speeds: 16000 RPM & 50 mtrs/min (Mechanical Max)   Highlights Optimised high speed Spindle Design for Energy Savings Cast Iron Gearbox with Anti-Patterning & BiConical Traverse High Speed Gearbox with upto 50 mtrs/min TakeUp Speeds Rust-Free metallurgy for Tensioner & Stationary Cups M.S Cradle for consistent pressure for better package built Overfeed with Ceramic Teeth to ensure even package density accross spindles Electronic Dropper Sensor provides central indication for any yarn breakage.

Brand Name : Weavetech

Condition : New

Market Segment Clients who need large production of specific deniers without any flexibility Application Suitable for Large Package Twisting upto 8 Kgs Knotless Technology Drive System: Tangential Belt Drive with Mechanical RPM & TPM control Frame : Single-Deck with Pre-Assembled frames Denier Range: Free Balloon: 600-2800 denier; Controlled Balloon: 600-6000 denier Twist Range: 60-600 TPM (ideal) Spindle Type: 200mm, 230mm & 310mm Feed Type: D/F Bobbins, Assembly Wound Packages, Speeds: 6000 RPM & 120 mtrs/min (depending on Yarn)   Highlights Tangential Belt Drive with individual pressure pulley per spindle Direct feeding of large FDY packages upto dia.310mm Double-Bearing Heavy Duty Spindles with closed Lubrication 'PosiFeed' Overfeed system for low & even winding tension for excellent package built Low-Friction yarn path to ensure no drop in tenacity Centralised Traverse gearbox with process speeds upto 120 mtrs/min (mechanical)

Market Segment: Mainly used in production of soft light weight filament fabrics for use in garments Application Production of Polyester Fancy Crepe Textured Yarn where effect is given using magnetic false-twist spindle Technology Drive System: Tangential Belt Drive with PLC control for RPM, TPM, False-Twist, Temperature Control Frame : Double-Deck with with Electric Heater Denier Range: 30-150 denier Flat Polyester yarn Twist Range: 300-3000 TPM (programmable) Spindle Type: 70mm TakeUp Type: 135mm Parallel Tube with Centralized BiConical Tapering Speeds: 16000 RPM & 60 mtrs/min (depending on Yarn & other parameters)   Highlights Extremely cost-effective method to produce "Fancy Crepe Yarn" Electric Heater with Quick Start ensures lower operating costs over liquid heaters PLC Control for RPM, TPM & False-Twist ration allows high flexibility & quick changeovers Yarn path optimised to maintain softness & builkiness of the resultant yarn High Speed operation & compact frame provides maximum production per unit investment

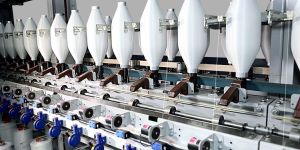

Market Segment:Filament Yarns which needs to be twisted for further application in Weaving, Knitting, Cabling Application Preparation of small Cops / Pirns / Bobbins for next Twisting or Covering Process. Technology Drive System: Fully Programmable Speed, Shape, Traverse Ratio, Winding Ratio, Length, Weight by PLC with Touch Screen HMI Denier Range: 20-800 denier Filament Yarns (Single-Ply) TakeUp: 240-420mm Cops / Bobbins with max. 2.0 Kgs weight Speeds: Max. 800 mtrs/min (Mechanical)   Highlights Fully Progrmmable SERVO Traverse Heavy Duty LFR Traverse with Dual Support for long maintenance-free life Closed loop PLC with wide range of programmable parameters Individual Spindle Brakes to ensure highest opertor efficiency Individual Belt Pressure Pulleys to ensure minimum weight variations Individual Length Counter per spindle to ensure equal length packages Precision Dial Tensioner to ensure consistent yarn tension throughout the package

Market Segment: Carpet / Furnishing Yarns where Low Twists or Binding Twists need to applied for ease of use in downstream processes. Application Preparation of Assembly wound package of multi-ply Filament yarns of 3-10 Kgs for next Twisting Process. Technology Drive System: Fully Programmable Speed, Mechanically adjustible Winding Ratio Denier Range: 1200 - 18000 denier Filament Yarns Ply Range: upto 20 ply with Dropbox sensor & Auto-Stop system TakeUp: Double-Flanged Bobbin with Max. 4.5 Kg TakeUp Weight Speeds: Max. upto 300 mtrs/min (Mechanical)   Highlights Centralized traverse for parallel winding of Mult-Ply yarn ensures even tension on all Ply Individual Motor driven Spindles with Start/Stop Double-Flanged Bobbin takeUp ensures Cross-Winding-Free packages Highest efficiency during Bobbin Change as only 1 spindle needs to stop Positive Overfeeding ensures disturbance-free winding of multiple plys Exact metered length package to ensure minimum wastage in Ply Yarns

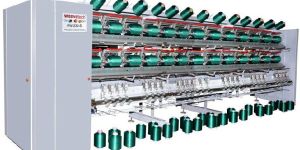

Market Segment: Fine to Coarse denier in FIlament Yarns for use in Weaving or Knitting Application Preparation of Soft Package for Dyeing or Hard Packages Post-Dyeing   Technology Drive System: Split Control. Each side can be programmed to run different yarns. PLC with HMI Programmable: Speed, Winding Ratio & Angle, Anti-Patterning Cycles, Edge-Breaking Cycles, Overfeed Ratio Denier Range: 30 - 600 denier Filament Yarns, 20-150 denier Mono Filament Yarns. TakeUp: 170 / 230mm Parallel Tubes with max. 4 Kg Weight or Dia. 200mm Speeds: Max. upto 1200 mtrs/min (Mechanical)

Automatic Grade : Automatic

After-Sales Service Provided : Engineers available to service machinery overseas

Condition : New

Brand Name : Weavetech

Automatic Grade : Automatic
