Alidhra Weavetech Group Udhna, SURAT, Gujarat

Traditionally the core competency of WEAVETECH lies in its ability to understand specific customer needs & respond to satisfy those needs with highly customized solutions. The result is world’s largest range of TFO Twisting machineries to offer you the best possible value out of your investment.

Traditionally the core competency of WEAVETECH lies in its ability to understand specific customer needs & respond to satisfy those needs with highly customized solutions. The result is world’s largest range of TFO Twisting machineries to offer you the best possible value out of your investment.

Machine Type : Automatic

Brand Name : Weavetech

After-Sales Service Provided : Engineers available to service machinery overseas

Number Of Flower : Twisting Machine

Brand Name : Weavetech

Application : Twisting

Brand Name : Weavetech

Number Of Flower : Twisting Machine

Condition : New

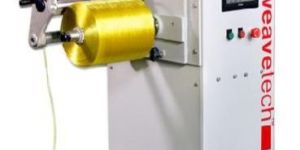

Market Segment:Technical / Industrial Yarns where Low Twists or Binding Twists need to applied for ease of use in downstream processes. Application Preparation of Assembly wound package of multi-ply Filament yarns of 3-10 Kgs for next Twisting Process. Technology Drive System: Fully Programmable Speed, Traverse Ratio, Winding Ratio, Length, Weight by PLC with Touch Screen HMI Denier Range: 400 - 18000 denier Filament Yarns Ply Range: upto 20 ply with Ply sensor & Auto-Stop system TakeUp: Cheese with 250mm Traverse Length & Max. 12 Kg TakeUp Weight Speeds: Max. upto 1000 mtrs/min (Mechanical)   Highlights Precision Winding for best weight-diameter optimisation while ensuring consistent tenion during unwinding. Single-Spindle winders with individual control system per Spindle Highest Performance with minimum space requirement Highest efficiency during Bobbin Change as only 1 spindle needs to stop Overfeed & Yarn Tension control systems available as option Exact metered length package to ensure minimum wastage in Ply Yarns Modular frame enables to purchase exact number of spindles as required

Automatic Grade : Automatic

Application : Winding

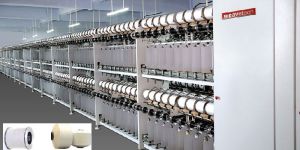

Market Segment: Low GSM / light weight garment fabrics & liners Application Suitable for imparting High Twists to fine denier Filament yarns for use in Weaving. Technology Drive System: Inverter Driven VFD system for RPM Control, Mechanical quick-change gear system for TPM Control Denier Range: 20-150 denier Filament Yarns Twist Range: 600-3000 TPM (Ideal) Spindle Type: 60mm, 70mm, 80mm, 90mm TakeUp: Double-Flanged Roll (135, 155mm) / Parallel Tube (155mm) Speeds: 16000 RPM & 50 mtrs/min (Mechanical Max)   Highlights Optimised high speed Spindle Design for Energy Savings Cast Iron Gearbox with Anti-Patterning & BiConical Traverse High Speed Gearbox with upto 50 mtrs/min TakeUp Speeds Rust-Free metallurgy for Tensioner & Stationary Cups M.S Cradle for consistent pressure for better package built Overfeed with Ceramic Teeth to ensure even package density accross spindles Electronic Dropper Sensor provides central indication for any yarn breakage.

Brand Name : Weavetech

Application : Weaving

Condition : New

After-Sales Service Provided : Engineers available to service machinery overseas

Traditionally the core competency of WEAVETECH lies in its ability to understand specific customer needs & respond to satisfy those needs with highly customized solutions. The result is world’s largest range of TFO Twisting machineries to offer you the best possible value out of your investment.

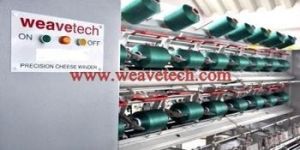

Application Highlights:   Suitable for Feed Package Preparation for use in TFO: Only Bi-Conical Winding Shape can be programmed. Ideal for fine-tuning the winding angled & shape of the Cops/Pirn based on different typer of Yarns. Range of Cops / Pirns sizes can be accomodated on the available models. Only Filament yarns can be wound for processing. Ideal for fine-medium deniers where 0.6 kg to 1.5 kg knotless packages are sufficient. Ideal for medium-high TPM processing whre small feed packages are required to reduce doffing time. Special Option: Electronic Traverse for programmable Bi-Conical Traverse Length & Shape. Individual position Length Counter (optical) with Cutter programmed & controller centrally. Individual position Length Counter (optical) with Cutter programmed Inidividually with Individual Display. Yarn Oiler, Roller Type, for oil application. Speed control centrally for provinding even application. Wide range of Adapters for fixing speciallised & custom design Cops/Bobbins onto Spindles. Online UPS Battery Backup for Electronic Traverse Systems of model WE-series & WS-series. Silent Feauters:     Direct-Drive Electronic Motor for Traverse provides faster setups.  Elimination of Mechanical Traverse gearbox eliminated expensive maintenance related to it. Single-Deck Frame structure for ease of operation & use bringing higher-efficiency. Rigid Modular Frame structure enables stable operations at high yarn speeds. Complete Ceramic Yarn path for abrasion free yarn handling at high yarn speeds. Dial-Type Spring loaded tensioners for uniform unwinding tension at high speeds. Constant Yarn speed with VF Inverter Drive System. Configurable Doff Time either based on Time or Length. Single-Position master length counter for centralised doff setting. Individual Breaks for every position. 'Memory Safe' protection during power-loss for WE & WM series.

Condition : New

Application : Winding

Automatic Grade : Automatic

Traditionally the core competency of WEAVETECH lies in its ability to understand specific customer needs & respond to satisfy those needs with highly customized solutions. The result is world’s largest range of TFO Twisting machineries to offer you the best possible value out of your investment.
