FeatureHigh Clarity, Proper Working, Smooth Texture, Temperature Maintained, Uniform Finish, Water Proof
ConditionNew
FinishingPolished
Brand NameE-Link
ShapeRound
ApplicationEarthing
Length1m, 2m, 3m

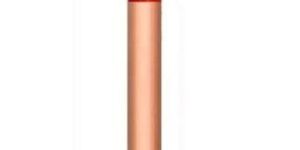

NameCopper Earthing Electrode
Dimension32mm, 48mm, 60mm, 77mm, 88mm
ColourGolden
E-Link offers unique Dual Electrode Technology Based Advanced Earthing Electrodes. It mainly consists of Primary electrode which is directly connected to electrical equipment and the Secondary Electrode, also known as outer Electrode which is in direct contact with Earth. We use B Class Low carbon steel pipe as outer electrode & low carbon steel strip as inner or primary electrode. Both the electrodes are subjected to hot dip galvanization or copper electroplating. Special highly conductive material (SHCM), which is non corrosive, is pressure filled between the outer and Inner electrode. SHCM safeguards the Electrode from getting corroded over a long period of time inside the soil. Thus even if the Outer Electrodes get corroded after some years, Inner Electrode remains intact which increases the reliability and life of Earthing System in years.
+3
