Electric Hoists Dealers in Hazira, Surat

(4 products available)
Hazira
  • Electric Wire Rope Hoists

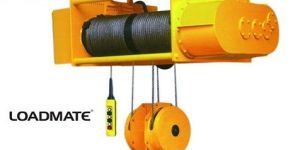

    Electric Wire Rope Hoists

    Get Price Quote
    Our company is a premium Manufacturer, Supplier and Exporter of Electric Wire Rope Hoists from Surat, Gujarat. Our Electric Wire Rope Hoists are suitable for medium and heavy duty operations and provides hassle free operation. We are capable of delivering Electric Wire Rope Hoists in bulk to buyers all over the world.   Features : LOADMATE Electric Wire Rope Hoist are suitable for Medium/ Heavy duty operation and are designed in accordance with IS:3938. LOADMATE Hoists are designed in modular construction with each component easily accessible for maintenance. The Rope drum, Gear Box, Motor, Brake and panel can be easily attended to, the frame is of study design fabricated from steel plates & is welded/ bolted type. Rope Drum : Steel Fabricated/ Seamless Pipe Drum is machine grooved to IS-3938 and is designed to accommodate the whole length of Wire Rope in one layer. Wire Rope : 6 X 37 construction Steel/ fiber core Wire rope as per IS:2266 with minimum factor of safety of 6 is provided. Gear Box : Complete gear train for hoisting motion is in an enclosed cashing provided with oil bath lubrication. The gears are made from alloy steel. Lifting Hook (IS-3815) : Forged steel Shank Type hook with Trust Bearing for swivel is incorporated. Trolley : Runner Wheel can be factor adjusted for various size I-Beams, trolley, Motor driven, Hand chain driven or pull push type can be provided as per requirements. Motor : Motor is of Squirrel Cage, 40% CDF rating in class B insulation as per IS-325-1970 manufactured by NGEF/ Bharat BIJLEE/ GEC/ CROMTON/ own make. Hoist Brake : The Hoist Motor is fitted with in electromagnetic brake of Shoe/Disc type. The brake is selected for 150% of load torque to ensure safe holding of load, Make 'BCH'/EMCO/ UNITORC. Limit Switch : Snap action type limit switches are provided to avoid over hoisting and over lowering. Control : The hoist is controlled from ground level by means of pendent type Push Buttons operating on low voltage of 24 volt to ensure safety of the operator. Control panel is of enclosed type, easily removable cover complete with Transformer, Contactors, Reverse phase protector, Single phase relay & Under/Over Voltage relay.
    ...more

    RMS INDUSTRIES

    Hazira, Surat
    15 yrs
  • Electric Wire Rope Hoist

    Electric Wire Rope Hoist

    Get Price Quote
    • Rope DrumSteel Fabricated/ Seamless Pipe Drum is machine grooved to IS-3938 and is designed to accommodate the whole length of Wire Rope in one layer.
    • Wire Rope6 X 37 construction Steel/ fiber core Wire rope as per IS:2266 with minimum factor of safety of 6 is provided.
    • Gear BoxComplete gear train for hoisting motion is in an enclosed cashing provided with oil bath lubrication. The gears are made from alloy steel.
    • Lifting Hook (IS-3815)Forged steel Shank Type hook with Trust Bearing for swivel is incorporated. Trolley: Runner Wheel can be factor adjusted for various size I-Beams, trolley, Motor driven, Hand chain driven or pull push type can be provided as per requirements.
    • MotorMotor is of Squirrel Cage, 40% CDF rating in class B insulation as per IS-325-1970 manufactured by NGEF/ Bharat BIJLEE/ GEC/ CROMTON/ own make.
    • Hoist BrakeThe Hoist Motor is fitted with in electromagnetic brake of Shoe/Disc type. The brake is selected for 150% of load torque to ensure safe holding of load, Make 'BCH'/EMCO/ UNITORC.
    • Limit SwitchSnap action type limit switches are provided to avoid over hoisting and over lowering.
    • we are able to offer a broad array of heavy duty wire rope hoist. these electric hoists are used for material handling and are best suited for both medium and heavy duty operations.
    ...more

    Loadmate

    Hazira, Surat
    11 yrs
  • Electric Chain Hoist Euro Series

    Electric Chain Hoist Euro Series

    Get Price Quote
    • TypeElectric Chain Hoist
    • Voltage220V-240V, 380V-415V, 50/60Hz
    • Power SourceElectric
    • Lifting Capacity500kg, 1000kg, 2000kg, 3000kg
    • Lifting Speed5m/min, 8m/min, 10m/min
    • PRODUCT DESCRIPTION LOADMATE Electric Chain Hoist is designed for both standard and heavy-duty operations. These hoists adhere to the standards set by IS 6547, DIN, and American specifications. LOADMATE Electric Chain Hoist comes with numerous features that many other EOT Crane Manufacturers typically consider as optional. These Electric Chain Hoists are also widely recognized as Motorized Chain Hoists. LOADMATE offers Electric Chain Hoist in 3 Variants. Fix or Stationary Hoists: Hook mounted hoist is provided where only up-down lifting motion is required, like in a goods lift. High-lift applications like wind turbine maintenance winches also require hook-type electric chain hoists with a big metal chain bucket to store the long length of the load chain. Entertainment hoists are also a variant of fixed hoists but involve some modification for the inverted usage. Electric Chain Hoist with Manual Trolley: Manual Trolley is used when the cross traverse motions are less, or the total travelling length is not more like in JIB Cranes. Electric Chain Hoist with Electric Trolley: This type is the best alternative to a standard Electric Wire Rope hoist. This variant is used in single-girder EOT Cranes, Gantry Cranes, Crane Kits, Rail Systems, and also in fixed Monorail applications. Electric Travelling Trolleys provide smooth movement of the load and create low resistance movement on the Monorail or Girders
    ...more

    RMS INDUSTRIES

    Ichchhapor, Surat (4.6 km from Hazira)
    6 yrs
  • Mini Electric Hoist

    Mini Electric Hoist

    Get Price Quote
    Mini Electric Hoist, Chain Pulley Block, Electric Chain Hoist, Trolley

    RMS INDUSTRIES

    Hazira, Surat
    9 yrs
