Additional FeaturesOptional Liquid Level/interface Double Float Measurement, Support Up to 5 Temperature Points Measure
Resolution16-bit D/a
Operating Temperature- 40℃～+85℃
Stem MaterialStainless Steel 304, 316
Measuring Rod Pressure35mpa Continuous/70mpa Peak
Protection classIP65 (IP67 or IP68 can be customized)
Installation MethodThreaded Installation, M18x1.5, M20x1.5 or 3/4″-16unf or Customized
Way OutStraight Out Cable, Aviation Plug, Terminal Block
Magnetic Water Tank Float Level Sensor
Magnetostrictive Level Sensor(liquid level) sensor is a high-precision, large-range absolute position sensor developed by magnetostrictive effect. It has non-contact measurement, high reliability and long service life feature. And can withstand the harsh industrial environment such as oil stains, solutions, dust, high pressure, so it has been widely used in petrochemical, machinery, water, electricity, metallurgy, steel and other industries.

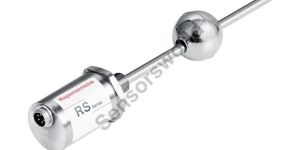

RS serial Magnetic Water Tank Float Level Sensor
Magnetic Water Tank Float Level Sensor(liquid level) sensor is a high-precision, large-range absolute position sensor developed by magnetostrictive effect. It has non-contact measurement, high reliability and long service life feature. And can withstand the harsh industrial environment such as oil stains, solutions, dust, high pressure, so it has been widely used in petrochemical, machinery, water, electricity, metallurgy, steel and other industries.
Features :
* Solid and firm, fully closed design
* Linear measurement, absolute value output
* Non-contact measurement, no abrasion
* High accuracy, high Resolution
* Good environmental adaptability, reliability and stability
* Fully sealed structure, robust and durable
* Absolute position output without zeroing
* Non-linearity, less than ±0.05% of full scale
* Repeatability, better than ±0.002% of full scale
*Optional zero to full

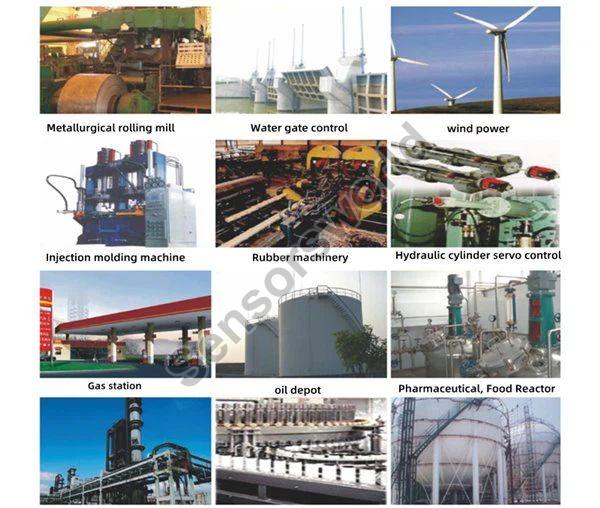

Application
♦ food storage tank level control
♦ Drinking water and sewage treatment systems
♦ Gate opening synchronization control, turbine guide vane opening detection, gas turbine air resistance valve
♦ petroleum, chemical, water, pharmaceuticals, food, beverage and other industries
♦ All other Industrial liquid tank level measurement and control
