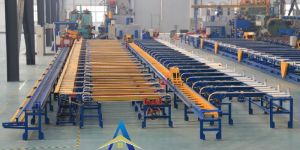

Cooling Bed
Get Price Quote
I. Basics
Type - 4-step Handling TableDimensions- As per Extrusion Machine CapacityWater tank 1) Length: 2000 mm to 3500mm (L)2) Type: flooded water quenching tank3) Material: stainless steel
II. Initial & lead out table
1) Length: As per requirement2) Aluminum rollers with heat resistant sleeve(Temperature resistant 580℃, material: PBO+Kevlar);
Remark: heat resistant sleeve will be cut into three phases; the purpose is to extend service life3)Up initial lead table, equip 3 sets of cooling ducts (power: 3KW/set), Under initial lead table, equip 4 sets of cooling fans (power: 0.37KW/set);
III.Hot Saw
1) Equip 1 set of Hot saw; blade motor2) Equip automatic lubrication system;3) The Hot Saw can continue to cut even if puller not works;
IV. Run out Table
1) Dimension: As per Customer Requirement2) Transmission type: chain transmission;3) Aluminum rollers with heat resistant sleeve temperature resistant 480℃, material: Kevlar, all rollers will be cut into three phases;4) Adopt push-pull type hydraulic system for up/down process;5) Protective cover is against rotation chain pulley;
IV-I. Run-out Transfer Table (1st step)
1) Dimension: As per requirement2) Heat resistant felt belt Temperature resistant 500℃ material: Kevlar3) Individual felt belt can be changed without dismantling axle;
IV-II. Cooling Table (2nd step)
1) Dimension: As per requirement2) Heat resistant felt belt Temperature resistant 500℃ Material: Kevlar3) Equip 14 sets of cooling fans under table (power: 0.55KW/set);4) Individual felt belt can be changed without dismantling axle;
IV-III. Stretcher Transfer Table (3rd step)
1) Dimension: As per Customer Requirement2) Heat resistant felt belt Temperature resistant 250°C, material: nomex3) Individual felt belt can be changed without dismantling axle;
IV-IV. Batching Table (4th step)
1) Dimension: As per Customer Requirement2) Heat resistant felt belt Temperature resistant 250°C material: nomex3) Individual felt belt can be changed without dismantling axle;
V. Stretcher Detail
1) Stretcher Capacity- As per Customer requirement2) Stretcher bed: As per Customer requirement3) Control of stretcher- Pneumatic / Hydraulic as per Customer requirement4) The Stretcher head jaws can be de-twisting (360°);
VI.Saw Transfer Table
1) Dimension: As per Customer Requirement2) Temperature resistant: 180°C, material: polyester]；other rollers with heatresistant sleeve temperature resistant: 180°C, material: polyester;3) Adopt push-pull type hydraulic system for up/down process;4) Protective cover is against rotation chain pulley;
VII. Product Saw Table
1) Saw blade diameter- As per requirement2) Cutting Height- As per requirement3) Auto cutting with a linear walking guide4) Adjustable pneumatic clamp;
VIII. Length Gauge Table
1) Effective gauge Length: As per requirement2) Control Type- Full Auto or Manual as per requirement3) Equip aluminum rollers with heat resistant sleeve temperature resistant: 180°C, material: polyester;
IX. Electrical Control System
1) Voltage: 380V to 440V AC, 50HZ;2) Complete with PLC with touch screen fully automatic / semi automatic as per customer
